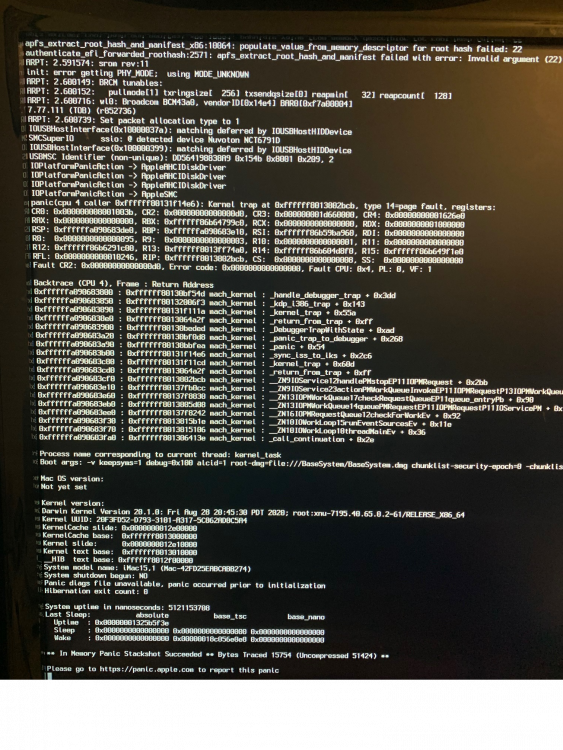

cdstang 0 Posted November 21, 2020 Share Posted November 21, 2020 Trying to install Big Sur on an older system. Its a Z97X Killer board (Bios 2.60) Sata SSD i7-4790K Sapphire Radeon Nitro+ RX 580 8GB I went thru the Opencore and built the efi folder. But it keeps getting a Kernel panic. Its only a few seconds into the boot up. I have zipped the efi folder and with the opencore boot log also. Any help would be great. Thanks 00:000 00:000 AAPL: #[EB|LOG:INIT] 2020-11-15T17:03:33 00:016 00:016 AAPL: #[EB|VERSION] <"bootbase.efi 495.40.10~123 (Official), built 2020-10-30T00:10:36-0700"> 00:032 00:016 AAPL: #[EB|BUILD] <"BUILD-INFO[310]:{"DisplayName":"bootbase.efi","DisplayVersion":"495.40.10~123","RecordUuid":"E287ED06-5B89-4BD5-82FD-8CF9CD5A1AA7","BuildTime":"2020-10-30T00:10:36-0700","ProjectName":"efiboot","ProductName":"bootbase.efi","SourceVersion":"495.40.10","BuildVersion":"123","BuildConfiguration":"Release","BuildType":"Official"}"> 00:049 00:016 AAPL: #[EB|CFG:DEV] r2 0x0 0x0 00:066 00:016 AAPL: #[EB|H:IS] 0 00:082 00:016 AAPL: #[EB|WL:MODE] 0 00:099 00:016 AAPL: #[EB|CFG:ARG] boot-save-log 0x0000000000000002 (0x0000000000000002 < 0xFFFFFFFFFFFFFFFF) default 00:116 00:016 AAPL: #[EB|CFG:ARG] wake-save-log 0x0000000000000002 (0x0000000000000002 < 0x0000000000000002) default 00:133 00:016 AAPL: #[EB|CFG:ARG] console 0x0000000000000001 (0x0000000000000001 < 0x0000000000000001) default 00:150 00:016 AAPL: #[EB|CFG:ARG] serial 0x0000000000000000 (0x0000000000000000 < 0x0000000000000000) default 00:166 00:016 AAPL: #[EB|CFG:ARG] embed-log-dt 0x0000000000000000 (0x0000000000000000 < 0x0000000000000000) default 00:183 00:016 AAPL: #[EB|CFG:ARG] timestamps 0x0000000000000000 (0x0000000000000000 < 0xFFFFFFFFFFFFFFFF) default 00:200 00:016 AAPL: #[EB|CFG:ARG] log-level 0x0000000000000001 (0x0000000000000001 & 0x0000000000000021) default 00:217 00:016 AAPL: #[EB|CFG:ARG] breakpoint 0x0000000000000000 (0x0000000000000000 & 0x0000000000000000) default 00:234 00:016 AAPL: #[EB|CFG:ARG] kc-read-size 0x0000000000100000 (0x0000000000100000 < 0xFFFFFFFFFFFFFFFF) default 00:250 00:016 AAPL: #[EB|H:IS] 0 00:269 00:018 AAPL: #[EB|WL] 0 0 0x01 0x01 0 0x00 01:148 00:879 AAPL: #[EB|BRD:NV] Mac-42FD25EABCABB274 01:383 00:234 AAPL: #[EB|WL] 0 0 0x01 0x01 2 0x00 01:898 00:515 AAPL: #[EB.BST.IDT|+] 01:915 00:016 AAPL: #[EB.BST.IDT|-] 01:932 00:016 AAPL: #[EB|WL] 0 0 0x01 0x01 3 0x00 01:949 00:016 AAPL: #[EB|WL] 0 0 0x01 0x01 4 0x00 01:966 00:016 AAPL: #[EB|BRD:NV] Mac-42FD25EABCABB274 01:982 00:016 AAPL: #[EB|WL] 0 0 0x01 0x01 5 0x00 01:999 00:016 AAPL: #[EB.H.CHK|BM] 0x0000000000000000 02:016 00:016 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82 02:033 00:016 AAPL: #[EB|WL] 0 0 0x01 0x01 23 0x0E 02:050 00:016 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82 02:067 00:016 AAPL: #[EB|WL] 0 0 0x01 0x01 24 0x0E 02:083 00:016 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-image 7C436110-AB2A-4BBB-A880-FE41995C9F82 02:100 00:017 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82 02:118 00:017 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82 02:135 00:017 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-image 7C436110-AB2A-4BBB-A880-FE41995C9F82 02:152 00:016 AAPL: #[EB|H:NOT] 02:168 00:016 AAPL: #[EB|SB:P] 0x1 02:185 00:016 AAPL: #[EB.B.MN|BM:+SB] 02:202 00:016 AAPL: #[EB|LIMG:DP] Acpi(PNP0A03,0)/Pci(1D|0)/Usb(1, 0)/Usb(7, 0)/HD(Part2,Sig30A29A87-6F85-4021-8703-B07D30146C6A) 02:219 00:016 AAPL: #[EB|LIMG:FP] \System\Library\CoreServices\boot.efi 02:235 00:016 AAPL: #[EB|LIMG:OPT] 02:252 00:016 AAPL: #[EB|RPS] 0 0 0 02:273 00:020 AAPL: #[EB.OPT.LXF|F] <"\\System\\Library\\CoreServices\\com.apple.Boot.plist"> 02:288 00:014 AAPL: #[EB.LD.LF|IN] 0 1 <"\\System\\Library\\CoreServices\\com.apple.Boot.plist"> <"0"> 02:305 00:016 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"\\System\\Library\\CoreServices\\com.apple.Boot.plist"> 02:323 00:018 AAPL: #[EB.OPT.LXF|LF!] Err(0xE) 02:339 00:016 AAPL: #[EB.OPT.LXF|F] <"Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist"> 02:356 00:016 AAPL: #[EB.LD.LF|IN] 0 1 <"Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist"> <"0"> 02:379 00:023 AAPL: #[EB|KF] <"root-dmg=file:///BaseSystem/BaseSystem.dmg"> 02:396 00:016 AAPL: #[EB|MBA:CL] <""> 02:412 00:016 AAPL: #[EB|MBA:NV] <"-v debug=0x100 keepsyms=1"> 02:429 00:016 AAPL: #[EB|MBA:KF] <"root-dmg=file:///BaseSystem/BaseSystem.dmg"> 02:445 00:016 AAPL: #[EB|MBA:OUT] <"-v debug=0x100 keepsyms=1 root-dmg=file:///BaseSystem/BaseSystem.dmg chunklist-security-epoch=0 -chunklist-no-rev2-dev"> 02:462 00:016 AAPL: #[EB|LOG:VERBOSE] 2020-11-15T17:03:35 02:479 00:016 AAPL: #[EB|OPT:BM] 0x200082 02:496 00:016 AAPL: #[EB.OPT.LXF|F] <"\\System\\Library\\CoreServices\\PlatformSupport.plist"> 02:512 00:016 AAPL: #[EB.LD.LF|IN] 0 1 <"\\System\\Library\\CoreServices\\PlatformSupport.plist"> <"0"> 02:534 00:021 AAPL: #[EB|B:VAw] 02:550 00:016 AAPL: #[EB|P:CPR] N 02:567 00:016 AAPL: #[EB|P:MPI] N 02:583 00:016 AAPL: #[EB|P:BPI] N 02:600 00:016 AAPL: #[EB|KMR] 304652288 02:617 00:016 AAPL: #[EB.CS.CSKSD|+] 02:634 00:016 AAPL: #[EB.CS.CSKSD|!] Err(0xE) <- RT.GV boot-info-payload 8D63D4FE-BD3C-4AAD-881D-86FD974BC1DF 02:651 00:016 AAPL: #[EB.G.CS|-?] Ok(0) 02:668 00:016 AAPL: #[EB.LD.LF|IN] 0 1 <"<null string>"> <"1"> 02:725 00:057 AAPL: #[EB.B.SBS|SZ] 723512 02:743 00:017 AAPL: #[EB|B:SHA] <255f189d1b0d691e176b5c95325698a7de681107> 02:759 00:016 AAPL: #[EB.WL.PWLFNV|!] Err(0x5) <- RT.GV wake-failure 7C436110-AB2A-4BBB-A880-FE41995C9F82 02:776 00:016 AAPL: #[EB.WL.DT|!] Err(0x5) <- EB.WL.PWLFNV 02:794 00:017 AAPL: #[EB.LD.LKC|D] <"System\Library\KernelCollections\BootKernelExtensions.kc.development"> 02:811 00:017 AAPL: #[EB.LD.LF|IN] 0 1 <"System\\Library\\KernelCollections\\BootKernelExtensions.kc.development"> <"0"> 02:828 00:017 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"System\\Library\\KernelCollections\\BootKernelExtensions.kc.development"> 02:845 00:017 AAPL: #[EB.LD.LKC|R.2] <"System\Library\KernelCollections\BootKernelExtensions.kc"> 02:864 00:018 AAPL: #[EB.LD.LF|IN] 0 1 <"System\\Library\\KernelCollections\\BootKernelExtensions.kc"> <"0"> 10:356 07:491 AAPL: #[EB|SB:P] 0x1 10:376 00:019 AAPL: #[EB|SB:SBGMFNS] j137ap.im4m 10:393 00:016 AAPL: #[EB|SB:MF] System\\Library\\KernelCollections\\BootKernelExtensions.kc.j137ap.im4m 10:410 00:017 AAPL: #[EB.LD.LF|IN] 0 1 <"System\\Library\\KernelCollections\\BootKernelExtensions.kc.j137ap.im4m"> <"0"> 10:664 00:254 AAPL: #[EB|SB:MKRN] 10:690 00:025 AAPL: #[EB.LD.LKFS|-?] Ok(0) 10:706 00:016 AAPL: #[EB.LD.LKC|-?] Ok(0) 10:724 00:017 AAPL: #[EB|FWFM] 0x00000000FF1FFF3F 10:741 00:016 AAPL: #[EB|FWFT] 0x00000000F80FE137 10:758 00:016 AAPL: #[EB|BST:REV1] 10:774 00:016 AAPL: #[EB|CSR:IN] 0x00000043 10:791 00:016 AAPL: #[EB|CSR:OUT] 0x00000043 10:812 00:020 AAPL: #[EB.BST.FBS|+] 10:827 00:015 AAPL: #[EB.BST.FBS|ADSZ] 0 10:844 00:016 AAPL: #[EB.BST.FBS|KSSZ] 0 10:861 00:016 AAPL: #[EB|SB:SBGMFNS] j137ap.im4m 10:878 00:017 AAPL: #[EB|RH:PF] usr\standalone\OS.dmg.root_hash 10:895 00:016 AAPL: #[EB|RH:MF] <"usr\\standalone\\OS.dmg.root_hash.j137ap.im4m"> 10:912 00:017 AAPL: #[EB.LD.LF|IN] 0 1 <"usr\\standalone\\OS.dmg.root_hash"> <"0"> 10:929 00:017 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"usr\\standalone\\OS.dmg.root_hash"> 10:946 00:016 AAPL: #[EB.RH.LRH|P!] Err(0xE) <- EB.LD.LF 10:963 00:017 AAPL: #[EB.BST.FBS|!] Err(0xE) <- EB.RH.LRH 10:980 00:017 AAPL: #[EB.B.WFDW|!WF] Err(0xE) 0 10:997 00:016 AAPL: #[EB|LOG:DT] 2020-11-15T17:03:44 11:014 00:016 AAPL: #[EB|LOG:EXITBS:START] 2020-11-15T17:03:44 EFI.zip Link to post Share on other sites
cdstang 0 Posted November 21, 2020 Author Share Posted November 21, 2020 This is the log I got from the debug ver of opencore 00:000 00:000 OC: OpenCore DBG-063-2020-11-02 is loading in Optional mode (0/0)... 00:016 00:016 OC: Boot timestamp - 2020.11.20 21:48:26 00:033 00:016 OCCPU: MP services threads 8 (enabled 8) - Success 00:050 00:016 OCCPU: MP services Pkg 1 Cores 4 Threads 2 - Success 00:067 00:016 OCCPU: Found Intel(R) Core(TM) i7-4790K CPU @ 4.00GHz 00:084 00:016 OCCPU: Signature 306C3 Stepping 3 Model 3C Family 6 Type 0 ExtModel 3 ExtFamily 0 uCode 24 00:100 00:016 OCCPU: EIST CFG Lock 0 00:117 00:016 OCCPU: Ratio Min 8 Max 40 Current 40 Turbo 44 44 43 42 00:134 00:016 OCCPU: Timer address is 1808 from LPC 00:251 00:117 OCCPU: Detected Apple Processor Type: 07 -> 0705 00:268 00:016 OCCPU: CPUFrequencyFromTSC 3998841374Hz 3998MHz 00:285 00:016 OCCPU: CPUFrequency 3998841374Hz 3998MHz 00:302 00:016 OCCPU: FSBFrequency 99971034Hz 99MHz 00:318 00:016 OCCPU: Pkg 1 Cores 4 Threads 8 00:335 00:016 OC: OcLoadNvramSupport... 00:352 00:016 OC: Not deleting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:UIScale, matches add 00:371 00:018 OC: Deleting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:DefaultBackgroundColor - Not Found 00:387 00:016 OC: Not deleting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:rtc-blacklist, matches add 00:404 00:016 OC: Deleting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:boot-args - Not Found 00:423 00:019 OC: Setting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:DefaultBackgroundColor - Success 00:440 00:016 OC: Setting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:UIScale - ignored, exists 00:457 00:017 OC: Setting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:rtc-blacklist - Not Found 00:474 00:016 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:SystemAudioVolume - ignored, exists 00:494 00:020 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:boot-args - Success 00:511 00:016 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:csr-active-config - ignored, exists 00:530 00:019 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:prev-lang:kbd - Success 00:549 00:019 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:run-efi-updater - Success 00:566 00:016 OC: Current version is DBG-063-2020-11-02 00:586 00:019 OC: OcMiscMiddleInit... 00:603 00:016 OC: LoadHandle BCF4E818 with BootProtect in Bootstrap mode - Success 00:620 00:016 OCB: Missing FW NVRAM, going on... 00:636 00:016 OCB: Have existing option 1, valid 0 00:653 00:016 OCB: Creating boot option OpenCore of 166 bytes 00:679 00:025 OCB: Have existing order of size 10 - Buffer Too Small 00:696 00:016 OCB: Moving boot option to the front from 5 position 00:714 00:018 OCB: Wrote new boot order with boot option - Success 00:732 00:017 OC: OcLoadUefiSupport... 00:749 00:016 OCRTC: Wake log is 0x35 0x81 164 0x6A 00:765 00:016 OC: Loading Apple Secure Boot with Disabled (level 0) 00:782 00:017 OCII: AIFTimerBoostInit Current timer is 549254 00:799 00:016 OCII: AIFTimerBoostInit changed period 549254 to 50000 00:816 00:016 OCII: gST->ConIn B493CF10 vs found B493CF10 00:833 00:016 OCABC: RTDFRG 1 DEVMMIO 0 NOSU 0 NOVRWR 0 NOSB 0 NOHBMAP 0 SMSLIDE 1 WRUNPROT 1 00:850 00:016 OCABC: FEXITBS 0 PRMRG 0 CSLIDE 1 MSLIDE 0 PRSRV 0 RBMAP 0 VMAP 1 APPLOS 0 RTPERMS 0 00:866 00:016 OCABC: Firmware has 4110071 free pages (768247 in lower 4 GB) 00:885 00:018 OCABC: Awaiting rendezvous with OpenRuntime r11 00:901 00:016 OC: RBVR 1 DDBR 1 00:918 00:017 OC: Got 2 drivers 00:935 00:016 OC: Driver HfsPlus.efi at 0 is being loaded... 00:964 00:028 OCB: Arch filtering 0(37892)->BCDE8018(37892) caps 4 - Success 00:979 00:014 OC: Driver HfsPlus.efi at 0 is successfully loaded! 00:995 00:016 OC: Driver HfsPlus.efi at 0 needs connection. 01:012 00:016 OC: Driver OpenRuntime.efi at 1 is being loaded... 01:035 00:022 OCB: Arch filtering 0(36868)->BCDE8018(36868) caps 4 - Success 01:049 00:014 OCABC: Got rendezvous with OpenRuntime r11 01:066 00:016 OCABC: MAT support is 0 01:082 00:016 OC: Driver OpenRuntime.efi at 1 is successfully loaded! 01:099 00:016 OC: Connecting drivers... 01:206 00:106 OC: Connecting drivers done... 01:220 00:014 OCJS: PartitionInfo is Not Found 01:238 00:017 OCJS: Got APFS super block for 4136C476-A79D-0640-94D6-F0D39F71E9DD 01:255 00:017 OCJS: Block (P:1|F:0) read req 3A6EA7C -> 1D3753E0 of 1000 (mask 0, mul 8) - Success 01:273 00:018 OCAV: Real image size: 630136 01:296 00:022 OCAV: Signature verified! 01:312 00:016 OCJS: APFS driver 1412141001000000/20200706 found for 4136C476-A79D-0640-94D6-F0D39F71E9DD, required >= 748077008000000/20180621, allow 01:329 00:016 OCB: Arch filtering 0(630136)->BC83A018(630136) caps 4 - Success 01:346 00:016 OCJS: Connecting normally APFS driver on handle BCEDF118 01:552 00:205 OCC: Installing GOP (Unsupported) on ConsoleOutHandle... 01:568 00:016 OC: Requested resolution is 0x0@0 (max: 1, force: 0) from Max 01:585 00:016 OCC: Requesting 0x0@0 (max: 1) resolution, curr 3, total 8 01:602 00:016 OCC: Mode 0 - 1280x960:1 01:619 00:016 OCC: Mode 1 - 640x480:1 01:636 00:016 OCC: Mode 2 - 800x600:1 01:659 00:023 OCC: Mode 3 - 1024x768:1 02:538 00:879 OCC: Mode 4 - 1280x1024:1 02:954 00:416 OCC: Mode 5 - 1600x1200:1 03:466 00:511 OCC: Mode 6 - 1920x1200:1 03:483 00:016 OCC: Mode 7 - 1920x1080:1 03:500 00:017 OCC: Setting mode 6 with 1920x1200 resolution 03:558 00:057 OCC: Changed resolution mode to 6 03:574 00:016 OC: Changed resolution to 0x0@0 (max: 1, force: 0) from Max - Success 03:591 00:016 OCC: Using builtin text renderer with 1 scale 04:246 00:654 OCC: Install console control (C8D54938/0/0), current - Success 04:263 00:016 OCC: Setup ASCII Output - Success 04:280 00:016 OC: Requested console mode is 0x0 (max: 0) from 04:296 00:016 OC: Requested not to use audio 04:313 00:016 OC: OcLoadAcpiSupport... 04:330 00:016 OCA: Found 12 ACPI tables 04:347 00:016 OCA: Detected table 50434146 (00000049204D2041) at C932F418 of 268 bytes at index 0 04:364 00:016 OCA: Detected table 43495041 (00000049204D2041) at C932F528 of 146 bytes at index 1 04:380 00:016 OCA: Detected table 54445046 (00000049204D2041) at C932F5C0 of 68 bytes at index 2 04:397 00:016 OCA: Detected table 54445353 (0074734930757043) at C932F608 of 1337 bytes at index 3 04:482 00:084 OCA: Detected table 54445353 (0074647353757043) at C932FB48 of 2932 bytes at index 4 04:498 00:016 OCA: Detected table 54445353 (796E6954656B614C) at C93306C0 of 455 bytes at index 5 04:515 00:016 OCA: Detected table 4746434D (00000049204D2041) at C9330888 of 60 bytes at index 6 04:531 00:016 OCA: Detected table 54455048 (00000049204D2041) at C93308C8 of 56 bytes at index 7 04:548 00:016 OCA: Detected table 54445353 (6C62615461746153) at C9330900 of 877 bytes at index 8 04:565 00:016 OCA: Detected table 54445353 (0020746473536153) at C9330C70 of 23390 bytes at index 9 04:581 00:016 OCA: Detected table 54464141 (20544641414D454F) at C93367D0 of 1400 bytes at index 10 04:598 00:016 OCA: Detected table 49464555 (00000049204D2041) at C9336D48 of 66 bytes at index 11 04:620 00:021 OCA: Inserted table 54445353 (0000434574647353) of 125 bytes into ACPI at index 12 04:638 00:017 OCA: Inserted table 54445353 (0067756C50757043) of 693 bytes into ACPI at index 13 04:654 00:016 OCA: FACS signature is 0 (0) 05:522 00:868 OCA: Exposing XSDT table 50434146 (00000049204D2041) at C932F418 of 268 bytes at index 0 05:930 00:408 OCA: Exposing XSDT table 43495041 (00000049204D2041) at C932F528 of 146 bytes at index 1 06:451 00:521 OCA: Exposing XSDT table 54445046 (00000049204D2041) at C932F5C0 of 68 bytes at index 2 06:468 00:016 OCA: Exposing XSDT table 54445353 (0074734930757043) at C932F608 of 1337 bytes at index 3 06:485 00:016 OCA: Exposing XSDT table 54445353 (0074647353757043) at C932FB48 of 2932 bytes at index 4 06:503 00:017 OCA: Exposing XSDT table 54445353 (796E6954656B614C) at C93306C0 of 455 bytes at index 5 06:520 00:016 OCA: Exposing XSDT table 4746434D (00000049204D2041) at C9330888 of 60 bytes at index 6 06:536 00:016 OCA: Exposing XSDT table 54455048 (00000049204D2041) at C93308C8 of 56 bytes at index 7 06:553 00:016 OCA: Exposing XSDT table 54445353 (6C62615461746153) at C9330900 of 877 bytes at index 8 06:570 00:016 OCA: Exposing XSDT table 54445353 (0020746473536153) at C9330C70 of 23390 bytes at index 9 06:587 00:016 OCA: Exposing XSDT table 54464141 (20544641414D454F) at C93367D0 of 1400 bytes at index 10 06:603 00:016 OCA: Exposing XSDT table 49464555 (00000049204D2041) at C9336D48 of 66 bytes at index 11 06:620 00:016 OCA: Exposing XSDT table 54445353 (0000434574647353) at C934B000 of 125 bytes at index 12 06:637 00:016 OCA: Exposing XSDT table 54445353 (0067756C50757043) at C934A000 of 693 bytes at index 13 06:654 00:016 OCA: Exposing RSDT table 50434146 (00000049204D2041) at C932F418 of 268 bytes at index 0 06:671 00:016 OCA: Exposing RSDT table 43495041 (00000049204D2041) at C932F528 of 146 bytes at index 1 06:688 00:016 OCA: Exposing RSDT table 54445046 (00000049204D2041) at C932F5C0 of 68 bytes at index 2 06:704 00:016 OCA: Exposing RSDT table 54445353 (0074734930757043) at C932F608 of 1337 bytes at index 3 06:721 00:016 OCA: Exposing RSDT table 54445353 (0074647353757043) at C932FB48 of 2932 bytes at index 4 06:738 00:016 OCA: Exposing RSDT table 54445353 (796E6954656B614C) at C93306C0 of 455 bytes at index 5 06:755 00:016 OCA: Exposing RSDT table 4746434D (00000049204D2041) at C9330888 of 60 bytes at index 6 06:771 00:016 OCA: Exposing RSDT table 54455048 (00000049204D2041) at C93308C8 of 56 bytes at index 7 06:788 00:016 OCA: Exposing RSDT table 54445353 (6C62615461746153) at C9330900 of 877 bytes at index 8 06:805 00:016 OCA: Exposing RSDT table 54445353 (0020746473536153) at C9330C70 of 23390 bytes at index 9 06:822 00:016 OCA: Exposing RSDT table 54464141 (20544641414D454F) at C93367D0 of 1400 bytes at index 10 06:838 00:016 OCA: Exposing RSDT table 49464555 (00000049204D2041) at C9336D48 of 66 bytes at index 11 06:855 00:016 OCA: Exposing RSDT table 54445353 (0000434574647353) at C934B000 of 125 bytes at index 12 06:874 00:018 OCA: Exposing RSDT table 54445353 (0067756C50757043) at C934A000 of 693 bytes at index 13 06:890 00:016 OC: OcLoadPlatformSupport... 06:907 00:016 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:name (9) - Success 06:923 00:016 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:Model (18) - Success 06:940 00:016 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:SystemSerialNumber (26) - Success 06:957 00:016 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:system-id (16) - Success 06:974 00:016 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:board-id (21) - Success 06:991 00:016 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:StartupPowerEvents (8) - Success 07:008 00:016 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:InitialTSC (8) - Success 07:024 00:016 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:FSBFrequency (8) - Success 07:041 00:016 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:DevicePathsSupported (4) - Success 07:058 00:016 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:REV (6) - Success 07:075 00:016 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:RBr (8) - Success 07:092 00:016 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:RPlt (8) - Success 07:109 00:016 OCSMB: SmbiosLookupHost failed to lookup SMBIOSv3 - Not Found 07:125 00:016 OCSMB: Found DMI Anchor F04D0 v2.8 Table Address 000EE8B0 Length 061F 07:143 00:017 OC: Current SMBIOS: To Be Filled By O.E.M. model To Be Filled By O.E.M. 07:160 00:016 OC: Invalid SMBIOS update mode 07:177 00:016 OC: New SMBIOS: Acidanthera model iMac15,1 07:193 00:016 OCSMB: Number of CPU cache entries is 3 07:210 00:016 OCSMB: Applying 1713 (1) prev F04D0 (1567/31), 0 (0/0) 07:227 00:016 OCSMB: Patched C915A000 v3.2 Table Address C915B000 Length 06B1 1E D4 07:244 00:017 OC: Setting HW_BID Mac-42FD25EABCABB274 - Success 07:261 00:017 OC: Setting HW_MLB C025395014NG2Y71H - Success 07:278 00:017 OC: Setting MLB C025395014NG2Y71H - Success 07:295 00:017 OC: Setting system-id 30354904-7797-4A83-BDDA-F55FC2B6FDD4 - Success 07:312 00:017 OC: Setting FirmwareFeatures F80FE137 - Success 07:329 00:017 OC: Setting ExtendedFirmwareFeatures 00000000F80FE137 - Success 07:347 00:017 OC: Setting FirmwareFeaturesMask FF1FFF3F - Success 07:365 00:018 OC: Setting ExtendedFirmwareFeaturesMask 00000000FF1FFF3F - Success 08:246 00:880 OC: OcLoadDevPropsSupport... 08:698 00:452 OC: Setting devprop PciRoot(0x0)/Pci(0x2,0x0):AAPL,ig-platform-id - Success 09:228 00:530 OC: Setting devprop PciRoot(0x0)/Pci(0x2,0x0):device_id - Success 09:245 00:016 OC: Setting devprop PciRoot(0x0)/Pci(0x1b,0x0):layout-id - Success 09:262 00:016 OC: OcMiscLateInit... 09:279 00:016 OC: Translated HibernateMode None to 0 09:296 00:016 OC: Hibernation detection status is Not Found 09:313 00:016 OC: Panic log does not exist 09:329 00:016 OC: OcLoadKernelSupport... 09:346 00:016 OC: All green, starting boot management... 09:363 00:016 OC: Ready for takeoff in 0 us 09:380 00:016 OCB: Adding fs BCF4E818 (E:1|L:1|P:Success) - PciRoot(0x0)/Pci(0x1D,0x0)/USB(0x1,0x0)/USB(0x3,0x0)/HD(1,GPT,488D9961-BCFF-47C7-BC00-8FCC26D986FF,0x28,0x64000) 09:397 00:016 OCB: Adding fs BCEDF398 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x0,0xFFFF,0x0)/HD(1,GPT,88A992B6-5863-4DC4-96E2-F56EA928451B,0x28,0x64000) 09:414 00:016 OCB: Adding fs BCED5118 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x4,0xFFFF,0x0)/HD(1,GPT,0347B7C8-9949-494C-BFDD-D5C92D13AB5E,0x28,0x64000) 09:430 00:016 OCB: Adding fs BCE6EF18 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x5,0xFFFF,0x0)/HD(1,GPT,674F03D1-1096-4CE7-9607-CA60651E590C,0x28,0x64000) 09:447 00:016 OCB: Adding fs BCF4E518 (E:1|L:0|P:Success) - PciRoot(0x0)/Pci(0x1D,0x0)/USB(0x1,0x0)/USB(0x3,0x0)/HD(2,GPT,30A29A87-6F85-4021-8703-B07D30146C6A,0x64028,0x392BFB0) 09:464 00:016 OCB: Adding fs BCEAAE98 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x4,0xFFFF,0x0)/HD(2,GPT,A18D3111-288D-4646-93EB-3321B53D561B,0x64028,0x574A26A0) 09:481 00:016 OCB: Adding fs BCE6EC98 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x5,0xFFFF,0x0)/HD(2,GPT,F5B139AD-AD95-4C28-82B1-6B67844FDC30,0x64028,0x4A7B4260) 09:498 00:016 OCB: Adding fs BC80FB18 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x0,0xFFFF,0x0)/HD(2,GPT,1334C2A4-5DAC-4C1E-ADFE-8B35695CC8DF,0x64028,0x746A2D60)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7475FD53548CB4439E80816DDAD59E9B) 09:514 00:016 OCB: Adding fs BC80F698 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x0,0xFFFF,0x0)/HD(2,GPT,1334C2A4-5DAC-4C1E-ADFE-8B35695CC8DF,0x64028,0x746A2D60)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,78994748D7764D48A19AB15A0F3F4489) 09:531 00:016 OCB: Adding fs BC80F198 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x0,0xFFFF,0x0)/HD(2,GPT,1334C2A4-5DAC-4C1E-ADFE-8B35695CC8DF,0x64028,0x746A2D60)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,0D35365D31BA91429DC71005B39FB3FD) 09:548 00:016 OCB: Adding fs BC7C4C98 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x0,0xFFFF,0x0)/HD(2,GPT,1334C2A4-5DAC-4C1E-ADFE-8B35695CC8DF,0x64028,0x746A2D60)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7483115D2FB1274D8AD08C595773F1C2) 09:565 00:016 OCB: Adding fs BC7C4798 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x0,0xFFFF,0x0)/HD(2,GPT,1334C2A4-5DAC-4C1E-ADFE-8B35695CC8DF,0x64028,0x746A2D60)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,5A7A701D49A28241A4516EB445B17CDA) 09:582 00:016 OCB: Found 12 potentially bootable filesystems 09:599 00:016 OCB: BootOrder/BootNext are not present or unsupported 09:615 00:016 OCB: Processing blessed list 09:632 00:016 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x1D,0x0)/USB(0x1,0x0)/USB(0x3,0x0)/HD(1,GPT,488D9961-BCFF-47C7-BC00-8FCC26D986FF,0x28,0x64000) 09:653 00:020 OCBP: Blessed file is missing 09:667 00:014 OCBP: Blessed folder is missing 09:684 00:016 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found 09:701 00:016 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found 09:718 00:016 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI was found 09:734 00:016 OCB: Adding entry type (T:1|F:0|G:1) - PciRoot(0x0)/Pci(0x1D,0x0)/USB(0x1,0x0)/USB(0x3,0x0)/HD(1,GPT,488D9961-BCFF-47C7-BC00-8FCC26D986FF,0x28,0x64000)/\EFI\BOOT\BOOTX64.EFI 09:755 00:020 OCB: Discarding discovered OpenCore bootloader 09:770 00:014 OCBP: APFS recovery volume handle missing - \EFI\BOOT\ 09:786 00:016 OCB: APFS recovery is not present - Not Found 09:806 00:019 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x0,0xFFFF,0x0)/HD(1,GPT,88A992B6-5863-4DC4-96E2-F56EA928451B,0x28,0x64000) 09:823 00:016 OCBP: Blessed file is missing 09:840 00:016 OCBP: Blessed folder is missing 09:858 00:017 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found 09:876 00:017 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found 09:893 00:017 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI was found 09:910 00:016 OCB: Adding entry type (T:1|F:0|G:1) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x0,0xFFFF,0x0)/HD(1,GPT,88A992B6-5863-4DC4-96E2-F56EA928451B,0x28,0x64000)/\EFI\BOOT\BOOTX64.EFI 09:926 00:016 OCB: Trying to get label from \EFI\BOOT\.contentDetails 09:943 00:016 OCB: Trying to get label from \EFI\BOOT\.disk_label.contentDetails 09:960 00:016 OCB: Trying to detect Microsoft BCD 09:977 00:016 OCB: Registering entry EFI (T:1|F:0|G:1|E:0) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x0,0xFFFF,0x0)/HD(1,GPT,88A992B6-5863-4DC4-96E2-F56EA928451B,0x28,0x64000)/\EFI\BOOT\BOOTX64.EFI 09:993 00:016 OCBP: APFS recovery volume handle missing - \EFI\BOOT\ 10:010 00:016 OCB: APFS recovery is not present - Not Found 10:027 00:016 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x4,0xFFFF,0x0)/HD(1,GPT,0347B7C8-9949-494C-BFDD-D5C92D13AB5E,0x28,0x64000) 10:044 00:016 OCBP: Blessed file is missing 10:061 00:016 OCBP: Blessed folder is missing 10:077 00:016 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found 10:094 00:016 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found 10:111 00:016 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found 10:128 00:016 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x5,0xFFFF,0x0)/HD(1,GPT,674F03D1-1096-4CE7-9607-CA60651E590C,0x28,0x64000) 10:145 00:016 OCBP: Blessed file is missing 10:161 00:016 OCBP: Blessed folder is missing 10:178 00:016 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found 10:195 00:016 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found 10:212 00:016 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found 10:228 00:016 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x1D,0x0)/USB(0x1,0x0)/USB(0x3,0x0)/HD(2,GPT,30A29A87-6F85-4021-8703-B07D30146C6A,0x64028,0x392BFB0) 10:251 00:022 OCBP: BlessedFileHEX (1/3 156) - 02 01 0C 00 D0 41 03 0A 00 00 00 00 01 01 06 00 00 1D 03 05 06 00 01 00 03 05 06 00 03 00 04 01 2A 00 02 00 00 00 28 40 06 00 00 00 00 00 B0 BF 92 03 00 00 00 00 87 9A A2 30 85 6F 21 40 87 03 10:265 00:014 OCBP: BlessedFileHEX (2/3 156) - B0 7D 30 14 6C 6A 02 02 04 04 50 00 5C 00 53 00 79 00 73 00 74 00 65 00 6D 00 5C 00 4C 00 69 00 62 00 72 00 61 00 72 00 79 00 5C 00 43 00 6F 00 72 00 65 00 53 00 65 00 72 00 76 00 69 00 63 00 10:282 00:016 OCBP: BlessedFileHEX (3/3 156) - 65 00 73 00 5C 00 62 00 6F 00 6F 00 74 00 2E 00 65 00 66 00 69 00 00 00 7F FF 04 00 10:299 00:016 OCBP: BlessedFileDP - PciRoot(0x0)/Pci(0x1D,0x0)/USB(0x1,0x0)/USB(0x3,0x0)/HD(2,GPT,30A29A87-6F85-4021-8703-B07D30146C6A,0x64028,0x392BFB0)/\System\Library\CoreServices\boot.efi 10:316 00:016 OCBP: Blessed file is valid 10:332 00:016 OCB: Adding entry type (T:2|F:0|G:0) - PciRoot(0x0)/Pci(0x1D,0x0)/USB(0x1,0x0)/USB(0x3,0x0)/HD(2,GPT,30A29A87-6F85-4021-8703-B07D30146C6A,0x64028,0x392BFB0)/\System\Library\CoreServices\boot.efi 10:349 00:016 OCB: Trying to get label from \System\Library\CoreServices\.contentDetails 10:366 00:016 OCB: Trying to get label from \System\Library\CoreServices\.disk_label.contentDetails 10:390 00:024 OCB: Registering entry Install macOS Big Sur (T:2|F:0|G:0|E:1) - PciRoot(0x0)/Pci(0x1D,0x0)/USB(0x1,0x0)/USB(0x3,0x0)/HD(2,GPT,30A29A87-6F85-4021-8703-B07D30146C6A,0x64028,0x392BFB0)/\System\Library\CoreServices\boot.efi 10:407 00:016 OCBP: APFS recovery volume handle missing - \System\Library\CoreServices\ 10:423 00:016 OCB: APFS recovery is not present - Not Found 10:440 00:016 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x4,0xFFFF,0x0)/HD(2,GPT,A18D3111-288D-4646-93EB-3321B53D561B,0x64028,0x574A26A0) 10:478 00:037 OCBP: BlessedFileHEX (1/2 114) - 02 01 0C 00 D0 41 03 0A 00 00 00 00 01 01 06 00 02 1F 03 12 0A 00 04 00 FF FF 00 00 04 01 2A 00 02 00 00 00 28 40 06 00 00 00 00 00 A0 26 4A 57 00 00 00 00 11 31 8D A1 8D 28 46 46 93 EB 33 21 10:495 00:016 OCBP: BlessedFileHEX (2/2 114) - B5 3D 56 1B 02 02 04 04 28 00 5C 00 74 00 6D 00 62 00 6F 00 6F 00 74 00 70 00 69 00 63 00 6B 00 65 00 72 00 2E 00 65 00 66 00 69 00 00 00 7F FF 04 00 10:512 00:016 OCBP: BlessedFileDP - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x4,0xFFFF,0x0)/HD(2,GPT,A18D3111-288D-4646-93EB-3321B53D561B,0x64028,0x574A26A0)/\tmbootpicker.efi 10:528 00:016 OCBP: Blessed file is valid 10:545 00:016 OCB: Adding entry type (T:8|F:0|G:0) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x4,0xFFFF,0x0)/HD(2,GPT,A18D3111-288D-4646-93EB-3321B53D561B,0x64028,0x574A26A0)/\tmbootpicker.efi 10:562 00:016 OCB: Trying to get label from \.contentDetails 10:579 00:016 OCB: Trying to get label from \.disk_label.contentDetails 10:596 00:016 OCB: Registering entry Backup2 (T:8|F:0|G:0|E:0) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x4,0xFFFF,0x0)/HD(2,GPT,A18D3111-288D-4646-93EB-3321B53D561B,0x64028,0x574A26A0)/\tmbootpicker.efi 10:612 00:016 OCBP: APFS recovery volume handle missing - \ 10:629 00:016 OCB: APFS recovery is not present - Not Found 10:652 00:023 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x5,0xFFFF,0x0)/HD(2,GPT,F5B139AD-AD95-4C28-82B1-6B67844FDC30,0x64028,0x4A7B4260) 11:306 00:653 OCBP: Blessed file is missing 11:637 00:331 OCBP: Blessed folder is missing 12:164 00:526 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found 12:181 00:016 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found 12:197 00:016 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found 12:214 00:016 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x0,0xFFFF,0x0)/HD(2,GPT,1334C2A4-5DAC-4C1E-ADFE-8B35695CC8DF,0x64028,0x746A2D60)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7475FD53548CB4439E80816DDAD59E9B) 12:231 00:016 OCBP: APFS Volume Info - BD24E998 (131072, 53FD7574-8C54-43B4-9E80-816DDAD59E9B, 16) 12:248 00:016 OCBP: APFS Container Info - BD24EA18 (1, 76C43641-9DA7-4006-94D6-F0D39F71E9DD) 12:267 00:019 OCBP: BlessedFileHEX (1/5 264) - 02 01 0C 00 D0 41 03 0A 00 00 00 00 01 01 06 00 02 1F 03 12 0A 00 00 00 FF FF 00 00 04 01 2A 00 02 00 00 00 28 40 06 00 00 00 00 00 60 2D 6A 74 00 00 00 00 A4 C2 34 13 AC 5D 1E 4C AD FE 8B 35 12:284 00:016 OCBP: BlessedFileHEX (2/5 264) - 69 5C C8 DF 02 02 04 03 24 00 F7 FC 74 BE 7C 0B F3 49 91 47 01 F4 04 2E 68 42 74 75 FD 53 54 8C B4 43 9E 80 81 6D DA D5 9E 9B 04 04 9A 00 5C 00 31 00 44 00 37 00 30 00 37 00 41 00 35 00 41 00 12:301 00:016 OCBP: BlessedFileHEX (3/5 264) - 2D 00 41 00 32 00 34 00 39 00 2D 00 34 00 31 00 38 00 32 00 2D 00 41 00 34 00 35 00 31 00 2D 00 36 00 45 00 42 00 34 00 34 00 35 00 42 00 31 00 37 00 43 00 44 00 41 00 5C 00 53 00 79 00 73 00 12:318 00:016 OCBP: BlessedFileHEX (4/5 264) - 74 00 65 00 6D 00 5C 00 4C 00 69 00 62 00 72 00 61 00 72 00 79 00 5C 00 43 00 6F 00 72 00 65 00 53 00 65 00 72 00 76 00 69 00 63 00 65 00 73 00 5C 00 62 00 6F 00 6F 00 74 00 2E 00 65 00 66 00 12:334 00:016 OCBP: BlessedFileHEX (5/5 264) - 69 00 00 00 7F FF 04 00 12:351 00:016 OCBP: BlessedFileDP - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x0,0xFFFF,0x0)/HD(2,GPT,1334C2A4-5DAC-4C1E-ADFE-8B35695CC8DF,0x64028,0x746A2D60)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7475FD53548CB4439E80816DDAD59E9B)/\1D707A5A-A249-4182-A451-6EB445B17CDA\System\Library\CoreServices\boot.efi 12:368 00:016 OCBP: Blessed file is valid 12:385 00:016 OCBP: 12 filesystems for APFS - Success 12:405 00:019 OCBP: APFS Volume Info - BD24E718 (131072, 53FD7574-8C54-43B4-9E80-816DDAD59E9B, 16) 12:419 00:014 OCBP: APFS Container Info - BD24E818 (1, 76C43641-9DA7-4006-94D6-F0D39F71E9DD) 12:436 00:016 OCBP: APFS match container 76C43641-9DA7-4006-94D6-F0D39F71E9DD vs 76C43641-9DA7-4006-94D6-F0D39F71E9DD for 8 of 12 - 1 12:453 00:016 OCBP: Missing partition 53FD7574-8C54-43B4-9E80-816DDAD59E9B on preboot - Not Found 12:470 00:016 OCBP: No APFS booter 8 of 12 for 53FD7574-8C54-43B4-9E80-816DDAD59E9B - Not Found 12:486 00:016 OCBP: APFS Volume Info - BD24E918 (131072, 48479978-76D7-484D-A19A-B15A0F3F4489, 64) 12:503 00:016 OCBP: APFS Container Info - BD24E798 (1, 76C43641-9DA7-4006-94D6-F0D39F71E9DD) 12:520 00:016 OCBP: APFS match container 76C43641-9DA7-4006-94D6-F0D39F71E9DD vs 76C43641-9DA7-4006-94D6-F0D39F71E9DD for 9 of 12 - 1 12:537 00:016 OCBP: Missing partition 48479978-76D7-484D-A19A-B15A0F3F4489 on preboot - Not Found 12:553 00:016 OCBP: No APFS booter 9 of 12 for 48479978-76D7-484D-A19A-B15A0F3F4489 - Not Found 12:570 00:016 OCBP: APFS Volume Info - BD24E898 (131072, 5D36350D-BA31-4291-9DC7-1005B39FB3FD, 4) 12:589 00:018 OCBP: APFS Container Info - BD24E698 (1, 76C43641-9DA7-4006-94D6-F0D39F71E9DD) 12:605 00:016 OCBP: APFS match container 76C43641-9DA7-4006-94D6-F0D39F71E9DD vs 76C43641-9DA7-4006-94D6-F0D39F71E9DD for 10 of 12 - 1 12:622 00:016 OCBP: Missing partition 5D36350D-BA31-4291-9DC7-1005B39FB3FD on preboot - Not Found 12:639 00:016 OCBP: No APFS booter 10 of 12 for 5D36350D-BA31-4291-9DC7-1005B39FB3FD - Not Found 12:655 00:016 OCBP: APFS Volume Info - BD24E618 (131072, 5D118374-B12F-4D27-8AD0-8C595773F1C2, 8) 12:672 00:016 OCBP: APFS Container Info - BD24E598 (1, 76C43641-9DA7-4006-94D6-F0D39F71E9DD) 12:689 00:016 OCBP: APFS match container 76C43641-9DA7-4006-94D6-F0D39F71E9DD vs 76C43641-9DA7-4006-94D6-F0D39F71E9DD for 11 of 12 - 1 12:706 00:016 OCBP: Missing partition 5D118374-B12F-4D27-8AD0-8C595773F1C2 on preboot - Not Found 12:722 00:016 OCBP: No APFS booter 11 of 12 for 5D118374-B12F-4D27-8AD0-8C595773F1C2 - Not Found 12:739 00:016 OCBP: APFS Volume Info - BD24E518 (131072, 1D707A5A-A249-4182-A451-6EB445B17CDA, 1) 12:756 00:016 OCBP: APFS Container Info - BD24E498 (1, 76C43641-9DA7-4006-94D6-F0D39F71E9DD) 12:773 00:016 OCBP: APFS match container 76C43641-9DA7-4006-94D6-F0D39F71E9DD vs 76C43641-9DA7-4006-94D6-F0D39F71E9DD for 12 of 12 - 1 12:789 00:016 OCBP: Found partition 1D707A5A-A249-4182-A451-6EB445B17CDA on preboot 12:806 00:016 OCBP: Want predefined list for APFS 16 at 1D707A5A-A249-4182-A451-6EB445B17CDA 12:825 00:018 OCBP: Predefined 1D707A5A-A249-4182-A451-6EB445B17CDA \System\Library\CoreServices\boot.efi was found 12:842 00:016 OCBP: Found APFS booter 12 of 12 for 1D707A5A-A249-4182-A451-6EB445B17CDA (B1AEB9A0) 12:859 00:016 OCBP: APFS bless for 76C43641-9DA7-4006-94D6-F0D39F71E9DD:<null string> is Success 12:876 00:016 OCB: Adding entry type (T:2|F:0|G:0) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x0,0xFFFF,0x0)/HD(2,GPT,1334C2A4-5DAC-4C1E-ADFE-8B35695CC8DF,0x64028,0x746A2D60)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7475FD53548CB4439E80816DDAD59E9B)/\1D707A5A-A249-4182-A451-6EB445B17CDA\System\Library\CoreServices\boot.efi 12:892 00:016 OCB: Trying to get label from \1D707A5A-A249-4182-A451-6EB445B17CDA\System\Library\CoreServices\.contentDetails 12:909 00:016 OCB: Trying to get label from \1D707A5A-A249-4182-A451-6EB445B17CDA\System\Library\CoreServices\.disk_label.contentDetails 12:928 00:018 OCB: Registering entry Catalina (T:2|F:0|G:0|E:0) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x0,0xFFFF,0x0)/HD(2,GPT,1334C2A4-5DAC-4C1E-ADFE-8B35695CC8DF,0x64028,0x746A2D60)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7475FD53548CB4439E80816DDAD59E9B)/\1D707A5A-A249-4182-A451-6EB445B17CDA\System\Library\CoreServices\boot.efi 12:944 00:016 OCBP: APFS Container Info - BD24E998 (1, 76C43641-9DA7-4006-94D6-F0D39F71E9DD) 12:961 00:016 OCBP: 12 filesystems for APFS - Success 12:981 00:019 OCBP: APFS Volume Info - BD24E498 (131072, 53FD7574-8C54-43B4-9E80-816DDAD59E9B, 16) 12:996 00:014 OCBP: APFS Container Info - BD24E418 (1, 76C43641-9DA7-4006-94D6-F0D39F71E9DD) 13:012 00:016 OCBP: APFS match container 76C43641-9DA7-4006-94D6-F0D39F71E9DD vs 76C43641-9DA7-4006-94D6-F0D39F71E9DD for 8 of 12 - 1 13:029 00:016 OCBP: Missing partition 53FD7574-8C54-43B4-9E80-816DDAD59E9B on preboot - Not Found 13:046 00:016 OCBP: No APFS booter 8 of 12 for 53FD7574-8C54-43B4-9E80-816DDAD59E9B - Not Found 13:063 00:016 OCBP: APFS Volume Info - BD24E498 (131072, 48479978-76D7-484D-A19A-B15A0F3F4489, 64) 13:081 00:018 OCBP: APFS Container Info - BD24E418 (1, 76C43641-9DA7-4006-94D6-F0D39F71E9DD) 13:097 00:016 OCBP: APFS match container 76C43641-9DA7-4006-94D6-F0D39F71E9DD vs 76C43641-9DA7-4006-94D6-F0D39F71E9DD for 9 of 12 - 1 13:114 00:016 OCBP: Missing partition 48479978-76D7-484D-A19A-B15A0F3F4489 on preboot - Not Found 13:131 00:016 OCBP: No APFS booter 9 of 12 for 48479978-76D7-484D-A19A-B15A0F3F4489 - Not Found 13:148 00:016 OCBP: APFS Volume Info - BD24E498 (131072, 5D36350D-BA31-4291-9DC7-1005B39FB3FD, 4) 13:165 00:016 OCBP: APFS Container Info - BD24E418 (1, 76C43641-9DA7-4006-94D6-F0D39F71E9DD) 13:181 00:016 OCBP: APFS match container 76C43641-9DA7-4006-94D6-F0D39F71E9DD vs 76C43641-9DA7-4006-94D6-F0D39F71E9DD for 10 of 12 - 1 13:198 00:016 OCBP: Missing partition 5D36350D-BA31-4291-9DC7-1005B39FB3FD on preboot - Not Found 13:215 00:016 OCBP: No APFS booter 10 of 12 for 5D36350D-BA31-4291-9DC7-1005B39FB3FD - Not Found 13:232 00:016 OCBP: APFS Volume Info - BD24E498 (131072, 5D118374-B12F-4D27-8AD0-8C595773F1C2, 8) 13:249 00:016 OCBP: APFS Container Info - BD24E418 (1, 76C43641-9DA7-4006-94D6-F0D39F71E9DD) 13:265 00:016 OCBP: APFS match container 76C43641-9DA7-4006-94D6-F0D39F71E9DD vs 76C43641-9DA7-4006-94D6-F0D39F71E9DD for 11 of 12 - 1 13:282 00:016 OCBP: Missing partition 5D118374-B12F-4D27-8AD0-8C595773F1C2 on preboot - Not Found 13:299 00:016 OCBP: No APFS booter 11 of 12 for 5D118374-B12F-4D27-8AD0-8C595773F1C2 - Not Found 13:316 00:016 OCBP: APFS Volume Info - BD24E498 (131072, 1D707A5A-A249-4182-A451-6EB445B17CDA, 1) 13:333 00:016 OCBP: APFS Container Info - BD24E418 (1, 76C43641-9DA7-4006-94D6-F0D39F71E9DD) 13:349 00:016 OCBP: APFS match container 76C43641-9DA7-4006-94D6-F0D39F71E9DD vs 76C43641-9DA7-4006-94D6-F0D39F71E9DD for 12 of 12 - 1 13:366 00:016 OCBP: Found partition 1D707A5A-A249-4182-A451-6EB445B17CDA on preboot 13:383 00:016 OCBP: Want predefined list for APFS 16 at 1D707A5A-A249-4182-A451-6EB445B17CDA 13:400 00:016 OCBP: Predefined 1D707A5A-A249-4182-A451-6EB445B17CDA \System\Library\CoreServices\boot.efi was found 13:417 00:016 OCBP: Found APFS booter 12 of 12 for 1D707A5A-A249-4182-A451-6EB445B17CDA (0) 13:434 00:016 OCBP: APFS bless for 76C43641-9DA7-4006-94D6-F0D39F71E9DD:1D707A5A-A249-4182-A451-6EB445B17CDA\System\Library\CoreServices\ is Success 13:450 00:016 OCBP: APFS Volume Info - BD24E998 (131072, 1D707A5A-A249-4182-A451-6EB445B17CDA, 1) 13:467 00:016 OCBP: APFS Container Info - BD24E118 (1, 76C43641-9DA7-4006-94D6-F0D39F71E9DD) 13:487 00:019 OCBP: APFS recovery info 0/12 due to 00000000-0000-0000-0000-000000000000/76C43641-9DA7-4006-94D6-F0D39F71E9DD/0 - Not Found 13:501 00:014 OCBP: APFS recovery info 1/12 due to 00000000-0000-0000-0000-000000000000/76C43641-9DA7-4006-94D6-F0D39F71E9DD/0 - Not Found 13:518 00:016 OCBP: APFS recovery info 2/12 due to 00000000-0000-0000-0000-000000000000/76C43641-9DA7-4006-94D6-F0D39F71E9DD/0 - Not Found 13:535 00:016 OCBP: APFS recovery info 3/12 due to 00000000-0000-0000-0000-000000000000/76C43641-9DA7-4006-94D6-F0D39F71E9DD/0 - Not Found 13:553 00:018 OCBP: APFS recovery info 4/12 due to 00000000-0000-0000-0000-000000000000/76C43641-9DA7-4006-94D6-F0D39F71E9DD/0 - Not Found 14:213 00:659 OCBP: APFS recovery info 5/12 due to 00000000-0000-0000-0000-000000000000/76C43641-9DA7-4006-94D6-F0D39F71E9DD/0 - Not Found 14:543 00:330 OCBP: APFS recovery info 6/12 due to 00000000-0000-0000-0000-000000000000/76C43641-9DA7-4006-94D6-F0D39F71E9DD/0 - Not Found 15:066 00:522 OCBP: APFS Volume Info - BD24E118 (131072, 53FD7574-8C54-43B4-9E80-816DDAD59E9B, 16) 15:083 00:016 OCBP: APFS Container Info - BD24E998 (1, 76C43641-9DA7-4006-94D6-F0D39F71E9DD) 15:100 00:016 OCBP: APFS recovery info 7/12 due to 76C43641-9DA7-4006-94D6-F0D39F71E9DD/76C43641-9DA7-4006-94D6-F0D39F71E9DD/10 - Success 15:116 00:016 OCBP: APFS Volume Info - BD24E998 (131072, 48479978-76D7-484D-A19A-B15A0F3F4489, 64) 15:133 00:016 OCBP: APFS Container Info - BD24E118 (1, 76C43641-9DA7-4006-94D6-F0D39F71E9DD) 15:150 00:016 OCBP: APFS recovery info 8/12 due to 76C43641-9DA7-4006-94D6-F0D39F71E9DD/76C43641-9DA7-4006-94D6-F0D39F71E9DD/40 - Success 15:167 00:016 OCBP: APFS Volume Info - BD24E118 (131072, 5D36350D-BA31-4291-9DC7-1005B39FB3FD, 4) 15:184 00:016 OCBP: APFS Container Info - BD24E998 (1, 76C43641-9DA7-4006-94D6-F0D39F71E9DD) 15:200 00:016 OCBP: APFS recovery info 9/12 due to 76C43641-9DA7-4006-94D6-F0D39F71E9DD/76C43641-9DA7-4006-94D6-F0D39F71E9DD/4 - Success 15:217 00:016 OCFS: Filename \1D707A5A-A249-4182-A451-6EB445B17CDA\ has trailing slash 15:234 00:016 OCFS: Filename \1D707A5A-A249-4182-A451-6EB445B17CDA\ has trailing slash 15:251 00:016 OCB: Matched fs BC80F198 15:268 00:016 OCB: Adding entry type (T:1|F:1|G:0) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x0,0xFFFF,0x0)/HD(2,GPT,1334C2A4-5DAC-4C1E-ADFE-8B35695CC8DF,0x64028,0x746A2D60)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,0D35365D31BA91429DC71005B39FB3FD)/\1D707A5A-A249-4182-A451-6EB445B17CDA\ 15:285 00:016 OCB: Trying to get label from \1D707A5A-A249-4182-A451-6EB445B17CDA\.contentDetails 15:301 00:016 OCB: Trying to get label from \1D707A5A-A249-4182-A451-6EB445B17CDA\.disk_label.contentDetails 15:318 00:016 OCB: Trying to get recovery from \1D707A5A-A249-4182-A451-6EB445B17CDA\SystemVersion.plist 15:338 00:019 OCB: Registering entry Recovery 10.15.6 (T:4|F:1|G:0|E:0) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x0,0xFFFF,0x0)/HD(2,GPT,1334C2A4-5DAC-4C1E-ADFE-8B35695CC8DF,0x64028,0x746A2D60)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,0D35365D31BA91429DC71005B39FB3FD)/\1D707A5A-A249-4182-A451-6EB445B17CDA\ 15:355 00:016 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x0,0xFFFF,0x0)/HD(2,GPT,1334C2A4-5DAC-4C1E-ADFE-8B35695CC8DF,0x64028,0x746A2D60)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,78994748D7764D48A19AB15A0F3F4489) 15:371 00:016 OCBP: APFS Volume Info - BD24E498 (131072, 48479978-76D7-484D-A19A-B15A0F3F4489, 64) 15:388 00:016 OCBP: APFS Container Info - BD24CC18 (1, 76C43641-9DA7-4006-94D6-F0D39F71E9DD) 15:405 00:016 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x0,0xFFFF,0x0)/HD(2,GPT,1334C2A4-5DAC-4C1E-ADFE-8B35695CC8DF,0x64028,0x746A2D60)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,0D35365D31BA91429DC71005B39FB3FD) 15:422 00:016 OCBP: APFS Volume Info - BD24CC18 (131072, 5D36350D-BA31-4291-9DC7-1005B39FB3FD, 4) 15:438 00:016 OCBP: APFS Container Info - BD24E318 (1, 76C43641-9DA7-4006-94D6-F0D39F71E9DD) 15:455 00:016 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x0,0xFFFF,0x0)/HD(2,GPT,1334C2A4-5DAC-4C1E-ADFE-8B35695CC8DF,0x64028,0x746A2D60)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7483115D2FB1274D8AD08C595773F1C2) 15:472 00:016 OCBP: APFS Volume Info - BD24E318 (131072, 5D118374-B12F-4D27-8AD0-8C595773F1C2, 8) 15:489 00:016 OCBP: APFS Container Info - BD24E498 (1, 76C43641-9DA7-4006-94D6-F0D39F71E9DD) 15:508 00:018 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x0,0xFFFF,0x0)/HD(2,GPT,1334C2A4-5DAC-4C1E-ADFE-8B35695CC8DF,0x64028,0x746A2D60)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,5A7A701D49A28241A4516EB445B17CDA) 15:524 00:016 OCBP: APFS Volume Info - BD24E498 (131072, 1D707A5A-A249-4182-A451-6EB445B17CDA, 1) 15:541 00:016 OCBP: APFS Container Info - BD24CC18 (1, 76C43641-9DA7-4006-94D6-F0D39F71E9DD) 15:557 00:016 OCB: Adding fs 2007C5F5 for 1 custom entries and nvram reset (aux shown) 15:574 00:016 OCB: Adding custom entry CleanNvram.efi (tool) -> CleanNvram.efi 15:591 00:016 OCB: Registering entry CleanNvram.efi (T:128|F:0|G:0|E:0) - <nil> 15:608 00:016 OCB: Adding system entry Reset NVRAM 15:625 00:016 OCB: Registering entry Reset NVRAM (T:256|F:0|G:0|E:0) - <nil> 15:641 00:016 OCB: Showing menu... 20:614 04:973 OCB: Should boot from 2. Install macOS Big Sur (T:2|F:0|G:0|E:1|DEF:0) 20:631 00:016 OCB: Perform boot Install macOS Big Sur to dp PciRoot(0x0)/Pci(0x1D,0x0)/USB(0x1,0x0)/USB(0x3,0x0)/HD(2,GPT,30A29A87-6F85-4021-8703-B07D30146C6A,0x64028,0x392BFB0)/\System\Library\CoreServices\boot.efi (0/0) 20:733 00:101 OCSB: Secure boot is disabled, skipping 20:749 00:016 OCB: Arch filtering BD18C018(723512)->BD18C018(723512) caps 4 - Success 20:766 00:016 OCB: Matching <> args on type 2 0 20:782 00:016 OCABC: VMware Mac installed on BD24CD98 - Success 20:844 00:061 OCABC: Failed to find first BOOT_MODE_SAFE | BOOT_MODE_ASLR sequence 20:861 00:016 OCABC: All slides are usable! You can disable ProvideCustomSlide! 20:878 00:017 AAPL: #[EB|LOG:INIT] 2020-11-20T21:48:47 20:894 00:016 AAPL: #[EB|VERSION] <"bootbase.efi 495.40.10~123 (Official), built 2020-10-30T00:10:36-0700"> 20:911 00:016 AAPL: #[EB|BUILD] <"BUILD-INFO[310]:{"DisplayName":"bootbase.efi","DisplayVersion":"495.40.10~123","RecordUuid":"E287ED06-5B89-4BD5-82FD-8CF9CD5A1AA7","BuildTime":"2020-10-30T00:10:36-0700","ProjectName":"efiboot","ProductName":"bootbase.efi","SourceVersion":"495.40.10","BuildVersion":"123","BuildConfiguration":"Release","BuildType":"Official"}"> 20:928 00:016 AAPL: #[EB|CFG:DEV] r2 0x0 0x0 20:945 00:016 AAPL: #[EB|H:IS] 0 20:962 00:016 AAPL: #[EB|WL:MODE] 0 20:978 00:016 AAPL: #[EB|CFG:ARG] boot-save-log 0x0000000000000002 (0x0000000000000002 < 0xFFFFFFFFFFFFFFFF) default 20:995 00:016 AAPL: #[EB|CFG:ARG] wake-save-log 0x0000000000000002 (0x0000000000000002 < 0x0000000000000002) default 21:012 00:016 AAPL: #[EB|CFG:ARG] console 0x0000000000000001 (0x0000000000000001 < 0x0000000000000001) default 21:029 00:016 AAPL: #[EB|CFG:ARG] serial 0x0000000000000000 (0x0000000000000000 < 0x0000000000000000) default 21:046 00:016 AAPL: #[EB|CFG:ARG] embed-log-dt 0x0000000000000000 (0x0000000000000000 < 0x0000000000000000) default 21:064 00:018 AAPL: #[EB|CFG:ARG] timestamps 0x0000000000000000 (0x0000000000000000 < 0xFFFFFFFFFFFFFFFF) default 21:080 00:016 AAPL: #[EB|CFG:ARG] log-level 0x0000000000000001 (0x0000000000000001 & 0x0000000000000021) default 21:097 00:016 AAPL: #[EB|CFG:ARG] breakpoint 0x0000000000000000 (0x0000000000000000 & 0x0000000000000000) default 21:114 00:016 AAPL: #[EB|CFG:ARG] kc-read-size 0x0000000000100000 (0x0000000000100000 < 0xFFFFFFFFFFFFFFFF) default 21:131 00:016 AAPL: #[EB|H:IS] 0 21:147 00:016 AAPL: #[EB|WL] 0 0 0x01 0x01 0 0x00 21:164 00:016 AAPL: #[EB|BRD:NV] Mac-42FD25EABCABB274 21:181 00:016 OCOS: OS set: <null> macOS 11.0 21:198 00:016 OCOS: OS set: Apple Inc. macOS 11.0 21:215 00:016 AAPL: #[EB|WL] 0 0 0x01 0x01 2 0x00 21:232 00:017 AAPL: #[EB|B:RRVAR] <7f0c0075232e> 21:249 00:016 AAPL: #[EB.BST.IDT|+] 21:265 00:016 AAPL: #[EB.BST.IDT|-] 21:282 00:016 AAPL: #[EB|WL] 0 0 0x01 0x01 3 0x00 21:299 00:016 AAPL: #[EB|WL] 0 0 0x01 0x01 4 0x00 21:316 00:016 AAPL: #[EB|BRD:NV] Mac-42FD25EABCABB274 21:333 00:016 AAPL: #[EB|WL] 0 0 0x01 0x01 5 0x00 21:349 00:016 AAPL: #[EB.H.CHK|BM] 0x0000000000000000 21:366 00:016 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82 21:383 00:016 AAPL: #[EB|WL] 0 0 0x01 0x01 23 0x0E 21:400 00:016 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82 21:417 00:016 AAPL: #[EB|WL] 0 0 0x01 0x01 24 0x0E 21:434 00:016 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-image 7C436110-AB2A-4BBB-A880-FE41995C9F82 21:451 00:017 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82 21:468 00:017 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82 21:485 00:017 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-image 7C436110-AB2A-4BBB-A880-FE41995C9F82 21:503 00:017 AAPL: #[EB|H:NOT] 21:520 00:016 AAPL: #[EB|SB:P] 0x0 21:540 00:020 AAPL: #[EB|LIMG:DP] Acpi(PNP0A03,0)/Pci(1D|0)/Usb(1, 0)/Usb(3, 0)/HD(Part2,Sig30A29A87-6F85-4021-8703-B07D30146C6A) 21:559 00:018 AAPL: #[EB|LIMG:FP] \System\Library\CoreServices\boot.efi 22:854 01:295 AAPL: #[EB|LIMG:OPT] 23:745 00:890 AAPL: #[EB|RPS] 0 0 0 24:274 00:528 AAPL: #[EB.OPT.LXF|F] <"\\System\\Library\\CoreServices\\com.apple.Boot.plist"> 24:289 00:014 AAPL: #[EB.LD.LF|IN] 0 1 <"\\System\\Library\\CoreServices\\com.apple.Boot.plist"> <"0"> 24:305 00:016 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"\\System\\Library\\CoreServices\\com.apple.Boot.plist"> 24:322 00:016 AAPL: #[EB.OPT.LXF|LF!] Err(0xE) 24:339 00:016 AAPL: #[EB.OPT.LXF|F] <"Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist"> 24:356 00:016 AAPL: #[EB.LD.LF|IN] 0 1 <"Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist"> <"0"> 24:379 00:023 AAPL: #[EB|KF] <"root-dmg=file:///BaseSystem/BaseSystem.dmg"> 24:395 00:016 AAPL: #[EB|MBA:CL] <""> 24:412 00:016 AAPL: #[EB|MBA:NV] <"-v keepsyms=1 debug=0x100 alcid=1"> 24:429 00:016 AAPL: #[EB|MBA:KF] <"root-dmg=file:///BaseSystem/BaseSystem.dmg"> 24:445 00:016 AAPL: #[EB|MBA:OUT] <"-v keepsyms=1 debug=0x100 alcid=1 root-dmg=file:///BaseSystem/BaseSystem.dmg"> 24:462 00:016 AAPL: #[EB|LOG:VERBOSE] 2020-11-20T21:48:50 24:479 00:016 AAPL: #[EB|OPT:BM] 0x82 24:496 00:016 AAPL: #[EB.OPT.LXF|F] <"\\System\\Library\\CoreServices\\PlatformSupport.plist"> 24:513 00:017 AAPL: #[EB.LD.LF|IN] 0 1 <"\\System\\Library\\CoreServices\\PlatformSupport.plist"> <"0"> 24:539 00:025 AAPL: #[EB|B:VAw] 24:556 00:016 AAPL: #[EB|P:CPR] N 24:572 00:016 AAPL: #[EB|P:MPI] N 24:589 00:016 AAPL: #[EB|P:BPI] N 24:606 00:016 AAPL: #[EB|KMR] 304652288 24:622 00:016 AAPL: #[EB.CS.CSKSD|+] 24:639 00:016 AAPL: #[EB.CS.CSKSD|!] Err(0xE) <- RT.GV boot-info-payload 8D63D4FE-BD3C-4AAD-881D-86FD974BC1DF 24:656 00:016 AAPL: #[EB.G.CS|-?] Ok(0) 24:673 00:016 AAPL: #[EB.LD.LF|IN] 0 1 <"<null string>"> <"1"> 24:847 00:173 AAPL: #[EB.B.SBS|SZ] 723512 24:960 00:113 AAPL: #[EB|B:SHA] <255f189d1b0d691e176b5c95325698a7de681107> 24:977 00:016 AAPL: #[EB.WL.PWLFNV|!] Err(0x5) <- RT.GV wake-failure 7C436110-AB2A-4BBB-A880-FE41995C9F82 24:994 00:016 AAPL: #[EB.WL.DT|!] Err(0x5) <- EB.WL.PWLFNV 25:011 00:016 AAPL: #[EB.LD.LKC|D] <"System\Library\KernelCollections\BootKernelExtensions.kc.development"> 25:028 00:017 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"System\\Library\\KernelCollections\\BootKernelExtensions.kc.development"> 25:045 00:017 AAPL: #[EB.LD.LKC|R.2] <"System\Library\KernelCollections\BootKernelExtensions.kc"> 25:238 00:192 OC: Kext reservation size info 57E000 exe 1E7000 25:255 00:017 OC: Trying 64-bit XNU hook on System\Library\KernelCollections\BootKernelExtensions.kc 33:804 08:548 OC: Result of 64-bit XNU hook on System\Library\KernelCollections\BootKernelExtensions.kc (00000000) is Success 33:828 00:024 OCAK: Read kernel version 20.1.0 (200100) 33:847 00:018 OCAK: Replacing _xcpm_core_scope_msrs data 226 76 33:863 00:016 OCAK: Replacing _xcpm_core_scope_msrs data 226 406416 33:880 00:016 OCAK: Replacing _xcpm_core_scope_msrs data 226 16384 33:897 00:016 OCAK: Not matching _xcpm_core_scope_msrs data 46 422876 33:916 00:018 OCAK: 64-bit XcpmCfgLockRel replace count - 2 33:952 00:035 OCAK: 64-bit PanicKextDump replace count - 1 33:968 00:016 OCAK: Patch success kext dump 33:993 00:025 OCAK: 64-bit PowerStateTimeout replace count - 1 34:010 00:016 OCAK: Patch success power state 34:029 00:018 OCAK: Found jettisoning fileset 34:082 00:053 OCAK: Local relocs 621 on FFFFFF8003FA5000 34:100 00:017 OC: Prelinked injection Lilu.kext () - Success 34:119 00:018 OCAK: Patching invalid size 2000 with 18D3000 for com.apple.iokit.IOACPIFamily 34:143 00:023 OCAK: Local relocs 503 on FFFFFF8003FD5000 34:162 00:018 OC: Prelinked injection VirtualSMC.kext () - Success 34:183 00:021 OCAK: Patching invalid size 28000 with 138E000 for com.apple.iokit.IOPCIFamily 34:209 00:026 OCAK: Local relocs 5229 on FFFFFF8003FF3000 34:240 00:031 OC: Prelinked injection AppleALC.kext () - Success 34:260 00:019 OCAK: Patching invalid size 17000 with 1617000 for com.apple.iokit.IONetworkingFamily 34:288 00:028 OCAK: Local relocs 443 on FFFFFF8004165000 34:305 00:017 OC: Prelinked injection AtherosE2200Ethernet.kext () - Success 34:328 00:023 OCAK: Local relocs 602 on FFFFFF800417C000 34:348 00:019 OC: Prelinked injection USBInjectAll.kext () - Success 34:365 00:016 OC: Prelink size 67289088 kext offset 65294336 reserved 1994752 34:382 00:016 OCAK: KC TEXT is 65536 bytes with 50560 Mach-O headers need 528 34:420 00:037 OCAK: Patching invalid size 8D000 with 105C000 for com.apple.iokit.IOUSBHostFamily 34:437 00:016 OCAK: 64-bit RemoveUsbLimitIoP1 replace count - 1 34:453 00:016 OCAK: Patch success port com.apple.iokit.IOUSBHostFamily 34:473 00:019 OCAK: Patching invalid size 4E000 with EBE000 for com.apple.driver.usb.AppleUSBXHCI 34:490 00:016 OCAK: 64-bit RemoveUsbLimitV2 replace count - 1 34:507 00:016 OCAK: Patch success com.apple.driver.usb.AppleUSBXHCI 34:527 00:019 OCAK: Patching invalid size 28000 with E67000 for com.apple.driver.usb.AppleUSBXHCIPCI 34:543 00:016 OCAK: Skipping legacy port patch AppleUSBXHCIPCI on 200100 34:560 00:016 OCAK: 64-bit AppleIoMapper replace count - 1 34:577 00:016 OCAK: Patch success com.apple.iokit.IOPCIFamily AppleIoMapper 34:599 00:021 OC: Prelinked status - Success 34:622 00:023 AAPL: #[EB.LD.LKFS|-?] Ok(0) 34:639 00:016 AAPL: #[EB.LD.LKC|-?] Ok(0) 34:657 00:017 AAPL: #[EB|FWFM] 0x00000000FF1FFF3F 34:674 00:016 AAPL: #[EB|FWFT] 0x00000000F80FE137 34:690 00:016 AAPL: #[EB|BST:REV1] 34:707 00:016 AAPL: #[EB|CSR:IN] 0x00000043 34:724 00:016 AAPL: #[EB|CSR:OUT] 0x00000043 34:745 00:020 AAPL: #[EB.BST.FBS|+] 34:760 00:015 AAPL: #[EB.BST.FBS|ADSZ] 0 34:777 00:016 AAPL: #[EB.BST.FBS|KSSZ] 0 34:794 00:016 AAPL: #[EB|SB:SBGMFNS] x86legacyap.im4m 34:812 00:018 AAPL: #[EB|RH:PF] usr\standalone\OS.dmg.root_hash 34:829 00:016 AAPL: #[EB|RH:MF] <"usr\\standalone\\OS.dmg.root_hash.x86legacyap.im4m"> 34:846 00:016 AAPL: #[EB.LD.LF|IN] 0 1 <"usr\\standalone\\OS.dmg.root_hash"> <"0"> 34:863 00:017 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"usr\\standalone\\OS.dmg.root_hash"> 34:880 00:016 AAPL: #[EB.RH.LRH|P!] Err(0xE) <- EB.LD.LF 34:896 00:016 AAPL: #[EB.BST.FBS|!] Err(0xE) <- EB.RH.LRH 34:913 00:016 OCSMC: SmcReadValue Key 4D535463 Size 1 34:930 00:016 OCSMC: SmcReadValue Key 4D534163 Size 2 34:947 00:017 AAPL: #[EB.B.WFDW|!WF] Err(0xE) 0 34:964 00:016 AAPL: #[EB|LOG:DT] 2020-11-20T21:49:01 34:981 00:016 AAPL: #[EB|LOG:EXITBS:START] 2020-11-20T21:49:01 Link to post Share on other sites
