[HELP NEEDED] Newbie OpenCore build - Ryzen 3900x - Asus Tuf X570 plus wifi - GT 120


7 posts in this topic

Recommended Posts

Hey guys, I'm trying to build my first ever OpenCore 0.6.1 Ryzentosh and already in trouble. Any ideas what I should try next or if there's some clear newbie mistake I'm making here. Thanks for trying to help me out. :)



My current hardware is:

MacOS HighSierra

Ryzen 9 3900x

Asus TUF Gaming X570-plus (wifi)

Crucial Ballistix 3600 Mhz CL16 BL2K8G36C16U4B.M8FE1

Kingston 1TB A2000 NVMe PCIe SSD

NVIDIA GeForce GT 120 Mac Edition

Also have a second GPU ASUS Strix GeForce GTX 960 which I'm planning to use later.



Been watching and reading some step-by-steb guides and following along but no luck so far. My lastest attempt was to take these files from here, modify them a little and see what happens. I basically tweaked his config.plist to fit my hardware better, mostly GPU. The GT120 should be natively supported so I'm trying to get everything working with it first. I'm planning to use HighSierra as it's the latest supporting my GPUs.



After a couple of tries, I ended up on some sort of a loop where OpenCore runs for a while (text runs on screen), system reboots, back to install screen, runs for a whole, reboots, runs for a while, reboots - you get the point. ;) Copied my BIOS settings from these YouTubers Morgonaut and TechNolli, but I might require some help there too.





Here's what I get logged but I don't understand much of it to solve what's going on and what to do next:

Spoiler

panic(cpu 18 caller 0xffffff800a98776f): Kernel trap at 0xffffff7f8fc9e6d8, type 14=page fault, registers:
CR0: 0x000000008001003b, CR2: 0x0000000000002680, CR3: 0x00000007d2de3000, CR4: 0x00000000003406e0
RAX: 0x0000000000000000, RBX: 0x0000000000000000, RCX: 0x0000000000000000, RDX: 0x0000000000000001
RSP: 0xffffff83be7c3660, RBP: 0xffffff83be7c3680, RSI: 0x0000000000000014, RDI: 0x0000000000000000
R8:  0xffffff800b09b7d0, R9:  0x0000000000000020, R10: 0x0000000000000000, R11: 0x0000000000000000
R12: 0x0000000000000000, R13: 0x0000000000000000, R14: 0xffffff8052e82008, R15: 0xffffff834b7c3008
RFL: 0x0000000000010246, RIP: 0xffffff7f8fc9e6d8, CS:  0x0000000000000008, SS:  0x0000000000000010
Fault CR2: 0x0000000000002680, Error code: 0x0000000000000000, Fault CPU: 0x12, PL: 0, VF: 1

Backtrace (CPU 18), Frame : Return Address
0xffffff83be7c3130 : 0xffffff800a86c1c6
0xffffff83be7c3180 : 0xffffff800a995274
0xffffff83be7c31c0 : 0xffffff800a987544
0xffffff83be7c3230 : 0xffffff800a81e1e0
0xffffff83be7c3250 : 0xffffff800a86bc3c
0xffffff83be7c3380 : 0xffffff800a86b9fc
0xffffff83be7c33e0 : 0xffffff800a98776f
0xffffff83be7c3550 : 0xffffff800a81e1e0
0xffffff83be7c3570 : 0xffffff7f8fc9e6d8
0xffffff83be7c3680 : 0xffffff7f8fc9011e
0xffffff83be7c3710 : 0xffffff7f8fa845a6
0xffffff83be7c3790 : 0xffffff7f8fa9b67e
0xffffff83be7c37f0 : 0xffffff7f8f9d7847
0xffffff83be7c3810 : 0xffffff7f8f9d8212
0xffffff83be7c39e0 : 0xffffff7f8f9d85b4
0xffffff83be7c3a80 : 0xffffff7f8f984a9c
0xffffff83be7c3b00 : 0xffffff7f8f9842aa
0xffffff83be7c3b60 : 0xffffff7f8f985be0
0xffffff83be7c3ba0 : 0xffffff7f8f90a8eb
0xffffff83be7c3c20 : 0xffffff7f8f90217a
0xffffff83be7c3c70 : 0xffffff7f8f9866c4
0xffffff83be7c3cc0 : 0xffffff800ae6cc2f
0xffffff83be7c3d10 : 0xffffff800aec95a7
0xffffff83be7c3d70 : 0xffffff800a9426a2
0xffffff83be7c3dc0 : 0xffffff800a8716e0
0xffffff83be7c3e10 : 0xffffff800a84ea3d
0xffffff83be7c3e60 : 0xffffff800a86154b
0xffffff83be7c3ef0 : 0xffffff800a97171d
0xffffff83be7c3fa0 : 0xffffff800a81e9e6
      Kernel Extensions in backtrace:
         com.apple.iokit.IOGraphicsFamily(519.20)[0E507098-E375-39B7-9AE2-AFF2C7A5D961]com.apple.0xffffff7f8f8f3000-com.apple.driver.0xffffff7f8f93bfff
            dependency: com.apple.iokit.IOPCIFamily(2.9)[AEA4C7F5-CCB0-338B-B471-CF28A9792522]com.apple.0xffffff7f8b0e6000
         com.apple.nvidia.classic.NVDAResmanTesla(10.0.4)[F8258F0F-61AD-30F4-BDD5-B18CCAAE535A]com.apple.0xffffff7f8f983000-com.apple.driver.0xffffff7f8fbebfff
            dependency: com.apple.iokit.IOPCIFamily(2.9)[AEA4C7F5-CCB0-338B-B471-CF28A9792522]com.apple.0xffffff7f8b0e6000
            dependency: com.apple.iokit.IONDRVSupport(519.20)[64AB0898-0DF1-32DF-850A-8840C3478439]com.apple.0xffffff7f8f958000
            dependency: com.apple.iokit.IOGraphicsFamily(519.20)[0E507098-E375-39B7-9AE2-AFF2C7A5D961]com.apple.0xffffff7f8f8f3000
         com.apple.nvidia.classic.NVDANV50HalTesla(10.0.4)[5DCF031B-F81F-32A3-ADCD-18E16EAC7CF0]com.apple.0xffffff7f8fbec000-com.apple.driver.0xffffff7f8fe94fff
            dependency: com.apple.nvidia.classic.NVDAResmanTesla(10.0.4)[F8258F0F-61AD-30F4-BDD5-B18CCAAE535A]com.apple.0xffffff7f8f983000
            dependency: com.apple.iokit.IOPCIFamily(2.9)[AEA4C7F5-CCB0-338B-B471-CF28A9792522]com.apple.0xffffff7f8b0e6000

BSD process name corresponding to current thread: WindowServer
Boot args: npci=0x2000 alcid=1 -radnoaudio gfxrst=4 vsmcgen=1 -v root-dmg=file:///Install%20macOS%20High%20Sierra.app/Contents/SharedSupport/BaseSystem.dmg

Mac OS version:
17G66

Kernel version:
Darwin Kernel Version 17.7.0: Thu Jun 21 22:53:14 PDT 2018; root:xnu-4570.71.2~1/RELEASE_X86_64
Kernel UUID: 1AE5ACFD-3B6F-3D74-AD52-31F1430DBC6F
Kernel slide:     0x000000000a600000
Kernel text base: 0xffffff800a800000
__HIB  text base: 0xffffff800a700000
System model name: iMacPro1,1 (Mac-7BA5B2D9E42DDD94)

System uptime in nanoseconds: 154735421764
last loaded kext at 152584207167: com.apple.driver.AppleGraphicsDevicePolicy    3.20.13 (addr 0xffffff7f8ffa5000, size 77824)
loaded kexts:






Edited by Robentosh

GeForce GTX 960 is Maxwell and should therefore be supported in High Sierra with the nVidia Web driver. It's complete night and day between the old mid-range Tesla GT120 and the more recent high-performance Maxwell GTX 960.



Whilst more recent and cheap Kepler cards (eg: GK208-based GT710/720/730) may be an ideal alternative to your older cards -they remain natively and fully supported in Mojave and Catalina-, you may use the GT120 in OpenGL-only mode under 10.14/10.15 by reverting graphics-related frameworks to older versions and installing the Tesla graphics kexts from High Sierra 10.13.6.



Your KP appears nVidia-related so I'd start by changing SMBIOS from iMacPro1,1 to something that was initially fitted with an nVidia card such as iMac14,2/14,3 or MacPro5,1.

6 hours ago, Hervé said:

Your KP appears nVidia-related so I'd start by changing SMBIOS from iMacPro1,1 to something that was initially fitted with an nVidia card such as iMac14,2/14,3 or MacPro5,1.



Thanks! I changed my SMBIOS to MacPro5,1 and I think we got the process a bit further but still the same end result as the computer keeps rebooting over and over again after some text-lines on screen.



Do you think it could be the GT120 causing all this alone? Tried it now with GTX960 next but unfortunately not any better luck. A friend is selling this, would this be a better option for my GTX960 and GT120 cards? Thanks!



EDIT: After putting a GTX960 in, I think it went a bit further. I add a photo of my screen right before it reboots again. I noticed there's something about NTFS-fs error. Could this be related to my m2 drive? It's currently parted in two separate partitions. I was planning to have Win10 on the other and macOS on other.



Here's what the log text looked after changing SMBIOS:

Spoiler

panic(cpu 16 caller 0xffffff801218776f): Kernel trap at 0xffffff7f97195321, type 13=general protection, registers:
CR0: 0x000000008001003b, CR2: 0xffffff83b3a11000, CR3: 0x0000000021930000, CR4: 0x00000000003406e0
RAX: 0xffffff7f97199aa8, RBX: 0x0000000000000001, RCX: 0x0000000000000300, RDX: 0x0000000000000001
RSP: 0xffffffa3cbf1ade0, RBP: 0xffffffa3cbf1ade0, RSI: 0x0000000000000000, RDI: 0xffffff805a2d55c0
R8:  0x000000000000ffff, R9:  0x0000000000000001, R10: 0x000000000000018a, R11: 0x0000000000000002
R12: 0xffffff805a2d55c0, R13: 0xffffff80588fe280, R14: 0xffffff805848f001, R15: 0xffffff805a2d55c0
RFL: 0x0000000000010286, RIP: 0xffffff7f97195321, CS:  0x0000000000000008, SS:  0x0000000000000010
Fault CR2: 0xffffff83b3a11000, Error code: 0x0000000000000000, Fault CPU: 0x10, PL: 0, VF: 0

Backtrace (CPU 16), Frame : Return Address
0xffffff8011f54290 : 0xffffff801206c1c6
0xffffff8011f542e0 : 0xffffff8012195274
0xffffff8011f54320 : 0xffffff8012187544
0xffffff8011f54390 : 0xffffff801201e1e0
0xffffff8011f543b0 : 0xffffff801206bc3c
0xffffff8011f544e0 : 0xffffff801206b9fc
0xffffff8011f54540 : 0xffffff801218776f
0xffffff8011f546b0 : 0xffffff801201e1e0
0xffffff8011f546d0 : 0xffffff7f97195321
0xffffffa3cbf1ade0 : 0xffffff7f971940e8
0xffffffa3cbf1be40 : 0xffffff80126731fd
0xffffffa3cbf1be80 : 0xffffff8012672f41
0xffffffa3cbf1bf00 : 0xffffff8012672467
0xffffffa3cbf1bf50 : 0xffffff80126740c6
0xffffffa3cbf1bfa0 : 0xffffff801201d557
      Kernel Extensions in backtrace:
         com.apple.driver.AppleTyMCEDriver(1.0.3d2)[8BBA9D19-1117-3F37-B5F1-CEAF477B65BB]com.apple.0xffffff7f97193000-com.apple.driver.0xffffff7f9719dfff
            dependency: com.apple.iokit.IOACPIFamily(1.4)[95DA39BB-7C39-3742-A2E5-86C555E21D67]com.apple.0xffffff7f928dd000
            dependency: com.apple.iokit.IOPCIFamily(2.9)[AEA4C7F5-CCB0-338B-B471-CF28A9792522]com.apple.0xffffff7f928e6000
            dependency: com.apple.driver.IOPlatformPluginFamily(6.0.0d8)[344AAFD5-4547-377C-B3BF-477D78BF7025]com.apple.0xffffff7f970ae000

BSD process name corresponding to current thread: kernel_task
Boot args: npci=0x2000 alcid=1 -radnoaudio gfxrst=4 vsmcgen=1 -v root-dmg=file:///Install%20macOS%20High%20Sierra.app/Contents/SharedSupport/BaseSystem.dmg

Mac OS version:
17G66

Kernel version:
Darwin Kernel Version 17.7.0: Thu Jun 21 22:53:14 PDT 2018; root:xnu-4570.71.2~1/RELEASE_X86_64
Kernel UUID: 1AE5ACFD-3B6F-3D74-AD52-31F1430DBC6F
Kernel slide:     0x0000000011e00000
Kernel text base: 0xffffff8012000000
__HIB  text base: 0xffffff8011f00000
System model name: MacPro5,1 (Mac-F221BEC8)

System uptime in nanoseconds: 147724788255
last loaded kext at 147554292804: com.apple.driver.AppleTyMCEDriver    1.0.3d2 (addr 0xffffff7f97193000, size 45056)
loaded kexts:



Here's the logs after changing the GPU to GTX960:

Spoiler

panic(cpu 20 caller 0xffffff800f98776f): Kernel trap at 0xffffff7f94995321, type 13=general protection, registers:
CR0: 0x000000008001003b, CR2: 0xffffff839105e000, CR3: 0x000000001f130000, CR4: 0x00000000003406e0
RAX: 0xffffff7f94999aa8, RBX: 0x0000000000000001, RCX: 0x0000000000000300, RDX: 0x0000000000000001
RSP: 0xffffff83c343ade0, RBP: 0xffffff83c343ade0, RSI: 0x0000000000000000, RDI: 0xffffff80579945a0
R8:  0x000000000000ffff, R9:  0x0000000000000001, R10: 0x00000000000001a3, R11: 0x0000000000000004
R12: 0xffffff80579945a0, R13: 0xffffff8056016780, R14: 0xffffff8055b45401, R15: 0xffffff80579945a0
RFL: 0x0000000000010286, RIP: 0xffffff7f94995321, CS:  0x0000000000000008, SS:  0x0000000000000010
Fault CR2: 0xffffff839105e000, Error code: 0x0000000000000000, Fault CPU: 0x14, PL: 0, VF: 0

Backtrace (CPU 20), Frame : Return Address
0xffffff800f756290 : 0xffffff800f86c1c6
0xffffff800f7562e0 : 0xffffff800f995274
0xffffff800f756320 : 0xffffff800f987544
0xffffff800f756390 : 0xffffff800f81e1e0
0xffffff800f7563b0 : 0xffffff800f86bc3c
0xffffff800f7564e0 : 0xffffff800f86b9fc
0xffffff800f756540 : 0xffffff800f98776f
0xffffff800f7566b0 : 0xffffff800f81e1e0
0xffffff800f7566d0 : 0xffffff7f94995321
0xffffff83c343ade0 : 0xffffff7f949940e8
0xffffff83c343be40 : 0xffffff800fe731fd
0xffffff83c343be80 : 0xffffff800fe72f41
0xffffff83c343bf00 : 0xffffff800fe72467
0xffffff83c343bf50 : 0xffffff800fe740c6
0xffffff83c343bfa0 : 0xffffff800f81d557
      Kernel Extensions in backtrace:
         com.apple.driver.AppleTyMCEDriver(1.0.3d2)[8BBA9D19-1117-3F37-B5F1-CEAF477B65BB]com.apple.0xffffff7f94993000-com.apple.driver.0xffffff7f9499dfff
            dependency: com.apple.iokit.IOACPIFamily(1.4)[95DA39BB-7C39-3742-A2E5-86C555E21D67]com.apple.0xffffff7f900dd000
            dependency: com.apple.iokit.IOPCIFamily(2.9)[AEA4C7F5-CCB0-338B-B471-CF28A9792522]com.apple.0xffffff7f900e6000
            dependency: com.apple.driver.IOPlatformPluginFamily(6.0.0d8)[344AAFD5-4547-377C-B3BF-477D78BF7025]com.apple.0xffffff7f948ae000

BSD process name corresponding to current thread: kernel_task
Boot args: npci=0x2000 alcid=1 -radnoaudio gfxrst=4 vsmcgen=1 -v nvda_drv_vrl=1 root-dmg=file:///Install%20macOS%20High%20Sierra.app/Contents/SharedSupport/BaseSystem.dmg

Mac OS version:
17G66

Kernel version:
Darwin Kernel Version 17.7.0: Thu Jun 21 22:53:14 PDT 2018; root:xnu-4570.71.2~1/RELEASE_X86_64
Kernel UUID: 1AE5ACFD-3B6F-3D74-AD52-31F1430DBC6F
Kernel slide:     0x000000000f600000
Kernel text base: 0xffffff800f800000
__HIB  text base: 0xffffff800f700000
System model name: MacPro5,1 (Mac-F221BEC8)

System uptime in nanoseconds: 149344704202
last loaded kext at 149213178630: com.apple.driver.AppleTyMCEDriver    1.0.3d2 (addr 0xffffff7f94993000, size 45056)
loaded kexts:





Edited by Robentosh

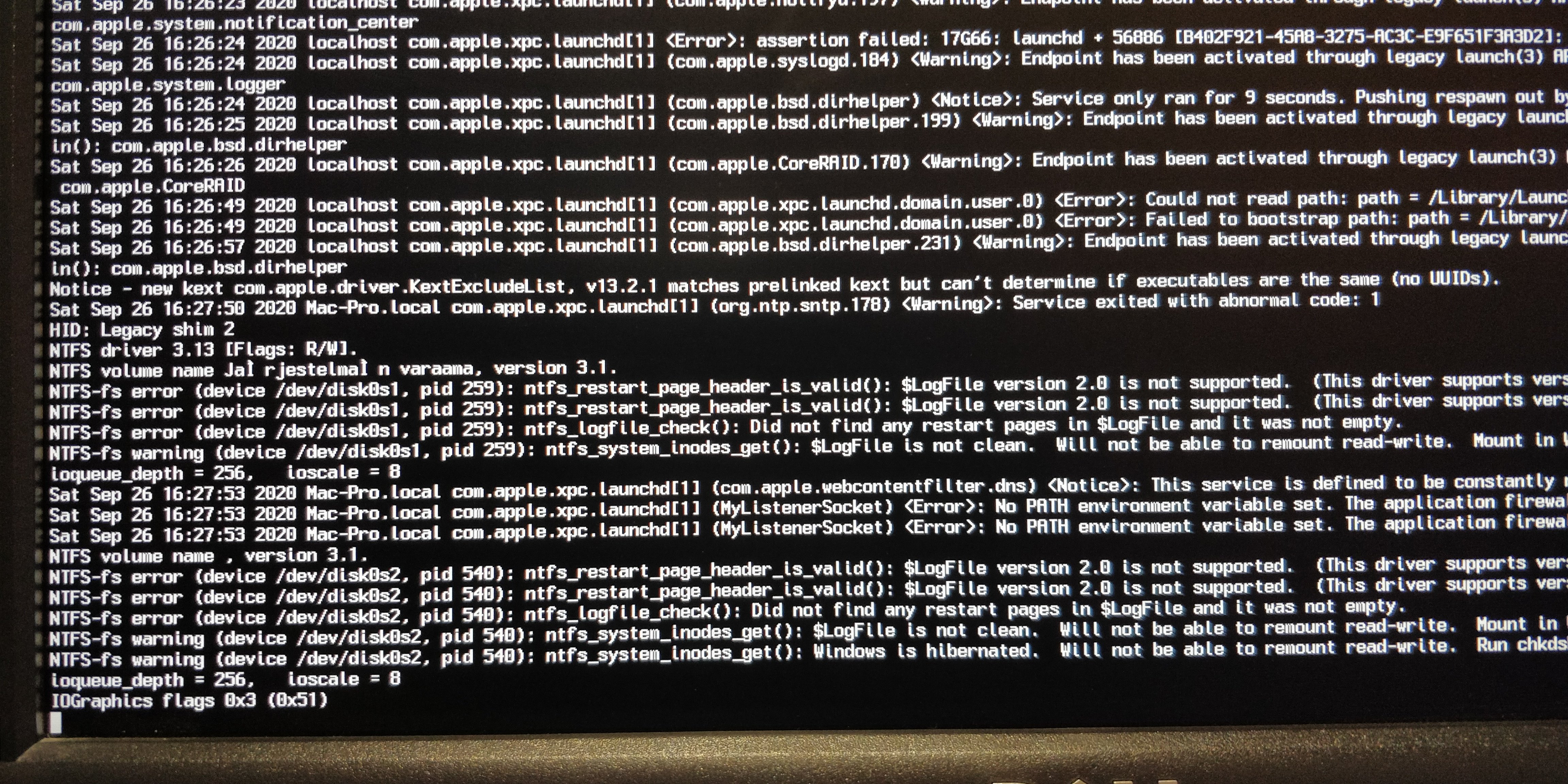

Added more details + a screen shot

That's looking like stuck at graphics initialisation so boot with nVidia disable (press [SPACE] before you boot your installation disk and select the option) and you'll install the Web driver once High Sierra is full installed.



That GT710 appears to be a Kepler model so it would work OOB all the way up to current Catalina but it'll be less powerful than the GTX 960 of course.

15 hours ago, Hervé said:

That's looking like stuck at graphics initialisation so boot with nVidia disable (press [SPACE] before you boot your installation disk and select the option) and you'll install the Web driver once High Sierra is full installed.



That GT710 appears to be a Kepler model so it would work OOB all the way up to current Catalina but it'll be less powerful than the GTX 960 of course.

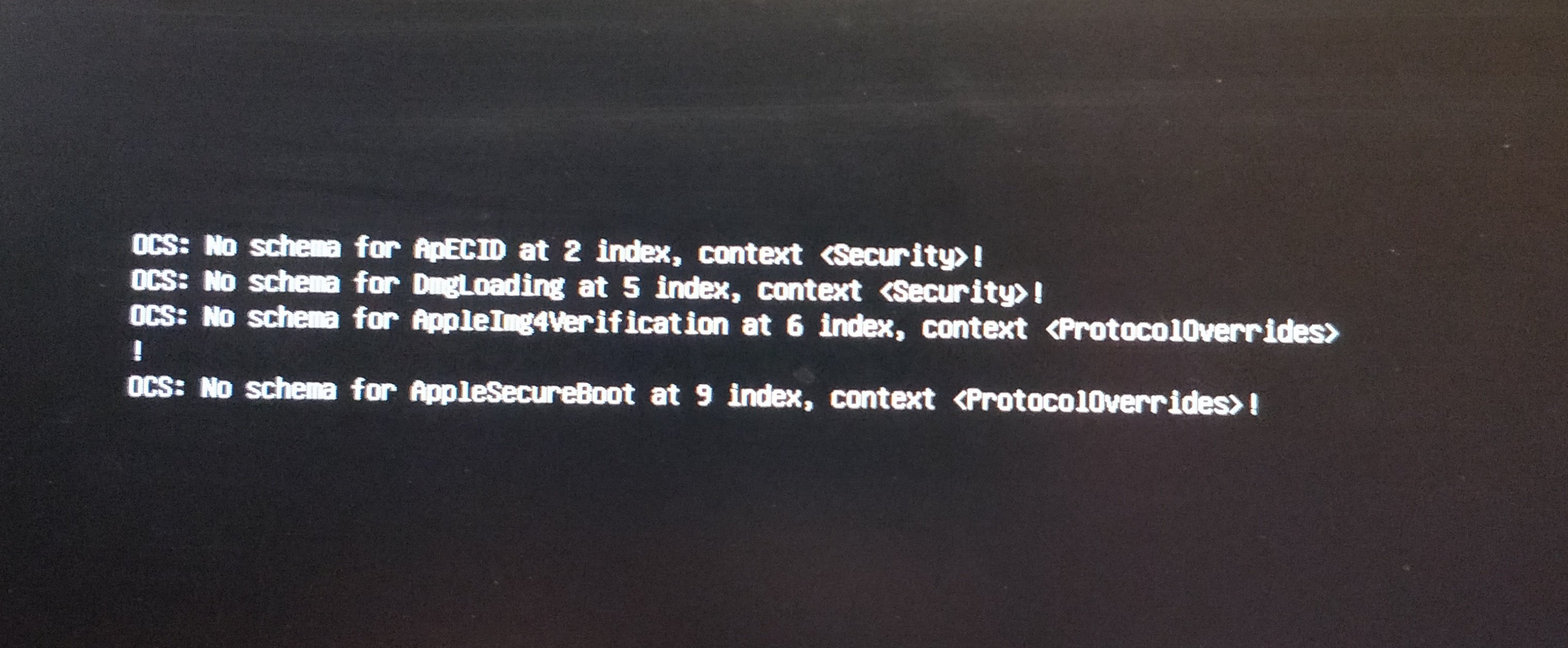

Thanks again for your help! :) :thumbsup_anim: For some reason pressing spacebar key does not do anything for me. I read in the manual it should open Advance Mode in the picker but for me it does nothing. Is there any alternative ways to do it?



Should I have debugger version in use? (Not sure if I have them or not. I assume these are the ones?)



GT710 might be perfect for me since I only use my machine mostly for music production. And I could also use the GTX960 on the side if I just install the web drivers later as normal from HighSierra.



UPDATE: Put in ATI Radeon HD 4350 (TeraScale) which should be natively supported but same thing happens. Runs for a while, reboots, runs for while, reboot. I took a screen shot with logs if there's something there. Replaced release files to debug files and followed guide to modify config.plist.



Here's new log:

Spoiler

panic(cpu 22 caller 0xffffff801618776f): Kernel trap at 0xffffff7f9b30e321, type 13=general protection, registers:
CR0: 0x000000008001003b, CR2: 0xffffff83b73b9000, CR3: 0x000000002592e000, CR4: 0x00000000003406e0
RAX: 0xffffff7f9b312aa8, RBX: 0x0000000000000001, RCX: 0x0000000000000300, RDX: 0x0000000000000001
RSP: 0xffffffa3cca62de0, RBP: 0xffffffa3cca62de0, RSI: 0x0000000000000000, RDI: 0xffffff805ddfad40
R8:  0x000000000000ffff, R9:  0x0000000000000001, R10: 0x0000000000000188, R11: 0x000000000000000d
R12: 0xffffff805ddfad40, R13: 0xffffff805b61f370, R14: 0xffffff805be46601, R15: 0xffffff805ddfad40
RFL: 0x0000000000010286, RIP: 0xffffff7f9b30e321, CS:  0x0000000000000008, SS:  0x0000000000000010
Fault CR2: 0xffffff83b73b9000, Error code: 0x0000000000000000, Fault CPU: 0x16, PL: 0, VF: 0

Backtrace (CPU 22), Frame : Return Address
0xffffff8015f57290 : 0xffffff801606c1c6
0xffffff8015f572e0 : 0xffffff8016195274
0xffffff8015f57320 : 0xffffff8016187544
0xffffff8015f57390 : 0xffffff801601e1e0
0xffffff8015f573b0 : 0xffffff801606bc3c
0xffffff8015f574e0 : 0xffffff801606b9fc
0xffffff8015f57540 : 0xffffff801618776f
0xffffff8015f576b0 : 0xffffff801601e1e0
0xffffff8015f576d0 : 0xffffff7f9b30e321
0xffffffa3cca62de0 : 0xffffff7f9b30d0e8
0xffffffa3cca63e40 : 0xffffff80166731fd
0xffffffa3cca63e80 : 0xffffff8016672f41
0xffffffa3cca63f00 : 0xffffff8016672467
0xffffffa3cca63f50 : 0xffffff80166740c6
0xffffffa3cca63fa0 : 0xffffff801601d557
      Kernel Extensions in backtrace:
         com.apple.driver.AppleTyMCEDriver(1.0.3d2)[8BBA9D19-1117-3F37-B5F1-CEAF477B65BB]com.apple.0xffffff7f9b30c000-com.apple.driver.0xffffff7f9b316fff
            dependency: com.apple.iokit.IOACPIFamily(1.4)[95DA39BB-7C39-3742-A2E5-86C555E21D67]com.apple.0xffffff7f968dd000
            dependency: com.apple.iokit.IOPCIFamily(2.9)[AEA4C7F5-CCB0-338B-B471-CF28A9792522]com.apple.0xffffff7f968e6000
            dependency: com.apple.driver.IOPlatformPluginFamily(6.0.0d8)[344AAFD5-4547-377C-B3BF-477D78BF7025]com.apple.0xffffff7f9b053000

BSD process name corresponding to current thread: kernel_task
Boot args: npci=0x2000 alcid=1 -radnoaudio gfxrst=4 vsmcgen=1 -v root-dmg=file:///Install%20macOS%20High%20Sierra.app/Contents/SharedSupport/BaseSystem.dmg

Mac OS version:
17G66

Kernel version:
Darwin Kernel Version 17.7.0: Thu Jun 21 22:53:14 PDT 2018; root:xnu-4570.71.2~1/RELEASE_X86_64
Kernel UUID: 1AE5ACFD-3B6F-3D74-AD52-31F1430DBC6F
Kernel slide:     0x0000000015e00000
Kernel text base: 0xffffff8016000000
__HIB  text base: 0xffffff8015f00000
System model name: MacPro5,1 (Mac-F221BEC8)

System uptime in nanoseconds: 147715584195
last loaded kext at 147571985456: com.apple.driver.AppleTyMCEDriver    1.0.3d2 (addr 0xffffff7f9b30c000, size 45056)
loaded kexts:







UPDATE2: Some more logs after enabling debugger



Opencore:

Spoiler

00:000 00:000 OC: OpenCore DBG-061-2020-09-07 is loading in Optional mode (0/0)...
00:028 00:028 OC: Boot timestamp - 2020.09.27 11:22:31
00:057 00:028 OCCPU: MP services threads 24 (enabled 24) - Success
00:085 00:028 OCCPU: MP services Pkg 1 Cores 15 Threads 2 - Success
00:115 00:029 OCCPU: Found AMD Ryzen 9 3900X 12-Core Processor
00:148 00:033 OCCPU: Signature 870F10 Stepping 0 Model 71 Family F Type 0 ExtModel 7 ExtFamily 8 uCode 0
00:280 00:131 OCCPU: FID 152 DID 8 Divisor 0 MaxBR 38
00:309 00:028 OCCPU: CPUFrequencyFromTSC  3792879626Hz  3792MHz
00:338 00:029 OCCPU: CPUFrequency  3792879626Hz  3792MHz
00:366 00:028 OCCPU: FSBFrequency    99812621Hz    99MHz
00:396 00:029 OCCPU: Pkg 1 Cores 12 Threads 24
00:427 00:031 OC: OcLoadNvramSupport...
00:456 00:028 OC: Not deleting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:UIScale, matches add
00:487 00:031 OC: Deleting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:DefaultBackgroundColor - Not Found
00:518 00:030 OC: Not deleting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:rtc-blacklist, matches add
00:549 00:031 OC: Not deleting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:boot-args, matches add
00:589 00:040 OC: Setting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:DefaultBackgroundColor - Success
00:620 00:030 OC: Setting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:UIScale - ignored, exists
00:651 00:031 OC: Setting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:rtc-blacklist - Not Found
00:682 00:030 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:SystemAudioVolume - ignored, exists
00:713 00:031 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:boot-args - ignored, exists
00:749 00:035 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:csr-active-config - ignored, exists
00:779 00:030 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:prev-lang:kbd - ignored, exists
00:810 00:030 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:run-efi-updater - ignored, exists
00:840 00:030 OC: Current version is DBG-061-2020-09-07
00:871 00:030 OC: OcMiscMiddleInit...
00:899 00:028 OC: LoadHandle D61EA418 with BootProtect in None mode - Success
00:933 00:033 OC: OcLoadUefiSupport...
00:961 00:028 OCRTC: Wake log is 0x00 0x00   0 0x00
00:990 00:028 OC: Loading Apple Secure Boot with Default (level 1)
01:030 00:039 OCII: AIFTimerBoostInit Current timer is 549183
01:059 00:029 OCII: AIFTimerBoostInit changed period 549183 to 50000
01:092 00:033 OCII: gST->ConIn D1C38250 vs found D1C38250
01:122 00:029 OCABC: RTDFRG 1 DEVMMIO 0 NOSU 0 NOVRWR 0 NOSB 0 NOHBMAP 0 SMSLIDE 1 WRUNPROT 0
01:150 00:028 OCABC: FEXITBS 0 PRMRG 0 CSLIDE 1 MSLIDE 0 PRSRV 0 RBMAP 1 VMAP 0 APPLOS 0 RTPERMS 1
01:181 00:030 OCABC: Firmware has 8337351 free pages (869575 in lower 4 GB)
01:210 00:029 OCABC: Awaiting rendezvous with OpenRuntime r11
01:244 00:033 OC: RBVR 1 DDBR 1
01:275 00:031 OC: Got 2 drivers
01:304 00:029 OC: Driver HfsPlus.efi at 0 is being loaded...
01:336 00:032 OCB: Arch filtering 0(37892)->D54CB018(37892) caps 4 - Success
01:365 00:029 OC: Driver HfsPlus.efi at 0 is successfully loaded!
01:394 00:028 OC: Driver HfsPlus.efi at 0 needs connection.
01:426 00:032 OC: Driver OpenRuntime.efi at 1 is being loaded...
01:458 00:031 OCB: Arch filtering 0(36868)->D54CB018(36868) caps 4 - Success
01:487 00:029 OCABC: Got rendezvous with OpenRuntime r11
01:516 00:028 OCABC: MAT support is 1
01:545 00:028 OC: Driver OpenRuntime.efi at 1 is successfully loaded!
01:578 00:033 OC: Connecting drivers...
10:374 08:795 OC: Connecting drivers done...
10:403 00:029 OCJS: PartitionInfo is Success
10:432 00:029 OCC: Installing GOP (Unsupported) on ConsoleOutHandle...
10:461 00:029 OC: Requested resolution is 0x0@0 (max: 1) from Max
10:495 00:033 OCC: Requesting 0x0@0 (max: 1) resolution, curr 6, total 7
10:524 00:029 OCC: Mode 0 - 720x400:1
10:553 00:028 OCC: Mode 1 - 1152x864:1
10:582 00:029 OCC: Mode 2 - 640x480:1
10:611 00:028 OCC: Mode 3 - 800x600:1
10:640 00:028 OCC: Mode 4 - 1024x768:1
10:672 00:032 OCC: Mode 5 - 1280x1024:1
10:701 00:028 OCC: Mode 6 - 1600x1200:1
10:730 00:029 OCC: Current mode matches desired mode 6
10:759 00:029 OC: Changed resolution to 0x0@0 (max: 1) from Max - Already started
10:789 00:029 OCC: Using builtin text renderer with 1 scale
10:833 00:044 OCC: Install console control (D18DA258/0/0), current - Success
10:861 00:028 OCC: Setup ASCII Output - Success
10:888 00:026 OC: Requested console mode is 0x0 (max: 0) from
10:915 00:026 OC: Requested not to use audio
10:942 00:026 OC: OcLoadAcpiSupport...
10:973 00:031 OCA: Found 22 ACPI tables
11:000 00:026 OCA: Detected table 50434146 (00002049204D2041) at DA8A5000 of 276 bytes at index 0
11:027 00:026 OCA: Detected table 54445353 (656C626154646D41) at DA8AB000 of 35992 bytes at index 1
11:053 00:026 OCA: Detected table 54445353 (00444F4120444D41) at DA8A7000 of 15051 bytes at index 2
11:080 00:026 OCA: Detected table 54445353 (0054445353555043) at DA8A6000 of 356 bytes at index 3
11:108 00:027 OCA: Detected table 54444946 (00000049204D2041) at DA898000 of 156 bytes at index 4
11:138 00:030 OCA: Detected table 54445046 (00002049204D2041) at DA7A3000 of 68 bytes at index 5
11:165 00:026 OCA: Detected table 4746434D (00000049204D2041) at DA896000 of 60 bytes at index 6
11:192 00:027 OCA: Detected table 54455048 (00000049204D2041) at DA895000 of 56 bytes at index 7
11:219 00:026 OCA: Detected table 54445353 (0000000000000000) at DA894000 of 36 bytes at index 8
11:246 00:026 OCA: Detected table 54524742 (00002049204D2041) at DA892000 of 56 bytes at index 9
11:277 00:031 OCA: Detected table 54425057 (00000049204D2041) at DA7B9000 of 60 bytes at index 10
11:304 00:027 OCA: Detected table 53525649 (656C626154646D41) at DA7B8000 of 208 bytes at index 11
11:332 00:027 OCA: Detected table 54434350 (656C626154646D41) at DA7B7000 of 110 bytes at index 12
11:359 00:026 OCA: Detected table 54445353 (656C626154646D41) at DA7B1000 of 24073 bytes at index 13
11:386 00:027 OCA: Detected table 54415243 (656C626154646D41) at DA7AF000 of 5720 bytes at index 14
11:417 00:031 OCA: Detected table 54494443 (656C626154646D41) at DA7AE000 of 41 bytes at index 15
11:444 00:026 OCA: Detected table 54445353 (5047445249474F51) at DA7AD000 of 554 bytes at index 16
11:471 00:027 OCA: Detected table 54445353 (5850545249474F51) at DA7AB000 of 4261 bytes at index 17
11:498 00:027 OCA: Detected table 54445353 (494F4E5249474F51) at DA7AA000 of 1324 bytes at index 18
11:525 00:026 OCA: Detected table 54445353 (00004E5249474F51) at DA7A6000 of 13381 bytes at index 19
11:553 00:027 OCA: Detected table 544D5357 (00002049204D2041) at DA7A5000 of 40 bytes at index 20
11:583 00:030 OCA: Detected table 43495041 (00002049204D2041) at DA7A4000 of 350 bytes at index 21
11:610 00:026 OCA: Applying 12 byte ACPI patch skip 0, count 0
11:637 00:026 OCA: Patching DSDT of 47185 bytes with 0000000000000000 ID replaced 1 of 0
11:664 00:026 OCA: Refreshed DSDT checksum to D1
11:691 00:026 OCA: Patching 50434146 (00002049204D2041, 276) with 00002049204D2041 ID at 0 replaced 0 of 0
11:721 00:030 OCA: Patching 54445353 (656C626154646D41, 35992) with 656C626154646D41 ID at 1 replaced 0 of 0
11:747 00:025 OCA: Patching 54445353 (00444F4120444D41, 15051) with 00444F4120444D41 ID at 2 replaced 0 of 0
11:773 00:025 OCA: Patching 54445353 (0054445353555043, 356) with 0054445353555043 ID at 3 replaced 0 of 0
11:799 00:026 OCA: Patching 54444946 (00000049204D2041, 156) with 00000049204D2041 ID at 4 replaced 0 of 0
11:826 00:026 OCA: Patching 54445046 (00002049204D2041, 68) with 00002049204D2041 ID at 5 replaced 0 of 0
11:856 00:030 OCA: Patching 4746434D (00000049204D2041, 60) with 00000049204D2041 ID at 6 replaced 0 of 0
11:883 00:026 OCA: Patching 54455048 (00000049204D2041, 56) with 00000049204D2041 ID at 7 replaced 0 of 0
11:908 00:025 OCA: Patching 54445353 (0000000000000000, 36) with 0000005942584942 ID at 8 replaced 0 of 0
11:934 00:025 OCA: Patching 54524742 (00002049204D2041, 56) with 00002049204D2041 ID at 9 replaced 0 of 0
11:960 00:026 OCA: Patching 54425057 (00000049204D2041, 60) with 00000049204D2041 ID at 10 replaced 0 of 0
11:987 00:026 OCA: Patching 53525649 (656C626154646D41, 208) with 656C626154646D41 ID at 11 replaced 0 of 0
12:016 00:029 OCA: Patching 54434350 (656C626154646D41, 110) with 656C626154646D41 ID at 12 replaced 0 of 0
12:042 00:026 OCA: Patching 54445353 (656C626154646D41, 24073) with 656C626154646D41 ID at 13 replaced 0 of 0
12:068 00:025 OCA: Patching 54415243 (656C626154646D41, 5720) with 656C626154646D41 ID at 14 replaced 0 of 0
12:094 00:025 OCA: Patching 54494443 (656C626154646D41, 41) with 656C626154646D41 ID at 15 replaced 0 of 0
12:120 00:026 OCA: Patching 54445353 (5047445249474F51, 554) with 5047445249474F51 ID at 16 replaced 0 of 0
12:150 00:030 OCA: Patching 54445353 (5850545249474F51, 4261) with 5850545249474F51 ID at 17 replaced 0 of 0
12:176 00:025 OCA: Patching 54445353 (494F4E5249474F51, 1324) with 494F4E5249474F51 ID at 18 replaced 0 of 0
12:202 00:026 OCA: Patching 54445353 (00004E5249474F51, 13381) with 00004E5249474F51 ID at 19 replaced 0 of 0
12:228 00:025 OCA: Patching 544D5357 (00002049204D2041, 40) with 00002049204D2041 ID at 20 replaced 0 of 0
12:254 00:026 OCA: Patching 43495041 (00002049204D2041, 350) with 00002049204D2041 ID at 21 replaced 0 of 0
12:285 00:030 OCA: Applying 5 byte ACPI patch skip 0, count 0
12:312 00:027 OCA: Patching DSDT of 47185 bytes with 0000000000000000 ID replaced 1 of 0
12:339 00:026 OCA: Refreshed DSDT checksum to D2
12:366 00:026 OCA: Patching 50434146 (00002049204D2041, 276) with 00002049204D2041 ID at 0 replaced 0 of 0
12:392 00:026 OCA: Patching 54445353 (656C626154646D41, 35992) with 656C626154646D41 ID at 1 replaced 0 of 0
12:418 00:026 OCA: Patching 54445353 (00444F4120444D41, 15051) with 00444F4120444D41 ID at 2 replaced 0 of 0
12:447 00:029 OCA: Patching 54445353 (0054445353555043, 356) with 0054445353555043 ID at 3 replaced 0 of 0
12:473 00:025 OCA: Patching 54444946 (00000049204D2041, 156) with 00000049204D2041 ID at 4 replaced 0 of 0
12:499 00:025 OCA: Patching 54445046 (00002049204D2041, 68) with 00002049204D2041 ID at 5 replaced 0 of 0
12:525 00:025 OCA: Patching 4746434D (00000049204D2041, 60) with 00000049204D2041 ID at 6 replaced 0 of 0
12:551 00:026 OCA: Patching 54455048 (00000049204D2041, 56) with 00000049204D2041 ID at 7 replaced 0 of 0
12:581 00:030 OCA: Patching 54445353 (0000000000000000, 36) with 0000005942584942 ID at 8 replaced 0 of 0
12:607 00:026 OCA: Patching 54524742 (00002049204D2041, 56) with 00002049204D2041 ID at 9 replaced 0 of 0
12:633 00:025 OCA: Patching 54425057 (00000049204D2041, 60) with 00000049204D2041 ID at 10 replaced 0 of 0
12:659 00:025 OCA: Patching 53525649 (656C626154646D41, 208) with 656C626154646D41 ID at 11 replaced 0 of 0
12:685 00:026 OCA: Patching 54434350 (656C626154646D41, 110) with 656C626154646D41 ID at 12 replaced 0 of 0
12:715 00:030 OCA: Patching 54445353 (656C626154646D41, 24073) with 656C626154646D41 ID at 13 replaced 0 of 0
12:742 00:026 OCA: Patching 54415243 (656C626154646D41, 5720) with 656C626154646D41 ID at 14 replaced 0 of 0
12:768 00:026 OCA: Patching 54494443 (656C626154646D41, 41) with 656C626154646D41 ID at 15 replaced 0 of 0
12:794 00:026 OCA: Patching 54445353 (5047445249474F51, 554) with 5047445249474F51 ID at 16 replaced 0 of 0
12:820 00:026 OCA: Patching 54445353 (5850545249474F51, 4261) with 5850545249474F51 ID at 17 replaced 0 of 0
12:857 00:036 OCA: Patching 54445353 (494F4E5249474F51, 1324) with 494F4E5249474F51 ID at 18 replaced 0 of 0
12:897 00:039 OCA: Patching 54445353 (00004E5249474F51, 13381) with 00004E5249474F51 ID at 19 replaced 0 of 0
12:933 00:036 OCA: Patching 544D5357 (00002049204D2041, 40) with 00002049204D2041 ID at 20 replaced 0 of 0
12:970 00:036 OCA: Patching 43495041 (00002049204D2041, 350) with 00002049204D2041 ID at 21 replaced 0 of 0
13:010 00:039 OCA: Inserted table 54445353 (0000434574647353) of 125 bytes into ACPI at index 22
13:048 00:037 OCA: Inserted table 54445353 (0000000054455048) of 87 bytes into ACPI at index 23
13:090 00:042 OCA: Inserted table 54445353 (7862735574647353) of 189 bytes into ACPI at index 24
13:127 00:037 OCA: FACS signature is 0 (0)
13:165 00:037 OCA: Exposing XSDT table 50434146 (00002049204D2041) at DA8A5000 of 276 bytes at index 0
13:202 00:037 OCA: Exposing XSDT table 54445353 (656C626154646D41) at DA8AB000 of 35992 bytes at index 1
13:240 00:037 OCA: Exposing XSDT table 54445353 (00444F4120444D41) at DA8A7000 of 15051 bytes at index 2
13:282 00:042 OCA: Exposing XSDT table 54445353 (0054445353555043) at DA8A6000 of 356 bytes at index 3
13:319 00:037 OCA: Exposing XSDT table 54444946 (00000049204D2041) at DA898000 of 156 bytes at index 4
13:356 00:036 OCA: Exposing XSDT table 54445046 (00002049204D2041) at DA7A3000 of 68 bytes at index 5
13:393 00:037 OCA: Exposing XSDT table 4746434D (00000049204D2041) at DA896000 of 60 bytes at index 6
13:431 00:037 OCA: Exposing XSDT table 54455048 (00000049204D2041) at DA895000 of 56 bytes at index 7
13:468 00:037 OCA: Exposing XSDT table 54445353 (0000000000000000) at DA894000 of 36 bytes at index 8
13:509 00:040 OCA: Exposing XSDT table 54524742 (00002049204D2041) at DA892000 of 56 bytes at index 9
13:547 00:037 OCA: Exposing XSDT table 54425057 (00000049204D2041) at DA7B9000 of 60 bytes at index 10
13:584 00:037 OCA: Exposing XSDT table 53525649 (656C626154646D41) at DA7B8000 of 208 bytes at index 11
13:622 00:037 OCA: Exposing XSDT table 54434350 (656C626154646D41) at DA7B7000 of 110 bytes at index 12
13:659 00:037 OCA: Exposing XSDT table 54445353 (656C626154646D41) at DA7B1000 of 24073 bytes at index 13
13:701 00:041 OCA: Exposing XSDT table 54415243 (656C626154646D41) at DA7AF000 of 5720 bytes at index 14
13:739 00:037 OCA: Exposing XSDT table 54494443 (656C626154646D41) at DA7AE000 of 41 bytes at index 15
13:777 00:038 OCA: Exposing XSDT table 54445353 (5047445249474F51) at DA7AD000 of 554 bytes at index 16
13:815 00:037 OCA: Exposing XSDT table 54445353 (5850545249474F51) at DA7AB000 of 4261 bytes at index 17
13:853 00:038 OCA: Exposing XSDT table 54445353 (494F4E5249474F51) at DA7AA000 of 1324 bytes at index 18
13:894 00:041 OCA: Exposing XSDT table 54445353 (00004E5249474F51) at DA7A6000 of 13381 bytes at index 19
13:932 00:037 OCA: Exposing XSDT table 544D5357 (00002049204D2041) at DA7A5000 of 40 bytes at index 20
13:969 00:037 OCA: Exposing XSDT table 43495041 (00002049204D2041) at DA7A4000 of 350 bytes at index 21
14:007 00:037 OCA: Exposing XSDT table 54445353 (0000434574647353) at DAA10000 of 125 bytes at index 22
14:044 00:037 OCA: Exposing XSDT table 54445353 (0000000054455048) at DAA0F000 of 87 bytes at index 23
14:082 00:037 OCA: Exposing XSDT table 54445353 (7862735574647353) at DAA0E000 of 189 bytes at index 24
14:123 00:040 OCA: Exposing RSDT table 50434146 (00002049204D2041) at DA8A5000 of 276 bytes at index 0
14:159 00:036 OCA: Exposing RSDT table 54445353 (656C626154646D41) at DA8AB000 of 35992 bytes at index 1
14:195 00:036 OCA: Exposing RSDT table 54445353 (00444F4120444D41) at DA8A7000 of 15051 bytes at index 2
14:231 00:036 OCA: Exposing RSDT table 54445353 (0054445353555043) at DA8A6000 of 356 bytes at index 3
14:267 00:036 OCA: Exposing RSDT table 54444946 (00000049204D2041) at DA898000 of 156 bytes at index 4
14:308 00:040 OCA: Exposing RSDT table 54445046 (00002049204D2041) at DA7A3000 of 68 bytes at index 5
14:345 00:036 OCA: Exposing RSDT table 4746434D (00000049204D2041) at DA896000 of 60 bytes at index 6
14:381 00:036 OCA: Exposing RSDT table 54455048 (00000049204D2041) at DA895000 of 56 bytes at index 7
14:417 00:035 OCA: Exposing RSDT table 54445353 (0000000000000000) at DA894000 of 36 bytes at index 8
14:453 00:036 OCA: Exposing RSDT table 54524742 (00002049204D2041) at DA892000 of 56 bytes at index 9
14:493 00:040 OCA: Exposing RSDT table 54425057 (00000049204D2041) at DA7B9000 of 60 bytes at index 10
14:530 00:036 OCA: Exposing RSDT table 53525649 (656C626154646D41) at DA7B8000 of 208 bytes at index 11
14:566 00:036 OCA: Exposing RSDT table 54434350 (656C626154646D41) at DA7B7000 of 110 bytes at index 12
14:603 00:036 OCA: Exposing RSDT table 54445353 (656C626154646D41) at DA7B1000 of 24073 bytes at index 13
14:639 00:036 OCA: Exposing RSDT table 54415243 (656C626154646D41) at DA7AF000 of 5720 bytes at index 14
14:675 00:036 OCA: Exposing RSDT table 54494443 (656C626154646D41) at DA7AE000 of 41 bytes at index 15
14:715 00:039 OCA: Exposing RSDT table 54445353 (5047445249474F51) at DA7AD000 of 554 bytes at index 16
14:751 00:036 OCA: Exposing RSDT table 54445353 (5850545249474F51) at DA7AB000 of 4261 bytes at index 17
14:788 00:036 OCA: Exposing RSDT table 54445353 (494F4E5249474F51) at DA7AA000 of 1324 bytes at index 18
14:824 00:036 OCA: Exposing RSDT table 54445353 (00004E5249474F51) at DA7A6000 of 13381 bytes at index 19
14:860 00:036 OCA: Exposing RSDT table 544D5357 (00002049204D2041) at DA7A5000 of 40 bytes at index 20
14:901 00:040 OCA: Exposing RSDT table 43495041 (00002049204D2041) at DA7A4000 of 350 bytes at index 21
14:937 00:036 OCA: Exposing RSDT table 54445353 (0000434574647353) at DAA10000 of 125 bytes at index 22
14:973 00:035 OCA: Exposing RSDT table 54445353 (0000000054455048) at DAA0F000 of 87 bytes at index 23
15:009 00:036 OCA: Exposing RSDT table 54445353 (7862735574647353) at DAA0E000 of 189 bytes at index 24
15:045 00:036 OC: OcLoadPlatformSupport...
15:086 00:041 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:name (9) - Success
15:124 00:037 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:Model (20) - Success
15:161 00:037 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:board-id (13) - Success
15:198 00:037 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:StartupPowerEvents (8) - Success
15:236 00:037 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:InitialTSC (8) - Success
15:273 00:037 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:FSBFrequency (8) - Success
15:314 00:040 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:DevicePathsSupported (4) - Success
15:351 00:036 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:REV (6) - Success
15:389 00:037 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:RBr (8) - Success
15:426 00:037 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:RPlt (8) - Success
15:463 00:037 OCSMB: Found DMI Anchor DBA17000 v3.2 Table Address 000E6F40 Length 0C26
15:505 00:041 OCSMB: Found DMI Anchor DBA16000 v3.2 Table Address 000E6F40 Length 0C26
15:543 00:037 OC: Current SMBIOS: System manufacturer model System Product Name
15:580 00:037 OC: New SMBIOS: Acidanthera model MacPro5,1
15:617 00:036 OCSMB: Number of CPU cache entries is 3
15:654 00:037 OCSMB: Applying 2453 (1) prev DBA17000 (3110/31), DBA16000 (3110/24)
15:696 00:041 OCSMB: Patched DA711000 v3.2 Table Address DA712000 Length 0995 1E EC
15:734 00:038 OC: Setting HW_BID Mac-F221BEC8 - Success
15:772 00:038 OC: Setting HW_ROM 13:A3:92:95:01:75 - Success
15:810 00:038 OC: Setting ROM 13:A3:92:95:01:75 - Success
15:849 00:038 OC: Setting FirmwareFeatures E80FE137 - Success
15:887 00:038 OC: Setting ExtendedFirmwareFeatures 00000000E80FE137 - Success
15:929 00:041 OC: Setting FirmwareFeaturesMask FF1FFF3F - Success
15:967 00:038 OC: Setting ExtendedFirmwareFeaturesMask 00000000FF1FFF3F - Success
16:004 00:037 OC: OcLoadDevPropsSupport...
16:041 00:036 OC: OcMiscLateInit...
16:078 00:036 OC: Translated HibernateMode None to 0
16:119 00:041 OC: Hibernation detection status is Not Found
16:192 00:072 OC: Saving 2768 byte panic log panic-2020-09-27-112247.txt - Success
16:229 00:036 OC: OcLoadKernelSupport...
16:266 00:036 OC: All green, starting boot management...
16:303 00:037 OC: Handing off to external boot controller
16:345 00:041 OC: Missing external GUI protocol - Not Found
16:382 00:036 OC: Ready for takeoff in 0 us
16:419 00:037 OCB: Adding fs D61EA418 (E:1|L:1|P:Success) - PciRoot(0x0)/Pci(0x8,0x1)/Pci(0x0,0x3)/USB(0x2,0x0)/HD(1,GPT,5AF05BAF-BF07-4025-9B51-34096E833A78,0x28,0x64000)
16:457 00:037 OCB: Adding fs D61E1618 (E:1|L:0|P:Success) - PciRoot(0x0)/Pci(0x8,0x1)/Pci(0x0,0x3)/USB(0x2,0x0)/HD(2,GPT,0D237F33-199C-40EF-B69A-B932BDE98EF8,0x64028,0x1C313A8)
16:495 00:038 OCB: Found 2 potentially bootable filesystems
16:535 00:040 OCB: BootOrder/BootNext are not present or unsupported
16:573 00:037 OCB: Processing blessed list
16:610 00:036 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x8,0x1)/Pci(0x0,0x3)/USB(0x2,0x0)/HD(1,GPT,5AF05BAF-BF07-4025-9B51-34096E833A78,0x28,0x64000)
16:647 00:037 OCBP: Blessed file is missing
16:683 00:035 OCBP: Blessed folder is missing
16:724 00:040 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
16:762 00:038 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
16:798 00:035 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI was found
16:834 00:036 OCB: Adding entry type (T:1|F:0|G:1) - PciRoot(0x0)/Pci(0x8,0x1)/Pci(0x0,0x3)/USB(0x2,0x0)/HD(1,GPT,5AF05BAF-BF07-4025-9B51-34096E833A78,0x28,0x64000)/\EFI\BOOT\BOOTX64.EFI
16:871 00:037 OCB: Discarding discovered OpenCore bootloader
16:909 00:037 OCBP: APFS recovery volume handle missing - \EFI\BOOT\
16:949 00:040 OCB: APFS recovery is not present - Not Found
16:985 00:036 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x8,0x1)/Pci(0x0,0x3)/USB(0x2,0x0)/HD(2,GPT,0D237F33-199C-40EF-B69A-B932BDE98EF8,0x64028,0x1C313A8)
17:025 00:039 OCBP: BlessedFileHEX (1/3 156) - 02 01 0C 00 D0 41 03 0A 00 00 00 00 01 01 06 00 01 08 01 01 06 00 03 00 03 05 06 00 02 00 04 01 2A 00 02 00 00 00 28 40 06 00 00 00 00 00 A8 13 C3 01 00 00 00 00 33 7F 23 0D 9C 19 EF 40 B6 9A
17:070 00:045 OCBP: BlessedFileHEX (2/3 156) - B9 32 BD E9 8E F8 02 02 04 04 50 00 5C 00 53 00 79 00 73 00 74 00 65 00 6D 00 5C 00 4C 00 69 00 62 00 72 00 61 00 72 00 79 00 5C 00 43 00 6F 00 72 00 65 00 53 00 65 00 72 00 76 00 69 00 63 00
17:116 00:045 OCBP: BlessedFileHEX (3/3 156) - 65 00 73 00 5C 00 62 00 6F 00 6F 00 74 00 2E 00 65 00 66 00 69 00 00 00 7F FF 04 00
17:156 00:040 OCBP: BlessedFileDP - PciRoot(0x0)/Pci(0x8,0x1)/Pci(0x0,0x3)/USB(0x2,0x0)/HD(2,GPT,0D237F33-199C-40EF-B69A-B932BDE98EF8,0x64028,0x1C313A8)/\System\Library\CoreServices\boot.efi
17:193 00:036 OCBP: Blessed file is valid
17:229 00:035 OCB: Adding entry type (T:2|F:0|G:0) - PciRoot(0x0)/Pci(0x8,0x1)/Pci(0x0,0x3)/USB(0x2,0x0)/HD(2,GPT,0D237F33-199C-40EF-B69A-B932BDE98EF8,0x64028,0x1C313A8)/\System\Library\CoreServices\boot.efi
17:266 00:037 OCB: Trying to get label from \System\Library\CoreServices\.contentDetails
17:303 00:037 OCB: Trying to get label from \System\Library\CoreServices\.disk_label.contentDetails
17:345 00:041 OCB: Registering entry Install macOS High Sierra (T:2|F:0|G:0|E:1) - PciRoot(0x0)/Pci(0x8,0x1)/Pci(0x0,0x3)/USB(0x2,0x0)/HD(2,GPT,0D237F33-199C-40EF-B69A-B932BDE98EF8,0x64028,0x1C313A8)/\System\Library\CoreServices\boot.efi
17:393 00:047 OCBP: APFS recovery volume handle missing - \System\Library\CoreServices\
17:429 00:035 OCB: APFS recovery is not present - Not Found
17:466 00:037 OCB: Adding fs 2007C5F5 for 0 custom entries and nvram reset (aux shown)
17:503 00:037 OCB: Adding system entry Reset NVRAM
17:541 00:037 OCB: Registering entry Reset NVRAM (T:256|F:0|G:0|E:0) - <nil>
17:583 00:041 OCB: Showing menu...




Panic:

Spoiler

panic(cpu 4 caller 0xffffff801998776f): Kernel trap at 0xffffff7f9eb2f321, type 13=general protection, registers:
CR0: 0x000000008001003b, CR2: 0xffffff83bac41000, CR3: 0x000000002912e000, CR4: 0x00000000003406e0
RAX: 0xffffff7f9eb33aa8, RBX: 0x0000000000000001, RCX: 0x0000000000000300, RDX: 0x0000000000000001
RSP: 0xffffffa3d332ade0, RBP: 0xffffffa3d332ade0, RSI: 0x0000000000000000, RDI: 0xffffff806152fda0
R8:  0x000000000000ffff, R9:  0x0000000000000001, R10: 0x00000000000001a5, R11: 0x0000000000000006
R12: 0xffffff806152fda0, R13: 0xffffff805fba3af0, R14: 0xffffff805f6c6a01, R15: 0xffffff806152fda0
RFL: 0x0000000000010286, RIP: 0xffffff7f9eb2f321, CS:  0x0000000000000008, SS:  0x0000000000000010
Fault CR2: 0xffffff83bac41000, Error code: 0x0000000000000000, Fault CPU: 0x4, PL: 0, VF: 0

Backtrace (CPU 4), Frame : Return Address
0xffffff801974e290 : 0xffffff801986c1c6
0xffffff801974e2e0 : 0xffffff8019995274
0xffffff801974e320 : 0xffffff8019987544
0xffffff801974e390 : 0xffffff801981e1e0
0xffffff801974e3b0 : 0xffffff801986bc3c
0xffffff801974e4e0 : 0xffffff801986b9fc
0xffffff801974e540 : 0xffffff801998776f
0xffffff801974e6b0 : 0xffffff801981e1e0
0xffffff801974e6d0 : 0xffffff7f9eb2f321
0xffffffa3d332ade0 : 0xffffff7f9eb2e0e8
0xffffffa3d332be40 : 0xffffff8019e731fd
0xffffffa3d332be80 : 0xffffff8019e72f41
0xffffffa3d332bf00 : 0xffffff8019e72467
0xffffffa3d332bf50 : 0xffffff8019e740c6
0xffffffa3d332bfa0 : 0xffffff801981d557
      Kernel Extensions in backtrace:
         com.apple.driver.AppleTyMCEDriver(1.0.3d2)[8BBA9D19-1117-3F37-B5F1-CEAF477B65BB]com.apple.0xffffff7f9eb2d000-com.apple.driver.0xffffff7f9eb37fff
            dependency: com.apple.iokit.IOACPIFamily(1.4)[95DA39BB-7C39-3742-A2E5-86C555E21D67]com.apple.0xffffff7f9a0dd000
            dependency: com.apple.iokit.IOPCIFamily(2.9)[AEA4C7F5-CCB0-338B-B471-CF28A9792522]com.apple.0xffffff7f9a0e6000
            dependency: com.apple.driver.IOPlatformPluginFamily(6.0.0d8)[344AAFD5-4547-377C-B3BF-477D78BF7025]com.apple.0xffffff7f9e855000

BSD process name corresponding to current thread: kernel_task
Boot args: npci=0x2000 alcid=1 -radnoaudio gfxrst=4 vsmcgen=1 -v root-dmg=file:///Install%20macOS%20High%20Sierra.app/Contents/SharedSupport/BaseSystem.dmg

Mac OS version:
17G66

Kernel version:
Darwin Kernel Version 17.7.0: Thu Jun 21 22:53:14 PDT 2018; root:xnu-4570.71.2~1/RELEASE_X86_64
Kernel UUID: 1AE5ACFD-3B6F-3D74-AD52-31F1430DBC6F
Kernel slide:     0x0000000019600000
Kernel text base: 0xffffff8019800000
__HIB  text base: 0xffffff8019700000
System model name: MacPro5,1 (Mac-F221BEC8)

System uptime in nanoseconds: 148160876965
last loaded kext at 148018777003: com.apple.driver.AppleTyMCEDriver    1.0.3d2 (addr 0xffffff7f9eb2d000, size 45056)
loaded kexts:




Edited by Robentosh
An Update
  • 3 months later...

Your “update 2” screenshot shows OpenCore messages as it is parsing your config.plist.

”No schema for...” means that you have some invalid entries in your config.plist file. The <text> Indicates which section the key is located in.



This usually happens when you upgrade OpenCore, but forget to go through the config.plist file to remove deprecated keys. Each OpenCore release has a couple of PDF documents, one highlights the Differences, the other is the full Configuration explanation. When upgrading you should at least read through the Differences PDF to see what has been added and (in your case) what has been removed from the config.plist schema.



When I upgrade, my process is typically to read the Differences.pdf and then to start from scratch with the upgrade release version of sample.plist file, and migrate my existing/customised keys into it (copy/paste)



You should:

  • Make a copy of your current EFI folder as a backup
  • Read the Configuration.pdf document and confirm that the “no schema for” key names are no longer present
  • Edit your config.plist file to remove them...
Edited by rthpjm

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.

×
×
  • Create New...
