Err(0xE) @ GV wake-failure (Asus VivoBook x512F)


1 post in this topic

Recommended Posts

Hey

I'm going through the OC guide.

I did every thing as it said.



Motherboard: ASUSTeK COMPUTER INC.  X512FB

CPU: Intel(R) Core(TM) i7-8565U CPU @ 1.80GHz

GPU: NVIDIA GeForce MX110

iGPU: Interl UHD 620

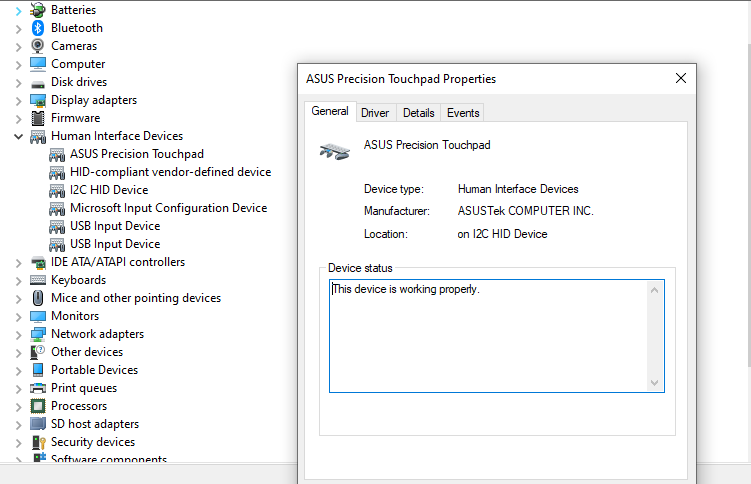

this is my trackpad: image.png.04e97f9099f8ce3dff7562a9b74a6277.png

I used VoodooI2C and controller.



now I am trying to boot into the installation, and I get this:

Quote

00:000 00:000 AAPL: [EB|#LOG:INIT] 2020-08-27T15:56:24
00:036 00:036 AAPL: [EB|#VERSION] bootbase.efi 422.140.3~2 (Official), built 2020-06-07T17:23:12-0700
00:062 00:025 AAPL: [EB|#BUILD] BUILD-INFO[306]:{"DisplayName":"bootbase.efi","DisplayVersion":"422.140.3~2","RecordUuid":"D49FA16E-32C0-433B-A742-7405C713BE39","BuildTime":"2020-06-07T17:23:12-0700","ProjectName":"efiboot","ProductName":"bootbase.efi","SourceVersion":"422.140.3","BuildVersion":"2","BuildConfiguration":"Release","BuildType":"Official"}
00:266 00:203 AAPL: [EB|#H:IS] 0
00:292 00:025 AAPL: [EB|#WL:MODE] 0
00:317 00:025 AAPL: [EB|#CONFIG:SRC] <default>
00:522 00:204 AAPL: [EB|#CONFIG| 0] boot-save-log : 0x0000000000000002 (0x0000000000000002 < 0xFFFFFFFFFFFFFFFF) <default>
00:547 00:025 AAPL: [EB|#CONFIG| 1] wake-save-log : 0x0000000000000002 (0x0000000000000002 < 0x0000000000000002) <default>
00:573 00:025 AAPL: [EB|#CONFIG| 2] console       : 0x0000000000000001 (0x0000000000000001 < 0x0000000000000001) <default>
00:778 00:205 AAPL: [EB|#CONFIG| 3] serial        : 0x0000000000000000 (0x0000000000000000 < 0x0000000000000000) <default>
00:804 00:025 AAPL: [EB|#CONFIG| 4] embed-log-dt  : 0x0000000000000000 (0x0000000000000000 < 0x0000000000000000) <default>
00:830 00:025 AAPL: [EB|#CONFIG| 5] timestamps    : 0x0000000000000000 (0x0000000000000000 < 0xFFFFFFFFFFFFFFFF) <default>
01:034 00:204 AAPL: [EB|#CONFIG| 6] log-level     : 0x0000000000000001 (0x0000000000000001 & 0x0000000000000001) <default>
01:060 00:025 AAPL: [EB|#CONFIG| 7] breakpoint    : 0x0000000000000000 (0x0000000000000000 & 0x0000000000000000) <default>
01:086 00:025 AAPL: [EB|#CONFIG| 8] kc-read-size  : 0x0000000000100000 (0x0000000000100000 < 0xFFFFFFFFFFFFFFFF) <default>
01:290 00:204 AAPL: [EB|#H:IS] 0
01:316 00:026 AAPL: [EB|#WL|0] 0x01 0x01   0 0x00
01:342 00:025 AAPL: [EB|#BRD:NV] Mac-53FDB3D8DB8CA971
01:547 00:204 AAPL: [EB|#WL|1] 0x01 0x01   2 0x00
01:573 00:026 AAPL: [EB|`BST:IDT] {
01:600 00:027 AAPL: [EB|`BST:IDT] }
01:804 00:203 AAPL: [EB|#WL|2] 0x01 0x01   3 0x00
01:830 00:025 AAPL: [EB|#WL|3] 0x01 0x01   4 0x00
01:856 00:026 AAPL: [EB|#BRD:NV] Mac-53FDB3D8DB8CA971
02:061 00:204 AAPL: [EB|#WL|4] 0x01 0x01   5 0x00
02:087 00:026 AAPL: [EB|`H:CHK] BM: 0x0000000000000000
02:113 00:026 AAPL: [EB|`H:CHK] Err(0xE) @ GV boot-signature
02:318 00:204 AAPL: [EB|#WL|5] 0x01 0x01  23 0x0E
02:344 00:026 AAPL: [EB|`H:CPM] Err(0xE), (24, 24) @ GV Persistent-memory-note
02:370 00:026 AAPL: [EB|`SB:EN] Err(0xE) @ LocP 24B73556-2197-4702-82A8-3E1337DAFBF2
02:574 00:204 AAPL: [EB|#LIMG:DP] Acpi(PNP0A03,0)/Pci(14|0)/Usb(2, 0)/HD(Part2,Sig9AC20E34)
02:600 00:025 AAPL: [EB|#LIMG:FP] \System\Library\CoreServices\boot.efi
02:626 00:025 AAPL: [EB|#LIMG:OPT] ()
02:834 00:207 AAPL: [EB|#RPS] R?0 P?0 S?0
02:864 00:030 AAPL: [EB|`OPT:LXF] 'LF (\\System\\Library\\CoreServices\\com.apple.Boot.plist)
02:891 00:026 AAPL: [EB|`LD:LF] FIO: 0, DIR: 1, P: \\System\\Library\\CoreServices\\com.apple.Boot.plist, DP: 0
03:100 00:209 AAPL: [EB|`LD:OFS] Err(0xE) @ OPEN (\\System\\Library\\CoreServices\\com.apple.Boot.plist)
03:126 00:025 AAPL: [EB|`OPT:LXF] Err(0xE) @ 'LF
03:152 00:025 AAPL: [EB|`OPT:LXF] 'LF (Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist)
03:356 00:204 AAPL: [EB|`LD:LF] FIO: 0, DIR: 1, P: Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist, DP: 0
03:389 00:032 AAPL: [EB:#KF] ()
03:415 00:026 AAPL: [EB|#MBA:CL] ()
03:620 00:204 AAPL: [EB|#MBA:NV] (-v keepsyms=1 debug=0x100 alcid=1 -wegnoegpu)
03:645 00:025 AAPL: [EB|#MBA:KF] ()
03:671 00:025 AAPL: [EB|#MBA:OUT] (-v keepsyms=1 debug=0x100 alcid=1 -wegnoegpu)
03:876 00:205 AAPL: [EB|#LOG:VERBOSE] 2020-08-27T15:56:28
03:902 00:025 AAPL: [EB|#OPT:BM] 0x4082
03:928 00:025 AAPL: [EB|`OPT:LXF] 'LF (\\System\\Library\\CoreServices\\PlatformSupport.plist)
04:132 00:204 AAPL: [EB|`LD:LF] FIO: 0, DIR: 1, P: \\System\\Library\\CoreServices\\PlatformSupport.plist, DP: 0
04:168 00:035 AAPL: [EB|#B:VAw]
04:194 00:026 AAPL: [EB|#P:CPR] N
04:399 00:204 AAPL: [EB|#P:MPI] N
04:425 00:025 AAPL: [EB|#P:BPI] N
04:450 00:025 AAPL: [EB|`CS:CSKSD] {
04:655 00:204 AAPL: [EB|`CS:CSKSD] Err(0xE) @ GV 8D63D4FE-BD3C-4AAD-881D-86FD974BC1DF:boot-info-payload
04:681 00:025 AAPL: [EB|`G:CS] } Ok(0)
04:707 00:026 AAPL: [EB|`LD:LF] FIO: 0, DIR: 1, P: <null string>, DP: 1
04:961 00:253 AAPL: [EB|`B:SBS] SZ: 621112
04:991 00:029 AAPL: [EB|#B:SHA] 4f3bba9614aa0dbae1943ab55b83beac7e278986
05:017 00:025 AAPL: [EB|`WL:PWLFNV] Err(0xE) @ GV wake-failure



My EFI folder:EFI.zip

My config: config.plist

Thanks for the help!!



×
×
