X99 Boot stuck at “PCI configuration begin” - Catalina 10.15.6

3 posts in this topic

Recommended Posts

Hello dear insanelymac family!

I have a problem with my clover Catalina 10.15.6 installation.

When i boot up, start the installer, after that it got stuck at PCI CONFIGURATION BEGIN.

I did read some topics, i tried some bootargs, npci=2000 & 3000 , PCIRootUID=1.. but no one got me trough.

I just noticed something, when i boot with npci 3000, pci configuration start 2 times. I dont know why, i uploaded a photo to this topic.

What can i do now? USBownership is turned ON in clover.



My kexts: APPLEACPIPLATFORM , AppleALC , APPLEUSBXHCI , FAKESMC , INTELMAUSI , IOPCIFAMILY , LILU , USBINJECTALL , VOODOOTSCSYNC , WHATEVERGREEN , XHCI-UNSUPPORTED



CPU: Xeon 2620-v3

GPU: XFX RX 580 XXX Edition 8GB

RAM: 2 x 8GB DDR4 2400Mhz

Motherboard: Killsre X99-D4 (bought from aliexpress)



I can send you my efi in message.

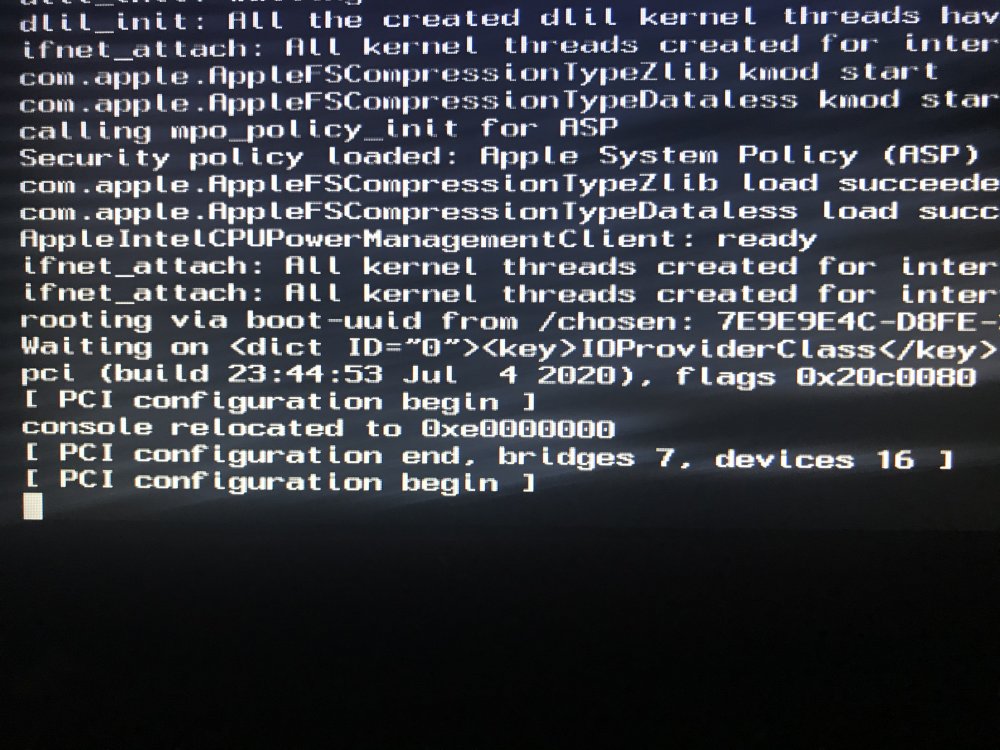

(when i boot up with npci 3000)

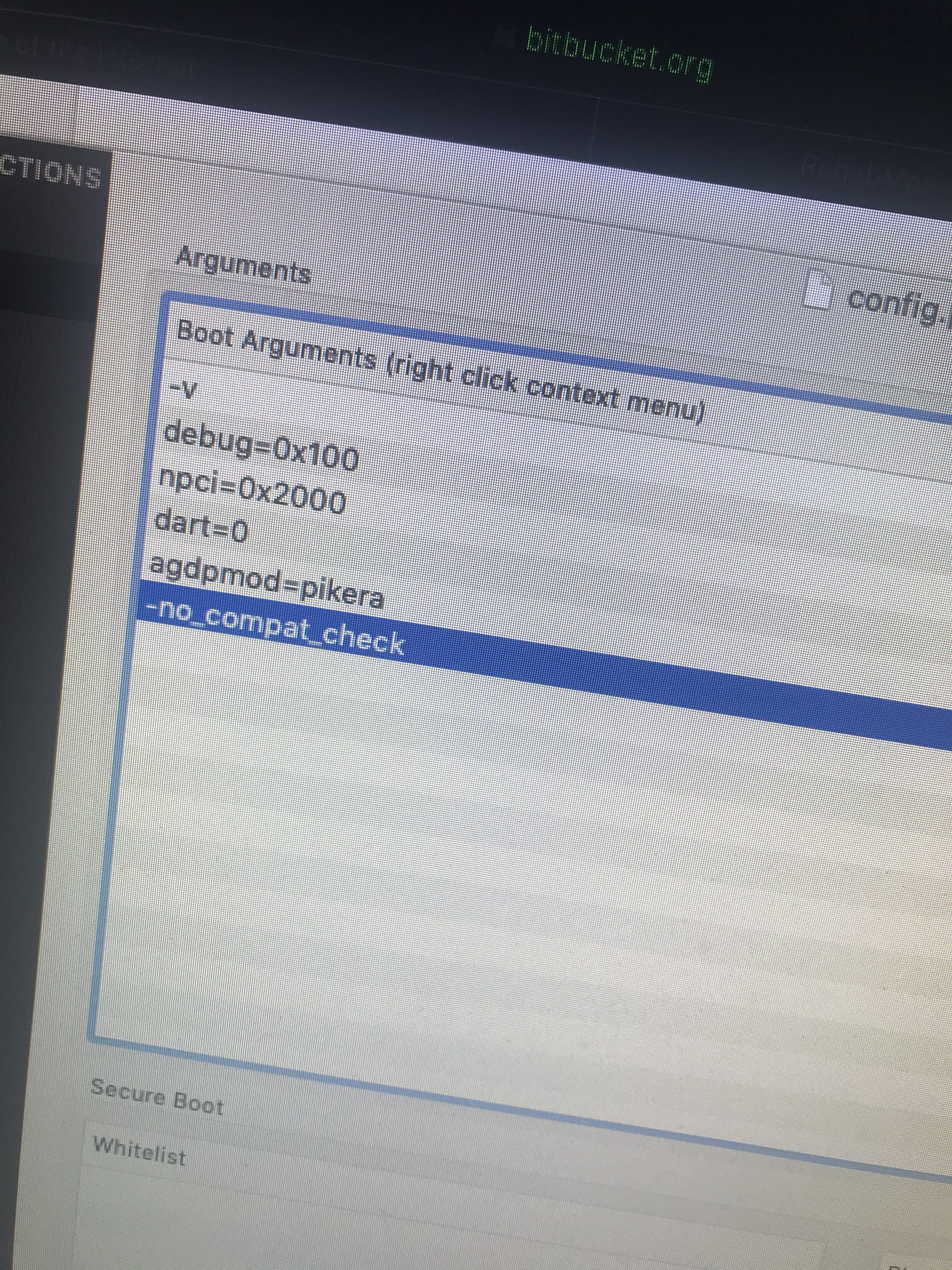

(my normal bootargs)



Share this post


Link to post
Share on other sites

Not sure this is going to help you but I’m stuck exactly at the same point.



i believe the issue comes from the line which says Waiting on IOProviderClass etc.



I’ve been trying to find more about this but at the moment I’m still stuck. I have a X99 ASUS Deluxe. Good luck!

Share this post


Link to post
Share on other sites

@acsapos Finally i managed to install my two hack on 2 different drives (catalina and big sur) on X99.

Overall i fixed the PCI configuration begin through patches to my SSDT files with the great help of @MaLd0n

So I would recommend looking in that direction. I can see that you are booting with Clover so worth having a look at your DSDT file.

Good luck!
