Pre-Install Hang - ACPI Errors

8 posts in this topic

Recommended Posts

Hi All,

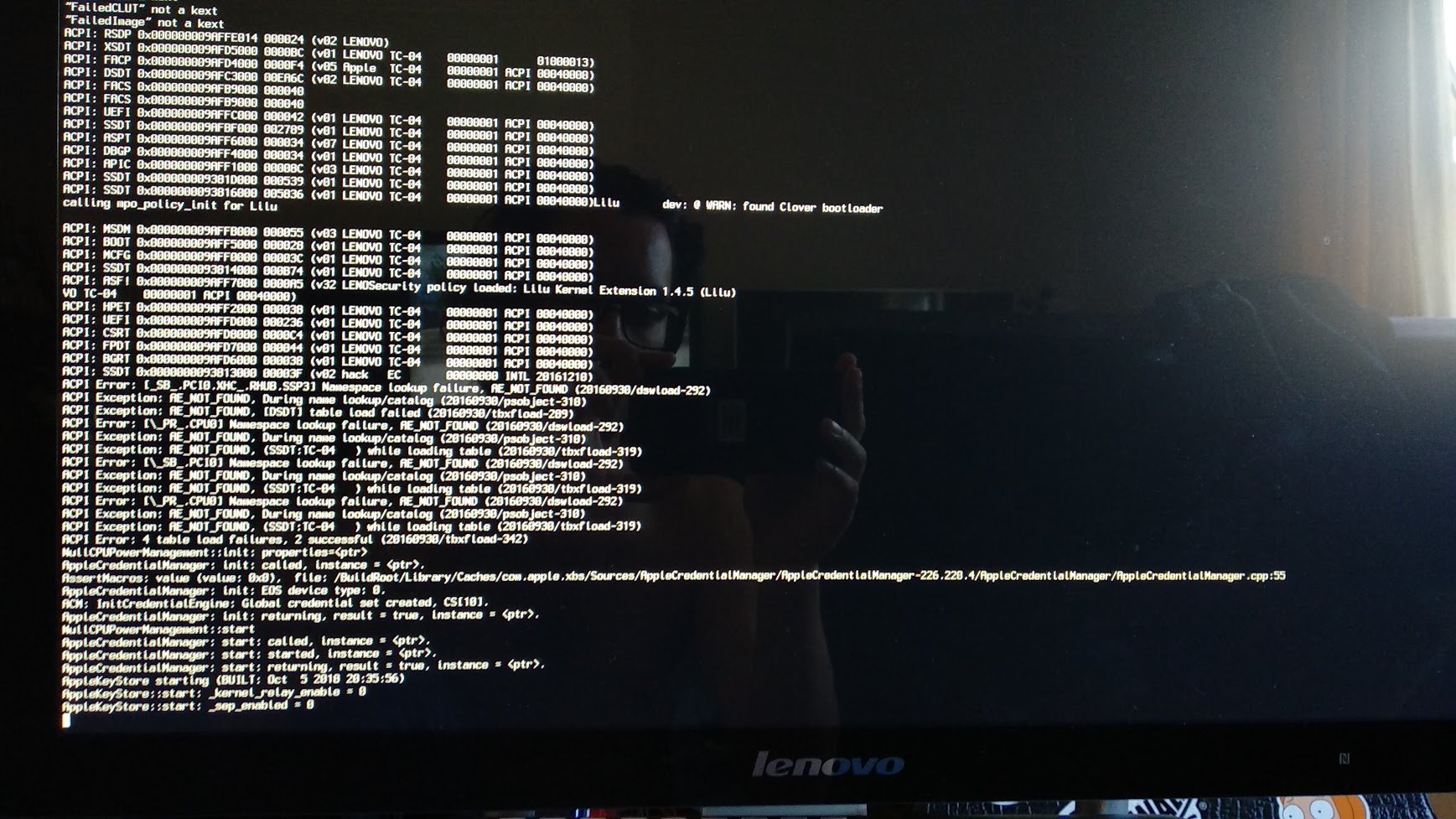

I'm trying to install Catalina via Clover, however, it hangs on ACPI errors. I've managed to reduce this from 6 to 4, but there's still some outstanding.



I'm thinking this may require DSDT patching to get by, but on the below information, how to do I gauge what I need to locate, and change values to?

I've been lucky with past machines, rarely required a DSDT edit. The EC patch for Catalina has been applied.

Model - Lenovo A540
CPU - Intel® Core® i5-4258U (2.9 GHz)
Chipset - Haswell
Boot - UEFI Clover
GPU - Intel Iris / HD Graphics 5100
Resolution - 1920 x 1080
Storage -  1TB hard drive
RAM - 8GB


Share this post


Link to post
Share on other sites
Advertisement

Hi MaLd0n, I've attached the untouched tables within the CLOVER folder, incase there's anything else that could be problematic.

CLOVER.zip

Share this post


Link to post
Share on other sites
11 hours ago, theruck said:

try without these kexts

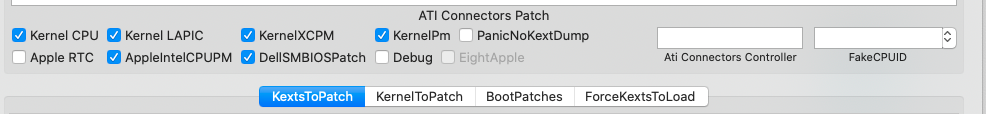

remove these checkboxes

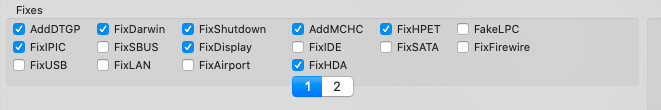

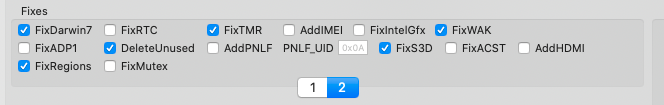

remove these checkboxes




and try again


Hi theruck,

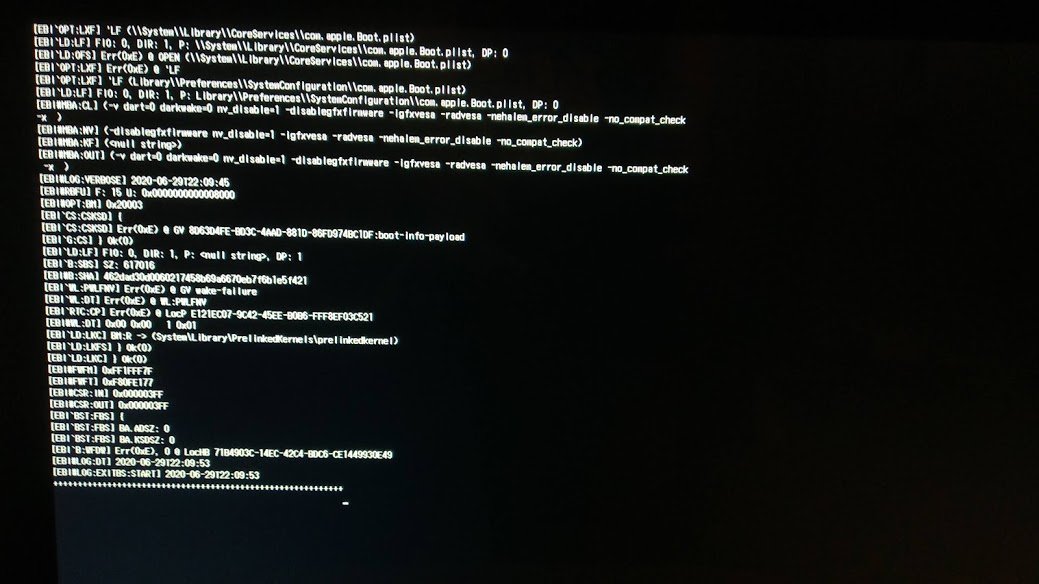

Tried your suggestion, it doesn't get me as far into boot.


Share this post


Link to post
Share on other sites

I was following a guide for Haswell boards here
and I'm using the SMBIOS iMac15,1

Share this post


Link to post
Share on other sites

Hi @MaLd0n , do you have any advice on which tables I could look at within the DSDT to progress please?

Share this post


Link to post
Share on other sites
