Intel HD 3000 recognised as intel hd 2000


caal985
 Share

5 posts in this topic

Recommended Posts

This is my first hackintosh setup and i have installed catalina.My specs are i7 2700k Asus P8H77-i,8gb ddr3 and the igpu hd3000.The gpu in system report is shown as hd2000 7mb.I tried everything i dont know what to do :( .If anyone has any idea why this is happening please help.

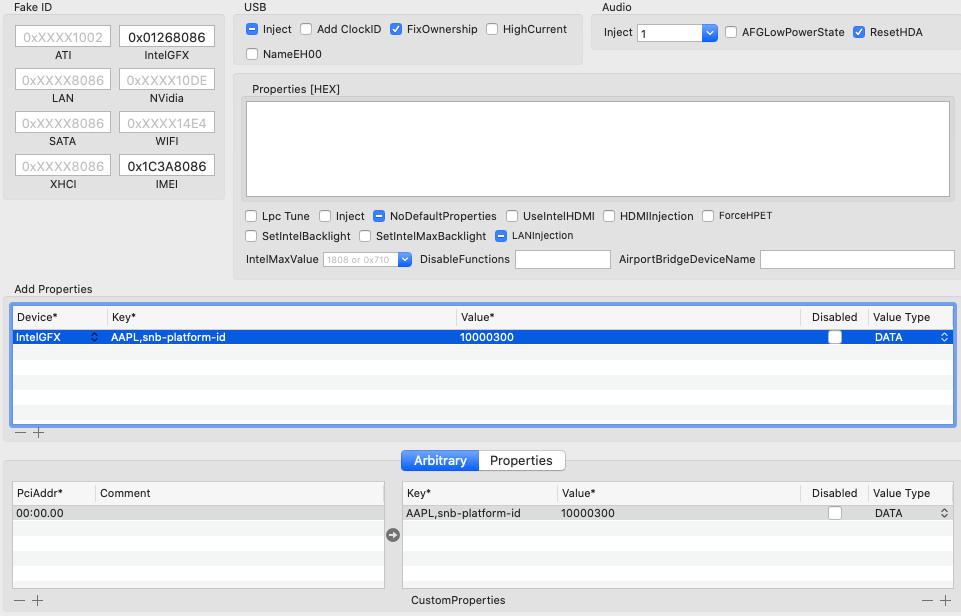

Screenshot 2020-06-24 at 05.21.47.png

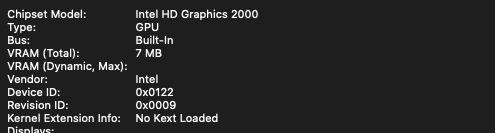

Screenshot 2020-06-24 at 05.21.16.png

config.plist

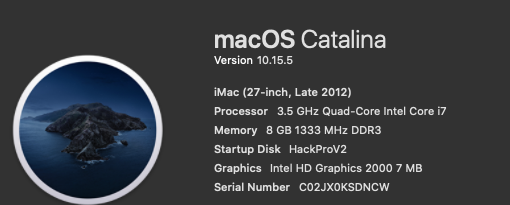

Screenshot 2020-06-24 at 05.16.45.png

Link to comment
Share on other sites

4 minutes ago, Hervé said:

You're injecting the if-platform-id at the wrong place. iGPU is located @2, i.e. 0x00020000 or PciRoot(0x0)/Pci(0x2,0x0). And it's got to have the correct value of course...

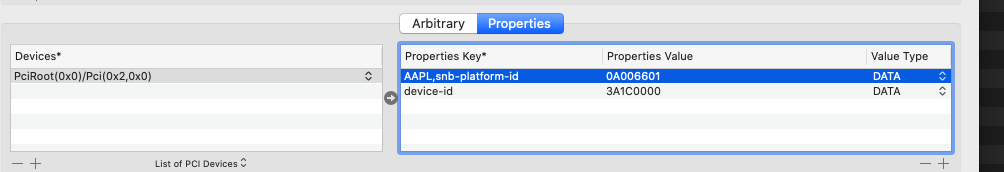

Screenshot 2020-06-24 at 05.48.21.png

can you please fix my config?



Link to comment
Share on other sites

1 hour ago, Hervé said:

I believe I explained what you had to do and with what values. If you inject a Capri/HD4000 layout (0x0166000A) as an SNB/HD3000 layout + an incorrect device id, it won't work...

You may also find you need to change SMBIOS from Sandy Bridge iMac (no HD3000 graphics) to one of those MacMini listed above (HD3000 graphics).

i don't think i will be able to fix it but thank you for your help
