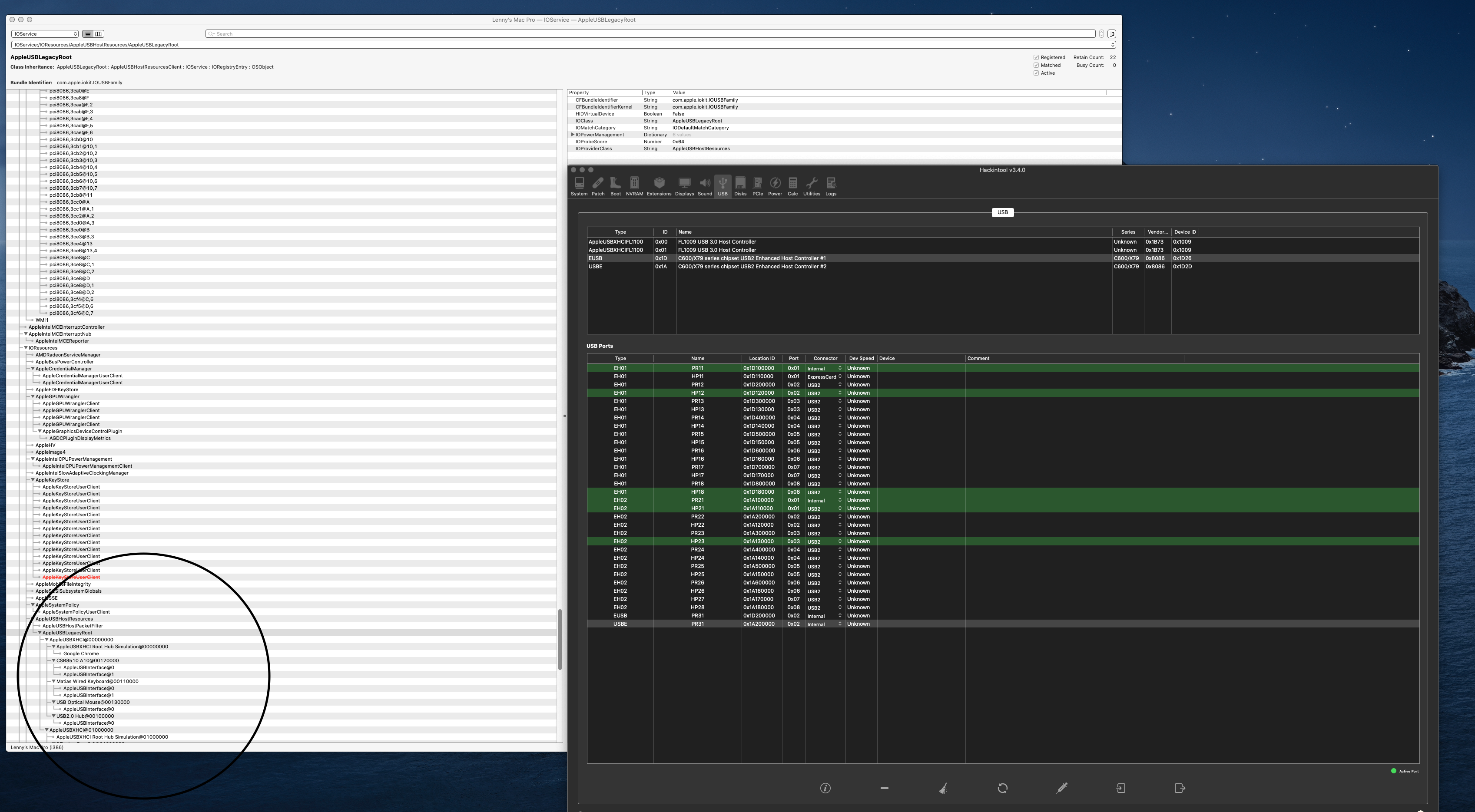

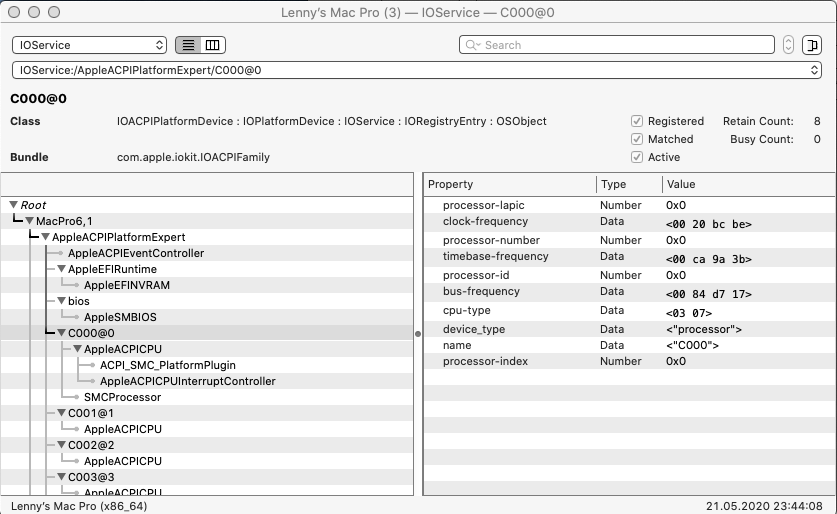

murvold Posted May 21, 2020 Share Posted May 21, 2020 (edited) First of all - big thanks to all OC devs. Moved from Clover and really enjoy OC's cleaner approach. Now I´m stuck in Post Install section in the guide, Fixing Power Management to be exact. IoRegistryExplorer shows that XCPM is NOT present. I have included SSDT-PLUG using SSDTTime (although in the guide Sandy Bridge E isn't mentioned at all) included my config.plist and ACPI folder. config+ACPI-x79-3930k.zip please ignore the second screenshot. I got accidentally added here and was made yesterday when I struggled with USB injecting. Edited May 21, 2020 by murvold Link to comment Share on other sites More sharing options...
MaLd0n Posted May 21, 2020 Share Posted May 21, 2020 boot into system and extract one dump, post here https://www.olarila.com/files/Utils/RunMe.app.ziphttps://www.youtube.com/watch?v=k9wmIfGLe3A 1 Link to comment Share on other sites More sharing options...
murvold Posted May 21, 2020 Author Share Posted May 21, 2020 https://we.tl/t-brXXjhWLqv Link to comment Share on other sites More sharing options...
MaLd0n Posted May 22, 2020 Share Posted May 22, 2020 DSDT.aml.zip remove all ssdt Link to comment Share on other sites More sharing options...

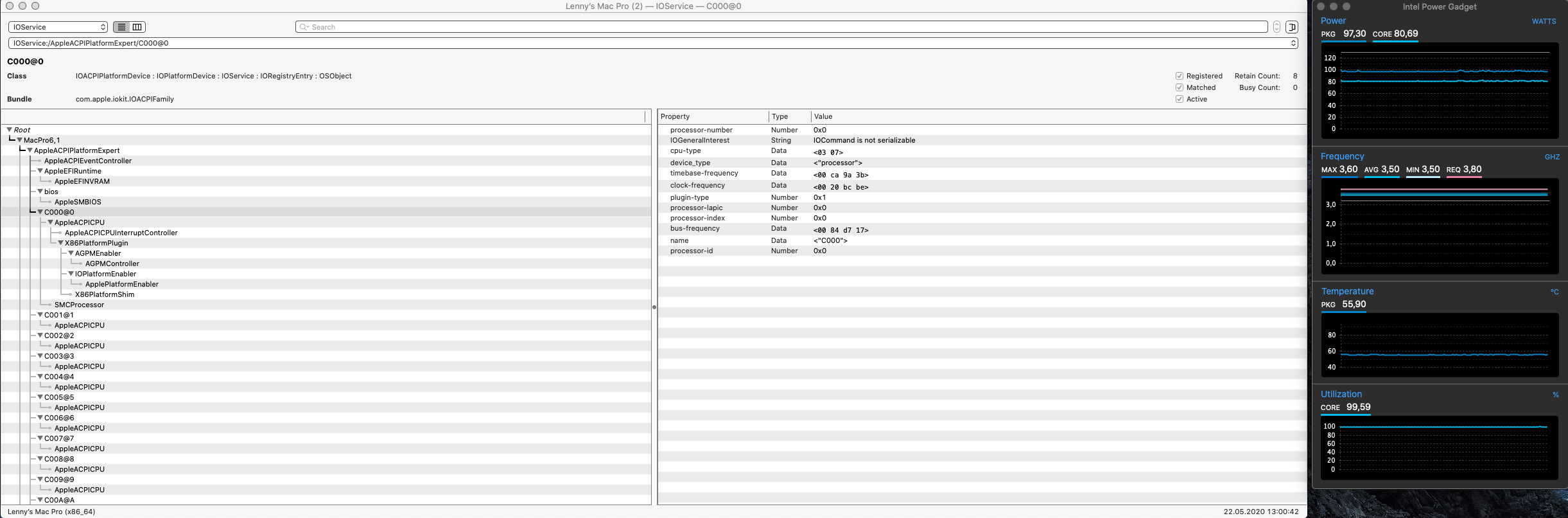

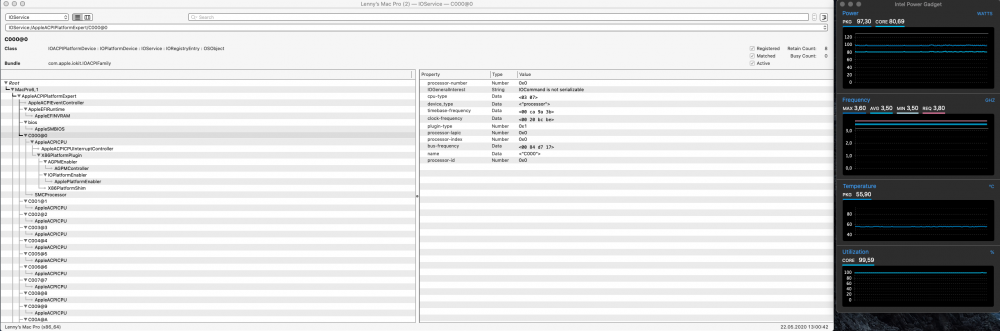

murvold Posted May 22, 2020 Author Share Posted May 22, 2020 Thank you, MaLd0n, for your efforts. Somewhy IoRegistryExplorer still shows the same picture and iStat menu & Intel Powe Gadget still show that CPU is constant on 3,5GHz. IoReg shows a new property IOGeneralInterest with value "IOCommand is not serializable" did a new Run Me: https://we.tl/t-hvmmYC5GG7 Link to comment Share on other sites More sharing options...
MaLd0n Posted May 22, 2020 Share Posted May 22, 2020 need read a oc manual for check if have one option like kernelxcpm Link to comment Share on other sites More sharing options...
murvold Posted May 22, 2020 Author Share Posted May 22, 2020 unfortunately no such part there. maybe I need to find CPUid1Data & CPUid1Mask info as ssdtPRGen script states a warning 'cpu-type' may be set improperly (0x0703 instead of 0x0a03). OC manual only has masks for Haswell-E & Broadwell-E. Although Sandy-E might need some other kind of approach on that. Link to comment Share on other sites More sharing options...
murvold Posted May 22, 2020 Author Share Posted May 22, 2020 actually did a new run with ssdtPRgen and used -target 1 for Ivy Bridge spoofing and no cpu-type warning this time. changed the SSDT-PM.aml, but still no change in GHz. but i´m starting to think that maybe the frequency change isn´t being picked up by MacOs itselt or iStat/IntelPowerGadget. Link to comment Share on other sites More sharing options...
