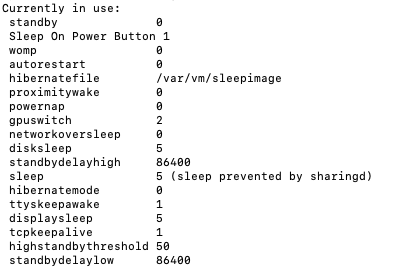

ncrispi Posted March 26, 2020 Share Posted March 26, 2020 (edited) I have successfully built a z390 Designare / i9 / rx5700xt Hackintosh on open core and the only issue that I am having is a constant wake of the PC. (The monitor stays off but the fans and CPU all wake up for about 30 seconds and turn back off) I have checked for wake reason in terminal with: log show --style syslog | fgrep "Wake reason" The errors seem to be the below four from most common: AppleACPIPlatformPower Wake reason: PEG1 PEGP PEG2 PEGP PXSX RP03 PXSX UPSB DSB0 NHI0 DSB1 DSB2 XHC5 DSB4 RP06 PXSX RP07 PXSX RP08 PXSX PXSX RP10 PXSX RP11 PXSX R [powerd:sleepWake] Wake reason: "private” identity: "private” (AppleACPIPlatform) AppleACPIPlatformPower Wake reason: XDCI AppleACPIPlatformPower Wake reason: RTC (Alarm) I have tried doing some research, but I haven't been able to find anything that works or what is exactly causing these I’ve done the below per guides: Disable Hibernation: sudo pmset -a hibernatemode 0 sudo rm /var/vm/sleepimage sudo mkdir /var/vm/sleepimage Disable other hibernation options: sudo pmset -a standby 0 sudo pmset -a autopoweroff 0 Turned off in settings: Allow Bluetooth devices to wake up this machine Enable power nap Wake for network access Does anyone have any idea what could be causing these 4 constant wake up codes and ideas on how to fix? I have recently changed HS11 port type to Internal but it seems that I am still getting errors in the log. I am on opencore 0.5.6 / Catalina 10.15.4 and built a USBMAP.KEXT file which I have also attached. USBPorts.kext.zip Edited March 27, 2020 by ncrispi added details Link to comment https://www.insanelymac.com/forum/topic/343144-constant-wakes-during-sleep-z390-designare-i9-setup/ Share on other sites More sharing options...
ncrispi Posted March 27, 2020 Author Share Posted March 27, 2020 @MaLd0n - you seem to know a lot about Hackintoshes -- would you have any idea? Link to comment https://www.insanelymac.com/forum/topic/343144-constant-wakes-during-sleep-z390-designare-i9-setup/#findComment-2714099 Share on other sites More sharing options...
MaLd0n Posted March 27, 2020 Share Posted March 27, 2020 first u need a good config, after send_me files for full dsdt patch with full solution https://www.olarila.com/topic/6531-olarila-hackbeast-z390-designare-thunderbolt-full-dsdt-patches-clover-opencore/ Link to comment https://www.insanelymac.com/forum/topic/343144-constant-wakes-during-sleep-z390-designare-i9-setup/#findComment-2714148 Share on other sites More sharing options...
ncrispi Posted March 27, 2020 Author Share Posted March 27, 2020 30 minutes ago, MaLd0n said: first u need a good config, after send_me files for full dsdt patch with full solution https://www.olarila.com/topic/6531-olarila-hackbeast-z390-designare-thunderbolt-full-dsdt-patches-clover-opencore/ Hi MaLd0n - Attached is my OpenCore EFI folder with MLB, ROM, SystemSerialNumber & SystemSSID removed from the cofig.plist file. EFI.zip Link to comment https://www.insanelymac.com/forum/topic/343144-constant-wakes-during-sleep-z390-designare-i9-setup/#findComment-2714155 Share on other sites More sharing options...
MaLd0n Posted March 27, 2020 Share Posted March 27, 2020 extract one send_me with ur folder https://www.olarila.com/files/Utils/RunMe.app.ziphttps://www.youtube.com/watch?v=k9wmIfGLe3A Link to comment https://www.insanelymac.com/forum/topic/343144-constant-wakes-during-sleep-z390-designare-i9-setup/#findComment-2714170 Share on other sites More sharing options...
ncrispi Posted March 27, 2020 Author Share Posted March 27, 2020 38 minutes ago, MaLd0n said: extract one send_me with ur folder https://www.olarila.com/files/Utils/RunMe.app.ziphttps://www.youtube.com/watch?v=k9wmIfGLe3A Send me iMac-Prodomain.zip Link to comment https://www.insanelymac.com/forum/topic/343144-constant-wakes-during-sleep-z390-designare-i9-setup/#findComment-2714174 Share on other sites More sharing options...
MaLd0n Posted March 28, 2020 Share Posted March 28, 2020 check if work EFI.zip Link to comment https://www.insanelymac.com/forum/topic/343144-constant-wakes-during-sleep-z390-designare-i9-setup/#findComment-2714200 Share on other sites More sharing options...
ncrispi Posted March 28, 2020 Author Share Posted March 28, 2020 12 hours ago, MaLd0n said: check if work EFI.zip For the sleep issues, ill have to let is sleep overnight and check the wake log tomorrow AM. I am also curious, why isn't the required SSDT files needed/shown in your EFI folder? SSDT-PLUG SSDT-EC-USBX SSDT AWAC SSDT-PMC Also, below issue from your EFI: At least half of the time I reboot, I am getting the following error when booting Open Core: 00:000 00:000 OC: Boot failed - Aborted 00:005 00:005 OCB: StartImage failed - Aborted Had to change the Boot-args to fix: slide=0 -v keepsyms=1 dart=0 debug=0x100 agdpmod=pikera alcid=11 shikigva=16 Link to comment https://www.insanelymac.com/forum/topic/343144-constant-wakes-during-sleep-z390-designare-i9-setup/#findComment-2714278 Share on other sites More sharing options...
MaLd0n Posted March 28, 2020 Share Posted March 28, 2020 extract one send_me with my folder u can disable intelhd graphics and use imacpro1,1 smbios Link to comment https://www.insanelymac.com/forum/topic/343144-constant-wakes-during-sleep-z390-designare-i9-setup/#findComment-2714283 Share on other sites More sharing options...
n19htz Posted May 18, 2020 Share Posted May 18, 2020 I got exactly the same problem as topiccaster. Any solution? Is it even possible to fully disable darkwake or rtc alarm? Link to comment https://www.insanelymac.com/forum/topic/343144-constant-wakes-during-sleep-z390-designare-i9-setup/#findComment-2722827 Share on other sites More sharing options...
