Bluetooth - bcm943602cs <combo> on catalina doesn't work

[Emek]

Hi,



I'm having trouble connecting my bt devices using bcm943602cs combo card. Wifi is working. Am I missing something? I thought it's plug and play.



I've tried these kexts:

BrcmBluetoothInjector.kext

BrcmFirmwareRepo.kext

BrcmPatchRAM3.kext



...and many many other solutions inc installing kext using hackintool to L/E



Help me good ppl!

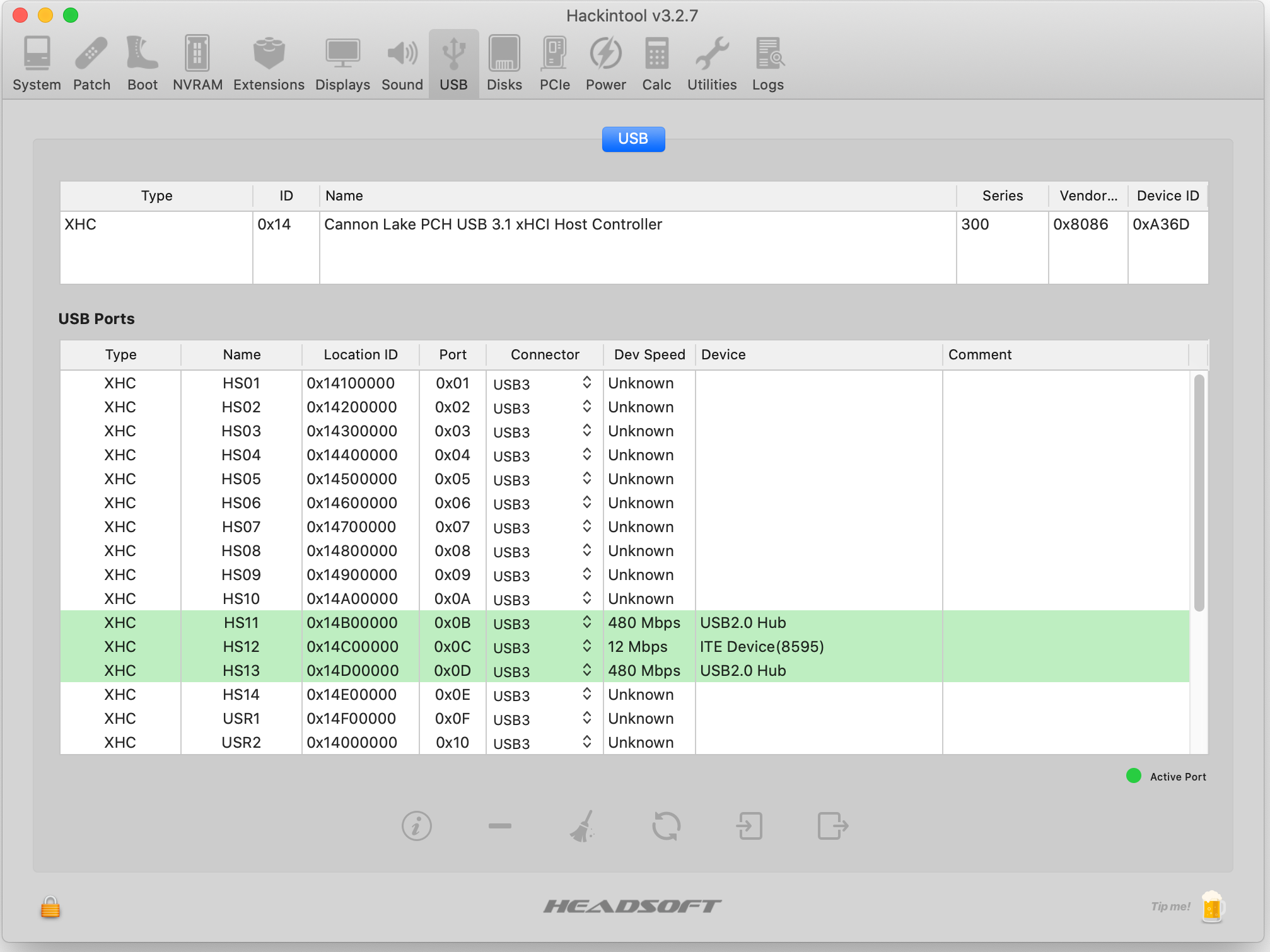

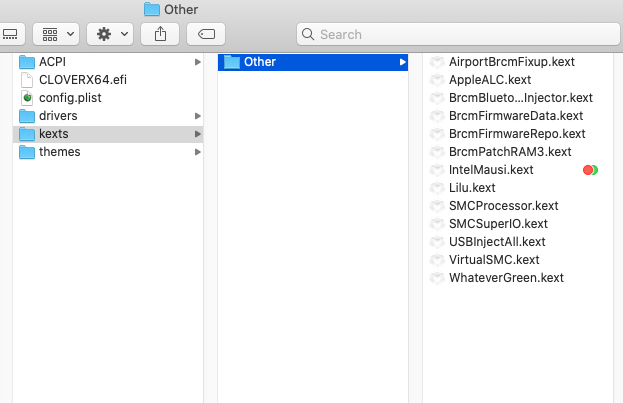

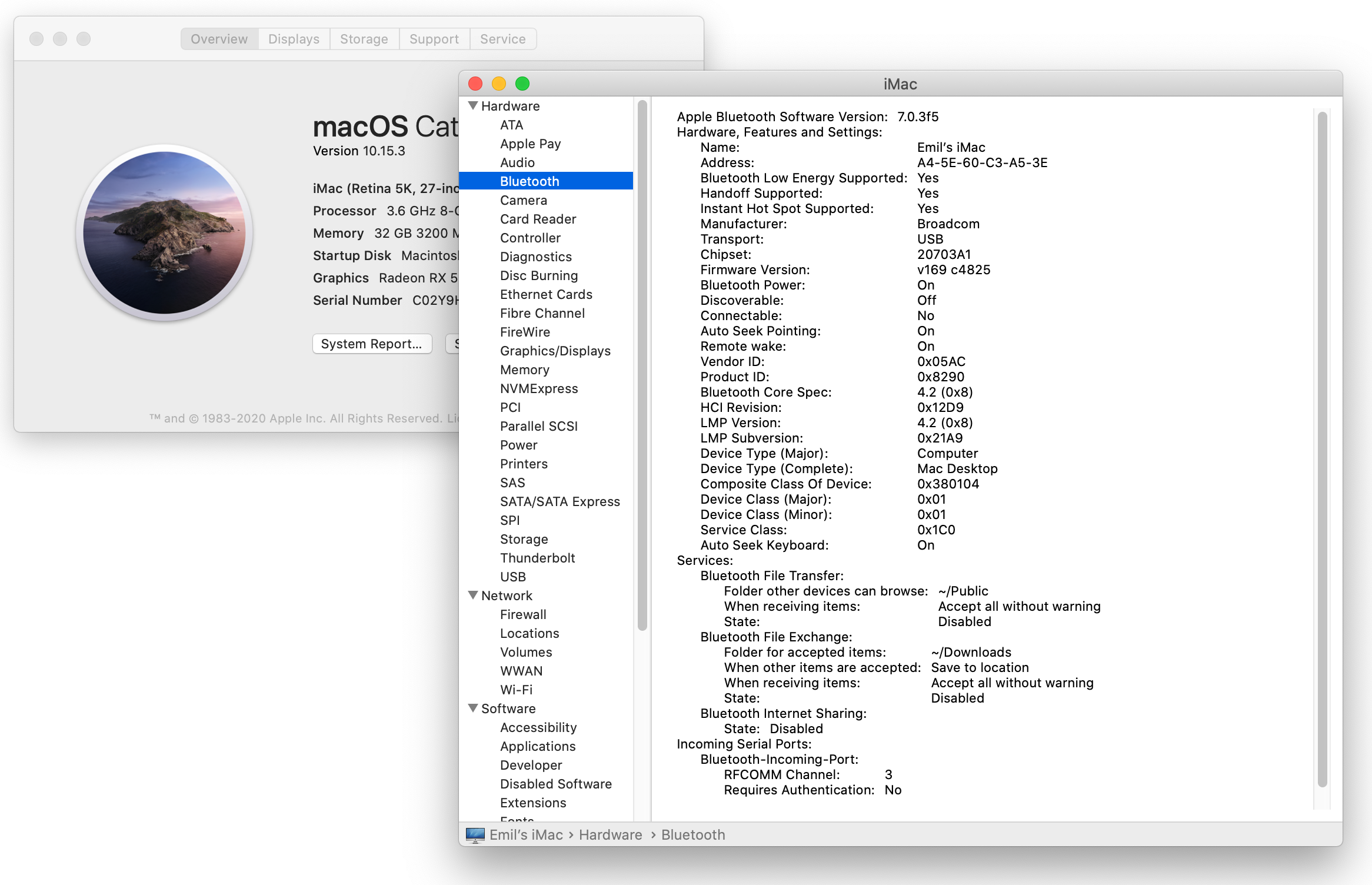

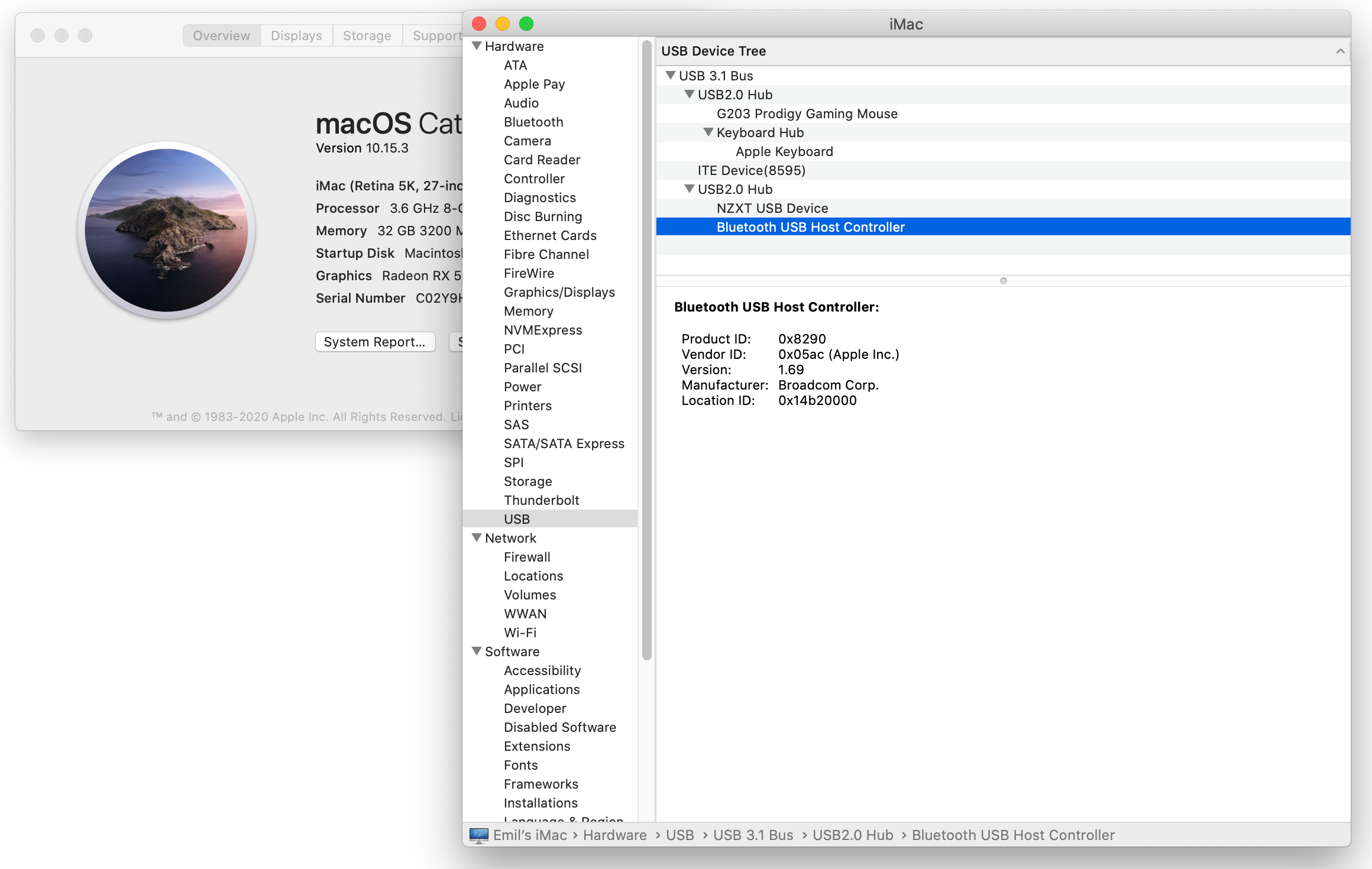

Screenshots attached.





PS: With bluetooth dongle + BrcmPatchRAM2.kext everything works fine.

PS: I using this conf with 9700k and RX580:



[emistral]

Hi there,



Not sure if it will help but I had the same issue but with the bcm943602cs card. Wifi worked out of the box but not bluetooth. I initially had brcmp patches in teh \OTHER folder in clover EFI partition but it did not work. After scouring the net all over I found what worked at least for me:

- get rod of brcm patches in \OTHER. My understanding is that because this card is a genuine apple card, those kexts are not needed

- in the config plist (loaded in clover configurator after mounting the EFI partition), I had to remap the USB ports. Changing EHC1 to EH01 and EHC2 to EH02 in the acpi section

- finally I installed usbinjectall (something like that) in /Library/Extension (I followed the guide of that kext of github)



Rebooted and then I could see the BT card and pair all my BT devices (magic mouse, magic kb and yamaha soundbar)

[Emek]

Hi, Thanks for your post. I've been using USB bluetooth dongle for some time now. I will get back to this once I upgrade my CPU&RAM & install opencore.
