Asus Z170 Pro Gaming problem booting into installer: hanging after com.apple.filesystem.apfs

[Ben282]

Hi,

Any help would be appreciated. Installing Catalina a clean install on:
CPU: Intel Core i5-6600K CPU @ 3.5 GHz
Architecture: Skylake - 6th generation Intel Core
Family: 6 (06h)
Model: 94 (5Eh)
Stepping: 3 (03h)
Motherboard: Asus Z170 Pro Gaming
Audio: Realtek ALC1150
Memory: Corsair Vengeance LED 4x8GB DDR4 3200MHz C16 - Blue LED
Video card: Gigabyte Radeon RX 5700 XT GAMING OC 8G
Destination drive: WD Blue 3D NAND SSD 2TB

BIOS:
Virtual-d disabled, integrated graphics disabled, serial port disabled.

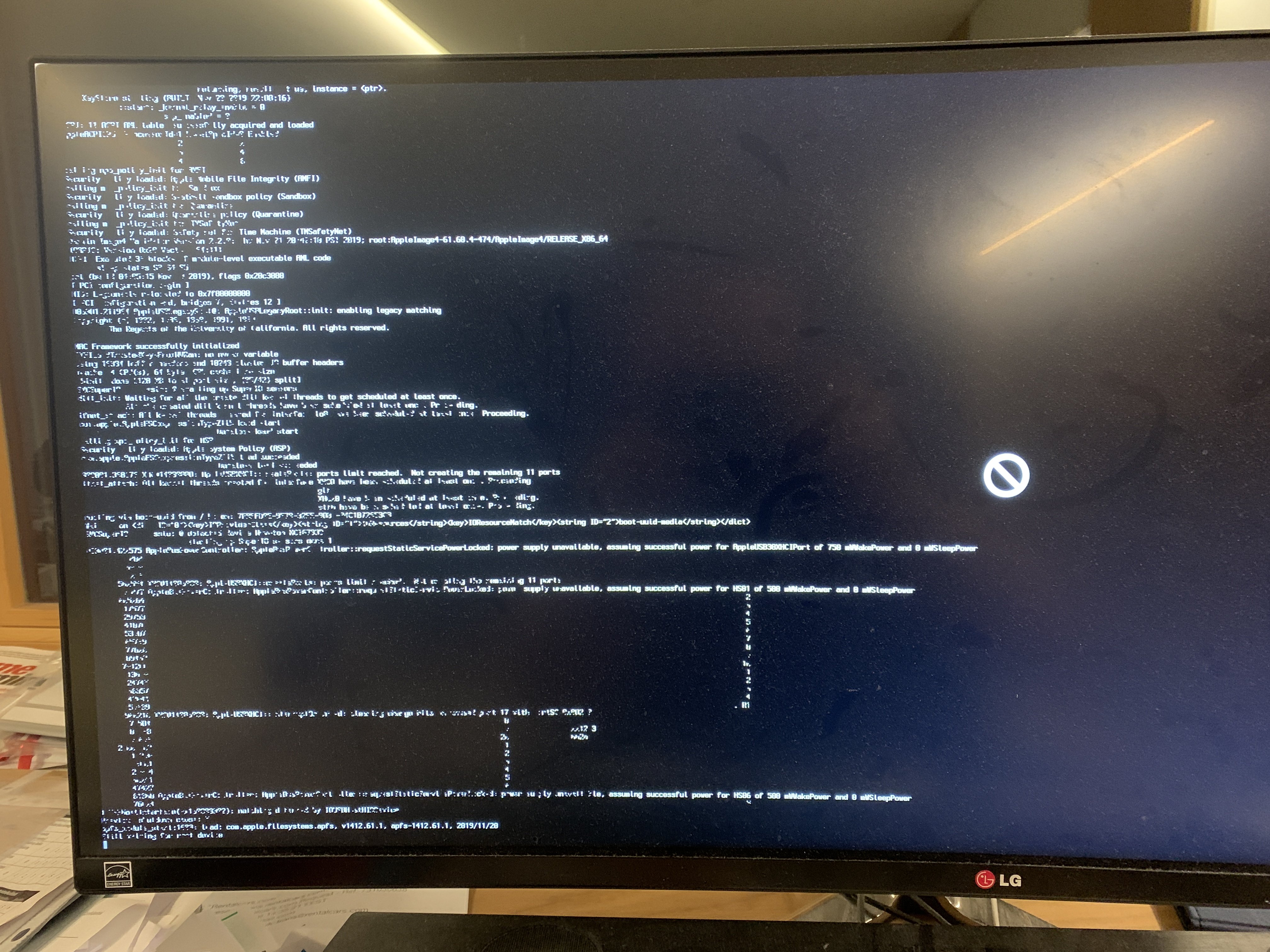

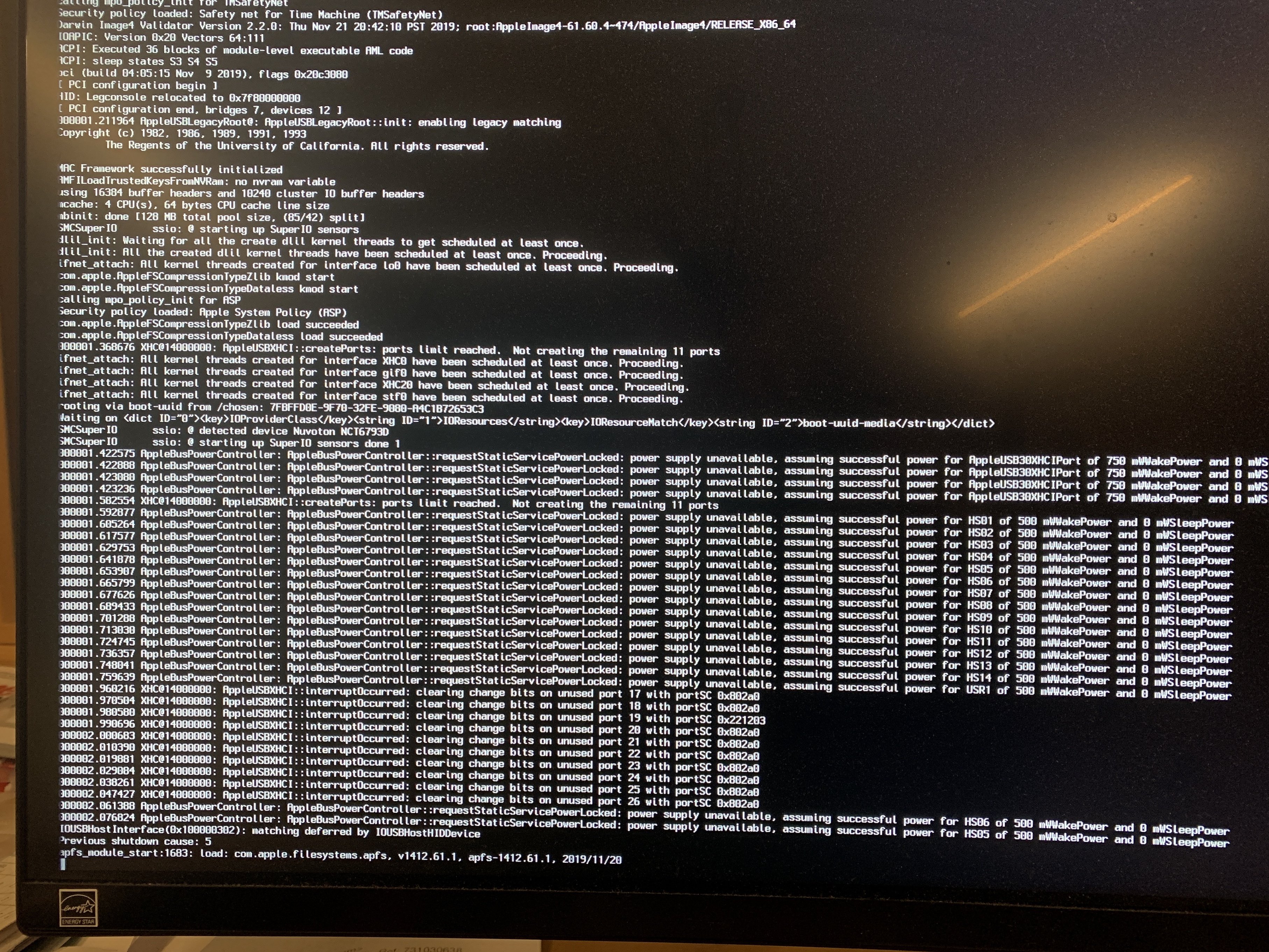

Created install USB with [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url]. When loading into Catalina install after I select to boot from USB, system hangs on apfs_module_start:1683 (screenshot attached). After a while screen garbles up and a stop sign is displayed (screenshot attached).

I am including clover EFI directory with all .kexts and configuration files.

Read forums, tried:
1. placing SSDT-EC.aml in ACPI->Patched - no effect

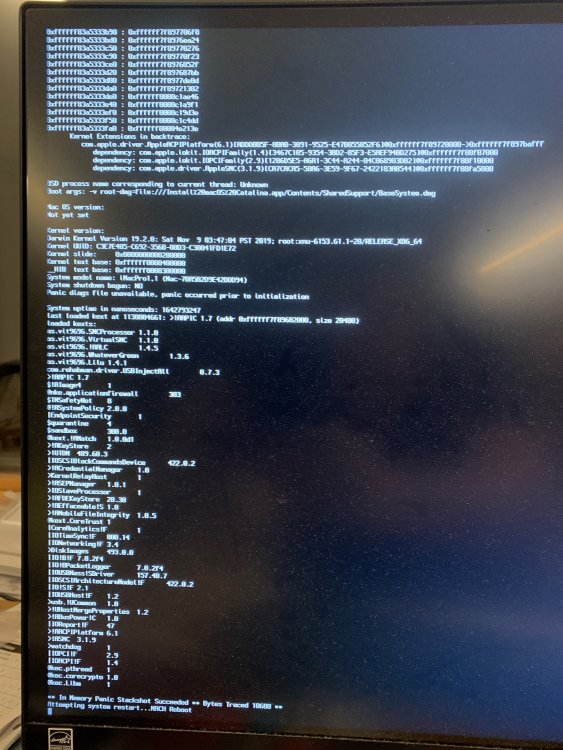

2. placing SSDT-ECUSBX.aml in ACPI->Patched - a different crash message (screenshot attached to this message, file name "Error with SSDT-ECUSBX_aml.jpeg"). I attached "SSDT-ECUSBX.aml" to this message just in case as well.

Any help would be really appreciated.

-Ben

EFI.zip

Oher screenshots

[Ben282]

Solved this issue with Clover configurator by changing config.plist.

Kernell and kext patches -> KextsToPatch:
NAME: com.apple.iokit.IOUSBHostFamily Find*:83FB0F0F Replace*:83FB3F0F
NAME: com.apple.driver.usb.AppleUSBXHCI Find*:83F90F0F Replace*:83F93F0F


Now testing the rest of the system.
