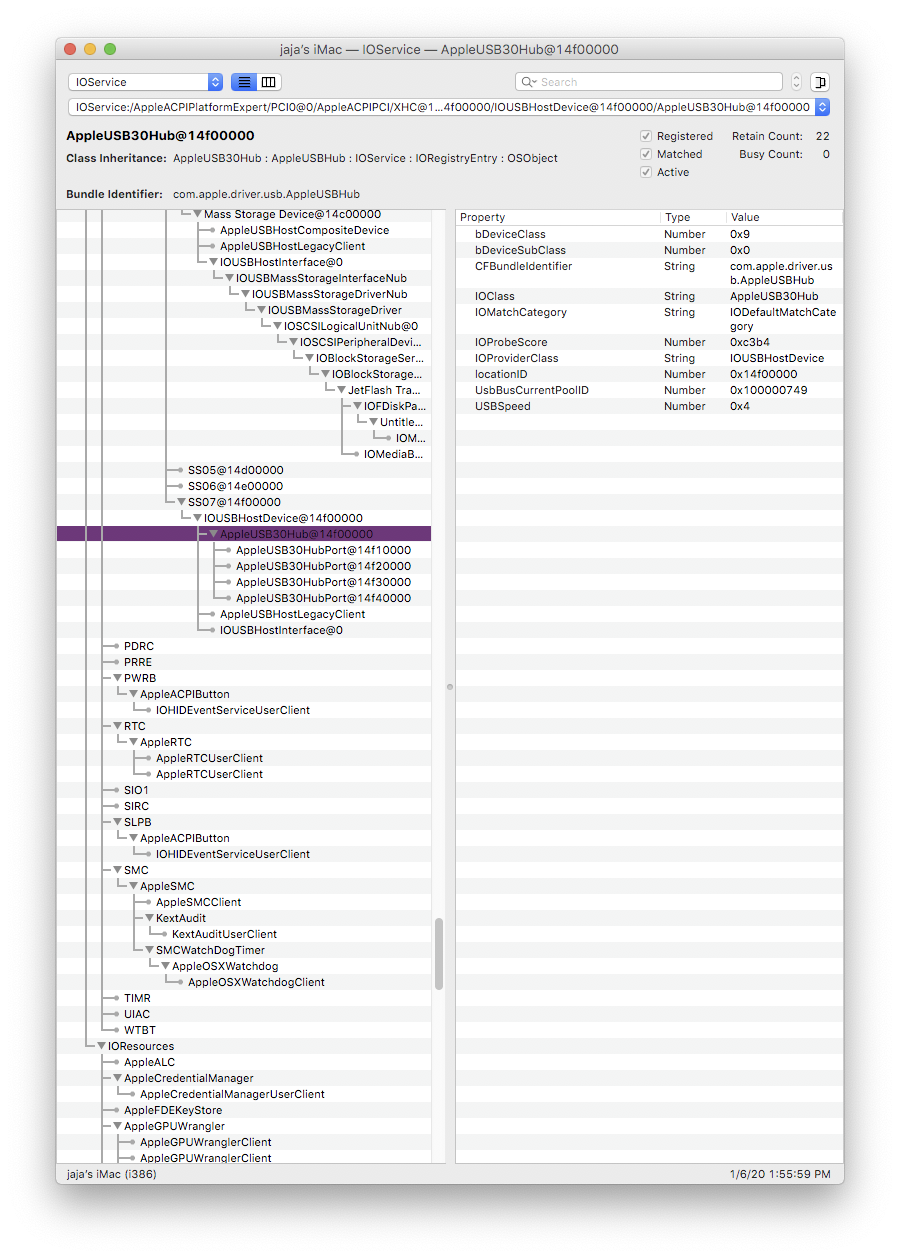

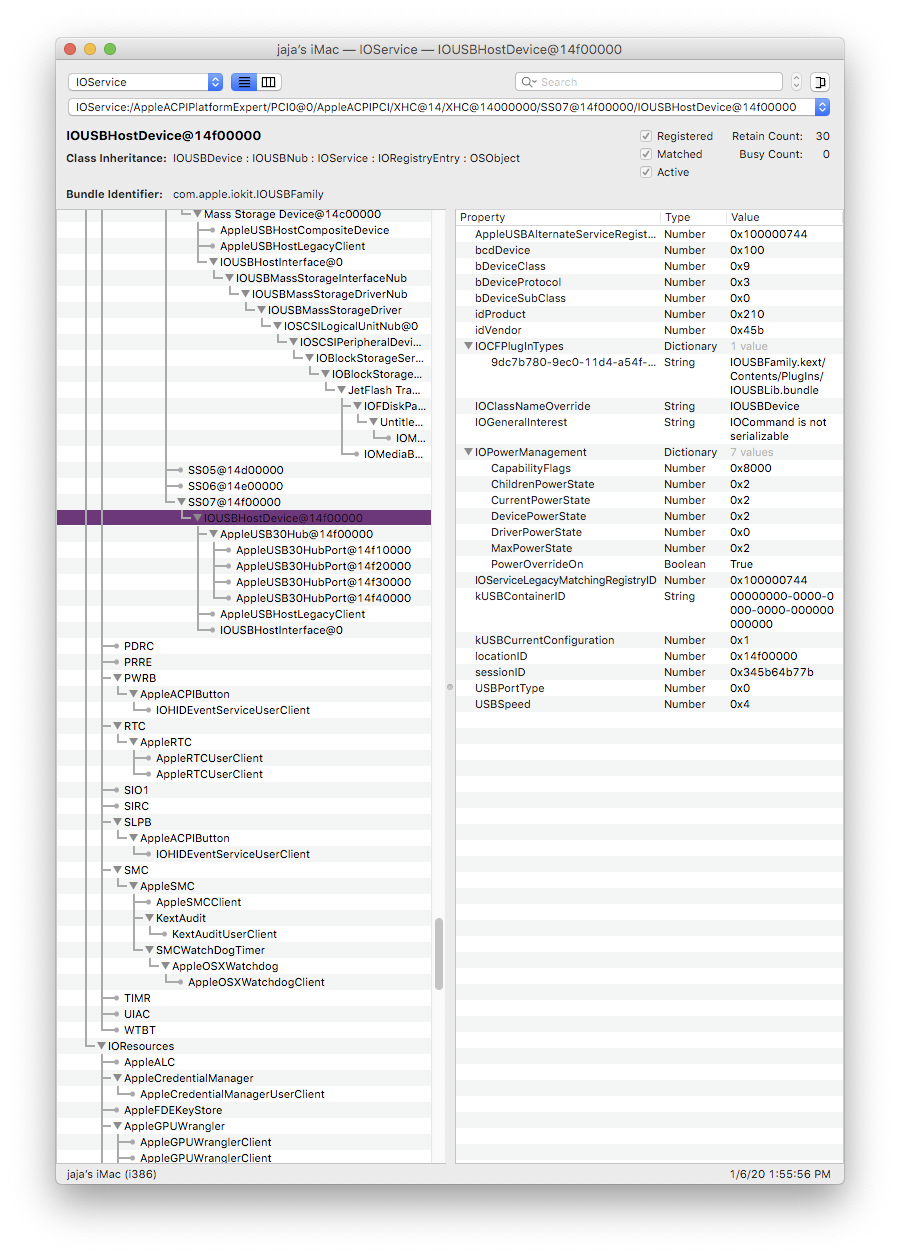

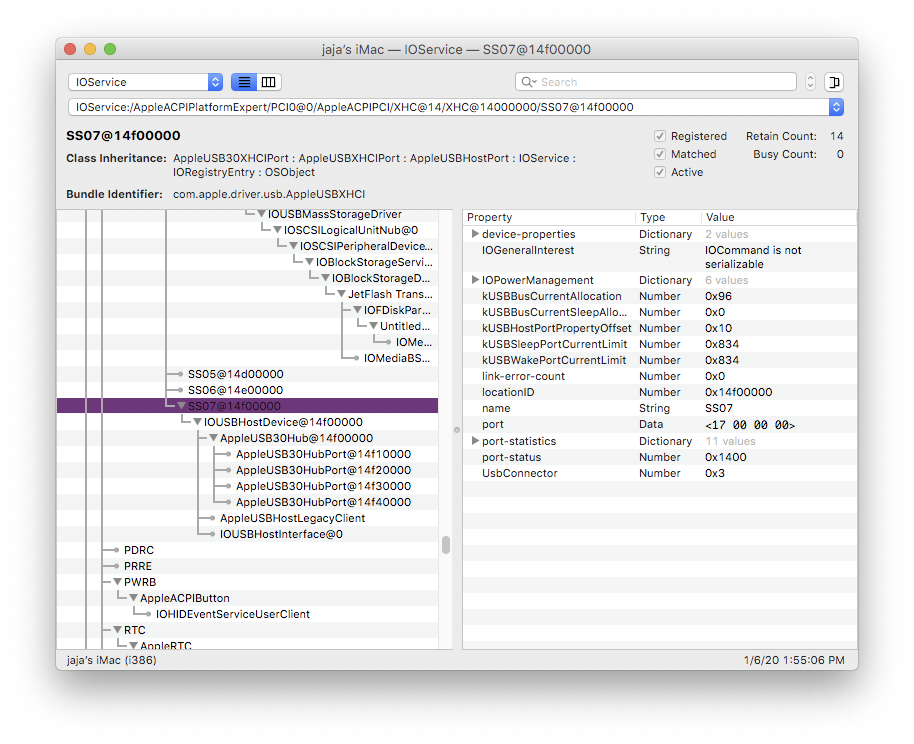

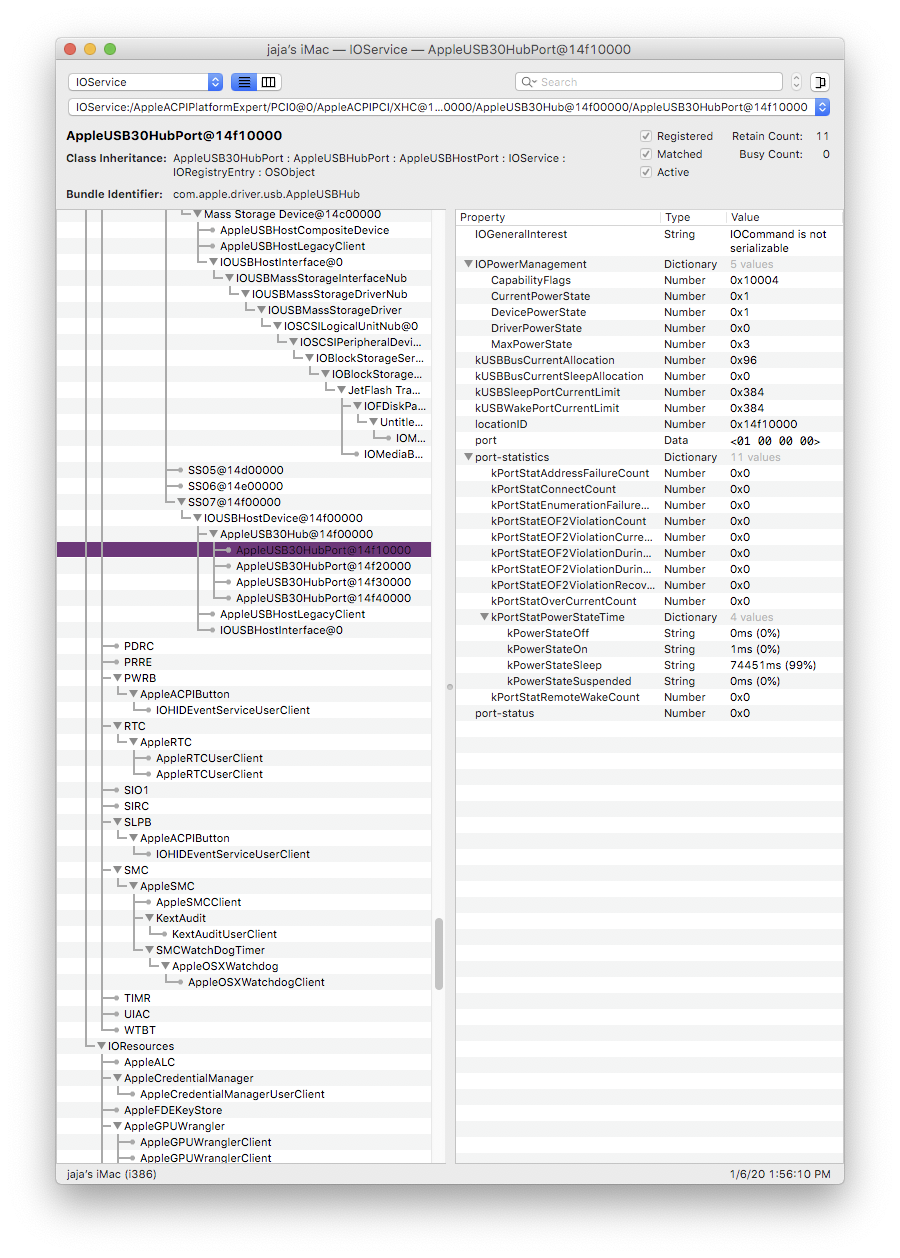

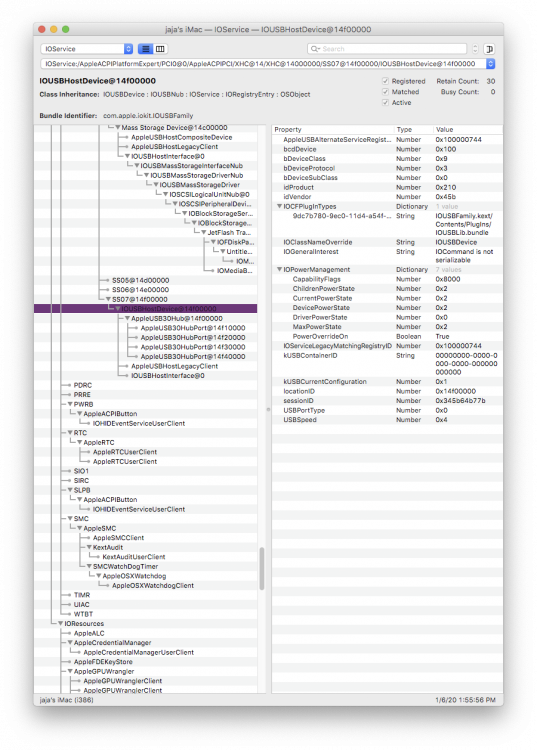

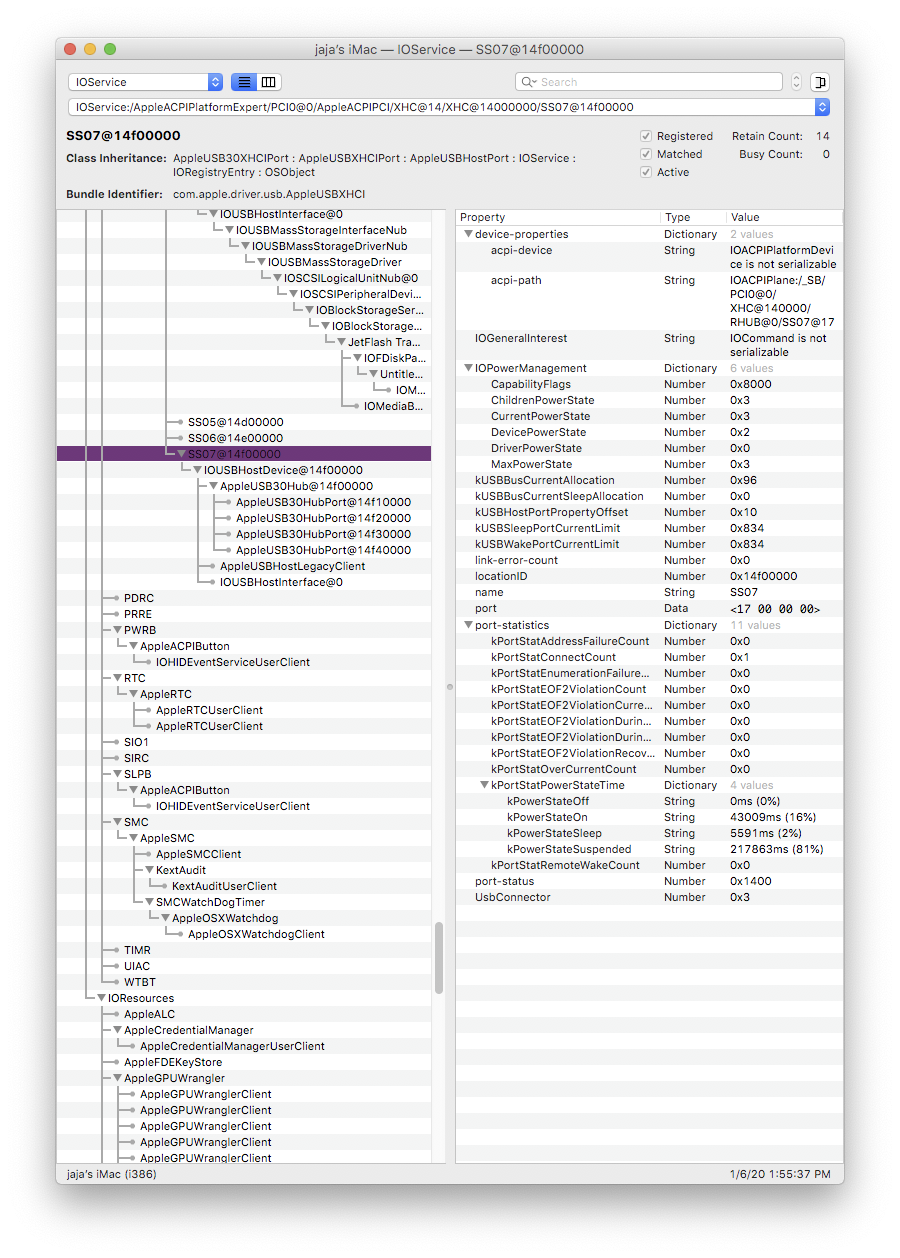

pinktank Posted January 5, 2020 Share Posted January 5, 2020 (edited) My system works with full usb support, single click wake and usb drives not ejecting except when I boot with my monitor usb attached(hardware calibration + built in usb 3.0 hub, EIZO CS2420). If I boot with the monitor plugged in, it auto-wakes from sleep without the display and ejects drives, and has other usb inconsistencies. Any ideas? If I boot with the monitor in rather than plug it after, it mounts it to a HS port rather than a SS port as it should and I screenshotted below. Below is what the hub device looks like in IOreg. Here's my ssdt-uiac Here's what the log looks like if I put it to sleep and it auto-wakes up with usb hub(display) plugged in Time stamp Domain Message Duration Delay ========== ====== ======= ======== ===== UUID: 105933A6-09E4-4BB8-8BB1-4BD515B292DD 2020-01-06 14:17:24 -0500 Notification Display is turned off 2020-01-06 14:17:24 -0500 Assertions PID 112(hidd) Summary UserIsActive "com.apple.iohideventsystem.queue.tickle.4294968306.17" 00:00:00 id:0x0x900008081 [System: DeclUser kDisp] 2020-01-06 14:17:24 -0500 Assertions Kernel Idle sleep preventers: -None- 2020-01-06 14:17:24 -0500 Assertions PID 64(powerd) Created InternalPreventSleep "com.apple.powermanagement.darkwakelinger" 00:00:00 id:0x0xd000082ac [System: PrevIdle DeclUser SRPrevSleep kCPU kDisp] 2020-01-06 14:17:39 -0500 Assertions PID 64(powerd) TimedOut InternalPreventSleep "com.apple.powermanagement.darkwakelinger" 00:00:14 id:0x0xd000082ac [System: DeclUser SRPrevSleep kCPU kDisp] 2020-01-06 14:17:39 -0500 Assertions Summary- [System: DeclUser kDisp] Using AC 2020-01-06 14:17:39 -0500 Sleep Entering Sleep state due to 'Software Sleep pid=106': Using AC (Charge:0%) 26 secs 2020-01-06 14:17:41 -0500 PM Client Acks Delays to Sleep notifications: [com.apple.apsd is slow(1608 ms)] 2020-01-06 14:17:56 -0500 Kernel Client Acks Delays to Sleep notifications: [AppleHDADriver driver is slow(msg: SetState to 0)(1015 ms)] [AMDFramebufferVIB driver is slow(msg: SetState to 1)(2104 ms)] [BroadcomBluetoothHostControllerUSBTransport driver is slow(msg: SetState to 1)(361 ms)] [AppleAHCIDiskQueueManager driver is slow(msg: SetState to 0)(1148 ms)] [en0 driver is slow(msg: WillChangeState to 0)(5279 ms)] 2020-01-06 14:17:56 -0500 Assertions PID 200(mDNSResponder) Created MaintenanceWake "mDNSResponder:maintenance" 00:00:00 id:0x0xd000082bf [System: PrevIdle DeclUser BGTask SRPrevSleep kCPU kDisp] 2020-01-06 14:17:56 -0500 Assertions PID 200(mDNSResponder) Released MaintenanceWake "mDNSResponder:maintenance" 00:00:00 id:0x0xd000082bf [System: PrevIdle DeclUser BGTask kDisp] 2020-01-06 14:18:05 -0500 Assertions PID 112(hidd) TurnedOn UserIsActive "com.apple.iohideventsystem.queue.tickle.4294968306.17" 00:00:00 id:0x0x900008081 [System: DeclUser kDisp] 2020-01-06 14:18:05 -0500 Assertions PID 64(powerd) Created InternalPreventSleep "PM configd - Wait for Device enumeration" 00:00:00 id:0x0xd000082c1 [System: DeclUser SRPrevSleep kCPU kDisp] 2020-01-06 14:18:05 -0500 DarkWake DarkWake from Normal Sleep [CDN] due to /HID Activity: Using AC (Charge:0%) 1 secs 2020-01-06 14:18:05 -0500 WakeDetails DriverReason:PXSX - DriverDetails: DriverReason:WiFi.ScanOffload - DriverDetails: 2020-01-06 14:18:05 -0500 HibernateStats hibmode=0 standbydelay=86400 18 2020-01-06 14:18:05 -0500 WakeTime WakeTime: 9.182 sec 2020-01-06 14:18:05 -0500 Kernel Client Acks Delays to Wake notifications: [en0 driver is slow(msg: DidChangeState to 1)(863 ms)] [PRT1 driver is slow(msg: SetState to 2)(1167 ms)] [PRT0 driver is slow(msg: SetState to 2)(1168 ms)] [PRT3 driver is slow(msg: SetState to 2)(1171 ms)] [PRT2 driver is slow(msg: SetState to 2)(1171 ms)] [PRT4 driver is slow(msg: SetState to 2)(7268 ms)] [AMDFramebufferVIB driver is slow(msg: SetState to 1)(345 ms)] 2020-01-06 14:18:05 -0500 Assertions PID 64(powerd) Created InternalPreventSleep "com.apple.powermanagement.acwakelinger" 00:00:00 id:0x0xd000082c2 [System: DeclUser SRPrevSleep kCPU kDisp] 2020-01-06 14:18:05 -0500 Assertions Kernel Idle sleep preventers: IODisplayWrangler 2020-01-06 14:18:05 -0500 Notification Display is turned on 2020-01-06 14:18:06 -0500 Wake DarkWake to FullWake from Normal Sleep [CDNVA] due to HID Activity: Using AC (Charge:0%) 2020-01-06 14:18:06 -0500 WakeDetails DriverReason:PXSX - DriverDetails: DriverReason:WiFi.ScanOffload - DriverDetails: 2020-01-06 14:18:06 -0500 HibernateStats hibmode=0 standbydelay=86400 18 2020-01-06 14:18:06 -0500 WakeTime WakeTime: 1.493 sec 2020-01-06 14:18:06 -0500 Kernel Client Acks Delays to Wake notifications: [AppleHDADriver driver is slow(msg: SetState to 1)(1490 ms)] Total Sleep/Wakes since boot at 2020-01-06 13:51:10 -0500 :5 2020-01-06 14:18:13 -0500 : Showing all currently held IOKit power assertions Assertion status system-wide: BackgroundTask 0 ApplePushServiceTask 0 UserIsActive 1 PreventUserIdleDisplaySleep 0 PreventSystemSleep 0 ExternalMedia 0 PreventUserIdleSystemSleep 0 NetworkClientActive 0 InternalPreventSleep 1 Listed by owning process: pid 112(hidd): [0x0000002600098081] 00:00:00 UserIsActive named: "com.apple.iohideventsystem.queue.tickle.4294968502.3" Timeout will fire in 600 secs Action=TimeoutActionRelease pid 64(powerd): [0x00000603000d82c1] 00:00:08 InternalPreventSleep named: "PM configd - Wait for Device enumeration" Assertion applied on Battery power also pid 64(powerd): [0x00000603000d82c2] 00:00:08 InternalPreventSleep named: "com.apple.powermanagement.acwakelinger" Timeout will fire in 37 secs Action=TimeoutActionRelease Kernel Assertions: 0xc=USB,BT-HID id=502 level=255 0x4=USB mod=12/31/69, 7:00 PM description=com.apple.usb.externaldevice.14200000 owner=Gaming Mouse G600 id=503 level=255 0x8=BT-HID mod=12/31/69, 7:00 PM description=com.apple.driver.IOBluetoothHIDDriver owner=AppleBluetoothHIDKeyboard id=508 level=255 0x4=USB mod=12/31/69, 7:00 PM description=com.apple.usb.externaldevice.14500000 owner=IOUSBHostDevice id=509 level=255 0x4=USB mod=12/31/69, 7:00 PM description=com.apple.usb.externaldevice.14f00000 owner=IOUSBHostDevice Idle sleep preventers: IODisplayWrangler jajas-iMac:~ jajanene$ Edited January 6, 2020 by pinktank Link to comment Share on other sites More sharing options...
