Catalina Hackintosh broken display/graphics when booting installer

[Dizeke]

I am trying to install Mac OS Catalina 10.15.1.

I have the following setup:

MOBO: Asrock Z370 Gaming K6
CPU: Intel i7 8700k
GPU: Gigabyte 5700XT (Reference)
RAM: 16GB 3600Mhz CL18 G.Skill Trident Z

Kexts included:
Lilu
WhateverGreen
FakeSMC & Sensors
IntelMausi
USBInject

AppleALC

Bootargs I have added:
agdpmod=pikera

darkwake=8

I have tried removing these along with lilu and weg kext as I have seen in places that 5700 XT should work out of the box with 10.15.1 but I cant get past the installer.
Does anybody know how to fix my issue or knows any work around?

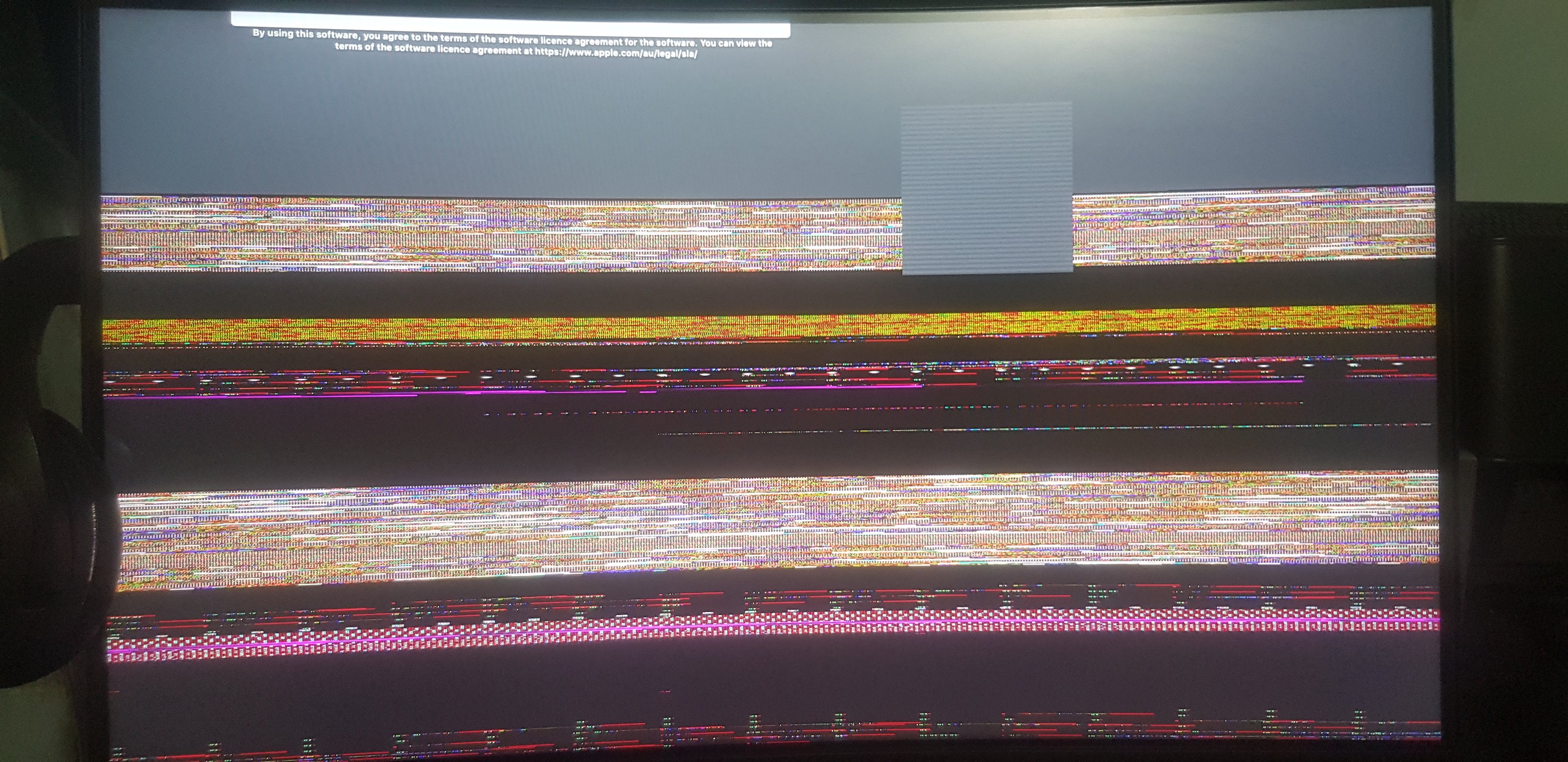

I have the following EFI folder and the shown display upon booting the installer (after the list of verbose logs when booting mac OS installer in clover) attached.


EFI.zip

Note: I have used the latest Clover Configurator (5.6.2.0) and Clover BootLoader (Clover_v2.5k_r5098) I can find.

[zakaghbal]

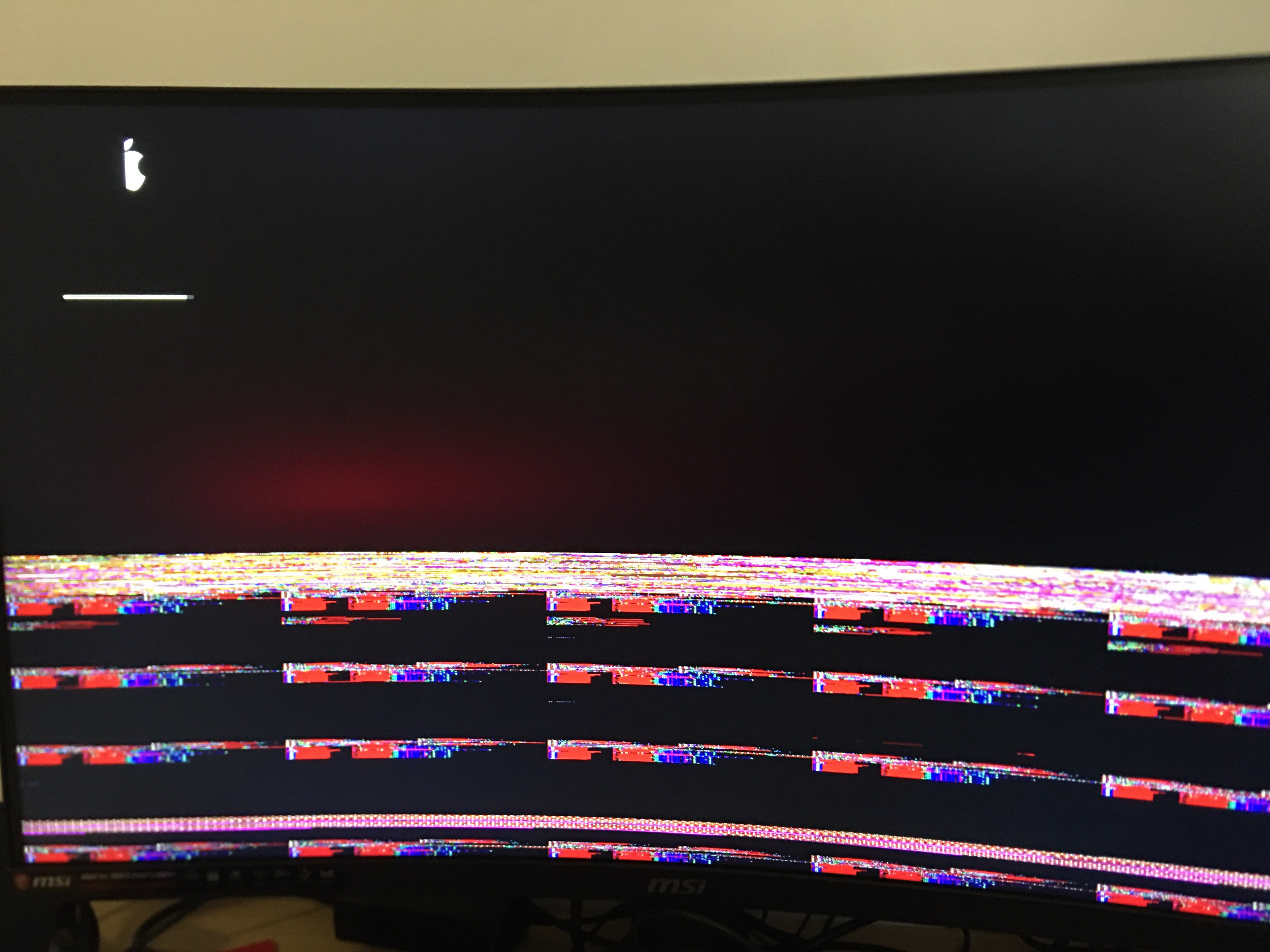

I have the same exact graphic glitch and apprently it's a problem with 10.15.1 and some forums say it's fixed in 10.15.2 beta 2. I'm trying to download it now but still my VM somehow can't load the beta installer even after installing beta profile for developers. Let me know if you get it to work. I made a post about the glitch on Reddit :https://www.reddit.com/r/hackintosh/comments/dwr8xv/graphic_glitch_on_5700_xt_and_catalina_10151/



Vanilla Install

I’m using iMacPro 1.1 / adding agdpmod=pikera was able to boot but with graphic glitch. Without it I get black screen.

Kext

• AppleALC

• VirtualSMC (with SMCProcessor.kext and SMCSuperIO.kext)

• IntelMausiEthernet

• Lilu

• USB Inject All (before you have mapped your ports)

• WhateverGreen

• SmallTreeIntel82576.kext

MOBO:

• Gigabyte Z390 Designare

• CPU: Core i9 9900k

• GPU: Red Devil RX 5700 XT 8G GDDR6

• RAM: CORSAIR Vengeance RGB Pro 16GB x2 = 32GB SSD:

• SSD Samsung 970 EVO PLUS 1TB M2

• PSU:Cooler Master V750





Edited November 15, 2019 by zakaghbal
