[TOOL] AMD Radeon RX 5700 (XT) PowerPlay Table generator

[CMMChris]

Of course not.

https://www.hackintosh-forum.de/forum/thread/39923-tool-vega-64-powerplaytable-generator/

[atoffolo]

I apologise for bothering you guys on this topic, and I realise Chris put the table generator out there for people that know what they are doing. I know many things but not this far unfortunately and I'm wondering if you can help me out and walk me through the process.

I already downloaded your table and Clover Configurator. I'm on a iMacPro with OS 10.15.4. I have an eGPU Razer Core X with a XFX AMD Radeon™ RX 5700 XT 8GB GDDR6 THICC III Ultra. I'm trying to get a little better performance since it is not much different then the built in video card (an Radeon Pro Vega 64 16 GB) score 1700 vr 1400...

I'm coming your screenshot of Clover and entering the values under the device section... but after that I'm not sure what to do... I imagine saving the .plist and substituting the original one in some folder location... but it is just a guess...

Let me know if you can help... I would really appreciate it... I'm using all this for work... Twinmotion renders... I'm an interior architect.

I apologise for badgering you guys on this topic, and I realise Chris put the table generator out there for people that know what they are doing. I know many things but not this far unfortunately and I'm wondering if you can help me out and walk me through the process.

I already downloaded your table and Clover Configurator. I'm on a iMacPro with OS 10.15.4. I have an eGPU Razer Core X with a XFX AMD Radeon™ RX 5700 XT 8GB GDDR6 THICC III Ultra. I'm trying to get a little better performance since it is not much different then the built in video card (an Radeon Pro Vega 64 16 GB) score 1700 vr 1400...

I'm coming your screenshot of Clover and entering the values under the device section... but after that I'm not sure what to do... I imagine saving the .plist and substituting the original one in some folder location... but it is just a guess...

Let me know if you can help... I would really appreciate it... I'm using all this for work... Twinmotion renders... I'm an interior architect.

Edited April 1, 2020 by atoffolo

[slntjlsy]

The link provided is showing an error, would you be able to provide another link? thanks!

2 minutes ago, slntjlsy said:

The link provided is showing an error, would you be able to provide another link? thanks!

I found an alternative link from your Hackintosher post.

For anyone interested;

https://www.hackintosh-forum.de/forum/thread/44556-amd-navi-rdna-rx5700-xt-etc-in-macos-benchmarks-undervolting-overclocking-powerp/

[mrexot]

I have a problem with my "SAPPHIRE Radeon NITRO+ RX 5700 XT 8G OC Special Edition" and PowerPlay Table generator. I'm new with hackintosh but learning fast. Wanted only to disable zero RPM and set fanPWMmin lower then 26 (that is default for my card, and its too high). But I get black screen while booting (few seconds after Apple logo appears).

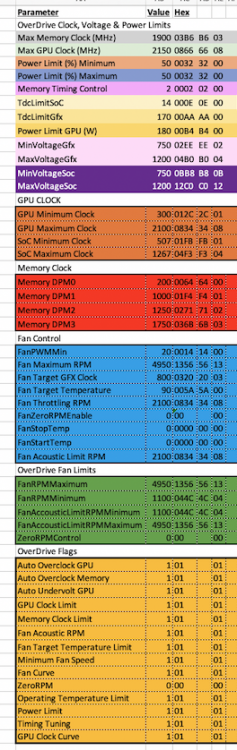

This is my configuration (default values extracted with gpuz/morepowertool at Win10):



Using OpenClover 0.5.6, configurating my config.plist with OpenCore Configurator



I found my device path with gfxutil, hope its correct.

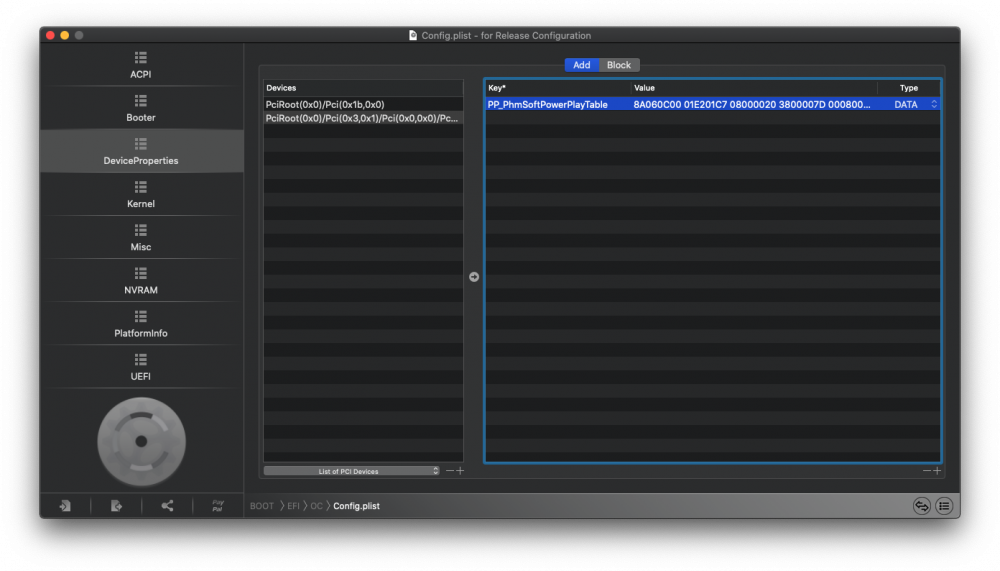

OpenCore Configurator -> DeviceProperties -> Devices: PciRoot(0x0)/Pci(0x3,0x1)/Pci(0x0,0x0)/Pci(0x0,0x0)/Pci(0x0,0x0)
-> Key: PP_PhmSoftPowerPlayTable
-> Value: (from excel)
-> Type: DATA





Can you help me / tell me what I'm doing wrong please?

[mrexot]

It works now, I used 7 years old office instead of office 365 2019... damn

[ted973]

Fill the values from my XFX 5700XT org vbios (dumped by MorePowerTool), FanStartTemp seems not work. Auto shutdown once in macOS then I reboot to Windows, the card temp is over 65℃. But if use LuxMark to benchmark FanStartTemp works, very strange...

Also the ZeroRPMControl from MorePowerTool is not boolean value(my card is 3500 seems like RPM)

[digitallee]

I bought RX 5600 XT Pulse. On catalina 10.15.4 fans not spinning when system is iddle, I understand that ZeroRPM is on. Can u use this tabs for UV my card and turn off ZeroRPM? Thx!



UPD. Solve it.

Edited May 15, 2020 by digitallee

[Ericine]

Hi there i really want to get the max out of my gpu gigabyte rx 5700 gaming 8GB
can someone help me with the right numbers?
thank you.


[iodine131]

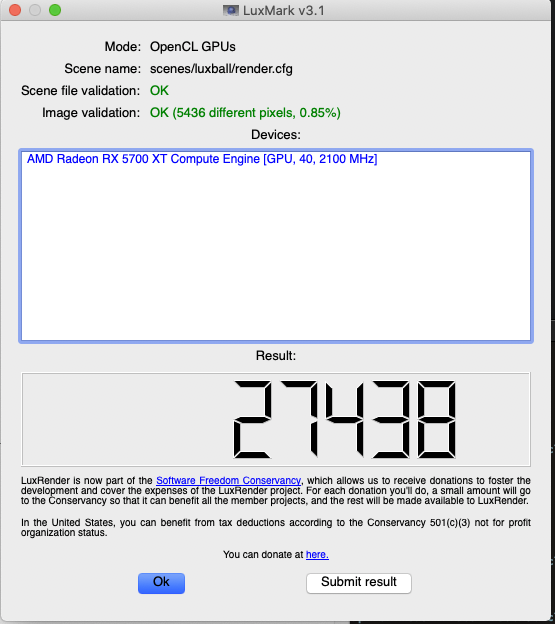

got some improvements, still tuning combinations of voltage and frequency limits under windows. great work!



note: the original benchmark is much worse, but I trashed the screenshots, these two are two different settings.



config:

i9 9900K @ 4.8GHz

KLEVV 16GB x2

Gigabyte Z390I AUROS PRO Wifi (BIOS: f8c)

Gigabyte 5700 XT Gaming OC



Edited June 7, 2020 by iodine131

[Ericine]

anyone can help me to make my rx 5700 faster? actually if the radeonboost.kext was working in catalina 10.15.5 everything would be great!

[Wackymac]

Hey @CMMChris wondering if you guide me in the right direction and how to pull the stock powerplay table from my card? its a 5700xt asrock taichi X and has slightly different clocks than this posted powerplay table.



Thanks

[CMMChris]

Use More Power Tool on Windows to get the values from your VBIOS.

[Wackymac]

now the big questions is, how do i import this data into your excel sheet? surely you use some sort of macro?

On 7/9/2020 at 4:37 AM, CMMChris said:

Use More Power Tool on Windows to get the values from your VBIOS.



[CMMChris]

You just need to enter the values that MPT displays.

[Wackymac]

1 minute ago, CMMChris said:

You just need to enter the values that MPT displays.

its actually appears large areas are quite different. i was hoping you could assist in how you did this to start with.

[Wackymac]

22 hours ago, Wackymac said:

its actually appears large areas are quite different. i was hoping you could assist in how you did this to start with.

ive just managed to import the data to excel and it appears that my powerplay table is 78 lines while yours is only 67



as well the values seem to be in different locations.

Edited July 13, 2020 by Wackymac

[CMMChris]

Probably a new revision of the PPT. It shouldn't matter tho. Show me a screenshot of your MPT so I can see the differences you are talking about.

[Wackymac]

1 hour ago, CMMChris said:

Probably a new revision of the PPT. It shouldn't matter tho. Show me a screenshot of your MPT so I can see the differences you are talking about.

ill do one better i really appreciate the help with this, im just looking to "disable" the zero rpm mode on this card.



ASROCK_RX_5700_XT_Powerplaytable.xlsx

Edited July 13, 2020 by Wackymac

[CMMChris]

What am I supposed to do with that xlsx file?

[Wackymac]

2 hours ago, CMMChris said:

What am I supposed to do with that xlsx file?

compare the differences i am speaking of? you asked for a screenshot. that is the power play table from my vbios.

[CMMChris]

Eh?! I told you to use MorePowerTool to check your cards values and then transfer them into my PPT generator. Then you told me about differences

On 7/12/2020 at 10:58 AM, Wackymac said:

its actually appears large areas are quite different

I asked you to provide screenshots of MorePowerTool and you came up with a copy of your cards PowerPlay Table which is not what I asked for.

Edited July 13, 2020 by CMMChris

[Wackymac]

3 hours ago, CMMChris said:

Eh?! I told you to use MorePowerTool to check your cards values and then transfer them into my PPT generator. Then you told me about differences

I asked you to provide screenshots of MorePowerTool and you came up with a copy of your cards PowerPlay Table which is not what I asked for.

i told you that my cards power play table has the values in different offsets....

[CMMChris]

And I told you that it likely is a different PowerPlay Table Revision which likely doesn't matter since the revision is indicated in the header of the PowerPlay Table. As I said: All you need to do is to get your cards values out of MorePowerTool and transfer them into my PPT generator...

[ZDV]

Hello Chris,

you did an amazing job and I admire this as I am a casual hackintosh builder (first time ever).

I made a build with a DB4 streamcom passive cooling system that requires Graphic card to be in

small ITX format. I started to RX580 card but I would like to switch to RX5700 XT. The thing is

there is only powercolor that makes a card with this format and it had bad reviews about cooling.

So, undervolting is mandatory as a matter of fact.

I am thinking also to the 5600 XT from the same brand.

Does the settings and table you provide could work on this gpu model ? (I suppose no)

Each brand putting is own chipset could the powercolor RX 5700 XT itx could need specific settings, or

does your table is making ONLY the Gpu reacting differently ?

Sorry for all these questions but before buying one of these cards I prefer to ask question instead of

saying here "it does not work" afterwards.

A big thank you.

Zils

[luvletter]

Can I apply this to my GIGABYTE Radeon RX 5500 XT OC 8G?

I want to disable the Zero RPM...

It makes my card really hot..
