Layout-ID stuck on 7 on X470 + 360)X

1 post in this topic

Recommended Posts

Hi all,

Just got the 3600X and swapped out my Z87 config.plist with the one provided by https://github.com/AMD-OSX/AMD_Vanilla. All seems to be working, except for sound.

My board is the Asus Prime Pro X470 with the Realtek® S1220A audio codec. I have tried the following:

  • Injecting layout-id 1 via Clover
  • Injecting layout-id 1 as an integer to device PciRoot(0x0)/Pci(0x8,0x1)/Pci(0x0,0x4)
  • Hardcoding a layout-id in an SSDT and injecting that
  • Using AppleALC's boot argument alcid


None of these changed the layout-id from 7 to anything else. I'm wondering if this has happened before.

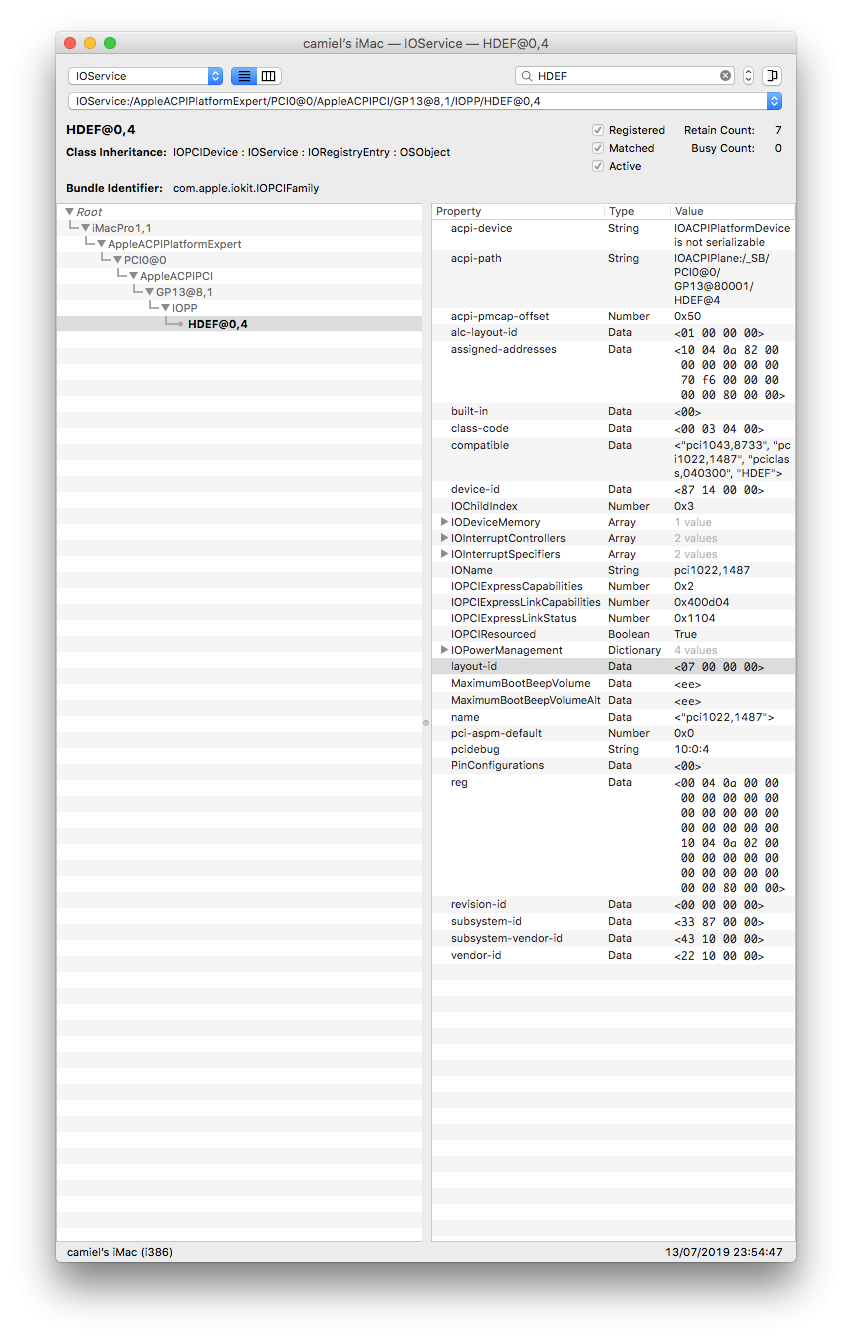

Attached is a screenshot of the HDEF device.

Thank you

Screen Shot 2019-07-13 at 23.56.41.png
