Mojave 10.14.2: Not dual screen on Intel HD 630. MSI H110M Pro-VH motherboard


sosoluis
 Share

1 post in this topic

Recommended Posts

Hello pals,

I have been searching a solution to obtain signal on my first screen. I say "first" because it is connected to VGA (D-SUB) on the motherboard, while the second screen it is running perfectly on another integrated output, DVI-D, with an adaptor to the screen VGA connects.

I had tried every guide to frame buffering, trying every combination Ports/index - BusID over each PlatformID compatible, with iMac 18.1 and 14.2... But same result: Both screens are running while system is loading, but in middle of loading bar, first screen turn off (no signal) and second runs with full acceleration.

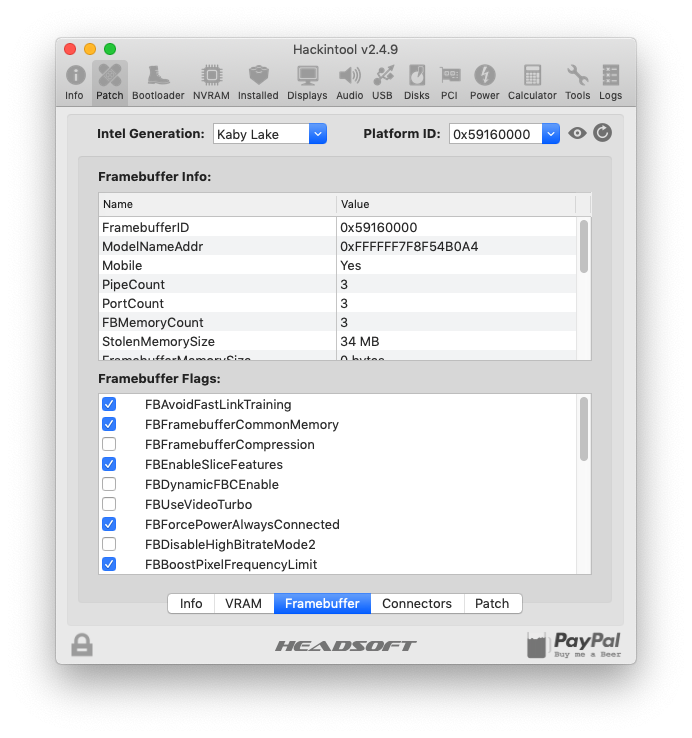

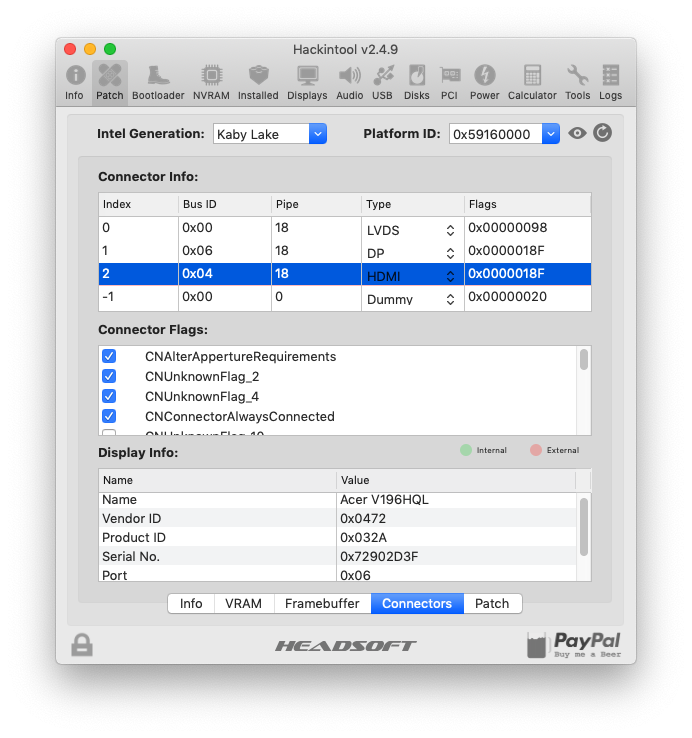

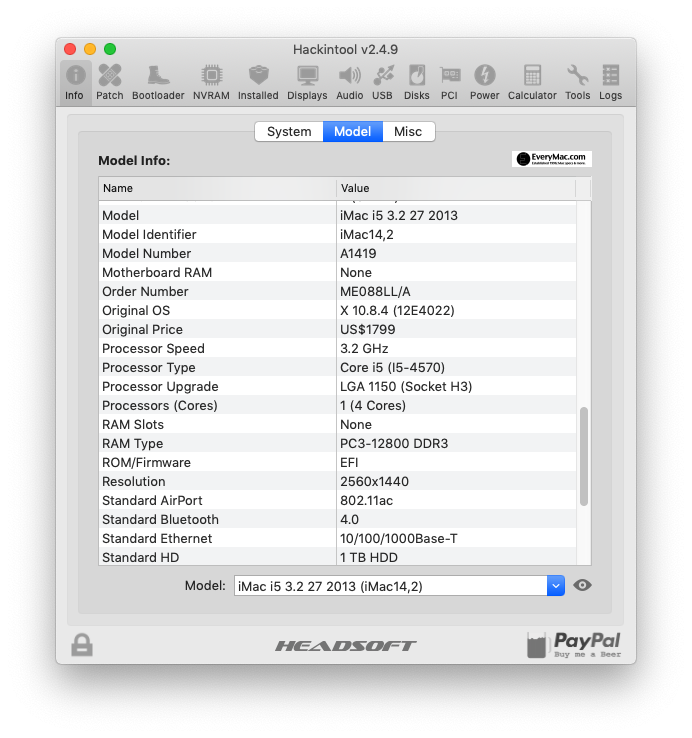

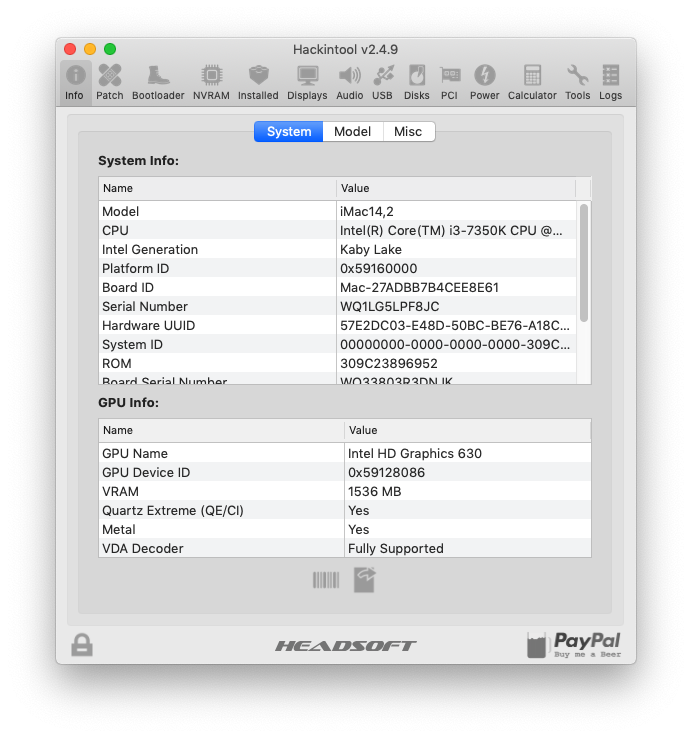

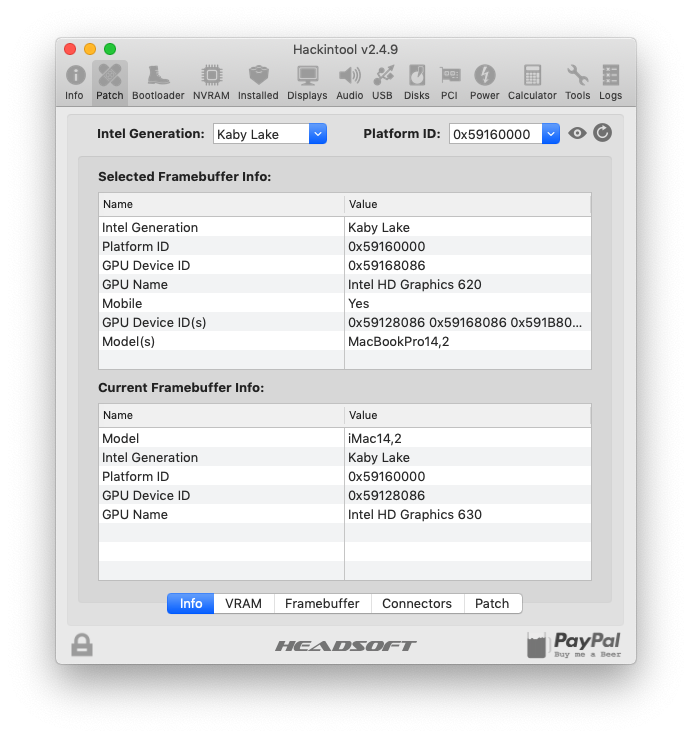

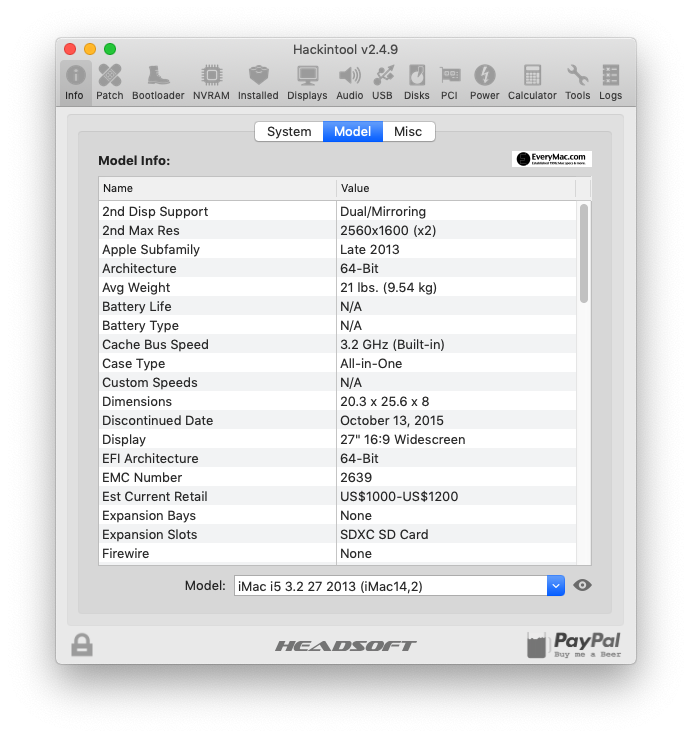

Attaching my config.plist and Hackintool screenshot.



Thanks in advance.

Captura de pantalla 2019-05-15 a las 13.46.51.png

Captura de pantalla 2019-05-15 a las 13.47.35.png

Captura de pantalla 2019-05-15 a las 13.47.52.png

Captura de pantalla 2019-05-15 a las 13.50.41.png

Captura de pantalla 2019-05-15 a las 13.50.46.png

Captura de pantalla 2019-05-15 a las 13.50.50.png

Captura de pantalla 2019-05-15 a las 13.51.07.png

config.plist
