high sierra reboots 2 minutes remaining assertion failed

[haha517]

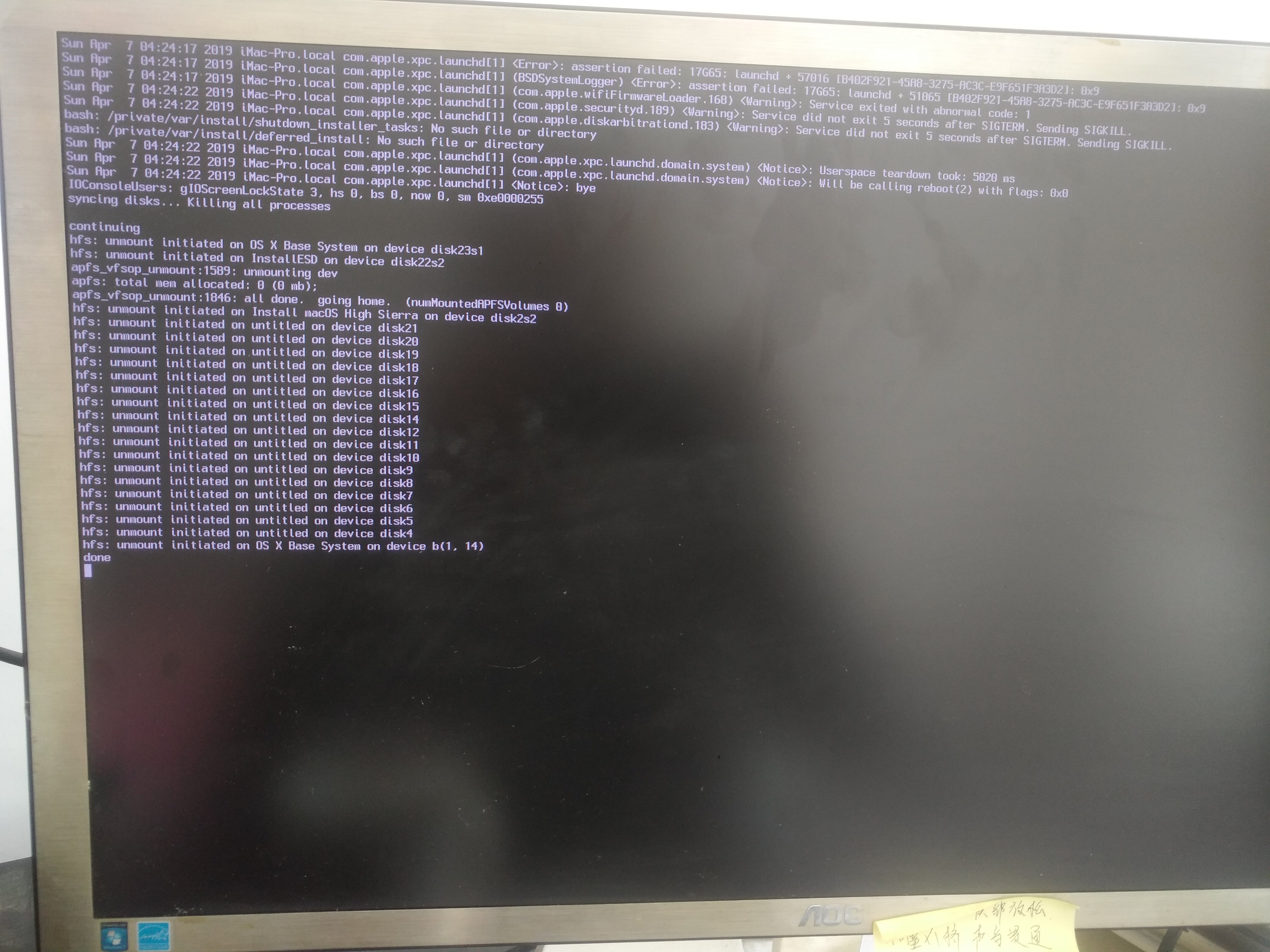

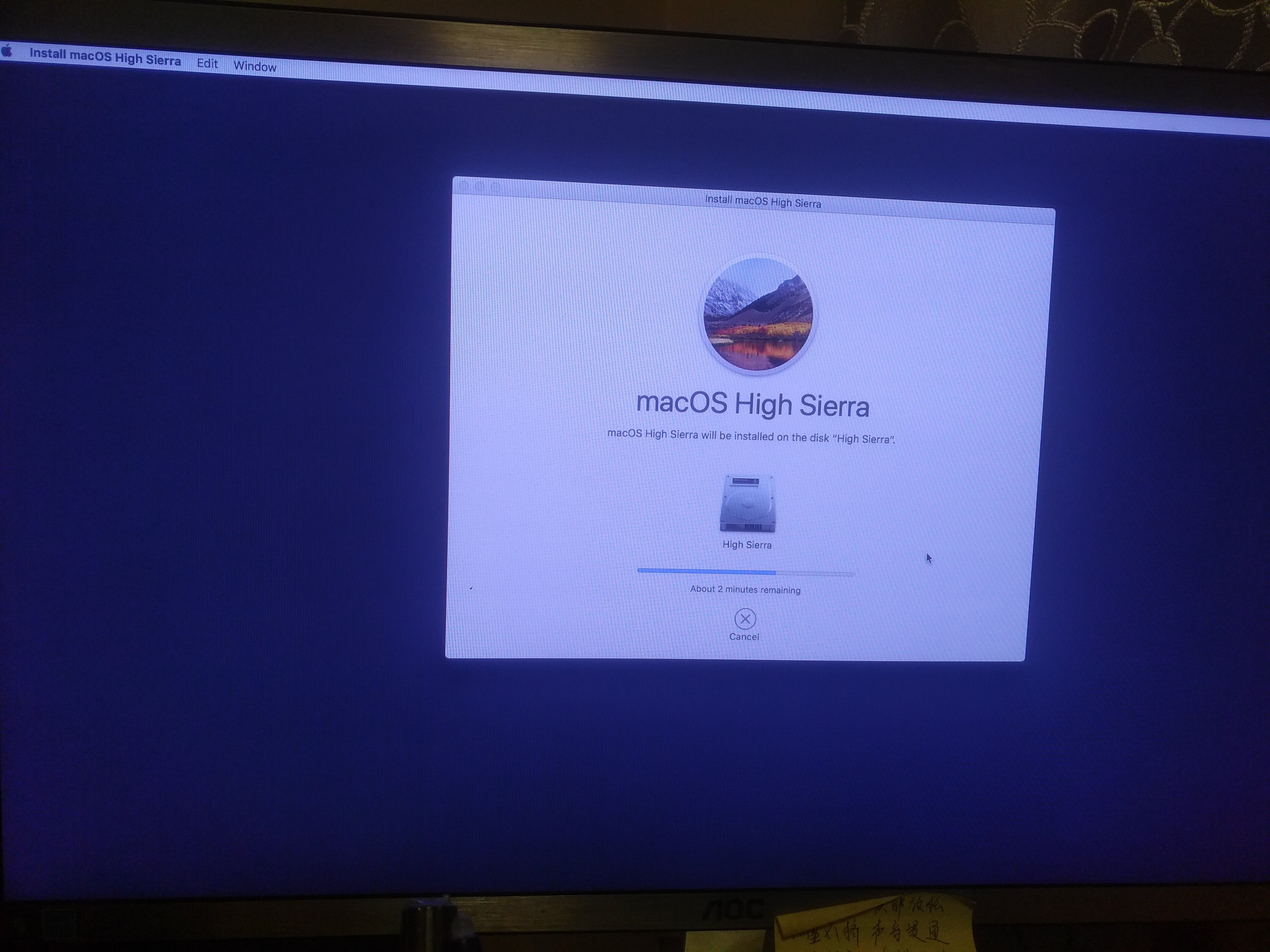

hi, everyone.i am install high sierra 10.13.6 on my computer,when i saw "2 minutes remaining " on first install screen. i got assertion failed and reboot after.so i have couple question to here:

1,do i need install high sierra on isolate disk?

2,do i need format disk to AFPS,or hfs+?

3,when i enter install screen ,how can i got install log?

4,is it need usb2.0 port to use bootable install usb?

5,do i need AptioMemoryFix.efi or other version?

6,how can i get macOS install log file?



HARDWARE:

x299 Gigabyte aorus gaming 7 pro

intel i9-7900x

WD BLACK SSD NVMe 1T



other seting and config based this link:https://www.tonymacx86.com/threads/how-to-build-your-own-imac-pro-successful-build-extended-guide.229353/



BIOS：

1.) /M.I.T/Advanced Frequency Settings/
a.) Extreme Memory Profile: (X.M.P): Profile1

2.) /M.I.T/Advanced Frequency Settings/Advanced CPU Core Settings

a.) Active Cores Control: Auto
b.) Hyper-Threading Technology: Enabled
c.) Intel Turbo Boost Max Technology 3.0 : Enabled
d.) Intel Speed Shift Technology : Enabled
e.) Enhanced Multi-Core Performance: enabled/disabled (optional; consider warning in Section B.2) - ASUS BIOS Settings)
f.) CPU Enhanced Halt (C1E): Enabled
g.) C6/C7 State Support: Enabled
h.) Package C State limit: C6
i.) CPU EIST Function: Enabled
j.) Energy Efficient Turbo : Disabled

3.) /M.I.T/Advanced Memory Settings/
a.) Extreme Memory Profile (X.M.P): Profile1

4.) /BIOS/
a.) Boot Numlock State: Disabled/Enabled (optional)
b.) Security option: Setup
c.) Full Screen Logo Show: Enbabled
d.) Fast Boot: Disabled
e.) CSM Support: Disabled

5.) /BIOS/Secure Boot/
a.) Secure Boot Enable: Disabled

6.) /Peripherals/USB Configuration/
a.) XHCI Hand-off: Enabled

7.) /Peripheral/Thunderbolt Configuration/ (Designare EX only)
a.) Security Level : SL0 - No Security

8.) /Chipset/
a.) VT-d: Disabled/Enabled (optional, see VT-d notification in Section B.2) - ASUS BIOS settings )

9.) /Save& Exit/
a.) Save & Exit

Edited April 9, 2019 by haha517
