Need DSDT for old ASUS Board P5PL2-E


11 posts in this topic

Recommended Posts

5 hours ago, Hervé said:

Use MaciASL app, it'll grab your DSDT from memory. Save it as a compiled .aml version or as a source code .dsl file.

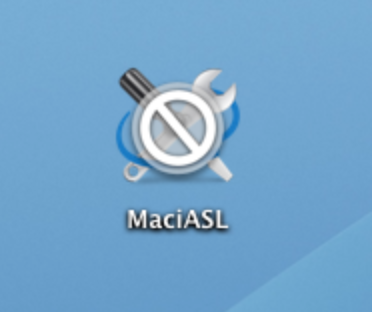

so, it's also no possible:( as you see on my Pic01. Furthermore I have GeForce GT 610 which is not recognized properly.

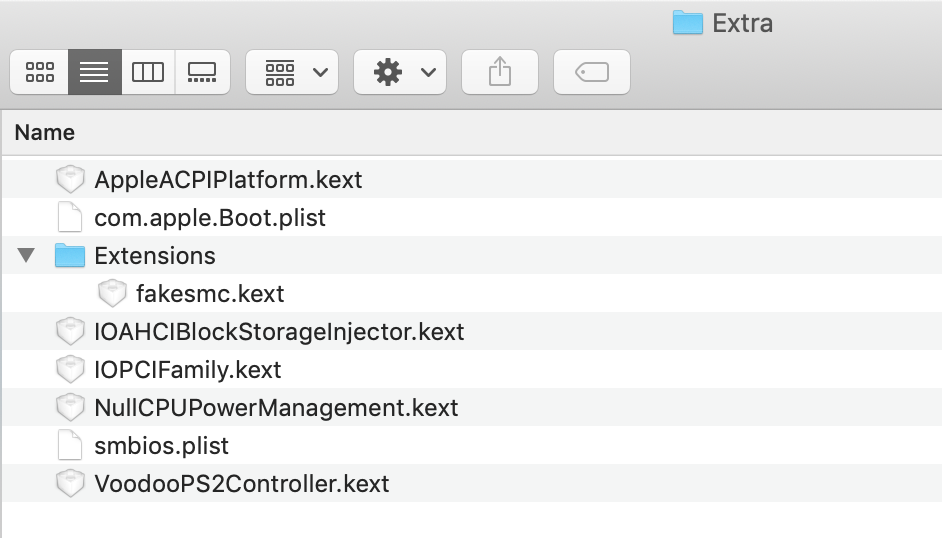

I used old method to instal Snow Leon on this old board, this files what I have on my "Extra"-folder see Pic02







Edited by MAC_SO

Then use DSDT Editor (it's available at Olarila.com, will require Java to be installed) or Chameleon Wizard to extract your DSDT.



GeForce GT610 is a Fermi card. It's supported OOB from Lion 10.7.5/ML 10.8.2 but not at all in Snow Leopard. You'll need another (older) card like, say, a good old GeForce GT120, G210 or a model from the GeForce 7xxx, 8xxx or 9xxx Series for Snow Leopard... ATI/AMD Radeon X1xxx,  Radeon HD 2xxx, 4xxx, 5xxx Series would also be supported. Basically, look at what older Macs from 10/12yr ago used and choose accordingly. Lookup Everymac.com...



Edited by Hervé

ok, I just put a bit older card GeForce 8600 GT and it's work great, thanks! It's look like I don't really need DSDT file ....maybe, or? What is not working now it's audio:( Could you advice me what kext should I install to get audio work?

audio is Azalia CODEC: ADI1986A 6



GeForce 8600 GT:

Chipset Model: GeForce 8600 GT

Display Connector:

  Status: No Display Connected

  Resolution: 1280 x 1024 @ 60 Hz

  Pixel Depth: 32-Bit Color (ARGB8888)

  Main Display: Yes

  Mirror: Off

  Online: Yes

  Rotation: Supported

Edited by MAC_SO

Try VoodooHDA (with AppleHDADisabler).



NB: Depending on your CPU model, that mobo should support OS X up to El Capitan 10.11.6.



Edited by Hervé
×
×
