nijhawank

AR5BHB112 with chipset AR9380

15 posts in this topic

Recommended Posts

Please don't ignore the topic saying use a supported broadcom wifi card. I would have but I want a half-mini pcie card that works in both windows and macos and with most of my search on internet I couldn't find one. Please let me know if I'm wrong.



So I mistakenly ordered AR5BHB112 per https://osxlatitude.com/forums/topic/11138-inventory-of-supportedunsupported-wireless-cards-2-sierra-mojave/ that said AR5BHB112 is natively supported (of course Mojave needed kexts from High Sierra).

Later I found that only the full size pcie version which is AR5BXB112 works and AR5BHB112 though detected fails to find any networks even though it has the same chipset as AR5BXB112.



The problem is that the wifi card is never powered-up. How I know this is that my laptop has an inbuilt led indicator to indicate wifi status. With windows or linux, I see it turned on. But with macos, even if macos says the wifi is turned on, the led indicator is off. Therefore it fails to find any wifi networks because the wifi card is not powered up.

Could there be a hack to turn it on? May be then, it will find the networks.



@toleda @RehabMan

Share this post


Link to post
Share on other sites
Advertisement

What do you mean by "the card is never powered-up" ? Doesn't it register in IOReg at all? If it does -as I expect- please post the cards PCI ids.



Edited by Hervé

Share this post


Link to post
Share on other sites
29 minutes ago, Hervé said:

What do you mean by "the card is never powered-up" ? Doesn't it register in IOReg at all? If it does -as I expect- please post the cards PCI ids.



1

My laptop has led indicators for harddisk activity, bluetooth and wifi radios. When I'm using windows or Linux, these leds correctly show if bluetooth or wifi radios are turned on or off.



With macOS, I saw that wifi led indicator never turns on even if macOS reports that wifi is turned on. That's what I said that card is probably never powered or radios were never turned on by macOS even though it says so. Power status indicators




4 Bluetooth status
  • Green: The feature is on, and the radio link is ready for use, or the data is being transmitted.
  • Off: The Bluetooth feature is disabled.
5 Wireless LAN/WAN/WiMAX status
  • Green: The wireless LAN feature (the 802.11b/g Standard, 802.11a/b/g or 802.11n draft 2.0), wireless WAN feature or WiMAX feature is on, and the radio link is ready for use, or the data is being transmitted.
  • Off: Wireless network devices are disabled or the radio is turned off.

Share this post


Link to post
Share on other sites

You're totally mistaken: the wifi LED never lits up under OS X/macOS. Never did. That's a general pattern across the board.



Now, can you please answer the questions re: IOReg and PCI ids? Thank you.

Edited by Hervé

Share this post


Link to post
Share on other sites
17 minutes ago, Hervé said:

You're totally mistaken: the wifi LED never lits up under OS X/macOS. Never did. That's a general pattern across the board.



Now, can you please answer the questions re: IOReg and PCI ids? Thank you.



Ok, I'll be able to confirm the LED behavior as I've ordered another card AR5B97 that work in macOS.



Regarding IOReg and PCI ids, I'll be able to provide them by tomorrow as I'm not in front of that laptop.

Share this post


Link to post
Share on other sites

Rest assured the LED behaviour will be the same with AR5B97, as with any other card. It's essential you verify the card's ids to ensure the card you have really is the stated model...



NB: no need to quote every message you directly reply too. In fact, it's most annoying.

Edited by Hervé

Share this post


Link to post
Share on other sites

Here are some screenshots from ioregistryexplorer and system information app

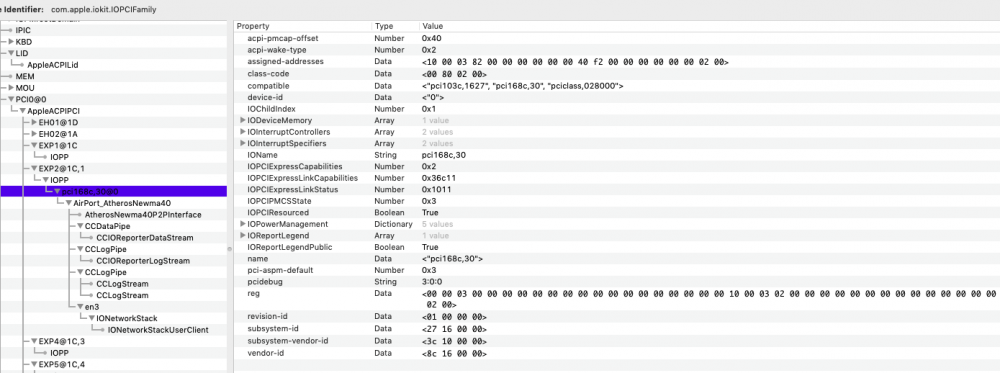

Screen Shot 2019-01-30 at 2.44.14 PM.png

Screen Shot 2019-01-30 at 2.45.00 PM.png

Screen Shot 2019-01-30 at 2.45.30 PM.png

Screen Shot 2019-01-30 at 2.46.02 PM.png

Edited by nijhawank

Share this post


Link to post
Share on other sites

Well, the card clearly appears up and running as en3...



If you do not see any wireless networks, check:

  1. your antenna connections
  2. the channels operated by your wireless AP/routers vs. those supported by the card
  3. that the surrounding networks are supported by the card. AR5BHB112 is 802.11a/b/g/n, i.e. it supports 2.4GHz and 5GHz networks but only up to 'n', not 'ac'.



I also see that your card is set to RoW Locale and carries no country code; that may be an issue. Check that out too as I believe this probably needs to be changed, i.e. card would need reflashing (you'll find tools online to to this).

https://wireless.wiki.kernel.org/en/users/Drivers/ath



Where are you located, in which country?



For instance, I'm in France and my cards are set to Locale=ETSI or Unknown + Country=FR. Cards set to Locale=FCC + Country=US usually work here too.



AR5BXB92, Atheros AR9280:




Dell DW1510, Broadcom BCM4322:




Apple BCM94360CD, Broadcom BCM4360:Apple_BCM94360CD.jpg.f9b99208c8f2e0bf4519a28f9cdbd080.jpg



Edited by Hervé

Share this post


Link to post
Share on other sites

You may use the RCU utility to update the RegDomain (in eeprom) of your AR5BHB112 and set Locale + Country Code to fit your own specific geographical location.




I think you'll find your card becomes 100% usable thereafter. Why? Because the card's supported channels depend directly from the RegDomain assigned to the card. That's a very important aspect that must not be neglected. And it's quite often why cards purchased on-line, on the cheap, generate problems because details and origin are unknown to the buyers.



To illustrate this, here's what my AR5BXB92 shows in SysProfiler after being updated through RCU to France settings (i.e. from Unknown/FR to ETSI/FR):




You will find the tools and guidance through a Google search (for instance on a specific forum we don't want to mention here). Basically, you need CommView for Wifi app's Atheros driver to run RCU, knowing that CommView can be installed under temp/evaluation license to that effect.

Edited by Hervé

Share this post


Link to post
Share on other sites

Perfecto. I will try your suggestions over the weekend. Very much appreciate your prompt responses and help in this regard.



Otherwise, the card works fine on Windows 10 with the default drivers automatically discovered by Windows. It's a dual boot (Windows 10 + Mojave) machine (T410). I'm able to connect to both of my home 2.4 and 5ghz networks.



I live in USA.

Share this post


Link to post
Share on other sites

While researching on the topic, I found that the window tool may not work on AR9380 (the chipset inside AR5BHB112) and I may have to use the Linux version but the source code to iwleeprom might need to be adjusted for AR9380.



I couldn't find much on what to adjust in iwleeprom for AR9380, I found this https://github.com/andyvand/AtherosROMKit

I don't want to rebrand the card (because my T410 Bios is already modded for allowing all wifi cards) but just set the correct regdomain / countrycode as you suggested.

Can you point me what should be the next steps.

Share this post


Link to post
Share on other sites

Hi Herve,



I installed the driver from commview and then ran the RCU that you provided but it said "Not an Atheros based card". I did run it in Adminstrator mode.



Then I downloaded another RCU utility directly from tamos and it said "no need to use this utility as all channels are enabled", see the last screenshot.






Share this post


Link to post
Share on other sites

'beats me, can't explain what you apparently experience, sorry!



I've had no issue with 2 x AR5BXB112 (AR9280) + 1 x AR5B93 (AR9283). I was able to set RegDomain on all those cards. I've no other Atheros cards to play with.



Edited by Hervé

Share this post


Link to post
Share on other sites

Thanks Herve for bearing me over all of this.



I'll start another thread with my adventure on bringing AR5B97 to life.

Share this post


Link to post
