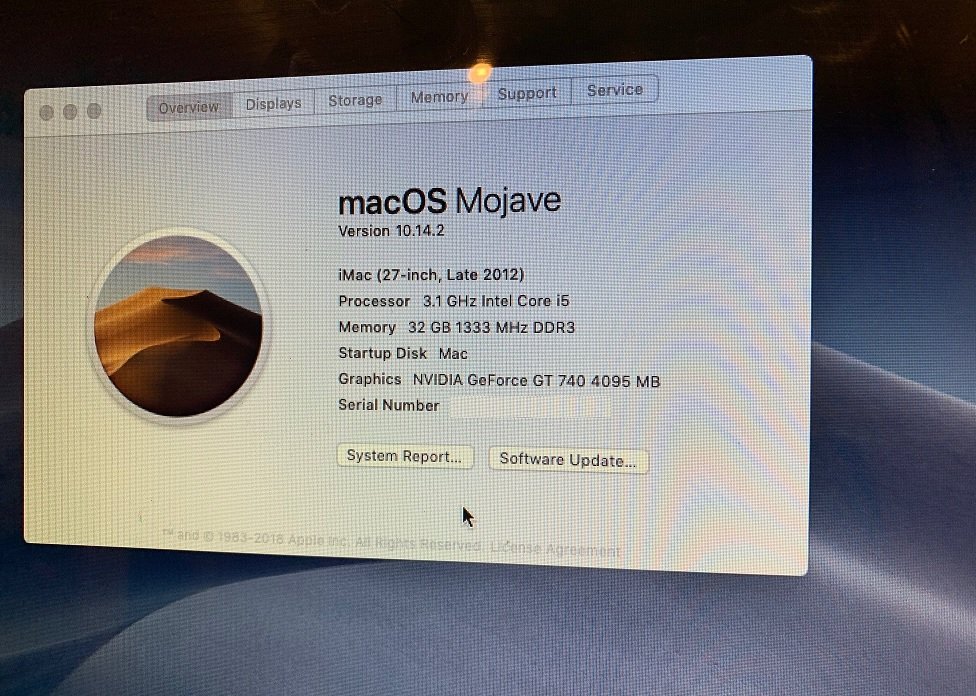

[Guide] Asus P8B75M-CSM Mojave 10.14.2 (Success)

[loganMac]

ASUS P8B75-M/CSM
Corsair 32Gb DDR3-1333
EVGA GeForce GT 740 SC 4GB (Kepler GK107 chip) - OOB Mojave 10.14.2
Samsung SSD 500Gb



First of all thanks to Clover teams, theme teams, and InsanelyMac peepz.



Format USB:
Disk Utility-->Under View, select All Devices
Select USB drive-->Partition-->Partition-->MacOS Extended (Journaled)
Then Select USB drive-->Earse-->MacOS Extended (Journaled)-->GUID Partition Map



Bootable USB:

Terminal:
sudo /Applications/Install\ macOS\ Mojave.app/Contents/Resources/createinstallmedia --volume /Volumes/USB  --nointeraction &&say Done

Install Clover Bootloader to USB
Select Clover for UEFI booting only and Install Clover in the ESP
UEFI Drivers-->ApfsDriverLoader-64, AptioMemoryFix-64, and PartitionDxe-64
FileValve 2 UEFI Drivers-->AppleImageCodec-64 and FirmwareVolume-64
Copy FakeSMC, Lilu, WhateverGreen, RealtekRTL8111, USBInjectAll, and VoodooHDA to EFI\CLOVER\Kext\Other



Use Clover Config to edit confit.plist:
Boot--> -v and nv_disable=1
KernelAndKextPatches-->Apple RTC, AppleIntelCPUPM, and KernelPM
SMBIOS--> iMac 13,2



Install Driver from Clover Config:
Driver UEFI 64 Bit-->NTFS-64 and HFSPlus-64

Post Installation:
Install Clover Bootloader to HD
Select Clover for UEFI booting only and Install Clover in the ESP
UEFI Drivers-->ApfsDriverLoader-64, AptioMemoryFix-64, and PartitionDxe-64
FileValve 2 UEFI Drivers-->AppleImageCodec-64 and FirmwareVolume-64
Copy FakeSMC, Lilu, WhateverGreen, RealtekRTL8111, USBInjectAll, and VoodooHDA to EFI\CLOVER\Kext\Other



Use Clover Config to edit confit.plist:
Boot--> delete TimeOut and put check mark on -1
GUI--> Hide Volume--> Recovery, VM, and Preboot
KernelAndKextPatches-->Apple RTC, AppleIntelCPUPM, and KernelPM
SMBIOS--> iMac 13,2



Using Clover Config to install blower drivers:
Driver UEFI 64 Bit-->NTFS-64 and HFSPlus-64



Reboot



For dual boot:

Correcting Time in Windows:

1. regedit

2. Navigate to HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\TimeZoneInformation

3. Right click anywhere in the right pane and hit New > DWORD (32-bit) Value.

4. Name it RealTimeIsUniversal, then double click on it and give it a value of 1.

5. reboot
6. login to macOS
7. Reboot
8. login to Windows
9. Your time your be right





Edited January 10, 2019 by loganMac
change iMac18,2 to iMac13,2. 13,2 sound more right on my system

[loganMac]

Updated to 10.14.3 at no problem using Software Update

Edited January 23, 2019 by loganMac

[cyborgjox]

HI I have this same setup running with a RX580 but even though its shows intel and AMD on XRG Monitor It doesnt seem to be using GPU to Render like it was before with my old mobo.

Been working on this for weeks.



Could you send me the config you are using? and Kexts?



Thanks!
