forum Posted December 15, 2018 Share Posted December 15, 2018 (edited) Hi guys, after using yosemite for a long time with a complete working system, i decided to jump into a fresh install on my old system. Most things work flawless, except USB3 and sleep which is the more important thing. Every time i set it to sleep, it shuts down for a moment and then the system starts again with black screen and low power consumption +- 100w (normal idle is around 120-140). I can only hard reset the system to get it working again. I used the DSDT Patch from my old system, but i think it may have some errors. I hape you do have an Idea what to do. Here are my specs: Gigabyte X79-up4 i7-3930k 32gb Ram NVIDIA GeForce GTX 660 Ti 3071 MB 512 Samsung SSD Mojave 14.2 newest bios I attached the RunMe files. Best forum Send me mojaves-iMac.fritz.box 2.zip Edited December 15, 2018 by forum Link to comment Share on other sites More sharing options...
onemanOSX Posted December 15, 2018 Share Posted December 15, 2018 (edited) for USB 3.0 quick fix here https://olarila.com/forum/viewtopic.php?p=65287#p65287 or here https://www.insanelymac.com/forum/topic/335018-intel-fb-patcher-v166/ Edited December 15, 2018 by onemanOSX Link to comment Share on other sites More sharing options...
forum Posted December 15, 2018 Author Share Posted December 15, 2018 Quote for USB 3.0 quick fix here https://olarila.com/forum/viewtopic.php?p=65287#p65287 or here https://www.insanelymac.com/forum/topic/335018-intel-fb-patcher-v166/ Thank you onemanOSX! I will check that now. Unfortunately the sleep problem gives me still headages Link to comment Share on other sites More sharing options...
onemanOSX Posted December 15, 2018 Share Posted December 15, 2018 (edited) Try this and appreciate your feedback. Thanks. CLOVER.zip Edited December 15, 2018 by onemanOSX Link to comment Share on other sites More sharing options...
forum Posted December 15, 2018 Author Share Posted December 15, 2018 I updated the clover folder with your files and the system rebooted instantly after around 10 seconds after login to post again. I could´nt even try to set the system to sleep.. I'm online again with my old efi. :/ ____ just for the record, that's the smaller Problem. USB-Stick @ Usb2 Port was working in osx USB-Stick @ USB3 Port was not working in osx ____ Link to comment Share on other sites More sharing options...

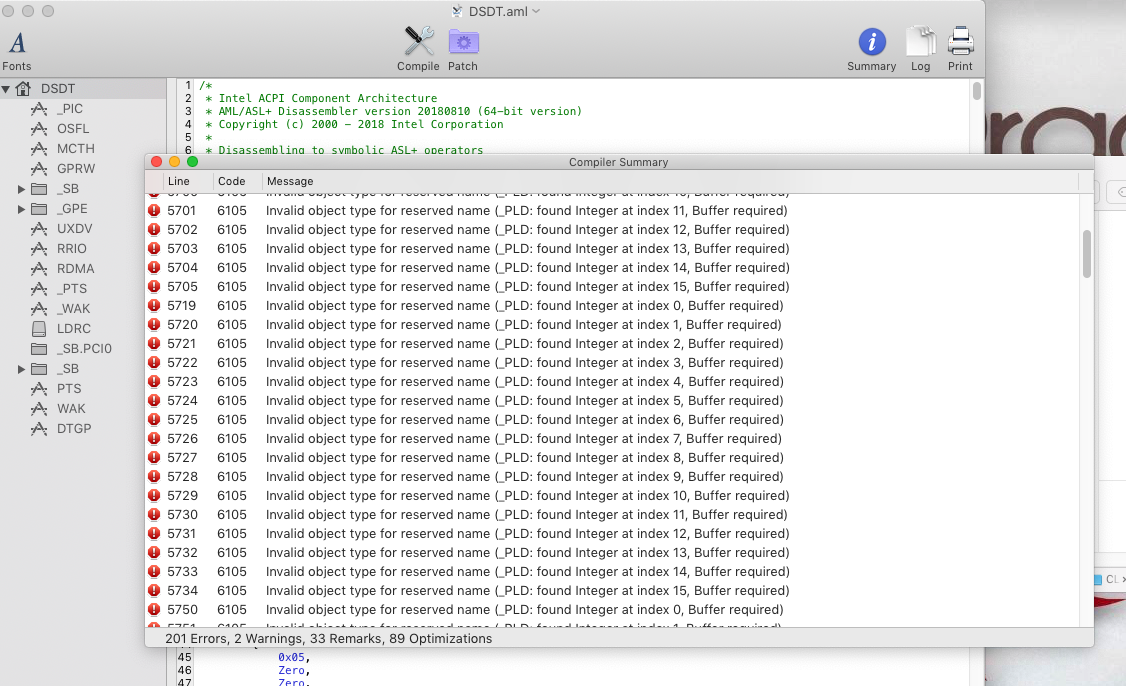

onemanOSX Posted December 15, 2018 Share Posted December 15, 2018 (edited) 24 minutes ago, forum said: USB-Stick @ USB3 Port was not working in osx Yes, I can see the USB 2.0 ports working in ioreg. However, I am not able to see any hint of USB 3.0 devices. You can try inject a XHC device in the dsdt. EDIT: I opened up your working DSDT and found hundreds of errors. Managed to eliminate the errors only. See if it boots now with the attached DSDT. DSDT.aml.zip Edited December 15, 2018 by onemanOSX Link to comment Share on other sites More sharing options...
forum Posted December 15, 2018 Author Share Posted December 15, 2018 (edited) Thanks, the system seems to run a bit smoother than before, but i still can't get the system to sleep. Every time i set it to sleep, the fans stop for a moment and the screen goes black. After 2-3 seconds the fans start to spin again but the screen stays black und the system does not respond. Rest button is not working so i have to manualy shut it down. Any idea? I attached the new runme files.. Best forum Send me mojaves-iMac.fritz.box.zip Edited December 15, 2018 by forum Link to comment Share on other sites More sharing options...
onemanOSX Posted December 16, 2018 Share Posted December 16, 2018 cleaned up a little bit more. If problem still persists, this is the man we should be looking for @MaLd0n CLOVER.zip Link to comment Share on other sites More sharing options...
forum Posted December 16, 2018 Author Share Posted December 16, 2018 Thanks a lot for your help, but sleep is still not working. Same Problem as before.. It drives me crazy, trying to fix it now for days. 9 hours ago, forum said: Every time i set it to sleep, the fans stop for a moment and the screen goes black. After 2-3 seconds the fans start to spin again but the screen stays black und the system does not respond. Rest button is not working so i have to manualy shut it down. Thats my new summary: I Added the line from your config.plist <key>NoDynamicExtract</key> <true/> Not sure what the dynamic DSDT extraction should do.. DSDT relpaced USBInjectAll.kext was addedNullCPUPowerManagement.kext is needed for a working speedstep, testet with Intel Power Gadget and a power measure adapter. Sleep is not working with or without it. NoVPAJpeg.kext was not added, because preview is working without problems. I do not think it will help with my sleep problem. Link to comment Share on other sites More sharing options...
MaLd0n Posted December 16, 2018 Share Posted December 16, 2018 Sleep workin' in x79 is rare Link to comment Share on other sites More sharing options...
forum Posted December 16, 2018 Author Share Posted December 16, 2018 It worked in Yosemite Link to comment Share on other sites More sharing options...
abds69 Posted December 16, 2018 Share Posted December 16, 2018 (edited) hi, all X79 can't wake from sleep since 10,12,6 or high Sierra. My asrock X79 does the same, even if for myself it didn't wake up spontaneously as you, which is another problem that can be solved. For all of us, out of sleep it seems that the GPU can't initialized. DSDT has done nothing to it, or finding a specific patch. It seems related to the cpu not having IGPU. keep the faith or stay in Yosemite. For using high Sierra for half a year , I didn't find any enormous improvements, more over, FCPX is {censored} not usable anymore, too slow !!! A+ Edited December 16, 2018 by abds69 correction 1 Link to comment Share on other sites More sharing options...
onemanOSX Posted December 17, 2018 Share Posted December 17, 2018 10 hours ago, abds69 said: all X79 can't wake from sleep since 10,12,6 or high Sierra. 15 hours ago, MaLd0n said: Sleep workin' in x79 is rare Thank you all for the clarification. Link to comment Share on other sites More sharing options...
forum Posted December 17, 2018 Author Share Posted December 17, 2018 Ok thank you all! Link to comment Share on other sites More sharing options...
pingyes Posted December 22, 2018 Share Posted December 22, 2018 c602 and X79 will not sleep at 10.14.2, and will not wake up Link to comment Share on other sites More sharing options...
triplekill111 Posted January 9, 2019 Share Posted January 9, 2019 (edited) Hi, Mine sleep and wake works without problem in Sierra and HS. Got the same board with you as well X79-UP4, Xeon E5 2650v2, Quadro M4000. Edited January 9, 2019 by triplekill111 Link to comment Share on other sites More sharing options...
simras Posted January 21, 2019 Share Posted January 21, 2019 On 12/16/2018 at 4:22 AM, forum said: Thanks a lot for your help, but sleep is still not working. Same Problem as before.. It drives me crazy, trying to fix it now for days. Thats my new summary: I Added the line from your config.plist <key>NoDynamicExtract</key> <true/> Not sure what the dynamic DSDT extraction should do.. DSDT relpaced USBInjectAll.kext was addedNullCPUPowerManagement.kext is needed for a working speedstep, testet with Intel Power Gadget and a power measure adapter. Sleep is not working with or without it. NoVPAJpeg.kext was not added, because preview is working without problems. I do not think it will help with my sleep problem. Hello dude, i am trying to make an hackintosh with the X79 UP4 3930k and 1080ti but i get some problem to get the port 3.0 working : they are simply not detected in 2.0 or 3.0. Is there a way that you share me your final EFI ? I am under 10.13.6. Thank you. Link to comment Share on other sites More sharing options...
KonstantinosNks Posted June 2, 2020 Share Posted June 2, 2020 On 1/9/2019 at 12:07 PM, triplekill111 said: Hi, Mine sleep and wake works without problem in Sierra and HS. Got the same board with you as well X79-UP4, Xeon E5 2650v2, Quadro M4000. Can you please post your EFI folder? I tried many x79 motherboards and wake from s3 always fails. Link to comment Share on other sites More sharing options...
