RobertX

AICPMvers missing (but now found)

3 posts in this topic

Recommended Posts

Posted (edited)

...well, I've been dsdt diving...lol, and have a semi-working dsdt22.aml....the result however leaves me with higher than normal temps for cpu cores and heatsink and no AICPMvers in ioreg....I'm including one: dsdt.aml that does give me AICPM...and two: the dsdt22.aml that I want to use...but does not activate AICPM...dsdt22 needs the fix....

...a little guidance please...

DSDT.aml.zip



DSDT22.aml.zip



edit: found my solution....moved scope, P001,P002,P003,P004 from dsdt to dsdt22, replacing existing... compiled and loaded up  :trumpet: ... now for onboard sound, as hdmi audio already works thru gfx card... :smoke:

...all this on Box 2 (P5N7A-VM)

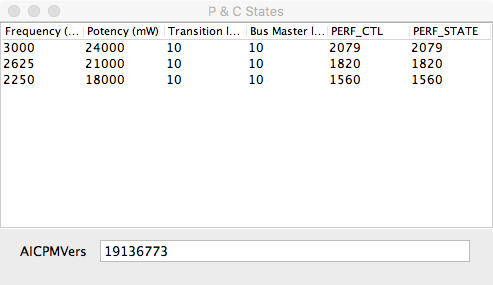

AICPMVers 19136773.png

Edited by RobertX
just because

Share this post


Link to post
Share on other sites
Advertisement
Posted (edited)

If you think you have no proper or native SpeedStep with your Core2Quad CPU, you should not need any DSDT tuning. C2D/C2Q SpeedStep normally natively works with:

  1. activation of P-States + C-States generation in your Clover or Chameleon/Enoch settings
  2. FakeSMC keys (smc-compatible + REV/RVBF/RVUF) tuned to the values for the selected SMBIOS Mac model (for iMac10,1 profile: smc-mcp + 1.53f13)
  3. SMBIOS of Mac model with similar specs (in your case, iMac10,1 is the correct target imo)



Full details available through this post: https://osxlatitude.com/forums/topic/2673-performance-tuning-with-fakesmc/

Edited by Hervé

Share this post


Link to post
Share on other sites
Posted (edited)

hey Herve' ...my initial reason for the dsdt mucking was to get my chipset identified as MCP79(Nvidia) and not generic...in doing so, I lost AICPM support and temps increased on average 15 degrees C....around 51 -57 degrees C at idle....after this fix, temps are high 20s at idle and mid 50s under full load...and chipset is recognized.....so yes, I can run Box2 without dsdt edit...still, ...this board was a royal pain...mostly from outdated info circa 2009...but it just works!!

...thanks for the reply





edit: removed this bold  text reference too from clover..just p and c state generation now





.clover does a drop cpupm table in ssdt  to avoid a kp at boot...and generates p and c states and enables c6



Edited by RobertX
