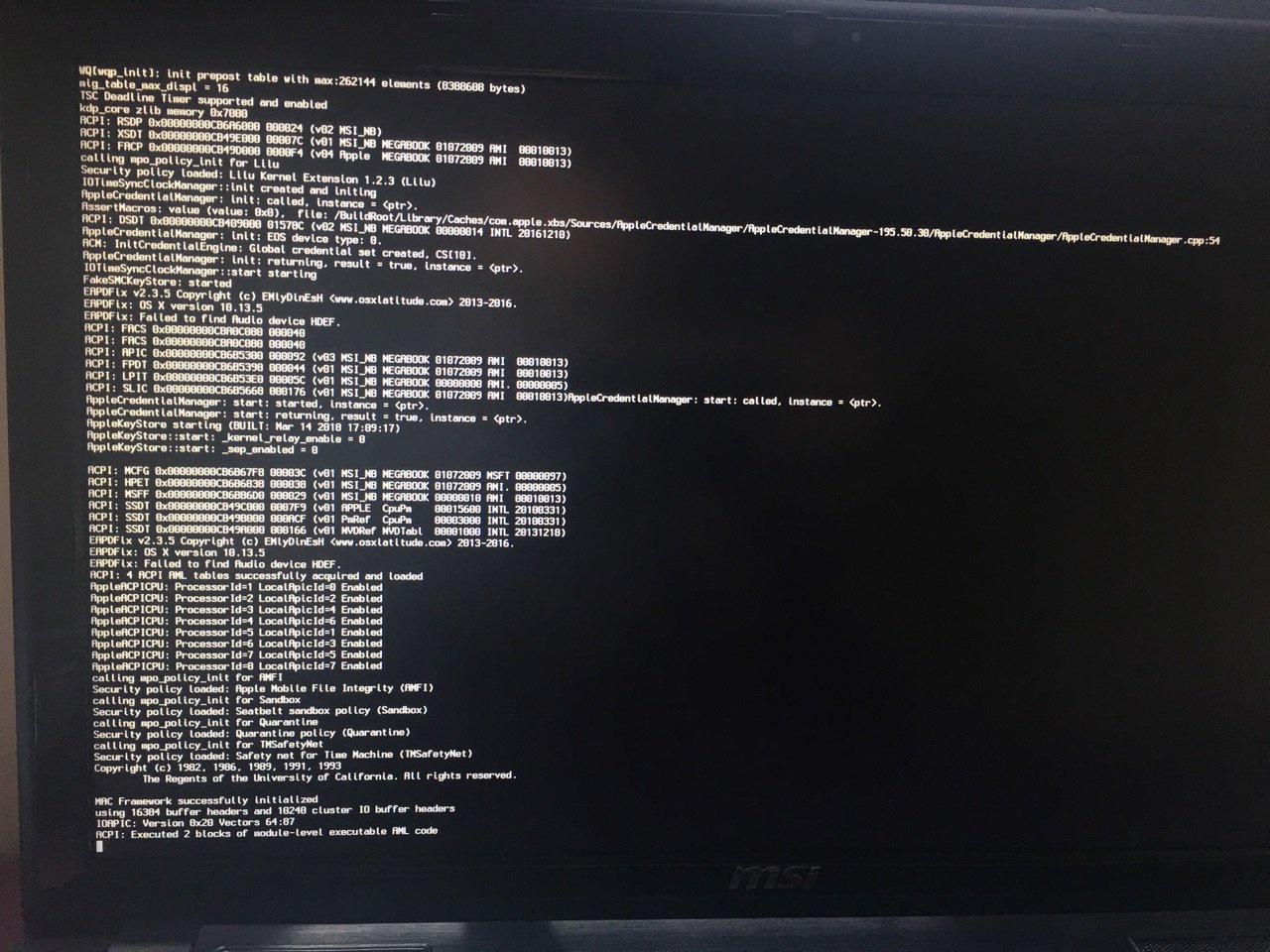

Komar aka Kali Posted May 13, 2018 Share Posted May 13, 2018 (edited) Hi my friends... I have a problem to patch my DSDT&SSDT in High Sierra. I have compiled my DSDT&SSDT to patch nVidia off by two methods... Only by DSDT and an other by DSDT&SSDT. In Yosemite two methods work fine, but in High Sierra, two methods stop my boot in like point. Can any one help me with this issue...? Thanks in advanced... PD. I add my files DSDT&SSDT nVidia patch by DSDT, DSDT&SSDT nVidia patch by SSDT and config plist file from Clover EFI. Add a picture from stop point in High Sierra boot too. Files.zip Edited May 13, 2018 by kali2000 Orthography Link to comment https://www.insanelymac.com/forum/topic/334078-dsdtssdt-high-sierra/ Share on other sites More sharing options...
MaLd0n Posted May 13, 2018 Share Posted May 13, 2018 57 minutes ago, kali2000 said: Hi my friends... I have a problem to patch my DSDT&SSDT in High Sierra. I have compiled my DSDT&SSDT to patch nVidia off by two methods... Only by DSDT and an other by DSDT&SSDT. In Yosemite two methods work fine, but in High Sierra, two methods stop my boot in like point. Can any one help me with this issue...? Thanks in advanced... PD. I add my files DSDT&SSDT nVidia patch by DSDT, DSDT&SSDT nVidia patch by SSDT and config plist file from Clover EFI. Add a picture from stop point in High Sierra boot too. Files.zip Post a original tables and full dump RunMe.app.zip Link to comment https://www.insanelymac.com/forum/topic/334078-dsdtssdt-high-sierra/#findComment-2613446 Share on other sites More sharing options...
Komar aka Kali Posted May 13, 2018 Author Share Posted May 13, 2018 (edited) Hi my friend... thanks for reply... Send you various files... from Yosemite and High Sierra boot... I send you my Intel HD 4600 connection dump from Linux, because I can't get work my HDMI connection in any system... Thanks you very much for your help... I upload all files to mega. https://mega.nz/#!HVUihDaa!pcqbfI-dUWw_DaqAuem1vQXdP6YM4D0wygC1EKjaZHU Edited May 13, 2018 by kali2000 Link to comment https://www.insanelymac.com/forum/topic/334078-dsdtssdt-high-sierra/#findComment-2613451 Share on other sites More sharing options...
Komar aka Kali Posted May 13, 2018 Author Share Posted May 13, 2018 1 hour ago, MaLd0n said: Post a original tables and full dump RunMe.app.zip I upload files... Thanks... Link to comment https://www.insanelymac.com/forum/topic/334078-dsdtssdt-high-sierra/#findComment-2613456 Share on other sites More sharing options...
MaLd0n Posted May 13, 2018 Share Posted May 13, 2018 DSDT.aml.zip use change EHC1 to EH01 45484331 45483031 change EHC2 to EH02 45484332 45483032 change GFX0 to IGPU 47465830 49475055 change HECI to IMEI 48454349 494d4549 Link to comment https://www.insanelymac.com/forum/topic/334078-dsdtssdt-high-sierra/#findComment-2613457 Share on other sites More sharing options...
Komar aka Kali Posted May 13, 2018 Author Share Posted May 13, 2018 Thanks... test it and tell you... 7 minutes ago, MaLd0n said: DSDT.aml.zip use change EHC1 to EH01 45484331 45483031 change EHC2 to EH02 45484332 45483032 change GFX0 to IGPU 47465830 49475055 change HECI to IMEI 48454349 494d4549 Ok... Reboot and tell you... Link to comment https://www.insanelymac.com/forum/topic/334078-dsdtssdt-high-sierra/#findComment-2613458 Share on other sites More sharing options...
Komar aka Kali Posted May 13, 2018 Author Share Posted May 13, 2018 (edited) 41 minutes ago, MaLd0n said: DSDT.aml.zip use change EHC1 to EH01 45484331 45483031 change EHC2 to EH02 45484332 45483032 change GFX0 to IGPU 47465830 49475055 change HECI to IMEI 48454349 494d4549 Ok... now can boot High Sierra and nVidia off patch work, but I haven't audio and my USB tree is not right. https://mega.nz/#!HBMRHTRB!OAkOPAA9tXtuXUwC0JAYDaNVj3UXzSlZst-un0a8fFw When I connect any pen drive to any USB port I have this message... see picture... Edited May 13, 2018 by kali2000 Link to comment https://www.insanelymac.com/forum/topic/334078-dsdtssdt-high-sierra/#findComment-2613462 Share on other sites More sharing options...
Komar aka Kali Posted May 13, 2018 Author Share Posted May 13, 2018 39 minutes ago, kali2000 said: Ok... now can boot High Sierra and nVidia off patch work, but I haven't audio and my USB tree is not right. https://mega.nz/#!HBMRHTRB!OAkOPAA9tXtuXUwC0JAYDaNVj3UXzSlZst-un0a8fFw When I connect any pen drive to any USB port I have this message... see picture... I solved Audio issue adding layout-ID in config.plist... But don't have HDMI and my USB ports not work... Link to comment https://www.insanelymac.com/forum/topic/334078-dsdtssdt-high-sierra/#findComment-2613467 Share on other sites More sharing options...
Komar aka Kali Posted May 13, 2018 Author Share Posted May 13, 2018 40 minutes ago, kali2000 said: I solved Audio issue adding layout-ID in config.plist... But don't have HDMI and my USB ports not work... I solved USB ports issue... now work, but USB tree is not right... Only change EH01&EH02 to EHC1&EHC2 in DSDT... I don't have like lucky with HDMI... I don't can get work... Link to comment https://www.insanelymac.com/forum/topic/334078-dsdtssdt-high-sierra/#findComment-2613470 Share on other sites More sharing options...
MaLd0n Posted May 14, 2018 Share Posted May 14, 2018 3 hours ago, kali2000 said: I solved USB ports issue... now work, but USB tree is not right... Only change EH01&EH02 to EHC1&EHC2 in DSDT... I don't have like lucky with HDMI... I don't can get work... test usb with this DSDT DSDT.aml.zip HDMI is just a config.plist config, need check Link to comment https://www.insanelymac.com/forum/topic/334078-dsdtssdt-high-sierra/#findComment-2613478 Share on other sites More sharing options...

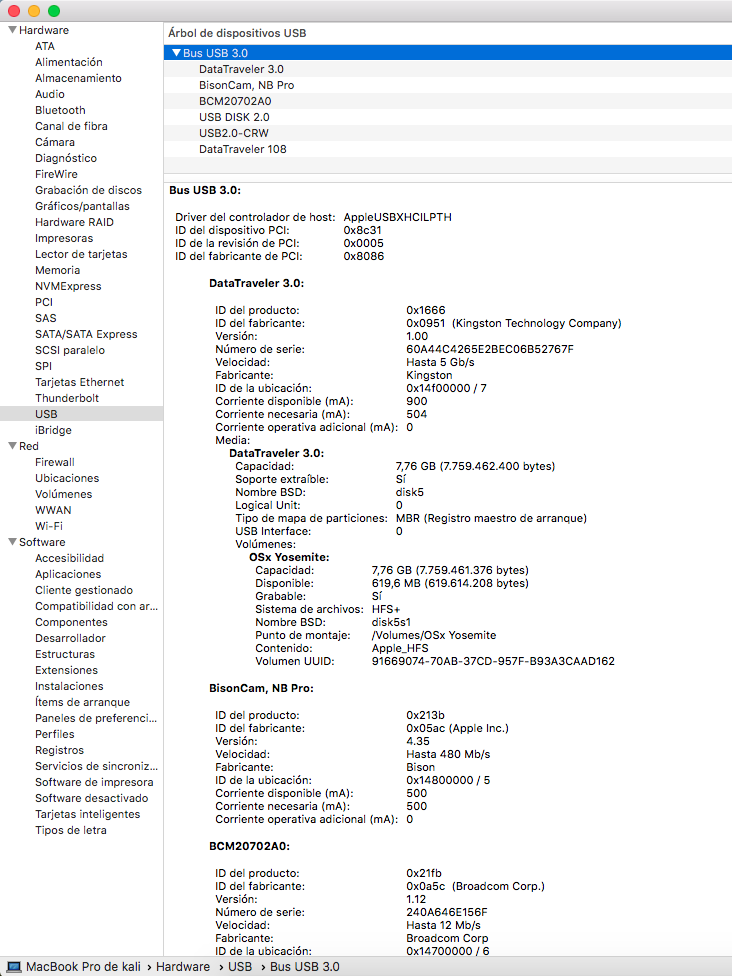

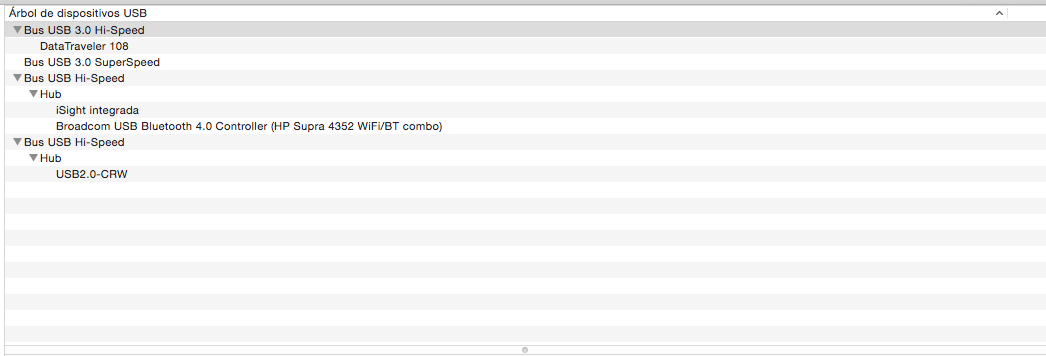

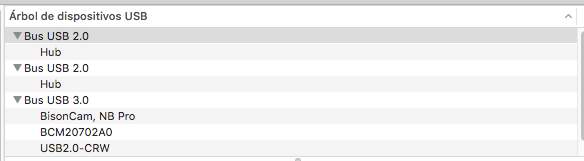

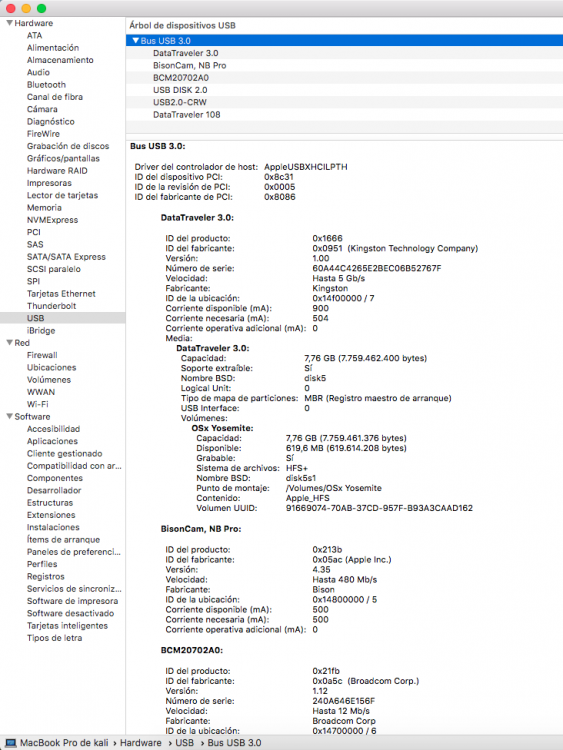

Komar aka Kali Posted May 14, 2018 Author Share Posted May 14, 2018 7 hours ago, MaLd0n said: test usb with this DSDT DSDT.aml.zip HDMI is just a config.plist config, need check USB port works, but the USB2 tree has disappeared. See pictures... First picture is with old DSDT from Yosemite. Second picture is with old DSDT from High Sierra. Third picture is with your last DSDT from High Sierra Link to comment https://www.insanelymac.com/forum/topic/334078-dsdtssdt-high-sierra/#findComment-2613511 Share on other sites More sharing options...
MaLd0n Posted May 14, 2018 Share Posted May 14, 2018 4 hours ago, kali2000 said: USB port works, but the USB2 tree has disappeared. See pictures... First picture is with old DSDT from Yosemite. Second picture is with old DSDT from High Sierra. Third picture is with your last DSDT from High Sierra the correct is all ports work inside USB3 BUS, test all ports with device USB 3 and let me know if work Link to comment https://www.insanelymac.com/forum/topic/334078-dsdtssdt-high-sierra/#findComment-2613531 Share on other sites More sharing options...
Komar aka Kali Posted May 14, 2018 Author Share Posted May 14, 2018 16 minutes ago, MaLd0n said: the correct is all ports work inside USB3 BUS, test all ports with device USB 3 and let me know if work Yes... All work fine... Link to comment https://www.insanelymac.com/forum/topic/334078-dsdtssdt-high-sierra/#findComment-2613541 Share on other sites More sharing options...
MaLd0n Posted May 14, 2018 Share Posted May 14, 2018 2 minutes ago, kali2000 said: Yes... All work fine... good Link to comment https://www.insanelymac.com/forum/topic/334078-dsdtssdt-high-sierra/#findComment-2613542 Share on other sites More sharing options...
Komar aka Kali Posted May 14, 2018 Author Share Posted May 14, 2018 2 minutes ago, MaLd0n said: good Thanks you very much for your help... Now only have a issue... I can't get HDMI work... Can you help me to fix it...? Only this fix to get a full hack... Link to comment https://www.insanelymac.com/forum/topic/334078-dsdtssdt-high-sierra/#findComment-2613544 Share on other sites More sharing options...
MaLd0n Posted May 14, 2018 Share Posted May 14, 2018 check here https://github.com/toleda Link to comment https://www.insanelymac.com/forum/topic/334078-dsdtssdt-high-sierra/#findComment-2613546 Share on other sites More sharing options...
Komar aka Kali Posted May 14, 2018 Author Share Posted May 14, 2018 1 hour ago, MaLd0n said: check here https://github.com/toleda But this is for desktop only... mine is laptop... Link to comment https://www.insanelymac.com/forum/topic/334078-dsdtssdt-high-sierra/#findComment-2613560 Share on other sites More sharing options...
MaLd0n Posted May 14, 2018 Share Posted May 14, 2018 i think is for laptop too, i never use it, need check Link to comment https://www.insanelymac.com/forum/topic/334078-dsdtssdt-high-sierra/#findComment-2613567 Share on other sites More sharing options...
Komar aka Kali Posted May 14, 2018 Author Share Posted May 14, 2018 14 minutes ago, MaLd0n said: i think is for laptop too, i never use it, need check I tested it on another moment... but with no luck... Link to comment https://www.insanelymac.com/forum/topic/334078-dsdtssdt-high-sierra/#findComment-2613574 Share on other sites More sharing options...
Komar aka Kali Posted May 16, 2018 Author Share Posted May 16, 2018 On 5/14/2018 at 5:59 PM, MaLd0n said: i think is for laptop too, i never use it, need check ? Link to comment https://www.insanelymac.com/forum/topic/334078-dsdtssdt-high-sierra/#findComment-2613786 Share on other sites More sharing options...
Komar aka Kali Posted June 13, 2018 Author Share Posted June 13, 2018 On 5/14/2018 at 3:11 AM, MaLd0n said: test usb with this DSDT DSDT.aml.zip HDMI is just a config.plist config, need check Hi again... after update to 10.13.5 I have issues in USB port related in this post... I solved my HDMI issue patching AIFAzul.kext. But I can't solve USB energy... Help me please... Link to comment https://www.insanelymac.com/forum/topic/334078-dsdtssdt-high-sierra/#findComment-2619279 Share on other sites More sharing options...

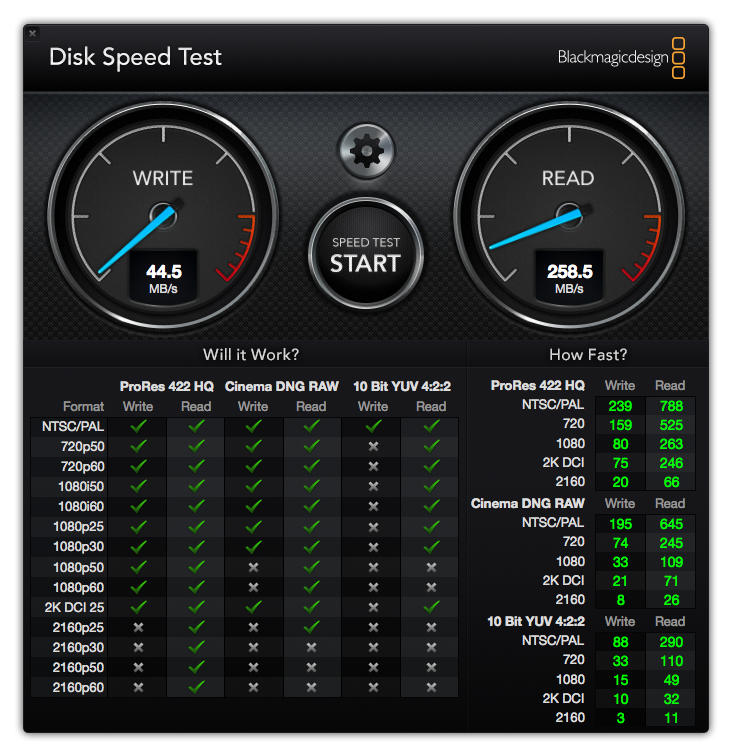

fuzzylogic Posted June 27, 2018 Share Posted June 27, 2018 (edited) Asus Z97A usb 3.1 Haswell 4790k Zotac 970 Extreme Trident X Memory 16gig 21 iMac18,3 Not really sure of where to post this since usb 3.1 Asmedia works but then I have to plug in and out on each boot to get flash drive to work. here is speed test on the port and here is a dsdt un patched USB 3.1 Bus: Host Controller Driver: AppleUSBXHCIPCI PCI Device ID: 0x1242 PCI Revision ID: 0x0000 PCI Vendor ID: 0x1b21 Vendor ID: 0x0781 (SanDisk Corporation) Version: 0.10 Serial Number: AA010722141006071807 Speed: Up to 5 Gb/sec Manufacturer: SanDisk Location ID: 0x00200000 / 2 Current Available (mA): 900 Current Required (mA): 400 DSDT.aml Edited June 27, 2018 by osxone Link to comment https://www.insanelymac.com/forum/topic/334078-dsdtssdt-high-sierra/#findComment-2622682 Share on other sites More sharing options...
