vrondena Posted March 25, 2018 Share Posted March 25, 2018 hello all, i have on my sony vaio vpcs13v9e to replace wifi Gobi 2000 but do not know what.my hack is very complete like original mac. Link to comment Share on other sites More sharing options...
vrondena Posted March 25, 2018 Author Share Posted March 25, 2018 Thanks for the reply I would like to know if possible to replace hardware WWAN Gobi 2000 with wifi/wlan AzureWave AW-NB048H Min PCIe or similar (Atheros AR5B195 ) because wwan module it's bigger as a card regards Link to comment Share on other sites More sharing options...
vrondena Posted March 29, 2018 Author Share Posted March 29, 2018 ok, i replace module with BCM94322HM8L but hardware don't enable and don't see module and dcpimanager and system info also with DW1500 module. any help Link to comment Share on other sites More sharing options...
vrondena Posted March 30, 2018 Author Share Posted March 30, 2018 hi,now on Azurewave AW-NB290H Bcm943225hmb have same missing hardware, i edit pci14e4;4357 on 4360kext- plugin.install all kext fake pic id ,fake wifi. same result with only toleda arptkext. bluetooth work always ,wifi never if necessary help me with dsdt, ssdt and config.plist to edit i can not or support me.regards Link to comment Share on other sites More sharing options...
vrondena Posted March 30, 2018 Author Share Posted March 30, 2018 thanks for the support Hervè,now I'm going to try isolating pin20.now I have put back BCM94322 DW1510 . I'm waiting for the support half size to full size. I have a little doubt about cable colors if properly positioned. but also inverted does not change. no hardware wifi only bluetooth. Link to comment Share on other sites More sharing options...
vrondena Posted March 30, 2018 Author Share Posted March 30, 2018 disable pin20, no hardware. Link to comment Share on other sites More sharing options...
vrondena Posted March 30, 2018 Author Share Posted March 30, 2018 I installed windows to check if brcm works. in the peripherals is intel centrino ??? maybe gobi2000 is not the card to be replaced. but I do not see any other network card. It can be Link to comment Share on other sites More sharing options...

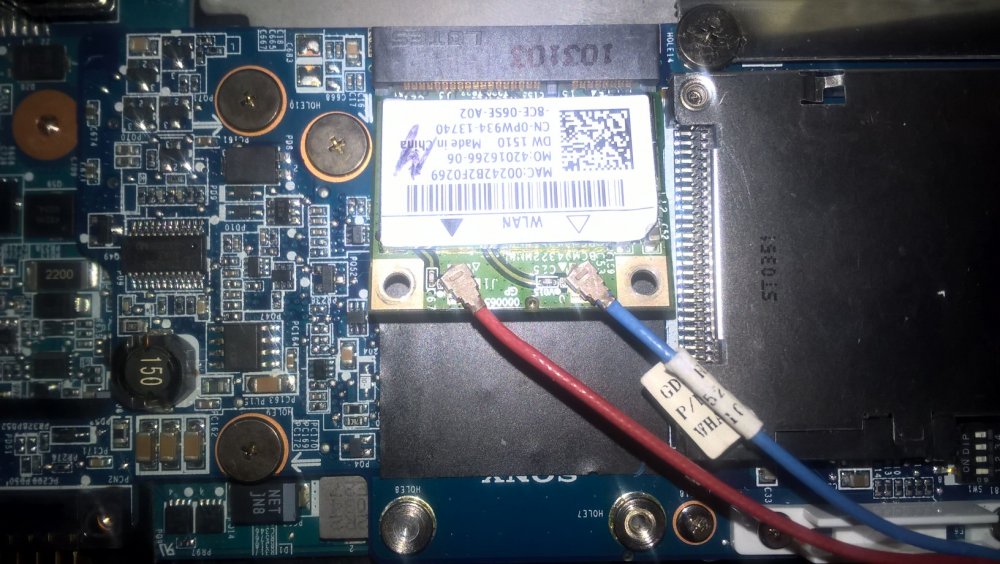

vrondena Posted March 31, 2018 Author Share Posted March 31, 2018 finally resolved, the wlan card is in another position (under the wwan, you have to remove the base), inserted the brcm is recognized natively. now everything really works, spectacular grazie mille Hervè ps: now what do I do with vpsc13 I'm finished I have to take another pc, suggestions Link to comment Share on other sites More sharing options...
