sidX86 Posted February 16, 2018 Share Posted February 16, 2018 Hello everyone, I managed to install HS 10.13.0 using some config.plist patches and via disabling the integrated MX150 using SSDT and DSDT patches but after install, the system refuses to boot. I get a kernel panic relating to cpu0 caller and a reboot. I'm emulating SkyLake HD520 using some patches too, can someone please check what's the fault? I've attached the whole Clover EFI folder. Using Clover r4391 UEFI. Specs: i5-8250U Intel UHD 620 Graphics Nvidia Geforce MX150 DGPU (Disabled) 8GB DDR4 RAM 1TB HDD Synaptics Touchpad Qualcomm Atheros QCA9377 Wi-Fi Chipset Realtek PCIe GBE Family Controller No idea about the Audio Codec lol but I'm using AppleHDA and Lilu, these should make it work. EFI.zip Link to comment https://www.insanelymac.com/forum/topic/332726-kernel-panic-coffee-lake/ Share on other sites More sharing options...
MaLd0n Posted February 17, 2018 Share Posted February 17, 2018 Create ur installer, dont use distros, check my tutorial and create a clean usb stick http://www.insanelymac.com/forum/topic/321872-guide-sierra-on-gigabyte-mobos-serie-200-kabylake-dsdt/ CLOVER.zip 1 Link to comment https://www.insanelymac.com/forum/topic/332726-kernel-panic-coffee-lake/#findComment-2593651 Share on other sites More sharing options...

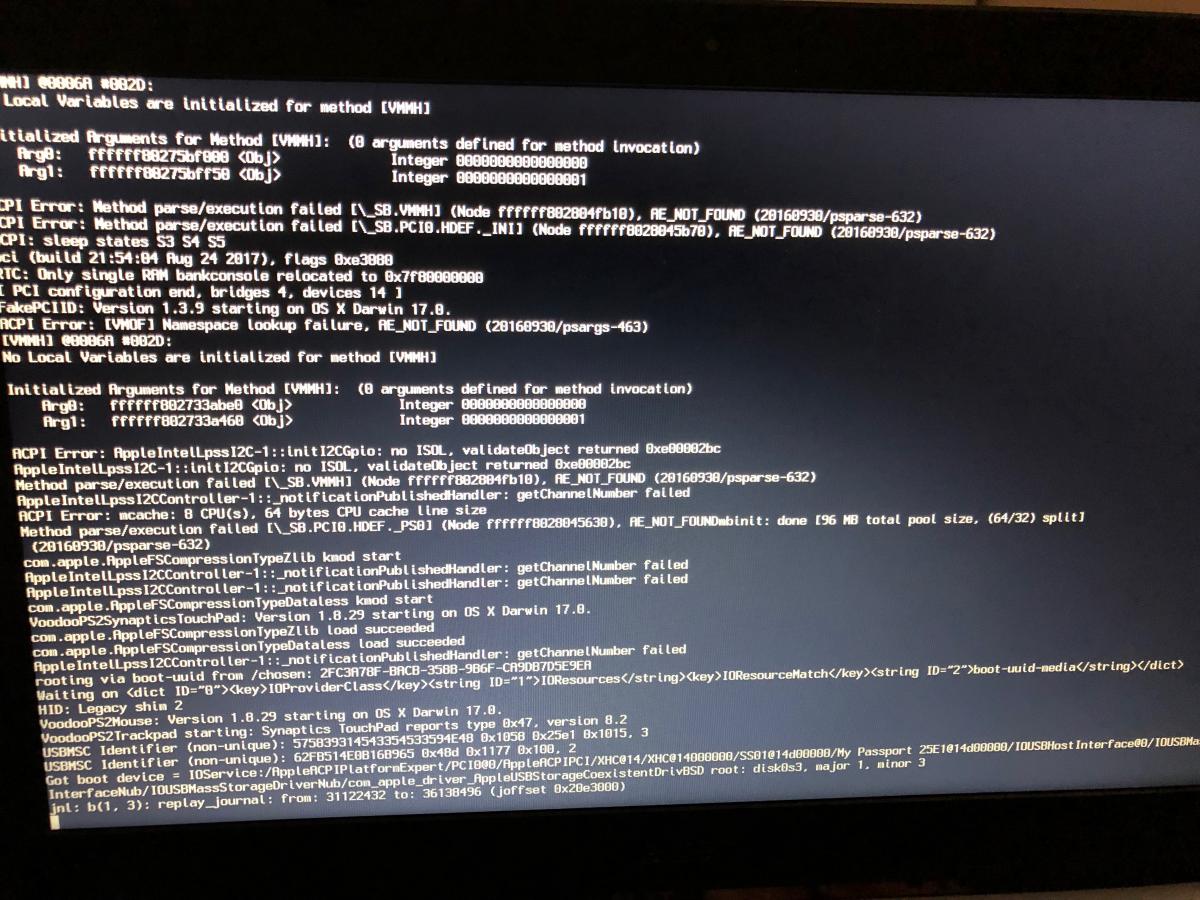

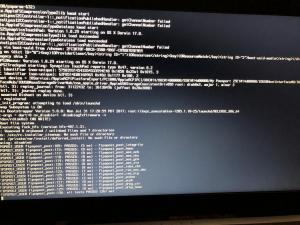

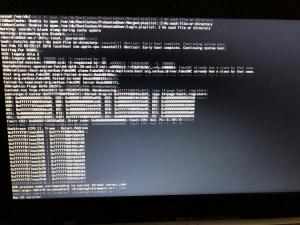

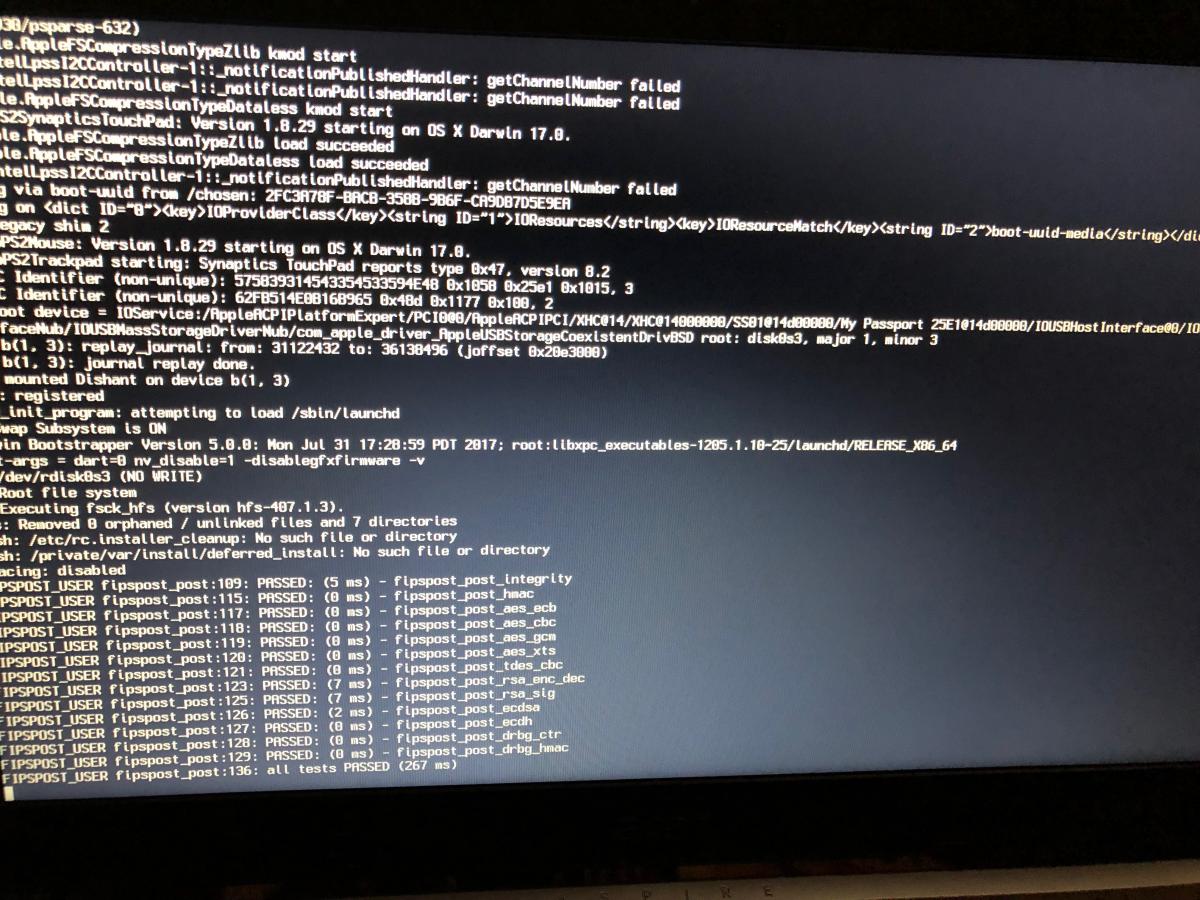

sidX86 Posted February 17, 2018 Author Share Posted February 17, 2018 Create ur installer, dont use distros, check my tutorial and create a clean usb stick http://www.insanelymac.com/forum/topic/321872-guide-sierra-on-gigabyte-mobos-serie-200-kabylake-dsdt/ CLOVER.zip Thanks for this but it didn't work.. I've attached some log pics, see into the issue.. And yea, I'll be creating my own installer after I manage to get this distro working. Link to comment https://www.insanelymac.com/forum/topic/332726-kernel-panic-coffee-lake/#findComment-2593930 Share on other sites More sharing options...

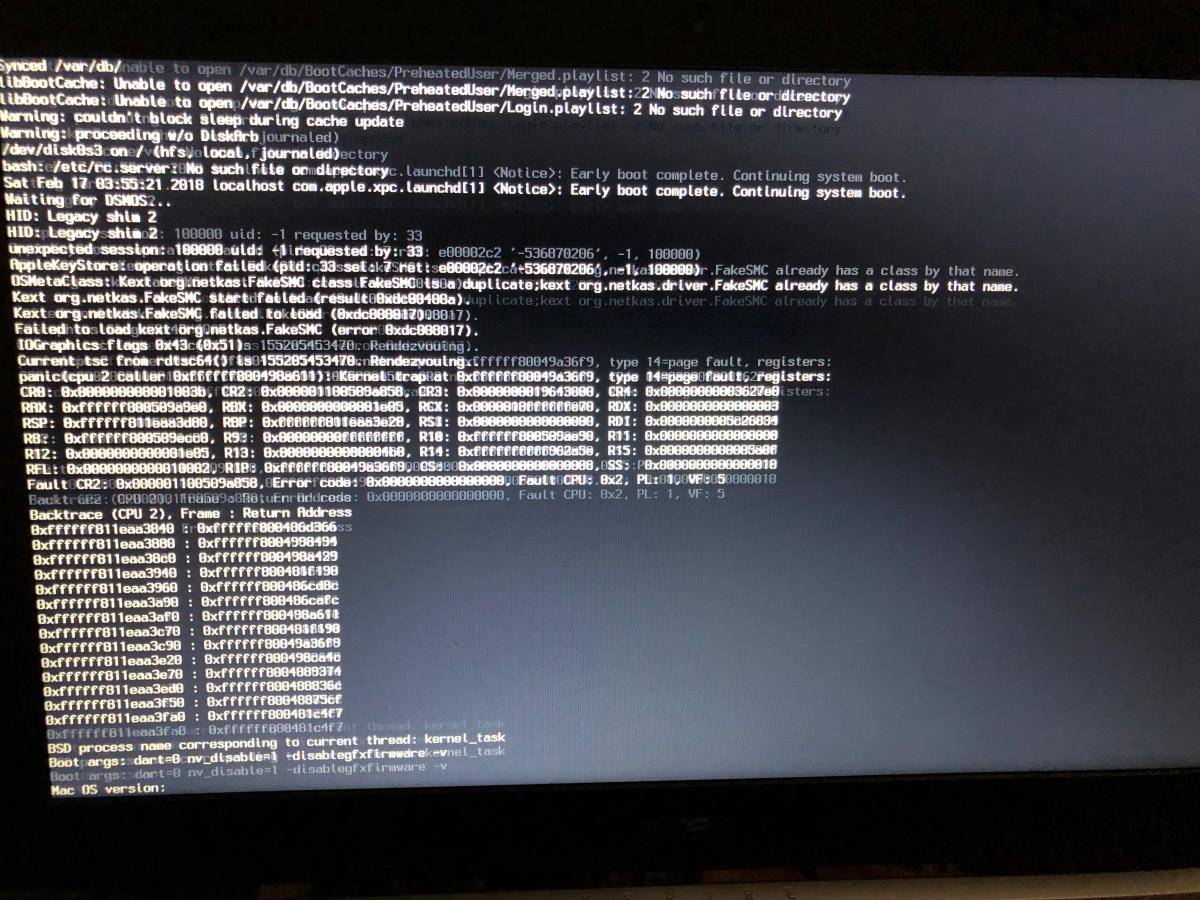

MaLd0n Posted February 17, 2018 Share Posted February 17, 2018 create ur image, check image, fakesmc fail to load 1 Link to comment https://www.insanelymac.com/forum/topic/332726-kernel-panic-coffee-lake/#findComment-2593936 Share on other sites More sharing options...
sidX86 Posted February 17, 2018 Author Share Posted February 17, 2018 create ur image, check image, fakesmc fail to load Got the issue, downloading stock 10.13.3 image right now, will be using it to create a fresh installer. And btw, I see you removed the graphics patches from the config.plist, have you directly injected skylake graphics into DSDT or something? 1 Link to comment https://www.insanelymac.com/forum/topic/332726-kernel-panic-coffee-lake/#findComment-2593969 Share on other sites More sharing options...
MaLd0n Posted February 17, 2018 Share Posted February 17, 2018 Got the issue, downloading stock 10.13.3 image right now, will be using it to create a fresh installer. And btw, I see you removed the graphics patches from the config.plist, have you directly injected skylake graphics into DSDT or something? ye, apply all u need into DSDT and use SSDT for disable DGPU, but i don't check ioreg, just check ur SSDT, i think in RP01/PXSX we can disable via DSDT too DSDT.aml.zip use it and put intelgfx 0x12345678 1 Link to comment https://www.insanelymac.com/forum/topic/332726-kernel-panic-coffee-lake/#findComment-2593970 Share on other sites More sharing options...
sidX86 Posted February 17, 2018 Author Share Posted February 17, 2018 ye, apply all u need into DSDT and use SSDT for disable DGPU, but i don't check ioreg, just check ur SSDT, i think in RP01/PXSX we can disable via DSDT too DSDT.aml.zip use it and put intelgfx 0x12345678 Okay! Btw, here's my original DSDT files, see if you can create a perfect one for me! ACPI origin.zip Link to comment https://www.insanelymac.com/forum/topic/332726-kernel-panic-coffee-lake/#findComment-2593990 Share on other sites More sharing options...
MaLd0n Posted February 17, 2018 Share Posted February 17, 2018 don't need, use clover folder in #2 and DSDT #6, after install we solve others 1 Link to comment https://www.insanelymac.com/forum/topic/332726-kernel-panic-coffee-lake/#findComment-2593991 Share on other sites More sharing options...

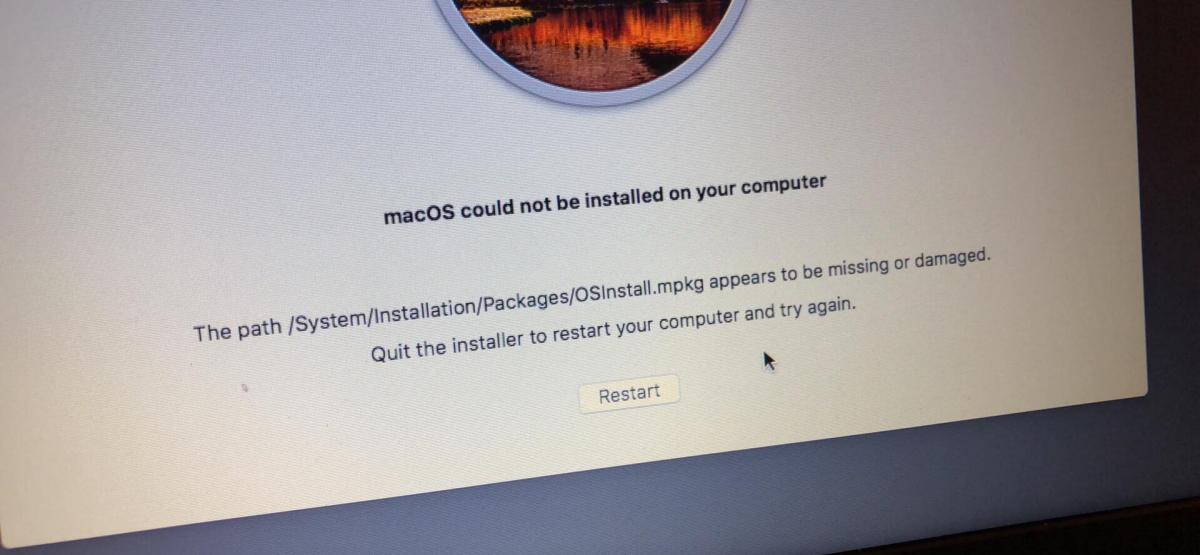

sidX86 Posted February 17, 2018 Author Share Posted February 17, 2018 don't need, use clover folder in #2 and DSDT #6, after install we solve others Created a fresh Installer, macOS HS 10.13.3, getting this now! Link to comment https://www.insanelymac.com/forum/topic/332726-kernel-panic-coffee-lake/#findComment-2594024 Share on other sites More sharing options...
MaLd0n Posted February 17, 2018 Share Posted February 17, 2018 try with other smbios, check Firmware Features fields too 1 Link to comment https://www.insanelymac.com/forum/topic/332726-kernel-panic-coffee-lake/#findComment-2594045 Share on other sites More sharing options...
sidX86 Posted February 19, 2018 Author Share Posted February 19, 2018 try with other smbios, check Firmware Features fields too Tried MacBook Pro 14,1, iMac 18,1, iMac 18,2, iMac 18,3 SMBIOS’es but none helped! Link to comment https://www.insanelymac.com/forum/topic/332726-kernel-panic-coffee-lake/#findComment-2594834 Share on other sites More sharing options...
MaLd0n Posted February 19, 2018 Share Posted February 19, 2018 u add full infos? 1 Link to comment https://www.insanelymac.com/forum/topic/332726-kernel-panic-coffee-lake/#findComment-2594837 Share on other sites More sharing options...

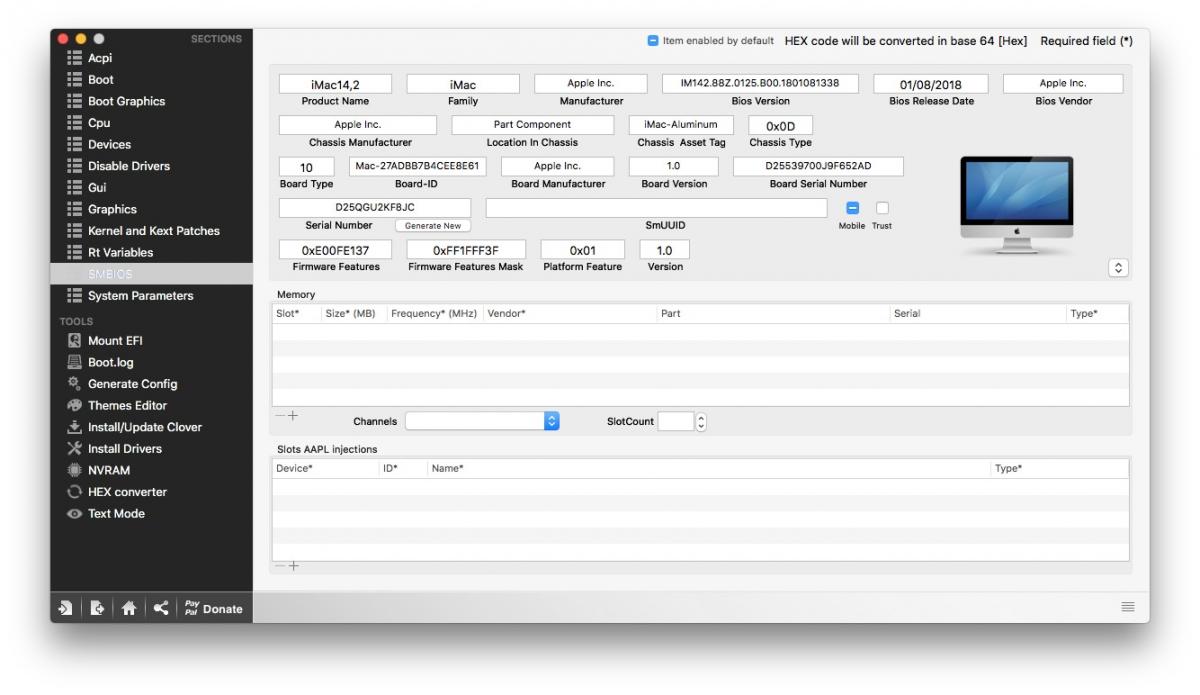

sidX86 Posted February 19, 2018 Author Share Posted February 19, 2018 u add full infos? MaLd0n 2018-02-19 às 13.52.09.jpg Yes, put it exactly this way but still same error. Link to comment https://www.insanelymac.com/forum/topic/332726-kernel-panic-coffee-lake/#findComment-2594870 Share on other sites More sharing options...
sidX86 Posted February 20, 2018 Author Share Posted February 20, 2018 u add full infos? MaLd0n 2018-02-19 às 13.52.09.jpg Any idea what to do now? I’m totally clueless! Link to comment https://www.insanelymac.com/forum/topic/332726-kernel-panic-coffee-lake/#findComment-2595349 Share on other sites More sharing options...
MaLd0n Posted February 20, 2018 Share Posted February 20, 2018 config.plist.zip 1 Link to comment https://www.insanelymac.com/forum/topic/332726-kernel-panic-coffee-lake/#findComment-2595359 Share on other sites More sharing options...
