Clover r4799 ISO compiled with GCC and minimal config.plist compatible for use in VMWare Workstation.
Tested with unlocked Workstation 15 running OSX 10.9 -->10.14 guest in Windows X64 host.
1. Download and unzip "EFI_Clover_r4799 for VMware.zip". Mount Clover-v2.4k-4799-X64 by double clicking on it.
2. Mount your VM's EFI System Partition eg in terminal
sudo diskutil mount disk0s1
3. Copy EFI folder from step 1 into the EFI partition
4. Shutdown the VM, add bios.bootDelay = "3000" to your VM's vmx file
5. Reboot your VM, press <F2> to access the VMware Boot Manager and add CLOVERX64.efi to the boot menu.
Substitute your own unique and valid MLB and ROM variables in the /EFI/CLOVER/config.plist (Rt Variables section) to activate iMessage/Facetime on your VM.
Dell Precision T7610 Workstation
Hackintosh GUIDE (Work in Progress)
This Workstation used to be a Beast with Dual CPUs and tons of RAM, I Know it is now normal to get that much cores in a Desktop but it is still a very decent machine for me (As a Programmer), and I thought it would be a good idea to Install MacOS as the Daily Driver Rather than Linux and It turns out to be a very Great Experience (with Some Challenges ).
CPU: 2x Xeon E5-2680 v2 2.8GHz Ten Core Processors
RAM: 128 GB 1333 MHz DDR3 ECC Memory
GPU: ATI Radeon HD 4870
Chipset: Intel C602
Audio: Realtek ALC3220 (ALC280) High Definition Audio
SAS Drive Controllers (RAID): LSI 2308 SATA/SAS 6Gb/s controller with host based RAID 0, 1, 10 (4
Network Controller 1: Intel 82579 Gigabit Ethernet controller with Remote Wake UP, PXE and Jumbo frames support
Network Controller 2: Intel Ethernet Controller I210
NEC USB3.0 xHCI Controller: Renesas Electronics uPD720201 & uPD720202
Both "Xeon E5-2680 v2" and all cores with Power Management and P-States (using VoodooTSCSync & ssdtPRGen.sh)
ATI Radeon HD 4870 (Vanilla)
Realtek ALC3220 (ALC280) (using VoodooHDA till Now - it is partially working with AppleALC using layout-id 13)
LSI 2308 SAS (using AstekFusion2)
Intel 82579 Network Controller (Vanilla)
Intel I210 Network Controller (IntelMausiEthernet)
NEC USB3.0 xHCI Controller (Renesas Electronics uPD720201 & uPD720202)
Making a High Sierra USB Installer Entirely From Scratch in Windows
This is a proof of concept tutorial, to show it's possible to create a vanilla High Sierra installer, entirely from scratch, in Windows (even without App Store downloaded "Install macOS High Sierra.app" from a real Mac ). @PikeRAlpha's link to Apple's Software Catalog provides us with all the URLs necessary to download the needed files directly from Apple instead of some dubious source from the internet...
8GB or larger USB drive
Boot Disk Utility v2.1.2017rev021b from @CVAD
TransMac (free 15 day trial)
Paragon Hard Disk Manager Free
Download Installer Files Directly from Apple
1) Browse Apple's Regular Software Catalog and find the URLs to download the following 6 installer files...
(Hint - search page for "InstallESD" to find its URL and others nearby)
to a folder named "SharedSupport" on your Windows NTFS drive. A browser download manager (eg Chrono for Chrome, dTA for FireFox) is handy since InstallESD is >4GB ---> allows you to pause/resume interrupted download...
2) Rename InstallESDDmg.pkg to InstallESD.dmg
3) Edit InstallInfo.plist with WordPad/text editor to remove the chunklistURL and chunklistid keys for InstallESD, and renaming it from InstallESDDmg.pkg to InstallESD.dmg (example of edited file attached to this post)...
Note: You can verify the SHA1 checksum of your InstallESD.dmg and BaseSystem.dmg with the correct ones at this website.
Boot Disk Utility to format the Installer USB and Restore OS X Base System HFS partition
1. Format USB with BDU & latest Clover ---> creates boot files in CLOVER partition + second FAT partition
2. Extract 4.hfs from \SharedSupport\BaseSystem.dmg with BDU --> save to it's local folder
3. Restore 4.hfs to USB second partition with BDU ---> 2nd partition becomes bootable "OS X Base System"
Paragon Hard Disk Manager to extend HFS Partition to its Full Extent Open Paragon Partition Manager Free and resize the second partition of the USB drive to the full size allowed. Don't forget to apply the changes at the end...
Transmac to Copy "SharedSupport" folder to OS X Base System
1. Open the TransMac program and navigate to the HFS+ Volume/Install macOS High Sierra.app/Contents folder. Right click anywhere in the empty space on the RHS pane and select "Copy Here"...
2. In the next stage, select the "SharedSupport" folder we created above as the "Files and Folders to be copied to the Mac Volume"...
Clover configuration is required now. The default config.plist (in the Clover FAT32 partition of the USB) maybe sufficient to boot your machine if you’re lucky. If not, look at the Clover Wiki, Clover Instructions and Clover Configuration Thread for pointers and edit /EFI/Clover/config.plist accordingly with Wordpad or Notepad.
The location of the important configuration files for Clover are summarized below
DSDT.aml with or without SSDT.aml--->EFI/CLOVER/ACPI/patched (don't need one if your DSDT is auto patched by Clover in config.plist)
Kexts eg FakeSMC, NullCPUPowerManagement --->EFI/CLOVER/kexts/<osx version> or /Other. NB BootDiskUtility by default already has FakeSMC.kext installed here. You may need to add VoodooPS2Controller for your laptop keyboard/trackpad to work.
If UEFI booting, you will most likely need one of the OsxAptioFixDrv-64 drivers copied from /EFI/CLOVER/drivers-off/drivers64UEFI to /EFI/CLOVER/drivers64UEFI.
If you want to use the installer to run High Sierra in Windows on VMware, you can follow my guide to set up the Virtual Machine and replace Clover's default config with EFI_Clover for VMware (which is compatible to run in VMware). In the screenshots below, I have attached the USB Installer (in this case PhysicalDrive7) to my macOS Virtual Machine. Reboot the system to the USB installer to install High Sierra ...
What happens if we don't have access to TransMac or Paragon Hard Disk Manager?
Not a problem, as long as we get "OS X Base System" bootable, we can launch terminal from the Utilities Menu to copy the SharedSupport folder over to the Installer app. In essence, we will build the full installer app = 5GB+ on the target HD eg "Macintosh HD", by copying both the "small" installer app = 15MB (on "OS X Base System") and the SharedSupport folder from the NTFS volume (mounted in this example on /Volumes/DATA)...
-bash-3.2# cd /
-bash-3.2# cp -R Install\ macOS\ High\ Sierra.app /Volumes/Macintosh\ HD/
-bash-3.2# cp -R /Volumes/DATA/SharedSupport /Volumes/Macintosh\ HD/Install\ macOS\ High\ Sierra.app/Contents/
...then start installation with the startosinstall utility...
-bash-3.2# /Volumes/Macintosh\ HD/Install\ macOS\ High\ Sierra.app/Contents/Resources/startosinstall --volume /Volumes/Macintosh\ HD --converttoapfs NO --applicationpath /Volumes/Macintosh\ HD/Install\ macOS\ High\ Sierra.app
The above steps can be automated with the attached "startosinstall.command" script, which will assemble "Install macOS High Sierra.app" on "Macintosh HD" and launch the startosinstall utility targeting the "Macintosh HD" volume. Copy/download to "Macintosh HD", then run in terminal (after attaching DATA USB with /Shared Support folder)...
cd "/Volumes/Macintosh HD"
chmod +x startosinstall.command
Updated Download Links for macOS Mojave 10.14.1_18B75
Browse Apple's Regular Software Catalog and find the URLs to download the following 6 installer files...
Note: In Mojave, Apple has removed the --converttoapfs NO and --applicationpath arguments from the startosinstall utility....
eg to use startosinstall for the above section "What happens if we don't have access to TransMac or Paragon Hard Disk Manager?", the syntax is now
-bash-3.2# /Volumes/Macintosh\ HD/Install\ macOS\ Mojave.app/Contents/Resources/startosinstall --volume /Volumes/Macintosh\ HD
This basically means that for Mojave, the default installation will always convert the target volume to the apfs file system.

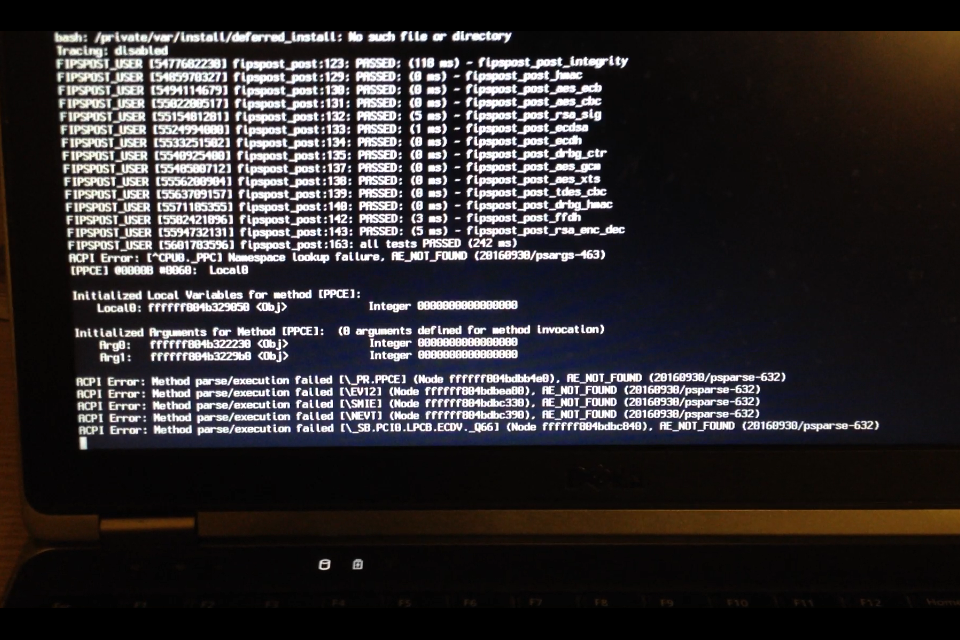

I am new to hackintosh. I have High Sierra on bootable memory chip 16GB with the help of TransMac. I get the boot screen with options to boot but on choosing to go ahead the screen goes into verbose mode and then stalls at a certain point. Actually the PC hangs and I cannot use my keyboard to get a screenshot. I do have a photo of it though. What config do I need to change, to be able to install onto a partition of HDD?
My System is :
Mobo: GA-H81M-S (rev 1.0); Nvidia GeForce 710 1GB DDR3 (with VGA, HDMI and DVI-D ports), I have connected my monitor (ASUS VP228H) to the HDMI port; 6GB DDR3 1600Mhz RAM; SSD 120GB with Windows 7 Pro 64-bit; Western Digital 1TB with two partitions (with old Windows 7 Pro 64-bit installation); Western Digital 500GB with two partitions and Windows 10 Pro 32-bit on the first partition. I want to install to the second partition of this HDD.
