johnverz Posted January 4, 2018 Share Posted January 4, 2018 Hardware Info: HP ENVY Sleekbook 4-1009tu 1.4GHz i3-2367M (check here) MacOS version: Sierra (10.12.3) Please help me make Intel HD 3000 work with this machine. I tried to patch DSDT using MaciASL but to no avail. I am having screen glitch, poor graphics performance, no glass interface and only 4MB graphics memory. I cannot change screen brightness too. I attached my config.plist and my DSDT.aml file. Please help. Thank you config.txt dsdt.txt Link to comment https://www.insanelymac.com/forum/topic/331247-making-intel-hd-3000-work-with-macos-sierra/ Share on other sites More sharing options...
johnverz Posted January 4, 2018 Author Share Posted January 4, 2018 Thank you Herve for the fast response. I will try your suggestions and update you. I attached here my raw DSDT.aml and config.plist files. DSDT_config.zip Link to comment https://www.insanelymac.com/forum/topic/331247-making-intel-hd-3000-work-with-macos-sierra/#findComment-2561320 Share on other sites More sharing options...
johnverz Posted January 4, 2018 Author Share Posted January 4, 2018 Thank you. I’m trying them out now. Is it safe to delete AppleIntelSNBGraphics.kext? It seems that it’s preventing my machine to boot up and stuck at IOConsoleUsers:gIOScreenLockState 3, hs 0, bs 0, now 0, sm 0x0. 1 Link to comment https://www.insanelymac.com/forum/topic/331247-making-intel-hd-3000-work-with-macos-sierra/#findComment-2561390 Share on other sites More sharing options...
johnverz Posted January 4, 2018 Author Share Posted January 4, 2018 It was able to boot up after deleting it, it is reporting AppleIntelSNBGraphics.kext failed to load. Btw, I tried your config and dsdt, graphics performance still the same. Here is my EFI/CLOVER shot. Thanks for the help... Link to comment https://www.insanelymac.com/forum/topic/331247-making-intel-hd-3000-work-with-macos-sierra/#findComment-2561407 Share on other sites More sharing options...
Tetonne Posted January 4, 2018 Share Posted January 4, 2018 HD3000 is supported OOB as long as you inject the correct layout-id (usually 00010000 with MBP8,1 SMBIOS). 0x00030010 as you told us before ;-) #2 1 Link to comment https://www.insanelymac.com/forum/topic/331247-making-intel-hd-3000-work-with-macos-sierra/#findComment-2561777 Share on other sites More sharing options...
johnverz Posted January 4, 2018 Author Share Posted January 4, 2018 Here is my graphics device info: Intel HD Graphics 3000: Chipset Model: Intel HD Graphics 3000 Type: GPU Bus: Built-In VRAM (Total): 4 MB VRAM (Dynamic, Max): Vendor: Intel (0x8086) Device ID: 0x0116 Revision ID: 0x0009 Kernel Extension Info: No Kext Loaded Displays: Display: Resolution: 1366 x 768 Pixel Depth: 32-Bit Color (ARGB8888) Main Display: Yes Mirror: Off Online: Yes Automatically Adjust Brightness: No Clover version: 4012 Also I deleted AppleIntelSNBGraphics.kext. Can't reach login screen with it. DSDT.aml.zip Link to comment https://www.insanelymac.com/forum/topic/331247-making-intel-hd-3000-work-with-macos-sierra/#findComment-2561875 Share on other sites More sharing options...

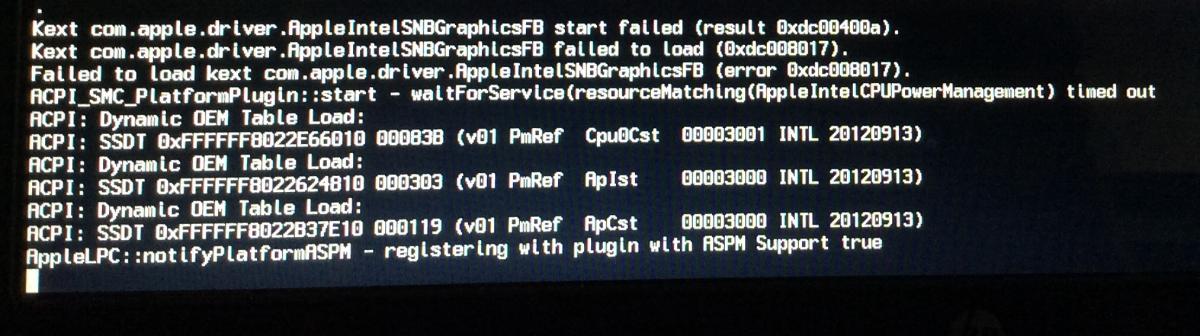

johnverz Posted January 4, 2018 Author Share Posted January 4, 2018 I’m getting this: I used Hervé’s config.plist. Where can I get original AppleIntelSNBGraphics.kext Thank y’all! 1 Link to comment https://www.insanelymac.com/forum/topic/331247-making-intel-hd-3000-work-with-macos-sierra/#findComment-2561885 Share on other sites More sharing options...
johnverz Posted January 4, 2018 Author Share Posted January 4, 2018 I’ll update first to 10.12.6 then before fixing graphics. What to setup first before updating? Do I always need the FakeSMC in the clover? Link to comment https://www.insanelymac.com/forum/topic/331247-making-intel-hd-3000-work-with-macos-sierra/#findComment-2561893 Share on other sites More sharing options...
johnverz Posted January 5, 2018 Author Share Posted January 5, 2018 I am using Niresh Distro. Is it safe to upgrade to 10.12.6 using the combo update? What kexts should be retained to 10.12.6? Thank you! Link to comment https://www.insanelymac.com/forum/topic/331247-making-intel-hd-3000-work-with-macos-sierra/#findComment-2561903 Share on other sites More sharing options...
johnverz Posted January 6, 2018 Author Share Posted January 6, 2018 This is why you have issue Please don't used this Sh,,,tt used Apple vanilla install As per suggestion, I’m downloading the MacOS sierra installer and will vanilla install. And then I will try those settings you shared above. Will QE/CI fully work with those? Link to comment https://www.insanelymac.com/forum/topic/331247-making-intel-hd-3000-work-with-macos-sierra/#findComment-2562649 Share on other sites More sharing options...
johnverz Posted January 10, 2018 Author Share Posted January 10, 2018 I downloaded the 10.12.6 installer. Installed it. Intel HD 3000 worked oob! Link to comment https://www.insanelymac.com/forum/topic/331247-making-intel-hd-3000-work-with-macos-sierra/#findComment-2565806 Share on other sites More sharing options...
paulobr Posted January 11, 2018 Share Posted January 11, 2018 Thanks for sharing johnverz, can i try with my hp 4540s probook this configurations i'm stuck in boot with insupported cpu error all the time Paulo Costa Link to comment https://www.insanelymac.com/forum/topic/331247-making-intel-hd-3000-work-with-macos-sierra/#findComment-2566789 Share on other sites More sharing options...
