Aiello Posted May 10, 2017 Share Posted May 10, 2017 Now I successfully installed 10.11.6, but when I try to install 10.12 with current EFI configure, it dosen't works . So is any buddy used this matherboard and installed 10.12.+ ? 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted May 10, 2017 Share Posted May 10, 2017 -Post ur full Clover folder with original tables, press F4 in Clover Boot Screen, files generate in Clover/Acpi/origin -Post Ioreg, extract with Ioreg Explorer http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=235412 -Run it, post files generate in ur desktop http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222609 1 Link to comment Share on other sites More sharing options...
Aiello Posted May 16, 2017 Author Share Posted May 16, 2017 This is my clover folder CLOVER.zip This is IOReg gened Aiello’s iMac IOReg.zip This is "Run Me" gened Send me Aiello’s iMac.zip Thx a lot. 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted May 16, 2017 Share Posted May 16, 2017 test it in Sierra Replace folder, if work send me ioreg after reboot CLOVER.zip Link to comment Share on other sites More sharing options...
Aiello Posted May 16, 2017 Author Share Posted May 16, 2017 dosen't work. If I choose "in verbose mode", it will restart when the screen shows "system uptime in nanoseconds:xxxxxxxx" The other way, I just click boot from "install sierra", the screen will show a big ban ico。 I'll try another installtion media and test it again later. Link to comment Share on other sites More sharing options...

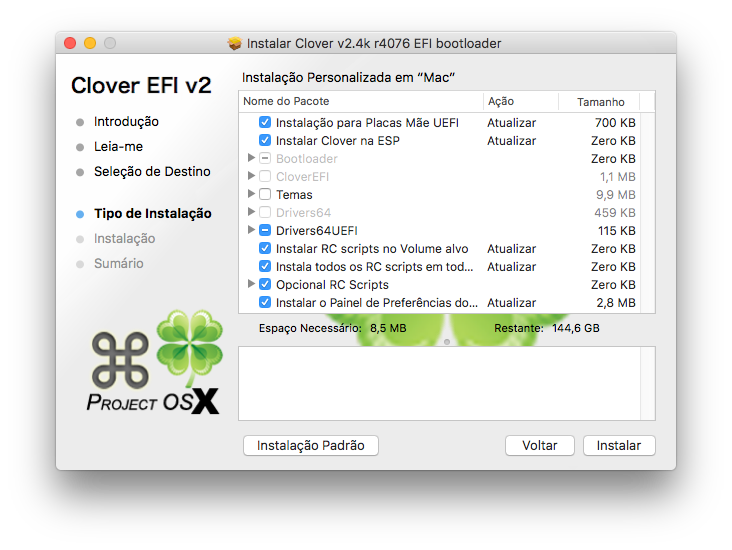

MaLd0n Posted May 16, 2017 Share Posted May 16, 2017 Install Clover with these options Replace folder CLOVER.zip if u have a time, use a fresh install Link to comment Share on other sites More sharing options...

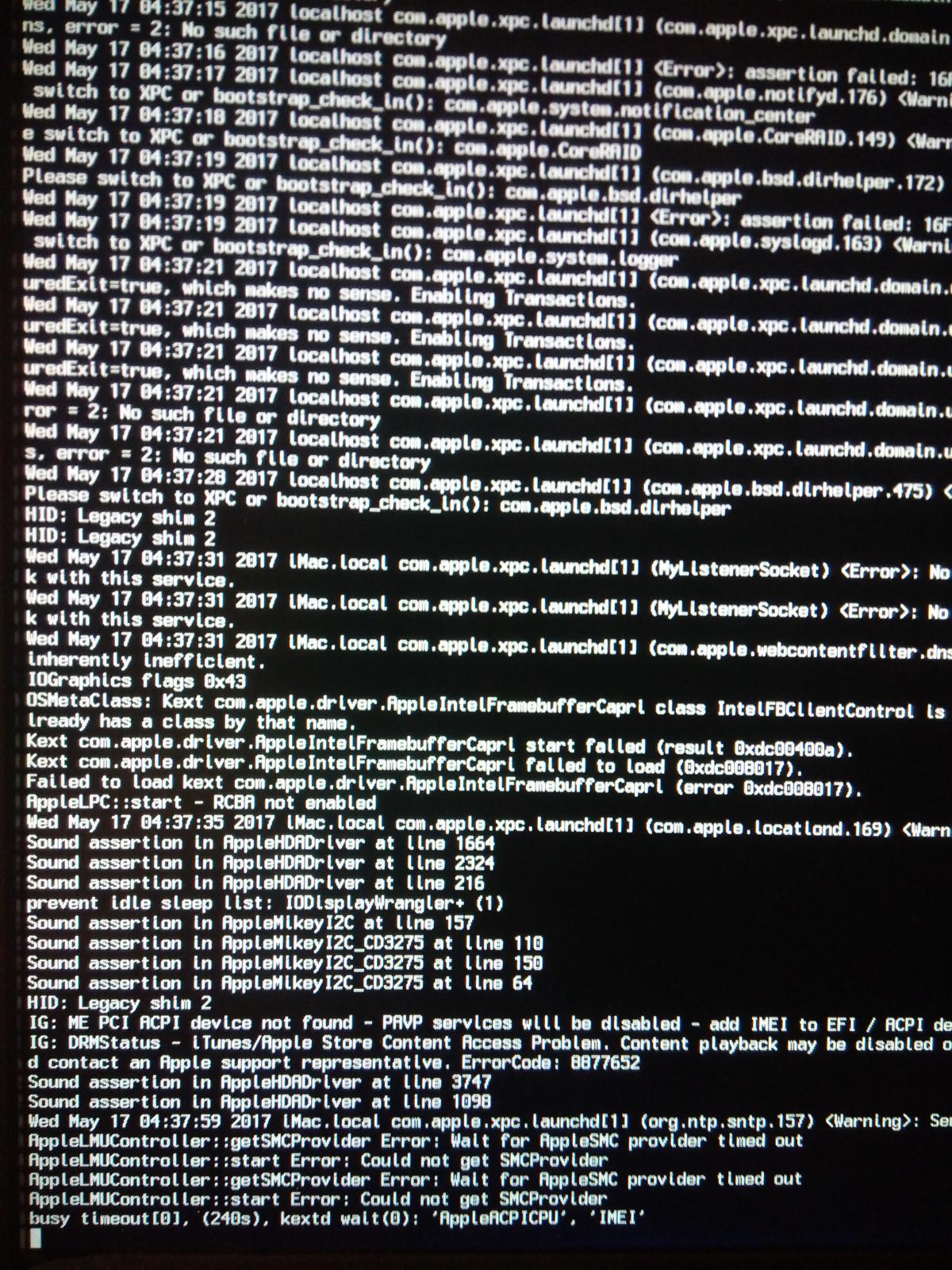

Aiello Posted May 17, 2017 Author Share Posted May 17, 2017 I create a new freash installer and use the clover u final uploaded。 In verbose mode，it halt at this point Link to comment Share on other sites More sharing options...
Aiello Posted May 17, 2017 Author Share Posted May 17, 2017 I googled it, it seems my clover is out of date, I try update it now. Link to comment Share on other sites More sharing options...
Aiello Posted May 17, 2017 Author Share Posted May 17, 2017 failed. I updated my clover and it will show a ban icon when I install in verbose mode. If I use ur clover, it merely keep in loading progress.(an apple logo with a progress bar below) Link to comment Share on other sites More sharing options...
MaLd0n Posted May 17, 2017 Share Posted May 17, 2017 press bar space, acpi, rename DSDT.aml to DSDT02.aml Link to comment Share on other sites More sharing options...

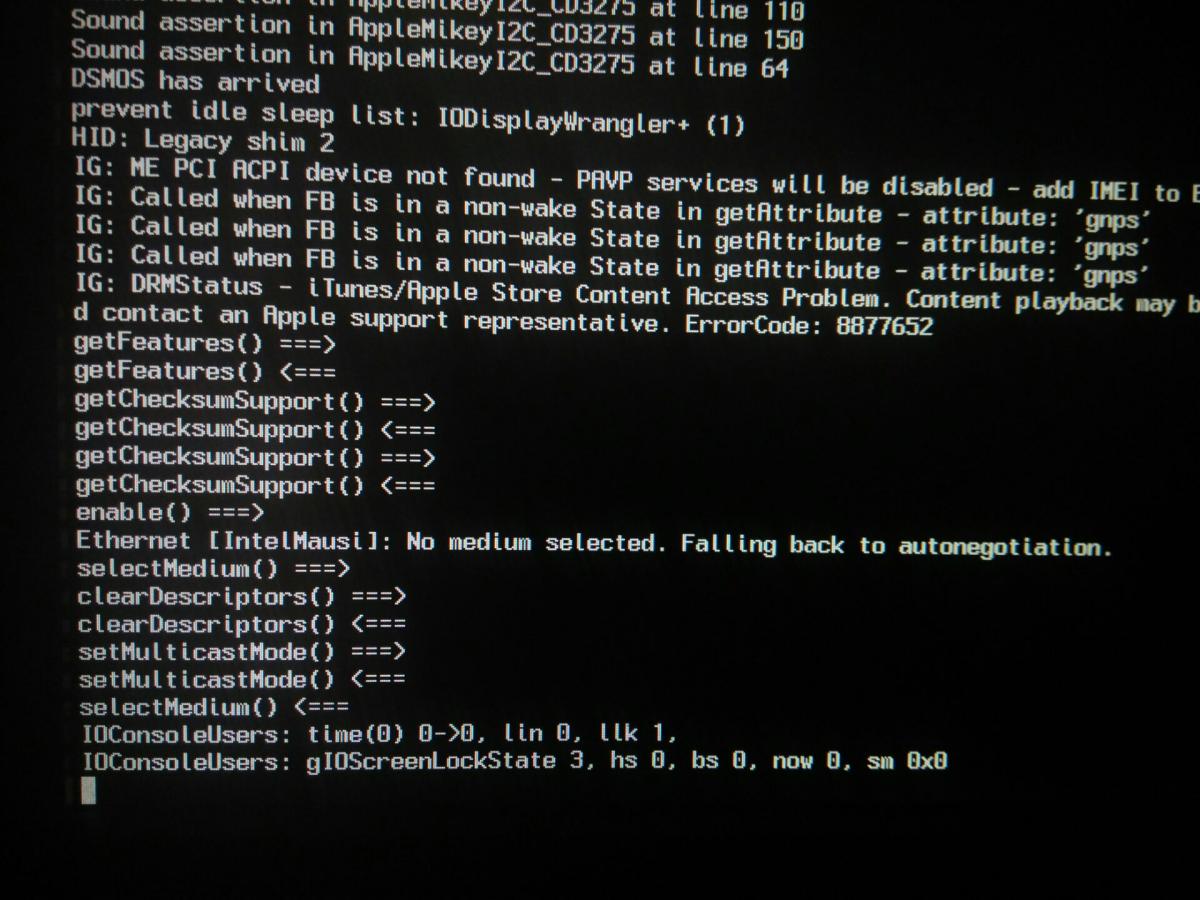

Aiello Posted May 19, 2017 Author Share Posted May 19, 2017 now it stuck in following status I tryed everything I can, such as delete some usless file in dirvers64UEFI, reinstall clover as u said, but it dosen't work . Just stuck in there Link to comment Share on other sites More sharing options...
MaLd0n Posted May 19, 2017 Share Posted May 19, 2017 for lan use it IntelMausiEthernet.kext.zip rename dsdt if u need u need update Clover too Clover_v2.4k_r4076.pkg.zip Link to comment Share on other sites More sharing options...
FatRakoon Posted August 10, 2019 Share Posted August 10, 2019 (edited) I accept that I am out of date on this, but I thought I would add this purely for anyone else that might read it.. I have the Z170N-Wifi Mobo and an I5-6600 in it and I have been using it flawlessly with Mojave for about a year. Now, in a typical ( I am such a plonker ) move, I have a couple of Hackintoshes, one is my El Capitan and the other my Mojave, and they are both ITX setsup and they both use a Coolermaster Elite 130 case... Actually, I also have an AMD A10 in the Elite 130 too, but thats one of my Linux Machines. Anyway, last week, I was going to sell the El Capitan one, it too is an I5 but in a H77 Mobo and it wont go further, and I was installing Windows 10 onto it , when I clicked... I was using the Mohave one , not the El Cap one! I was devastated cos I had clearly wiped the stuff that I use, and not the mess about one. The thing is, that now, I cannot get it back on... Not fully. I have installed it, and I know that all I have to do, is use my installer flash drive, and viola... Right now, the best I can do, is either use the clover installer USB drive to boot and then manually select the mojave option, and then I sure enough get to the Apple desktop and I can use it, but if I try to boot from the HD, I get teh GRUB CLI and nothing more. So Im habing a right pain trying to get it working and yet the last time, all I had to do, was clear the CMOS, and setup opnly 2 or maybe 3 things... VT-d = disabled, boot from HD0, XHDI or XHCI hand off, and whatever else, not sure, and it just worked. I have been messing about for a couple of dqays now and I have got nowhere? What a shame. Bu the fact is, that this board DOES work, and it works briliantly, but only when you have it right.... I have every thing that needs to be setup in the BIOS, all written down in a notrepad... But can I find that notepad? LOL Edited August 10, 2019 by FatRakoon Link to comment Share on other sites More sharing options...
