alexdi Posted April 29, 2017 Share Posted April 29, 2017 I'm new to this, I hope you'll forgive some novice questions. The system: Intel 7700K MSI Z270M 2 x 16GB RAM Samsung EVO 850 500GB SSD I installed UB (open to using a different Clover install mechanism) to a flash drive, booted, and set a fake CPU ID of 0x0506E3. The install fails almost immediately, transitioning from an Apple logo to a circle with a line through it. Verbose mode says "AllocateRelocBlock Error," which led me here: https://nickwoodhams.com/x99-hackintosh-osxaptiofixdrv-allocaterelocblock-error-update/ That's as far as I've gotten. I'm not sure how to edit the Clover version on the USB drive. Can someone point me in the right direction? I've gone through a lot of posts, but most of them seem to address how to fix problems after the installation. Thanks! 1 Link to comment https://www.insanelymac.com/forum/topic/323273-sierra-install-with-intel-7700k-msi-z270m-mortar-success/ Share on other sites More sharing options...
MaLd0n Posted April 29, 2017 Share Posted April 29, 2017 Check here http://www.insanelymac.com/forum/topic/321872-guide-sierra-on-gigabyte-mobos-serie-200-kabylake-dsdt/ 1 Link to comment https://www.insanelymac.com/forum/topic/323273-sierra-install-with-intel-7700k-msi-z270m-mortar-success/#findComment-2414321 Share on other sites More sharing options...
alexdi Posted April 29, 2017 Author Share Posted April 29, 2017 Is the Clover installer supposed to go on the same bootable Sierra install USB stick? If so, this is to the "OSX Flash Drive" destination? It gives me an error that says it may be incompatible. 1 Link to comment https://www.insanelymac.com/forum/topic/323273-sierra-install-with-intel-7700k-msi-z270m-mortar-success/#findComment-2414357 Share on other sites More sharing options...
MaLd0n Posted April 29, 2017 Share Posted April 29, 2017 Same folder UEFI 1 Link to comment https://www.insanelymac.com/forum/topic/323273-sierra-install-with-intel-7700k-msi-z270m-mortar-success/#findComment-2414373 Share on other sites More sharing options...

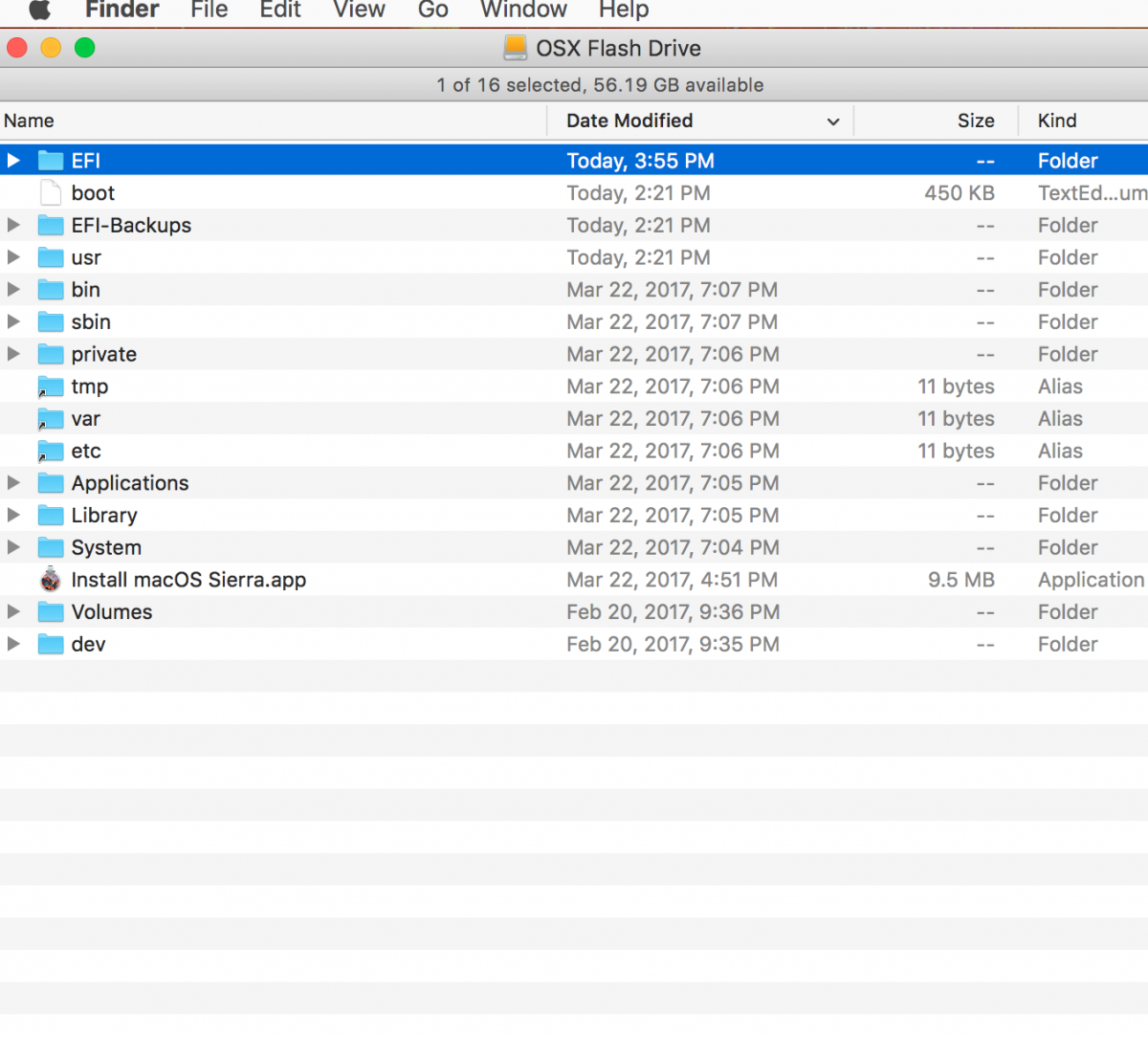

alexdi Posted April 29, 2017 Author Share Posted April 29, 2017 OK. My system refuses to boot from the resulting disk. I did: * Disk Utility -> erase, format as GUID Mac Journaled, named USB * Run Flash utility -> drag mounted USB to utility -> drag "Install Sierra.app" to utility -> Enter -> Enter password -> Enter * Run Clover package -> install to OSX Flash Drive -> "OK" * Open OSX Flash Drive \ EFI \ Clover -> copy contents of "Clover Installation.zip" -> paste, replace all It sees the USB stick, but repeatedly bypasses it to go to the drive that still has Windows on it. Picture attached. 1 Link to comment https://www.insanelymac.com/forum/topic/323273-sierra-install-with-intel-7700k-msi-z270m-mortar-success/#findComment-2414447 Share on other sites More sharing options...

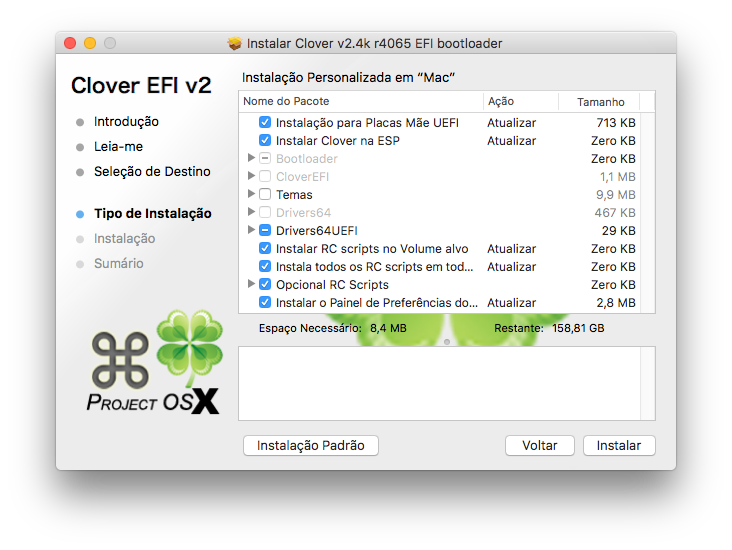

MaLd0n Posted April 29, 2017 Share Posted April 29, 2017 UEFI, bro after create USB Stick Install Clover with these options Clover_v2.4k_r4065.pkg.zip and replace with folder in my topic What ur GPU? 1 Link to comment https://www.insanelymac.com/forum/topic/323273-sierra-install-with-intel-7700k-msi-z270m-mortar-success/#findComment-2414451 Share on other sites More sharing options...

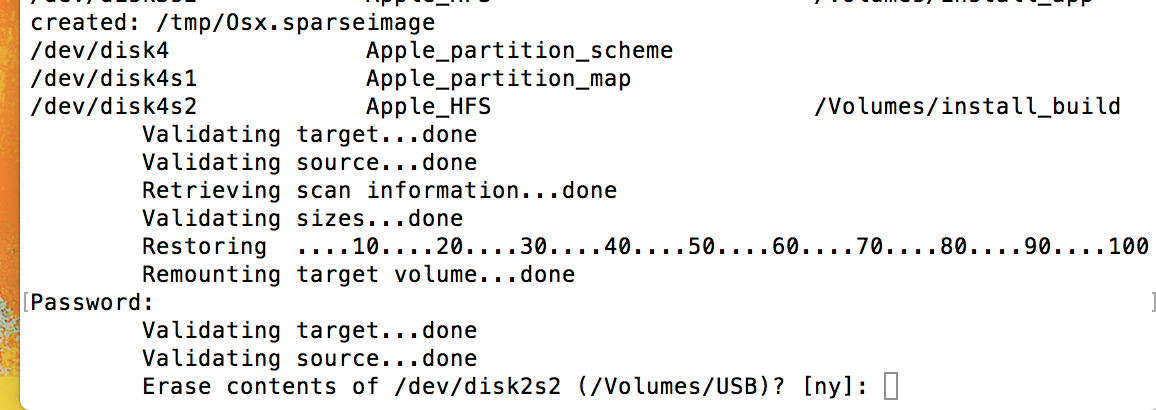

alexdi Posted April 29, 2017 Author Share Posted April 29, 2017 It's a Zotac GTX 1060 Amp 6GB. When the flash utility asks if I want to erase contents of dev/disk2s2 after I type my password, am I supposed to say yes? 1 Link to comment https://www.insanelymac.com/forum/topic/323273-sierra-install-with-intel-7700k-msi-z270m-mortar-success/#findComment-2414456 Share on other sites More sharing options...
MaLd0n Posted April 29, 2017 Share Posted April 29, 2017 yes and wait finish 1 Link to comment https://www.insanelymac.com/forum/topic/323273-sierra-install-with-intel-7700k-msi-z270m-mortar-success/#findComment-2414460 Share on other sites More sharing options...
alexdi Posted April 29, 2017 Author Share Posted April 29, 2017 Ah, OK. I was missing the customization step. It boots now! Most of the installation works, but when I select DHCP as my internet connection, the install fails with: "failed to send exception exc_corpse_notify". About to try a different option. EDIT-- finished OK with 'no internet' selected. About to follow the rest of your guide, we'll see how far I get. Definitely wouldn't have managed this without your input! Thanks! 1 Link to comment https://www.insanelymac.com/forum/topic/323273-sierra-install-with-intel-7700k-msi-z270m-mortar-success/#findComment-2414484 Share on other sites More sharing options...
MaLd0n Posted April 29, 2017 Share Posted April 29, 2017 Wait bro send me files -Post ur full Clover folder with original tables, press F4 in Clover Boot Screen, files generate in Clover/Acpi/origin -Post Ioreg, extract with Ioreg Explorer http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222606 -Run it, post files generate in ur desktop http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222609 1 Link to comment https://www.insanelymac.com/forum/topic/323273-sierra-install-with-intel-7700k-msi-z270m-mortar-success/#findComment-2414492 Share on other sites More sharing options...
alexdi Posted April 29, 2017 Author Share Posted April 29, 2017 OK. That may take a minute. I installed NIC drivers and rebooted. Worked. Installed nVidia's latest Mac drivers, then shut down and installed my 1060. Saw some verbose text, then both my screens went black. May have to take it out again. 1 Link to comment https://www.insanelymac.com/forum/topic/323273-sierra-install-with-intel-7700k-msi-z270m-mortar-success/#findComment-2414519 Share on other sites More sharing options...
MaLd0n Posted April 29, 2017 Share Posted April 29, 2017 boot with nv_disable=1 and send me files 1 Link to comment https://www.insanelymac.com/forum/topic/323273-sierra-install-with-intel-7700k-msi-z270m-mortar-success/#findComment-2414526 Share on other sites More sharing options...
alexdi Posted April 29, 2017 Author Share Posted April 29, 2017 EDIT: OK, got everything. The EFI directory disappeared until I ran Clover Configurator to mount it. So, with that flag, I can now see one of two screens from the 1060. It's running at 1280x1024 with a fair bit of graphical corruption at the login screen. Uh oh. I installed FakeSMC, Audio, and USB from your other post. Now it's bootlooping. It gets to a point where it shows "System uptime in nanoseconds", then restarts. Send me David’s iMac.zip CLOVER.zip origin.zip David’s iMac.ioreg.zip 1 Link to comment https://www.insanelymac.com/forum/topic/323273-sierra-install-with-intel-7700k-msi-z270m-mortar-success/#findComment-2414538 Share on other sites More sharing options...
MaLd0n Posted April 29, 2017 Share Posted April 29, 2017 -Replace full folder CLOVER.zip -Run it Olarila.command.zip -Install NvidiaWebDriver https://images.nvidia.com/mac/pkg/378/WebDriver-378.05.05.05f02.pkg -Reboot and send me new ioreg after reboot IORegistryExplorer 3.app.zip disable IntelHDGraphics in bios 1 Link to comment https://www.insanelymac.com/forum/topic/323273-sierra-install-with-intel-7700k-msi-z270m-mortar-success/#findComment-2414550 Share on other sites More sharing options...
alexdi Posted April 29, 2017 Author Share Posted April 29, 2017 Intel HD is already disabled and that driver is already installed. (Which is why it was super odd that the driver didn't seem to help.) I can't get to the GUI to do anything. I can pull the drive, attach it to another Mac, and copy the Clover directory over, but I'm not sure what to do with Olarila? 1 Link to comment https://www.insanelymac.com/forum/topic/323273-sierra-install-with-intel-7700k-msi-z270m-mortar-success/#findComment-2414555 Share on other sites More sharing options...
MaLd0n Posted April 29, 2017 Share Posted April 29, 2017 No problem replace folder and try boot 1 Link to comment https://www.insanelymac.com/forum/topic/323273-sierra-install-with-intel-7700k-msi-z270m-mortar-success/#findComment-2414558 Share on other sites More sharing options...

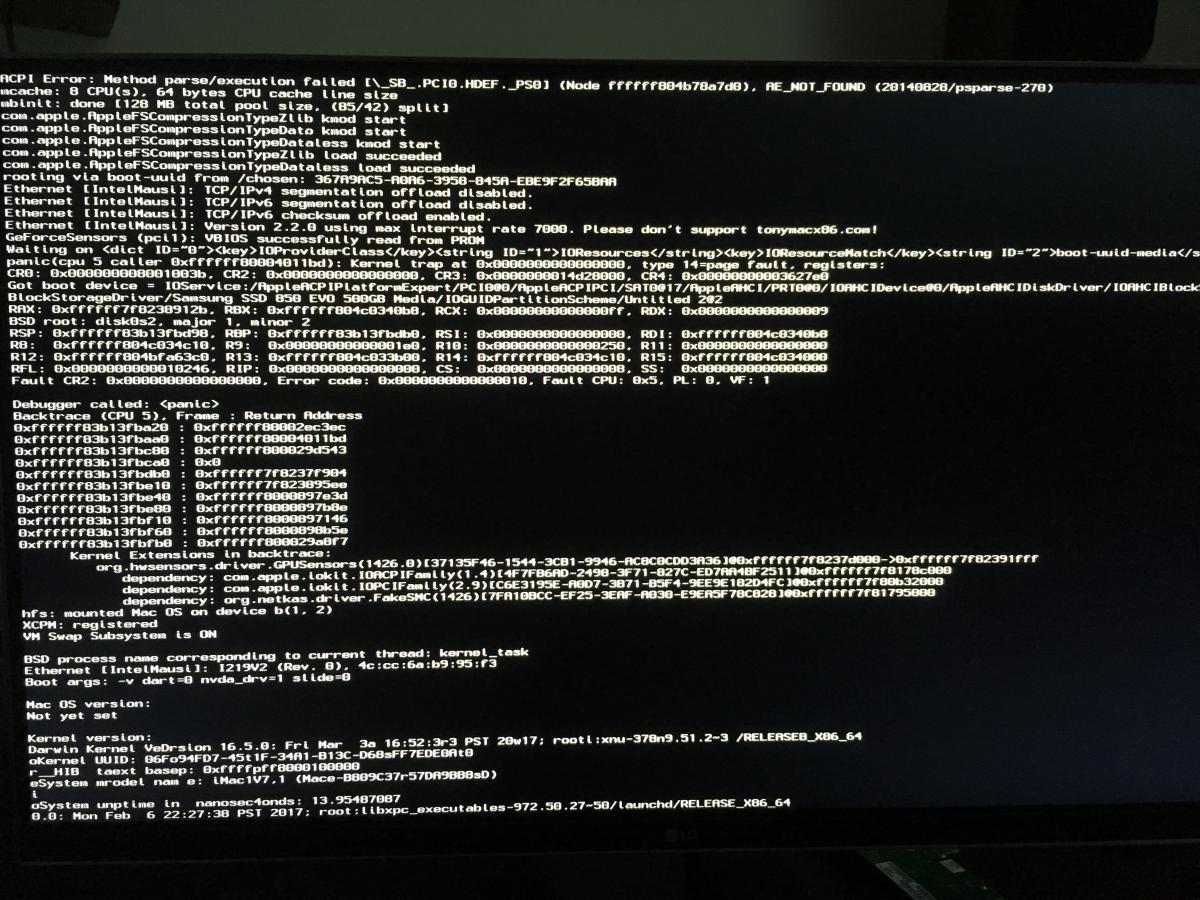

alexdi Posted April 29, 2017 Author Share Posted April 29, 2017 I pulled the drive and replaced that directory. It got one line further-- see attached. 1 Link to comment https://www.insanelymac.com/forum/topic/323273-sierra-install-with-intel-7700k-msi-z270m-mortar-success/#findComment-2414570 Share on other sites More sharing options...
MaLd0n Posted April 29, 2017 Share Posted April 29, 2017 Post a complete screen U can boot from USB? 1 Link to comment https://www.insanelymac.com/forum/topic/323273-sierra-install-with-intel-7700k-msi-z270m-mortar-success/#findComment-2414573 Share on other sites More sharing options...

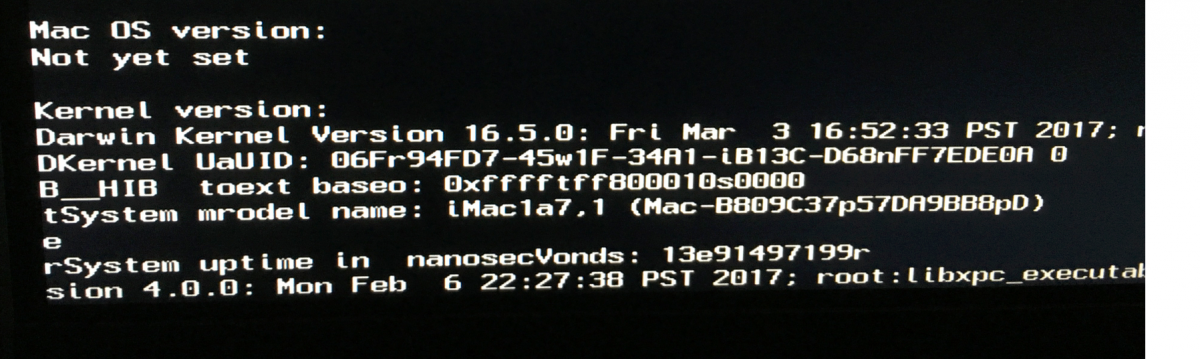

alexdi Posted April 29, 2017 Author Share Posted April 29, 2017 Yeah, I still have the USB stick I made for the initial install. I'll take another photo. Here we go: 1 Link to comment https://www.insanelymac.com/forum/topic/323273-sierra-install-with-intel-7700k-msi-z270m-mortar-success/#findComment-2414580 Share on other sites More sharing options...
MaLd0n Posted April 29, 2017 Share Posted April 29, 2017 U have a fresh install? Dont install nothing, only Clover, replace folder and install Web Drivers 1 Link to comment https://www.insanelymac.com/forum/topic/323273-sierra-install-with-intel-7700k-msi-z270m-mortar-success/#findComment-2414586 Share on other sites More sharing options...
alexdi Posted April 29, 2017 Author Share Posted April 29, 2017 Sounds like I'm starting over. OK, I'll make a fresh install. 1 Link to comment https://www.insanelymac.com/forum/topic/323273-sierra-install-with-intel-7700k-msi-z270m-mortar-success/#findComment-2414588 Share on other sites More sharing options...
MaLd0n Posted April 29, 2017 Share Posted April 29, 2017 all u need have inside folder Just Install Clover, replace folder and install web driver if u have a black screen, just boot with nv_disable=1 and run it http://www.insanelymac.com/forum/files/file/424-agdpfix/ Link to comment https://www.insanelymac.com/forum/topic/323273-sierra-install-with-intel-7700k-msi-z270m-mortar-success/#findComment-2414591 Share on other sites More sharing options...
alexdi Posted April 29, 2017 Author Share Posted April 29, 2017 It worked! No need for nv_disable 1. Step 2 is to figure out how to clone the thing, I'm not sure which of the drivers I installed before caused it to take a dive. 1 Link to comment https://www.insanelymac.com/forum/topic/323273-sierra-install-with-intel-7700k-msi-z270m-mortar-success/#findComment-2414604 Share on other sites More sharing options...
MaLd0n Posted April 29, 2017 Share Posted April 29, 2017 send me new ioreg now IORegistryExplorer 3.app.zip Link to comment https://www.insanelymac.com/forum/topic/323273-sierra-install-with-intel-7700k-msi-z270m-mortar-success/#findComment-2414607 Share on other sites More sharing options...
alexdi Posted April 29, 2017 Author Share Posted April 29, 2017 Here we go! Posted from the new Mac. So what did you do with these files I sent you? David’s iMac.zip 1 Link to comment https://www.insanelymac.com/forum/topic/323273-sierra-install-with-intel-7700k-msi-z270m-mortar-success/#findComment-2414615 Share on other sites More sharing options...
