meltman Posted April 5, 2017 Share Posted April 5, 2017 Hello, I'm having a bit of trouble figuring out how to correct this issue. When devices are plugged into usb 2.0 ports, sleep works correctly. When the same devices are plugged into usb 3.0 ports, the computer "instant wakes" after falling asleep. I have the following: Motherboard: SuperMicro c7z97-oce (Z97 Express chipset) CPU: i5-4570SRam: 16gb ddr3 Video Card: Nvidia 950 Attached are some relevant files to help figure out the issue. Appreciate any leads! Send me Casey’s iMac.zip CLOVER.zip 1 Link to comment https://www.insanelymac.com/forum/topic/322530-instant-wake-reason-ehc1-ehc2-xhc-only-plugged-into-usb-30-ports/ Share on other sites More sharing options...
MaLd0n Posted April 5, 2017 Share Posted April 5, 2017 Update Clover Clover_v2.4k_r4055.pkg.zip and replace folder, try CLOVER.zip if dont work need we try other patch log show --style syslog | fgrep "Wake reason" Link to comment https://www.insanelymac.com/forum/topic/322530-instant-wake-reason-ehc1-ehc2-xhc-only-plugged-into-usb-30-ports/#findComment-2399069 Share on other sites More sharing options...
meltman Posted April 5, 2017 Author Share Posted April 5, 2017 Before your zip I played with some bios settings, now I'm down to:Wake Reason: XHC (this was by adding FixUSB_1000) I applied the clover update and placed the Clover folder - the display now does not wake up (which I had resolved by using darkwake=0) In pmset -g log I see:DarkWake from normal Sleep [ CDNP ] due to XHC/: Using AC 1 Link to comment https://www.insanelymac.com/forum/topic/322530-instant-wake-reason-ehc1-ehc2-xhc-only-plugged-into-usb-30-ports/#findComment-2399073 Share on other sites More sharing options...
MaLd0n Posted April 5, 2017 Share Posted April 5, 2017 DSDT.01.zip back to darkwake=0, i changed option. send me ioreg IORegistryExplorer 3.app.zip Link to comment https://www.insanelymac.com/forum/topic/322530-instant-wake-reason-ehc1-ehc2-xhc-only-plugged-into-usb-30-ports/#findComment-2399084 Share on other sites More sharing options...
meltman Posted April 5, 2017 Author Share Posted April 5, 2017 New DSDT placed, Rebooted, Wake Reason: XHC Here's IOREG from right now Casey’s iMac.zip 1 Link to comment https://www.insanelymac.com/forum/topic/322530-instant-wake-reason-ehc1-ehc2-xhc-only-plugged-into-usb-30-ports/#findComment-2399087 Share on other sites More sharing options...
MaLd0n Posted April 5, 2017 Share Posted April 5, 2017 DSDT.02.zip if xhc wake, need edit ur ssdt usb too in DSDT xhc dont have power for wake now u can try drop tables too, DSDT + SSDT and drop tables 1 Link to comment https://www.insanelymac.com/forum/topic/322530-instant-wake-reason-ehc1-ehc2-xhc-only-plugged-into-usb-30-ports/#findComment-2399090 Share on other sites More sharing options...

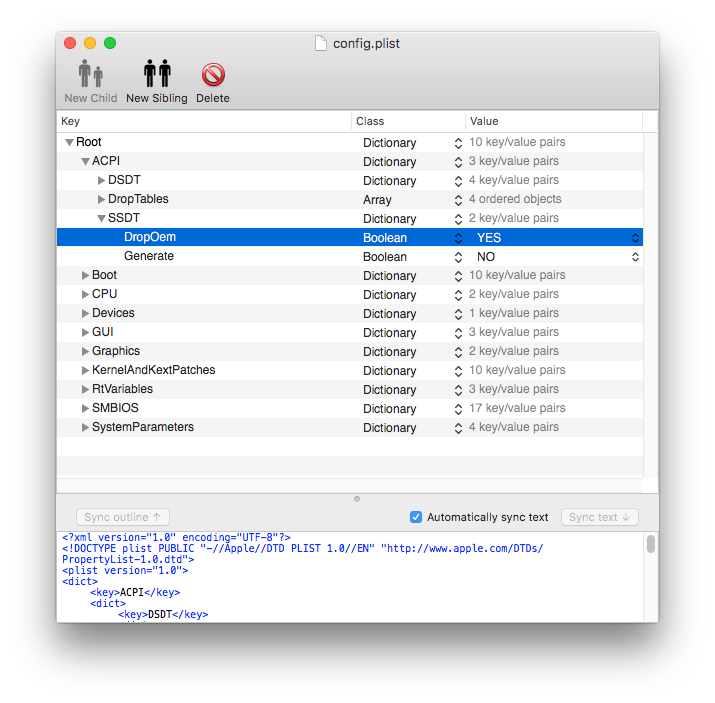

meltman Posted April 5, 2017 Author Share Posted April 5, 2017 Hmm when I set "DropOEM" I get a "crossed circle" and unsuccessful boot. 1 Link to comment https://www.insanelymac.com/forum/topic/322530-instant-wake-reason-ehc1-ehc2-xhc-only-plugged-into-usb-30-ports/#findComment-2399093 Share on other sites More sharing options...
meltman Posted April 5, 2017 Author Share Posted April 5, 2017 I don't see any options for BIOS USB Wake. Very bizarre that only the USB 3.0 ports exhibit the behavior. 1 Link to comment https://www.insanelymac.com/forum/topic/322530-instant-wake-reason-ehc1-ehc2-xhc-only-plugged-into-usb-30-ports/#findComment-2399172 Share on other sites More sharing options...
MaLd0n Posted April 5, 2017 Share Posted April 5, 2017 In ur case u need others ssdt for drop all tables, i,m back to home in one hour, ill check.SaSsdt with devices pci like peg, gfx and sata table too Link to comment https://www.insanelymac.com/forum/topic/322530-instant-wake-reason-ehc1-ehc2-xhc-only-plugged-into-usb-30-ports/#findComment-2399183 Share on other sites More sharing options...
MaLd0n Posted April 5, 2017 Share Posted April 5, 2017 use it and drop all Arquivo Comprimido.zip Link to comment https://www.insanelymac.com/forum/topic/322530-instant-wake-reason-ehc1-ehc2-xhc-only-plugged-into-usb-30-ports/#findComment-2399228 Share on other sites More sharing options...
meltman Posted April 5, 2017 Author Share Posted April 5, 2017 Will do first thing tomorrow morning. Thanks for the assistance. 1 Link to comment https://www.insanelymac.com/forum/topic/322530-instant-wake-reason-ehc1-ehc2-xhc-only-plugged-into-usb-30-ports/#findComment-2399250 Share on other sites More sharing options...
meltman Posted April 6, 2017 Author Share Posted April 6, 2017 Looks like with the latest stuff USB 2.0 will no longer wake with keyboard/mouse. USB 3.0 still instant-wakes with any device plugged into it. Might have to live with it. 1 Link to comment https://www.insanelymac.com/forum/topic/322530-instant-wake-reason-ehc1-ehc2-xhc-only-plugged-into-usb-30-ports/#findComment-2399600 Share on other sites More sharing options...
MaLd0n Posted April 6, 2017 Share Posted April 6, 2017 last try if dont work no more idea DSDT.03.zip Link to comment https://www.insanelymac.com/forum/topic/322530-instant-wake-reason-ehc1-ehc2-xhc-only-plugged-into-usb-30-ports/#findComment-2399645 Share on other sites More sharing options...
