84mac Posted March 13, 2017 Share Posted March 13, 2017 doing hackintosh for years for fun... got sierra and clover installed on an old z77x-up5 th gigabyte... would like suggestions on tweaking the install with any dsdt fixes and enabling any missing features... thanks in advance... Link to comment https://www.insanelymac.com/forum/topic/321842-sierra-on-an-old-z77/ Share on other sites More sharing options...
MaLd0n Posted March 14, 2017 Share Posted March 14, 2017 -Post ur full Clover folder -Post Ioreg, extract with Ioreg Explorer http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222606 -Run it, post files, generate in ur desktop http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222609 What ur GPU? 1 Link to comment https://www.insanelymac.com/forum/topic/321842-sierra-on-an-old-z77/#findComment-2383770 Share on other sites More sharing options...
84mac Posted March 14, 2017 Author Share Posted March 14, 2017 thank you so much MaLd0n... gpu is nvidia gtx 660... 1 Link to comment https://www.insanelymac.com/forum/topic/321842-sierra-on-an-old-z77/#findComment-2383796 Share on other sites More sharing options...
MaLd0n Posted March 14, 2017 Share Posted March 14, 2017 Update Clover https://sourceforge.net/projects/cloverefiboot/files/Installer/Clover_v2.4k_r4035.zip/download Replace full folder CLOVER.zip send me new ioreg after reboot http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222606 1 Link to comment https://www.insanelymac.com/forum/topic/321842-sierra-on-an-old-z77/#findComment-2384022 Share on other sites More sharing options...
84mac Posted March 14, 2017 Author Share Posted March 14, 2017 I'm running 4035... give me a moment to see if I can get it to update to same... here you go MaLd0n.... thanks for your patience Link to comment https://www.insanelymac.com/forum/topic/321842-sierra-on-an-old-z77/#findComment-2384090 Share on other sites More sharing options...
MaLd0n Posted March 14, 2017 Share Posted March 14, 2017 replace ur folder with my folder Clover http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=224286 smc sensors cause many problems and many mobos If u can check Processor Power, Temp and Frequency use it http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222729 1 Link to comment https://www.insanelymac.com/forum/topic/321842-sierra-on-an-old-z77/#findComment-2384150 Share on other sites More sharing options...
84mac Posted March 14, 2017 Author Share Posted March 14, 2017 here you go MaLd0n... after changing my clover folder to your clover folder and rebooting - here is my ioreg file for your review... thank you, thank you... I saw what you did... changing a clover driver (hfs) - usb kext - eliminating other stuff - and adding a dsdt... you know your stuff... please advise - especially on any usb stuff... again - thank you so much... Link to comment https://www.insanelymac.com/forum/topic/321842-sierra-on-an-old-z77/#findComment-2384250 Share on other sites More sharing options...
MaLd0n Posted March 14, 2017 Share Posted March 14, 2017 looks good, all is load now HDMI audio dont work, u use it or no difference for u? Ur boot slow now after DSDT? i apply hdmi patch, In some isolated cases causes a slowness. Audio onboard is good? i changed all let me know 1 Link to comment https://www.insanelymac.com/forum/topic/321842-sierra-on-an-old-z77/#findComment-2384279 Share on other sites More sharing options...
84mac Posted March 14, 2017 Author Share Posted March 14, 2017 I do use hdmi audio... and hdmi audio works and is good... on board audio is good as well... any usb work (rename or port mapping) needs doing?... am I good on turbo and power states?... max is 3.5Ghz... thank you again, sir... Link to comment https://www.insanelymac.com/forum/topic/321842-sierra-on-an-old-z77/#findComment-2384309 Share on other sites More sharing options...
MaLd0n Posted March 14, 2017 Share Posted March 14, 2017 strange, rename is ok run it for rebuild Olarila.command.zip send me a kextstat, run in terminal for native PM, run it ssdtPRGen.command.zip save and compile SSDT.aml, put in Clover/Acpi/Patched 1 Link to comment https://www.insanelymac.com/forum/topic/321842-sierra-on-an-old-z77/#findComment-2384325 Share on other sites More sharing options...
84mac Posted March 14, 2017 Author Share Posted March 14, 2017 ran Olarila... here is kextstat output... thanks MaLd0n... 1 Link to comment https://www.insanelymac.com/forum/topic/321842-sierra-on-an-old-z77/#findComment-2384366 Share on other sites More sharing options...
84mac Posted March 14, 2017 Author Share Posted March 14, 2017 is->>> ssdtPRGen.aml the compiled file?... this is the output... ASL Input: /Users/scm/Library/ssdtPRGen/ssdt.dsl - 318 lines, 9824 bytes, 74 keywordsAML Output: /Users/scm/Library/ssdtPRGen/ssdt.aml - 2288 bytes, 28 named objects, 46 executable opcodes 1 Link to comment https://www.insanelymac.com/forum/topic/321842-sierra-on-an-old-z77/#findComment-2384385 Share on other sites More sharing options...
MaLd0n Posted March 14, 2017 Share Posted March 14, 2017 open file and save USB dont work? 1 Link to comment https://www.insanelymac.com/forum/topic/321842-sierra-on-an-old-z77/#findComment-2384394 Share on other sites More sharing options...
84mac Posted March 14, 2017 Author Share Posted March 14, 2017 I have not checked USB yet... USB was always half-broken since ElCapitan... I renamed ssdt.aml to SSDT.aml and moved it into CLOVER/ACPI/patched... this is correct?... 1 Link to comment https://www.insanelymac.com/forum/topic/321842-sierra-on-an-old-z77/#findComment-2384399 Share on other sites More sharing options...
MaLd0n Posted March 14, 2017 Share Posted March 14, 2017 Yes and remove Generate P and C states in config.plist if u have checked this options after reboot, check ur ioreg 1 Link to comment https://www.insanelymac.com/forum/topic/321842-sierra-on-an-old-z77/#findComment-2384406 Share on other sites More sharing options...

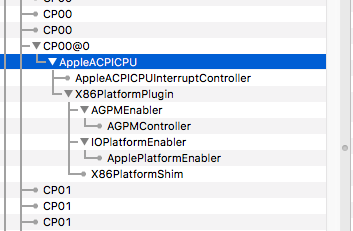

84mac Posted March 14, 2017 Author Share Posted March 14, 2017 Generate P states and C states was NOT enabled... so config.plist was good... after reboot... yes the shim is there - as in your .png... pike r. alpha makes some great hacks... thanks for helping me with them... ran geekbench and pegged to 3.9GHz... YES YES YES!!!... you the man Mald0n... anytime you need something - let me know... will check usb stuff tonight... thank you... thank you... thank you... I learned a lot also... 1 Link to comment https://www.insanelymac.com/forum/topic/321842-sierra-on-an-old-z77/#findComment-2384427 Share on other sites More sharing options...
MaLd0n Posted March 14, 2017 Share Posted March 14, 2017 Welcome! Enjoy! 1 Link to comment https://www.insanelymac.com/forum/topic/321842-sierra-on-an-old-z77/#findComment-2384436 Share on other sites More sharing options...
84mac Posted March 14, 2017 Author Share Posted March 14, 2017 again, thank you so much for your excellent directions and help... insanely mac is the best... 1 Link to comment https://www.insanelymac.com/forum/topic/321842-sierra-on-an-old-z77/#findComment-2384442 Share on other sites More sharing options...
