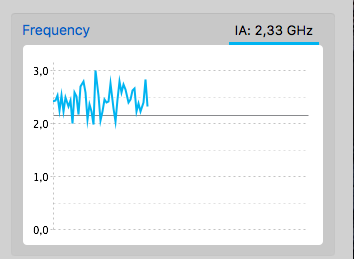

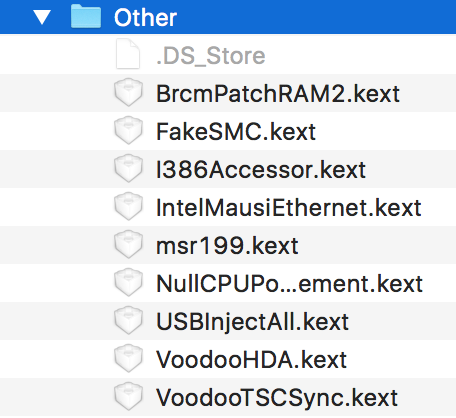

Panamamax Posted February 15, 2017 Share Posted February 15, 2017 Good day, i made some progress on my dual CPU system and am finally able to reliably boot into 10.12.1. Im running an Asus Z10PE-D8 WS motherboard with 2x E5-2667 V4 Engineering Sample CPUs (8 Cores, 2,9ghz base, 3,2ghz Turbo all cores) I am good in following 1:1 tutorials, youtube guides, etc... I'm not an IT expert and only limited familiar with Terminal (around the level of copy and paste ) So far i have the following Kext in my Others file: i can see in the intel power gadget some movement on the clock speeds, however its seams that it is currently topping out at 3,0ghz. i have been trying to generate my own ssdtPRGen, however and as expected it returns like this: Maxs-Mac-Pro-2:~ max$ /Users/max/ssdtPRGen.sh ssdtPRGen.sh v0.9 Copyright (c) 2011-2012 by † RevoGirl v6.6 Copyright (c) 2013 by † Jeroen v21.5 Copyright (c) 2013-2017 by Pike R. Alpha ----------------------------------------------------------- Bugs > https://github.com/Piker-Alpha/ssdtPRGen.sh/issues < System information: Mac OS X 10.12.1 (16B2555) Brandstring: "Genuine Intel(R) CPU 0000 @ 2.90GHz" Error: Unknown processor model ... Visit http://ark.intel.com to gather the required data: Processor Number TDP Low Frequency Mode (use AppleIntelInfo.kext) Base Frequency Max Turbo Frequency Cores Threads Aborting ... Done. Maxs-Mac-Pro-2:~ max$ i believe the information for my CPUs should be like this: Processor Number E5-2667 V4 ES (QHVD) TDP 135W Low Frequency Mode (use AppleIntelInfo.kext) 1200 MHz Base Frequency 2900 MHz Max Turbo Frequency 3200 MHz Cores 8 per CPU Threads 16 Per CPU Is there anybody around that could take me by the hand and guide me through the process... also I'm not sure if i need al the kext that i have currently installed, and if the combination makes sense... last but not least please find below some geek bench results: http://browser.primatelabs.com/geekbench3/8253154 https://browser.geekbench.com/v4/cpu/1867396 Thank you! Max Just to let you know, i basically don't need power management, if there is a solution that pins down my CPU speed at 3,2ghz max all the time this would be perfectly fine for me swell... i only use the machine if it is busy and needs to be fast, so i could easily live with the little extra power it sucks through the wall... Link to comment https://www.insanelymac.com/forum/topic/321194-asus-z10pe-d8-ws-dual-xeon-v4-es-powermanagement-ssdtprgen-help/ Share on other sites More sharing options...
okrasit Posted February 15, 2017 Share Posted February 15, 2017 Good day, i made some progress on my dual CPU system and am finally able to reliably boot into 10.12.1. Im running an Asus Z10PE-D8 WS motherboard with 2x E5-2667 V4 Engineering Sample CPUs (8 Cores, 2,9ghz base, 3,2ghz Turbo all cores) I am good in following 1:1 tutorials, youtube guides, etc... I'm not an IT expert and only limited familiar with Terminal (around the level of copy and paste ) So far i have the following Kext in my Others file: Bildschirmfoto 2017-02-15 um 18.56.18.png i can see in the intel power gadget some movement on the clock speeds, however its seams that it is currently topping out at 3,0ghz. Bildschirmfoto 2017-02-15 um 03.15.334.png i have been trying to generate my own ssdtPRGen, however and as expected it returns like this: Maxs-Mac-Pro-2:~ max$ /Users/max/ssdtPRGen.sh ssdtPRGen.sh v0.9 Copyright (c) 2011-2012 by † RevoGirl v6.6 Copyright (c) 2013 by † Jeroen v21.5 Copyright (c) 2013-2017 by Pike R. Alpha ----------------------------------------------------------- Bugs > https://github.com/Piker-Alpha/ssdtPRGen.sh/issues < System information: Mac OS X 10.12.1 (16B2555) Brandstring: "Genuine Intel(R) CPU 0000 @ 2.90GHz" Error: Unknown processor model ... Visit http://ark.intel.com to gather the required data: Processor Number TDP Low Frequency Mode (use AppleIntelInfo.kext) Base Frequency Max Turbo Frequency Cores Threads Aborting ... Done. Maxs-Mac-Pro-2:~ max$ i believe the information for my CPUs should be like this: Processor Number E5-2667 V4 ES (QHVD) TDP 135W Low Frequency Mode (use AppleIntelInfo.kext) 1200 MHz Base Frequency 2900 MHz Max Turbo Frequency 3200 MHz Cores 8 per CPU Threads 16 Per CPU Is there anybody around that could take me by the hand and guide me through the process... also I'm not sure if i need al the kext that i have currently installed, and if the combination makes sense... last but not least please find below some geek bench results: http://browser.primatelabs.com/geekbench3/8253154 https://browser.geekbench.com/v4/cpu/1867396 Thank you! Max Just to let you know, i basically don't need power management, if there is a solution that pins down my CPU speed at 3,2ghz max all the time this would be perfectly fine for me swell... i only use the machine if it is busy and needs to be fast, so i could easily live with the little extra power it sucks through the wall... It does 3.2GHz single core turbo but all core turbo is limited to 3.0GHz. Link to comment https://www.insanelymac.com/forum/topic/321194-asus-z10pe-d8-ws-dual-xeon-v4-es-powermanagement-ssdtprgen-help/#findComment-2368604 Share on other sites More sharing options...
Panamamax Posted February 16, 2017 Author Share Posted February 16, 2017 Thank you for the fast response and i guess you're right.... so i guess thats all the power i will get out of it until i eventually upgrade to OEM CPUs Link to comment https://www.insanelymac.com/forum/topic/321194-asus-z10pe-d8-ws-dual-xeon-v4-es-powermanagement-ssdtprgen-help/#findComment-2368787 Share on other sites More sharing options...
