wake up from sleep issue (10.12.3 & z97-a)

[szy1syz]

hi, i'm glad to install mac OS with hackintosh.

All functions are perfect, but it can't wake up from sleep.



Here are my computer specs:

• MB : ASUS z97-a usb3.1
• CPU : Intel i7-4790k
• GPU : null
• RAM : 16GB
• SSD : Samsung 850evo 250GB (OS X boot)
• HD : 3TB (storage)
• Bootloader : Clover v2.3k r3766 UEFI Boot Mode

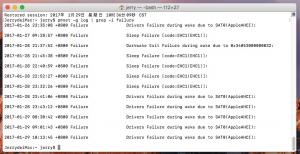

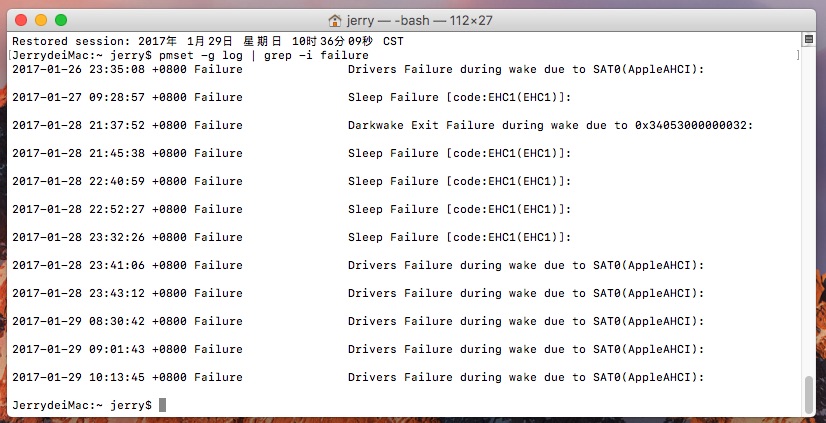

some logs:

2017-01-28 23:41:06 +0800 Failure             	Drivers Failure during wake due to SAT0(AppleAHCI):
2017-01-28 23:43:12 +0800 Failure             	Drivers Failure during wake due to SAT0(AppleAHCI):
2017-01-29 08:30:42 +0800 Failure             	Drivers Failure during wake due to SAT0(AppleAHCI):
2017-01-29 09:01:43 +0800 Failure             	Drivers Failure during wake due to SAT0(AppleAHCI):
2017-01-29 10:13:45 +0800 Failure             	Drivers Failure during wake due to SAT0(AppleAHCI):

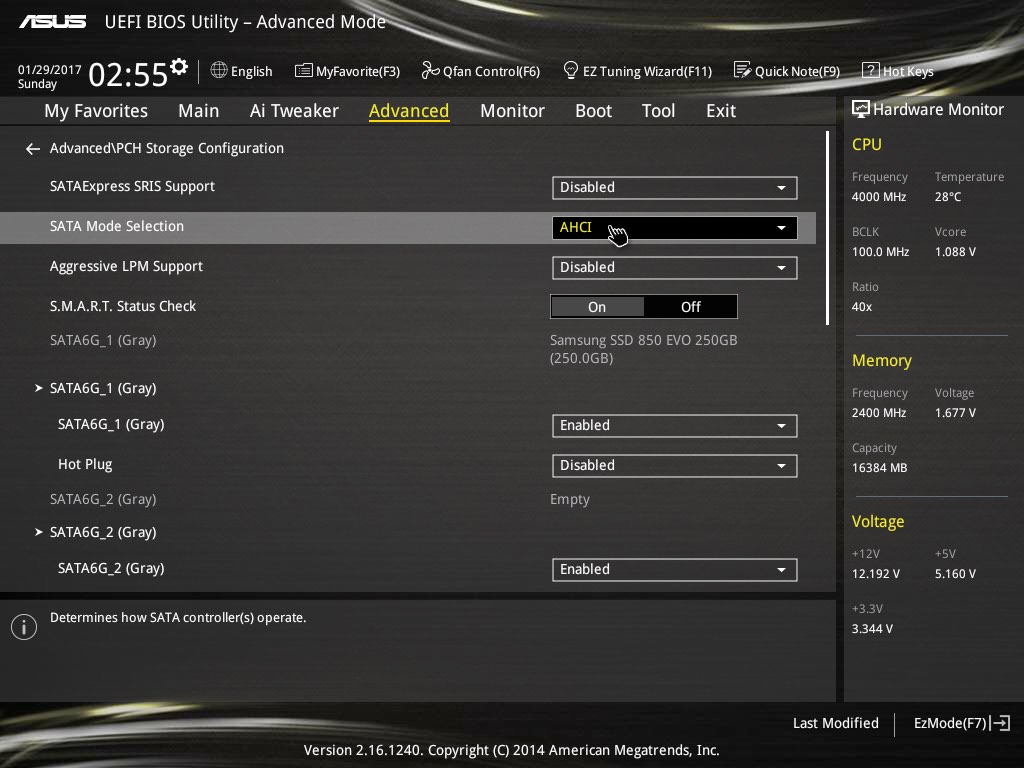

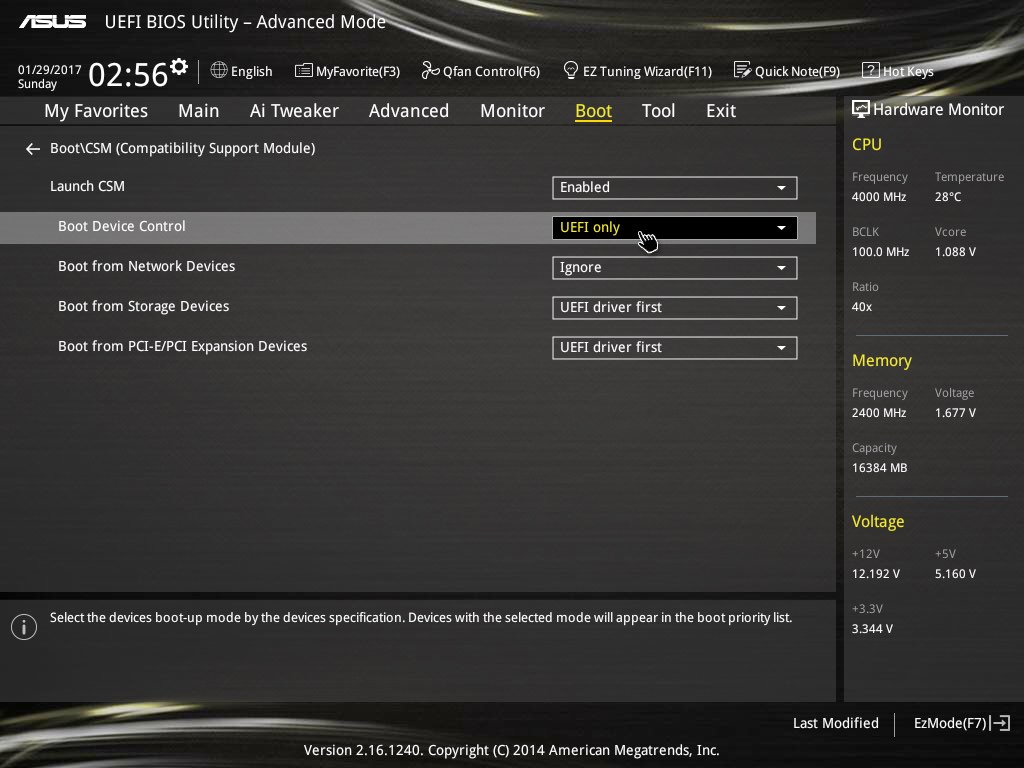

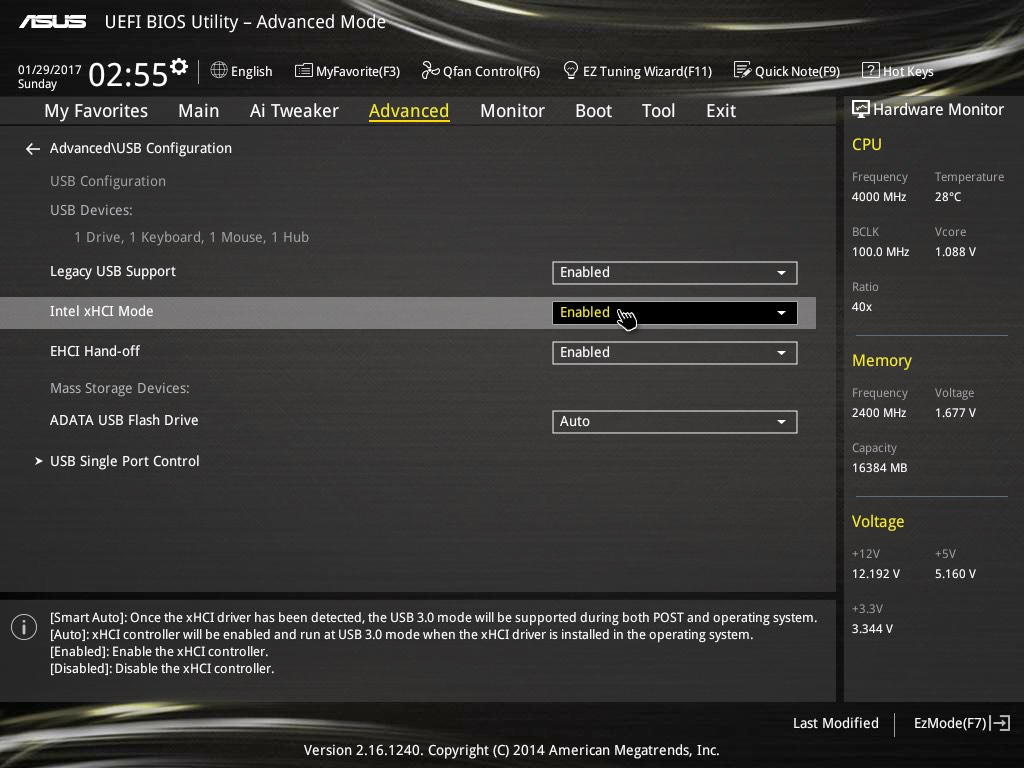

some mb settings:





Thanks for your help



2017-01-28 23:32:26 +0800 Failure             	Sleep Failure [code:EHC1(EHC1)]:

this issues is ok.  The problem is caused by tp-link(TL_WN823N).

[szy1syz]

gooood

finally, the issue was solved when i selected HaltEnabler、SuspendOverride、SlpSmiAtWake in clover!



please closed topic.
