MSI ZH77A-G43 - refusing to sleep


Ion Darie
 Share

50 posts in this topic

Recommended Posts

Hi guys,



I am trying to make my hackintosh to sleep but it refuses  :(. When i hit sleep it goes to "sleep" but the fans never turn off and i can't wake the rig, I always need to restart.



DSDT has no errors, generated SSDT with ssdtPRGen.sh completed with no errors.



Ill attach my IOREG, DSDT, SSDT, CLOVER cfg maybe some one can point me in the right direction for fixing this.



Thank you,





IOREG.zip

DSDT.aml.zip

SSDT.aml.zip

config.plist.zip

  • Like 1
Link to comment
Share on other sites

MaLd0n thank you for trying to help me!



ok so i replaced the files and tested here are the results:



1. Slower boot-time

2. Sleep still doesn't work it shuts down the display/mouse/keyboard but the fans/hdd remain on

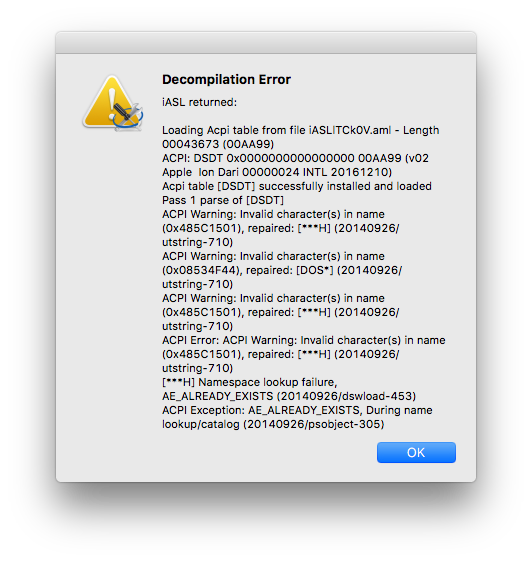

I tried to open the DSDT you attached but i get this error


  • Like 1
Link to comment
Share on other sites

i apply patches for it, only confirmation!



see...



in old times my sleep broken with com.realtek.driver.RTL8192SU



remove realtek wifi and test


other



try nativepm with clover


need some tests

Link to comment
Share on other sites

dont delete, only unplugged wlan :D



i think u use dropoem ssdt if u extract all ssdt in use



if u use only DSDT and SSDT pike, dont drop all ssdt, i think the system use others



i extract all ssdt in osx with patchmatic and after i used drop all



unchecked dropssdt

reboot and use it

https://bitbucket.org/RehabMan/os-x-maciasl-patchmatic/downloads/RehabMan-patchmatic-2016-0312.zip

extract and put in /usr/bin

open terminal

cd ~/Desktop
mkdir extract
cd extract
patchmatic -extract

after u have all ssdt in use for osx, put in clover folder and check dropoemssdt

Link to comment
Share on other sites

done all of the above but it still wont sleep... Would reinstalling macOS help? (Maybe i messed up hibernation settings while i was trying to achieve sleep)

if u can try...

Link to comment
Share on other sites

Clover 3974



Let's say i needed to start from scratch with my hackintosh, i was thinking of these steps:



1. Extract all DSDT/SSDT from Linux

2. Fix/patch DSDT/SSDT (nerver tried that)

3. Make a new clover config

4. Install macOS Sierra



Please correct me if i am wrong.

Link to comment
Share on other sites

extract with clover, in boot screen press f4

config.plist generate in clover installation



-instal OS

-instal Clover

-extract and edit DSDT and SSDT

Done



send me ur original dsdt if u can, i apply essencial

Link to comment
Share on other sites

System information: Mac OS X 10.12.2 (16C68)

Brandstring: "Intel® Core i3-2100 CPU @ 3.10GHz"

Notice: Downloading extractACPITables.zip ...
Notice: Downloading User Defined.cfg ...
Notice: Downloading Sandy Bridge.cfg ...
Version: models.cfg v160 / Sandy Bridge.cfg v150


Scope (_PR_) {222 bytes} with ACPI Processor declarations found in DSDT (ACPI 1.0 compliant)
Notice: Downloading Restrictions.cfg ...
Generating ssdt.dsl for a 'iMac12,1' with board-id [Mac-942B5BF58194151B]
Sandy Bridge Core i3-2100 processor [0x206A7] setup [0x0903]
With a maximum TDP of 65 Watt, as specified by Intel
Number logical CPU's: 4 (Core Frequency: 3100 MHz)
Number of Turbo States: 0
Number of P-States: 16 (1600-3100 MHz)
Injected C-States for CPU0 (C1,C3,C6)
Warning: 'cpu-type' may be set improperly (0x0903 instead of 0x0603)
- Clover users should read https://clover-wiki.zetam.org/Configuration/CPU#cpu_typeNotice:Downloading iasl.zip ...

Compiling: ssdt_pr.dsl
Intel ACPI Component Architecture
ASL Optimizing Compiler version 20140926-64 [Nov  6 2014]
Copyright © 2000 - 2014 Intel Corporation

ASL Input:     /Users/iondarie/Library/ssdtPRGen/ssdt.dsl - 160 lines, 4838 bytes, 34 keywords
AML Output:    /Users/iondarie/Library/ssdtPRGen/ssdt.aml - 1256 bytes, 11 named objects, 23 executable opcodes

Compilation complete. 0 Errors, 0 Warnings, 0 Remarks, 0 Optimizations
  • Like 1
Link to comment
Share on other sites

solved the error by manually setting 0x0603 in clover.



Generating ssdt.dsl for a 'iMac12,1' with board-id [Mac-942B5BF58194151B]

Sandy Bridge Core i3-2100 processor [0x206A7] setup [0x0603]
With a maximum TDP of 65 Watt, as specified by Intel
Number logical CPU's: 4 (Core Frequency: 3100 MHz)
Number of Turbo States: 0
Number of P-States: 16 (1600-3100 MHz)
Injected C-States for CPU0 (C1,C3,C6)
Notice: Downloading iasl.zip ...

Compiling: ssdt_pr.dsl
Intel ACPI Component Architecture
ASL Optimizing Compiler version 20140926-64 [Nov  6 2014]
Copyright © 2000 - 2014 Intel Corporation

ASL Input:     /Users/iondarie/Library/ssdtPRGen/ssdt.dsl - 160 lines, 4838 bytes, 34 keywords
AML Output:    /Users/iondarie/Library/ssdtPRGen/ssdt.aml - 1256 bytes, 11 named objects, 23 executable opcodes

Compilation complete. 0 Errors, 0 Warnings, 0 Remarks, 0 Optimizations

Anything else I need to set in clover like drop oem ssdt?
Link to comment
Share on other sites

Yasssssasss it sleeps its' so so quiet!!!!



But it wont wake on mouse/keyboard, tried to wake it from button but i get panic... trying to catch the error to see what it says





Sent from my iPhone using Tapatalk Pro
