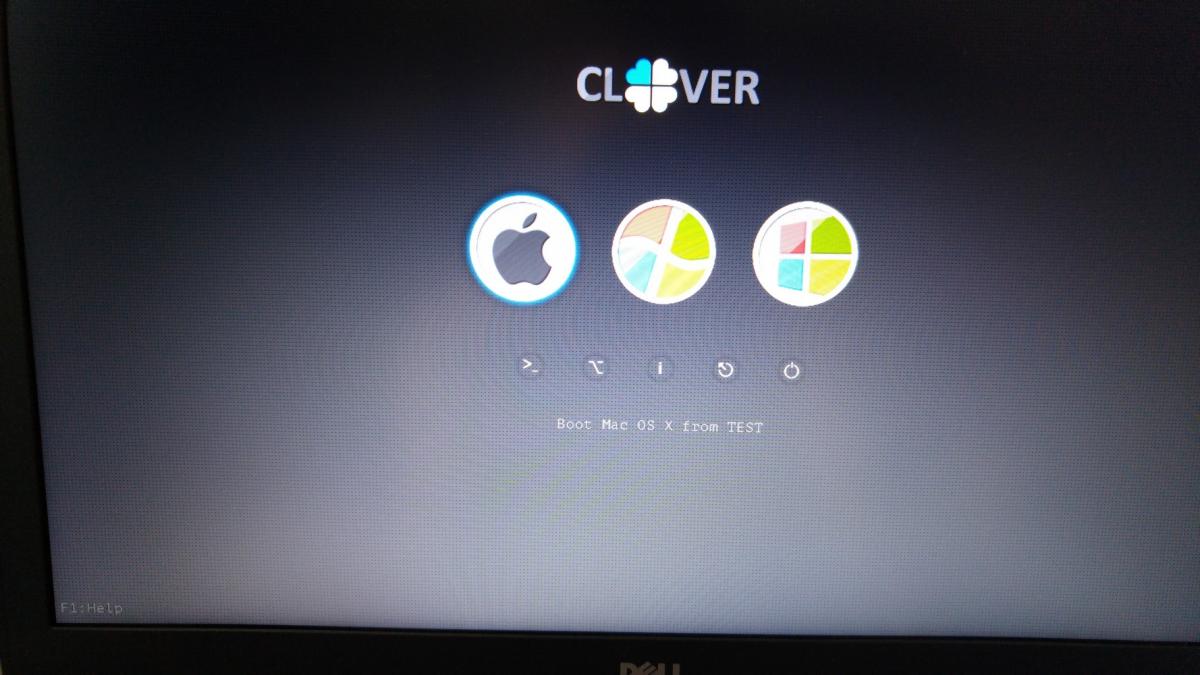

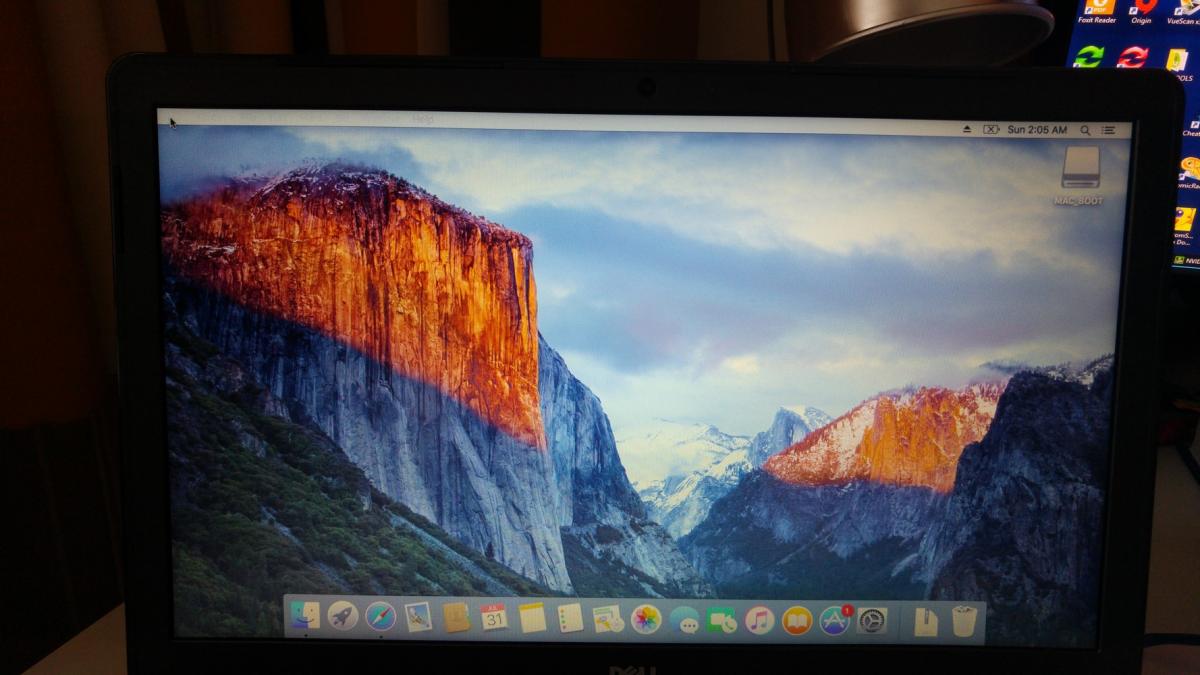

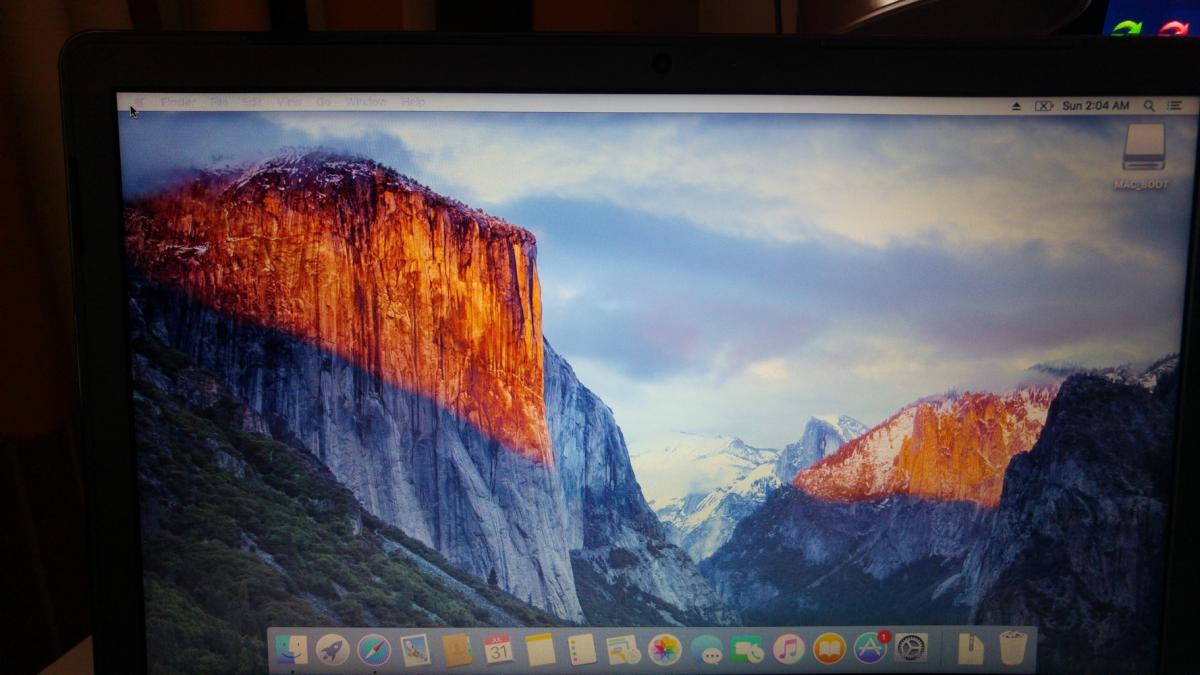

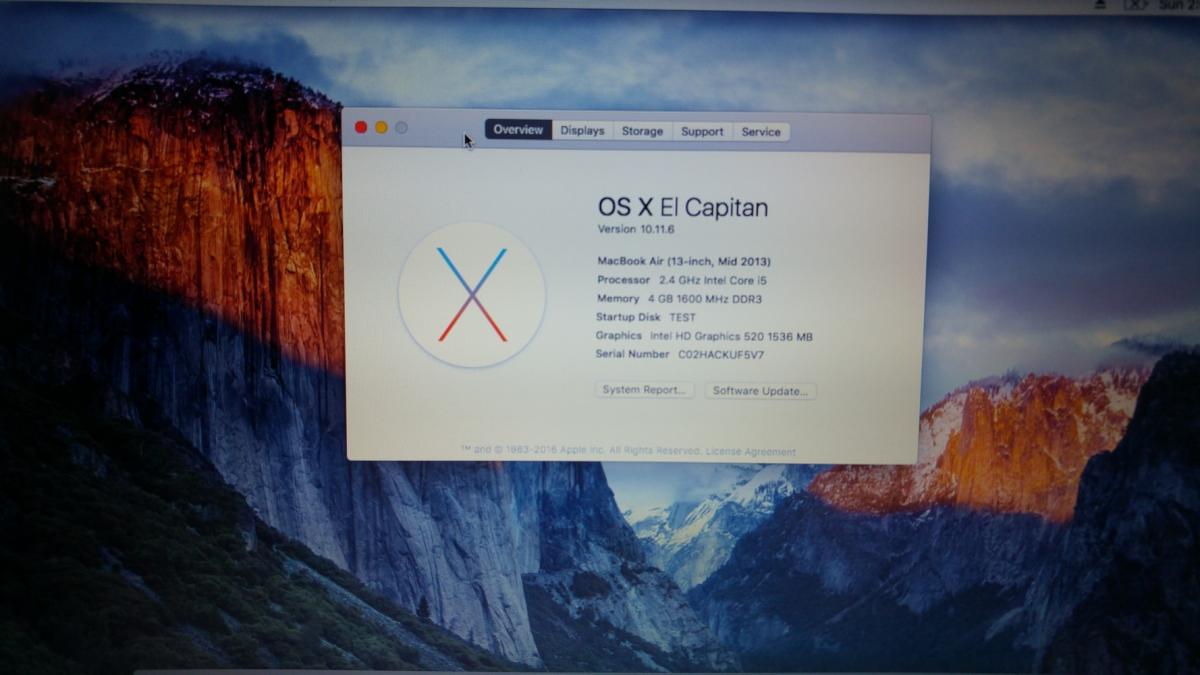

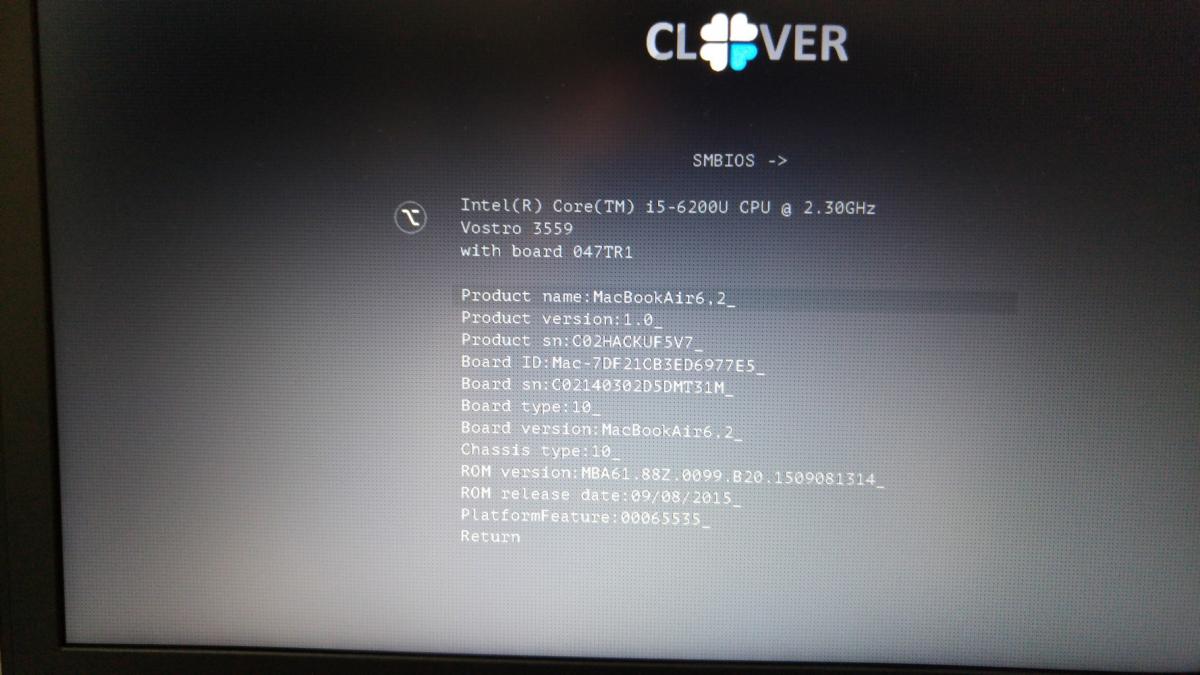

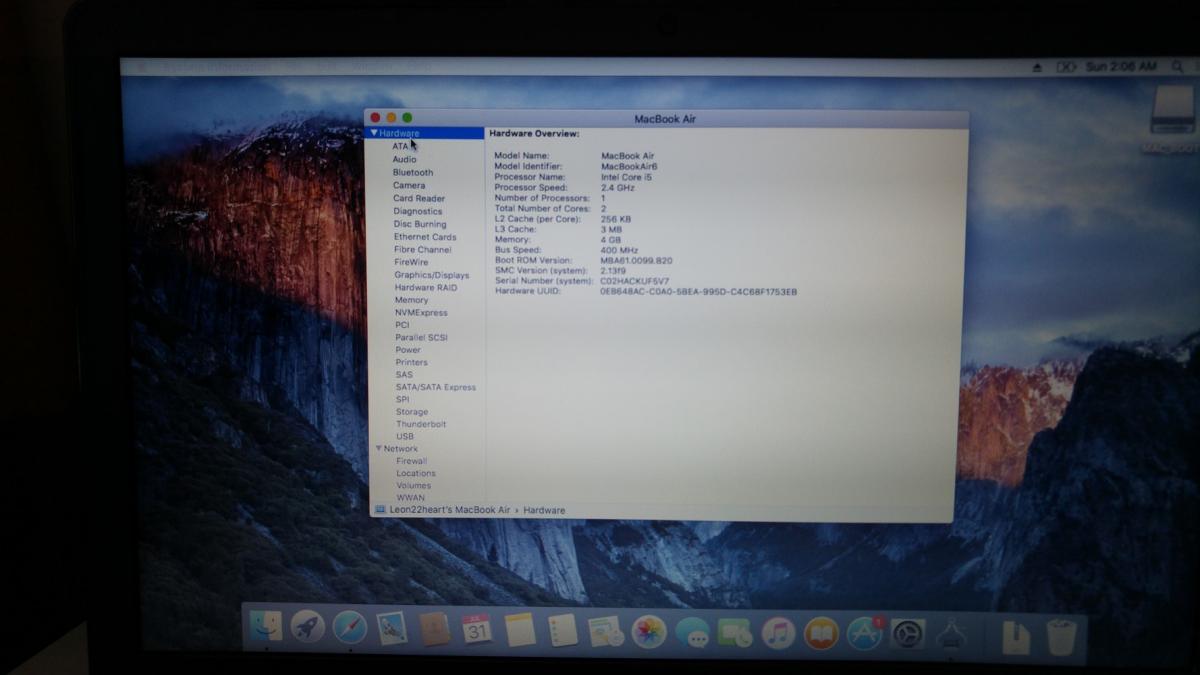

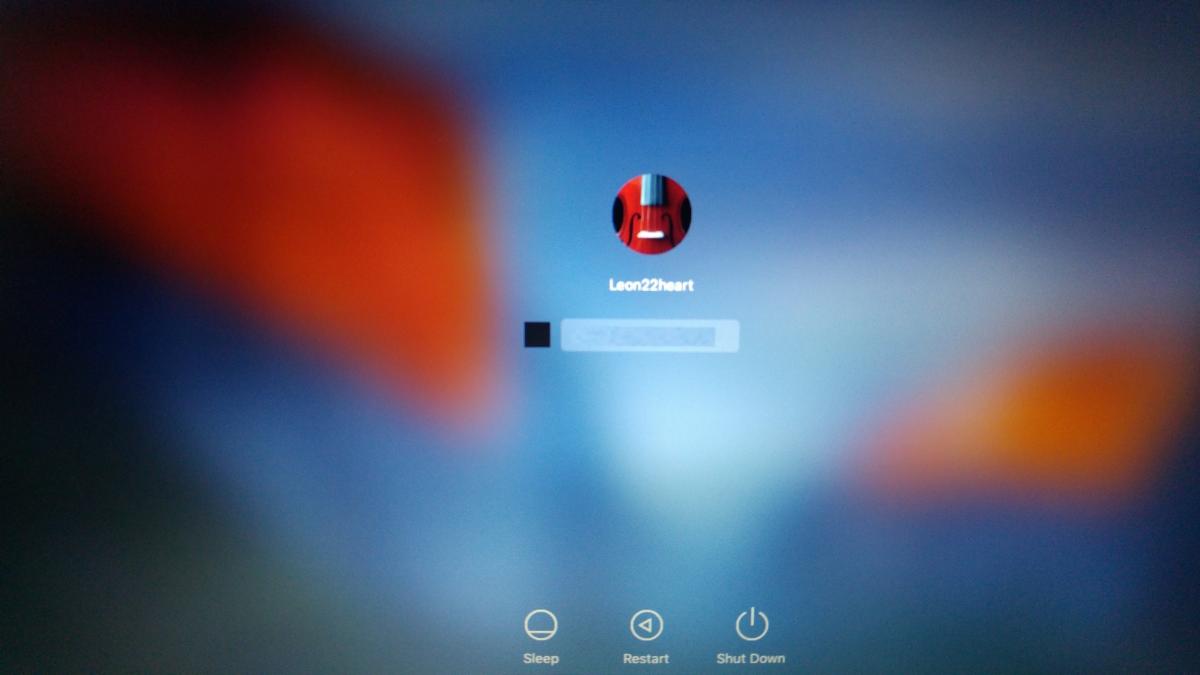

leon22heart Posted July 31, 2016 Share Posted July 31, 2016 I managed to install El Capitan version 10.11.6 in my Dell Vostro using a Fat 32 usb with Clover and a Pandora created install usb (wanted to apply the MBR patch) .The computer had issues seeing my internal sata disk unless i used the intel-100-series-unsupported-patch.kext . Anyways i managed to install everything , but now i have a strange problem . Clover does not see my installation . So i experimented a little . I created a hfs+ partition in an external HDD , installed El Capitan there again and i use that installation to boot to El Capitan (another strange problem , Clover does not see the external HDD Mac if it is already plugged in by boot time . If i disconnect and reconnect the drive my installation is visible and i can go straight to Mac ) . So down below i post my Computer specs generated by Sisoft Sandra and my Clover configuration . If anyone can point me how can i solve the sata visible-invisible bug so i can access my inner disk installation and how to solve the artifacts of the Intel HD520 graphic card (nothing serious , just annoying ) ? Much appreciated . And some screenshots . CLOVER.rar Computer Report.htm Link to comment Share on other sites More sharing options...
vusun123 Posted July 31, 2016 Share Posted July 31, 2016 I managed to install El Capitan version 10.11.6 in my Dell Vostro using a Fat 32 usb with Clover and a Pandora created install usb (wanted to apply the MBR patch) .The computer had issues seeing my internal sata disk unless i used the intel-100-series-unsupported-patch.kext . Anyways i managed to install everything , but now i have a strange problem . Clover does not see my installation . So i experimented a little . I created a hfs+ partition in an external HDD , installed El Capitan there again and i use that installation to boot to El Capitan (another strange problem , Clover does not see the external HDD Mac if it is already plugged in by boot time . If i disconnect and reconnect the drive my installation is visible and i can go straight to Mac ) . So down below i post my Computer specs generated by Sisoft Sandra and my Clover configuration . If anyone can point me how can i solve the sata visible-invisible bug so i can access my inner disk installation and how to solve the artifacts of the Intel HD520 graphic card (nothing serious , just annoying ) ? Much appreciated . And some screenshots . About the artifact, change your DVMT Pre-Alloc to 64MB, yours probably are 32 or 128MB. About the drive, it is wise to set DropOEM=false 1 Link to comment Share on other sites More sharing options...

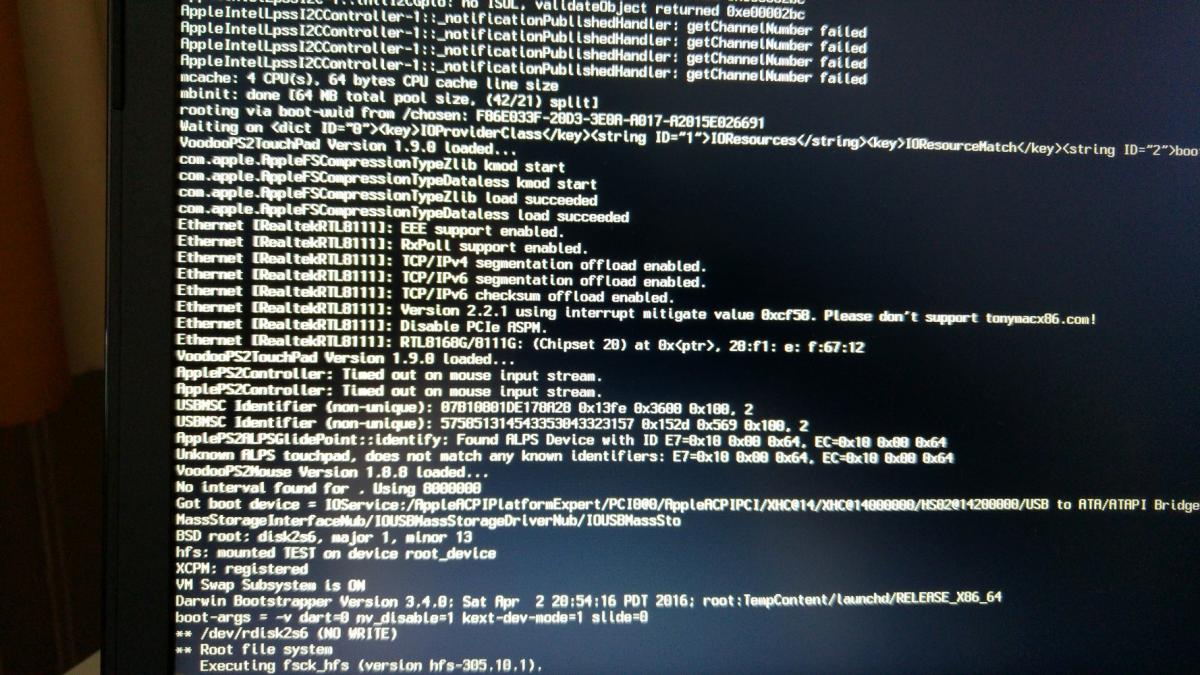

leon22heart Posted July 31, 2016 Author Share Posted July 31, 2016 Thank you very much for your reply . 1. My BIOS does not allow the change and is steady at 128mb .Is there a way to change it via Clover ? 2. DropOEM=false is allready enabled in my .plist 3. The thing that eats me , since the artifacts are a minor thing is the /dev/rsdisk2s6 (NO WRITE) shown in my verbose screenshot posted in the start of the thread . I believe that this error erodes slowly the system and when i try to shutdown it shows umount /home failed , umount /net failed , an error not shown in my Hackingtosh Mavericks Desktop .I can only imagine it has something to do with the sata kext. Link to comment Share on other sites More sharing options...
vusun123 Posted July 31, 2016 Share Posted July 31, 2016 Thank you very much for your reply . 1. My BIOS does not allow the change and is steady at 128mb .Is there a way to change it via Clover ? 2. DropOEM=false is allready enabled in my .plist 3. The thing that eats me , since the artifacts are a minor thing is the /dev/rsdisk2s6 (NO WRITE) shown in my verbose screenshot posted in the start of the thread . I believe that this error erodes slowly the system and when i try to shutdown it shows umount /home failed , umount /net failed , an error not shown in my Hackingtosh Mavericks Desktop .I can only imagine it has something to do with the sata kext. Don't trust Windows's DVMT detection. Use Chameleon/Enoch with no theme to check it. You can visit Austere J's HD5500 guide for the method 1 Link to comment Share on other sites More sharing options...
leon22heart Posted August 1, 2016 Author Share Posted August 1, 2016 Will try the guide and see if i can adjust the allocated memory . Have been experimenting with the issue that even though i installed the os in my internal ssd the system throwed me back errors and kernel panics .So i created a backup of my el capitan that was installed in an external hdd using carbon copy and restored it in my internal hdd .Boom , system boots and works fine . All that is missing are the graphical glitches and the sound . Will reporr back with further sucess. Link to comment Share on other sites More sharing options...
nina51 Posted December 16, 2017 Share Posted December 16, 2017 Will try the guide and see if i can adjust the allocated memory . Have been experimenting with the issue that even though i installed the os in my internal ssd the system throwed me back errors and kernel panics .So i created a backup of my el capitan that was installed in an external hdd using carbon copy and restored it in my internal hdd .Boom , system boots and works fine . All that is missing are the graphical glitches and the sound . Will reporr back with further sucess. Hallo, gegen den Grafik-Fehler hilft einmaliges Ab- und wieder Anmelden des Users (Apfel-Shift Q). Dann läuft die Grafik Link to comment Share on other sites More sharing options...
