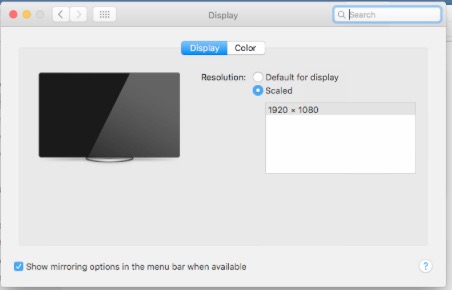

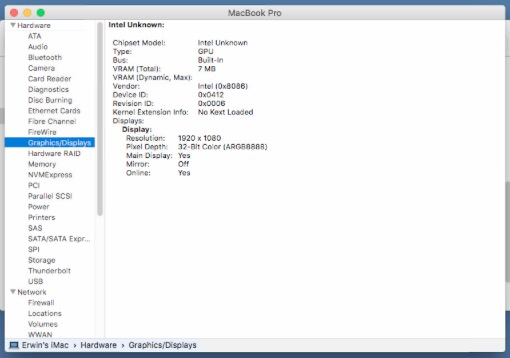

lulolulito Posted January 20, 2016 Share Posted January 20, 2016 Hi everyone, I managed to install El Capitan on my Dell Poweredge T20 (xeon 1225 v3 haswell) , everything is working except for the built-in video, and by not working I mean the QE/CI and no kext are loading for drivers. I am a newbie on the hackintosh scene, I am impressed that I got this far I know that there are some people in the community that have managed to inject the right code to enable the intel graphics, One more thing, I am using a 4K HDTV chroma 4:4:4 and I also have a Club3D Displayport 1.2 to HDMI 2.0 with a new hdmi 2.0 cable that supports 4k and yadayada. I get video, I can see everything, but when I scroll down or up on the browser then things start to break down. The screen starts to {censored} out, also I can't change the resolution from 1920 x 1080 and I believe the system thinks I am using a Projector as my monitor or that the monitor is connected on a secondary port here are some screenshots attached This is the system thinking I am using a projector This is screen resolution that can't be changed This is the Hardware ID's for the HD P4600 Plase help me figure this out, Thank you Link to comment Share on other sites More sharing options...
RehabMan Posted January 20, 2016 Share Posted January 20, 2016 Hi everyone, I managed to install El Capitan on my Dell Poweredge T20 (xeon 1225 v3 haswell) , everything is working except for the built-in video, and by not working I mean the QE/CI and no kext are loading for drivers. Looks like you're already using FakeID 0x0412 (HD4600 desktop). So you just need to install FakePCIID.kext+FakePCIID_Intel_HD_Graphics.kext. Make sure you're injecting ig-platform-id. The Clover default works well for most desktop configurations (so you only need config.plist/Graphics/Inject/Intel=true), no need to specify a specific ig-platform-id with config.plist/Graphics/ig-platform-id. Make sure you read the README for download locations... https://github.com/RehabMan/OS-X-Fake-PCI-ID 1 Link to comment Share on other sites More sharing options...
lulolulito Posted January 20, 2016 Author Share Posted January 20, 2016 Looks like you're already using FakeID 0x0412 (HD4600 desktop). So you just need to install FakePCIID.kext+FakePCIID_Intel_HD_Graphics.kext. Make sure you're injecting ig-platform-id. The Clover default works well for most desktop configurations (so you only need config.plist/Graphics/Inject/Intel=true), no need to specify a specific ig-platform-id with config.plist/Graphics/ig-platform-id. Make sure you read the README for download locations... https://github.com/RehabMan/OS-X-Fake-PCI-ID Thank you for the clarification, I am working on this now Link to comment Share on other sites More sharing options...
dafal Posted January 26, 2016 Share Posted January 26, 2016 @lulolulito, It is also my first experience with Hackintosh and I started with a PowerEdge T20. I was able to enable the GPU following this topic : http://www.tonymacx86.com/graphics/155051-intel-hd-4400-desktop-graphics-fix-full-support-alternate-cpus-os-x-4.html However I still have an issue with USB3 and audio. Were you able to make them working ? When I enable USB3 the system simply does not boot; it stops just after the small apple on the startup screen. Link to comment Share on other sites More sharing options...
