marcoscar Posted January 10, 2016 Share Posted January 10, 2016 Hello, at first, I'm french... hope you will understand my english. I'm running with El capitan (clover instal, legacy way)... everything is ok expect 3 points : - my computer never boots correctly at the first time... It automatically reboots, before I have to type my password, a second time and then I finally find my "password screen"... and it's running ok... does any one has an idea to fix this problem? - my eject button keyboard is not working.... any idea? - and last point, at the "password screen session", when I click to shutdown my computer reboot.... don't undestand! any kind of help are welcome... Thanks, Marco Link to comment Share on other sites More sharing options...
Codinger Posted January 10, 2016 Share Posted January 10, 2016 Bonjour, can you tell me your Bootloader and wich Hardware you are using? Link to comment Share on other sites More sharing options...
carbo178 Posted January 10, 2016 Share Posted January 10, 2016 Please send your config.plist Clover Legacy is installed in the root of the HD or in the EFI partition? Link to comment Share on other sites More sharing options...
marcoscar Posted January 11, 2016 Author Share Posted January 11, 2016 Bonjour, can you tell me your Bootloader and wich Hardware you are using? hello, my hardware is : Gigabyte GA-P61-USB3-B3 - BIOS F11 - no UEFI MOTHER CARD Intel I5 2500 SKT 1155 - QUAD - 3,3/3,7 GHZ - Graphic HD 3000 Box Nvidia geforce GT 740 MSI 2 Go DDR3 - 500Go seagate 16Mo - SSD OCZ 120 Go RAM 2x4Go ddr3 1333 dual channel my bootloader is clover 3330 Do you have any idea to fix my problem? is it because of my video card? Thks, Marco Please send your config.plist Clover Legacy is installed in the root of the HD or in the EFI partition? Hi thanks for helping ! • I'm not sure for the instal place for the Clover Legacy, so I send a screen shot, you will tell me... : • this is my .plist : <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd"> <plist version="1.0"> <dict> <key>ACPI</key> <dict> <key>DSDT</key> <dict> <key>Debug</key> <false/> <key>Fixes</key> <dict> <key>AddDTGP_0001</key> <true/> <key>AddHDMI_8000000</key> <true/> <key>AddIMEI_80000</key> <true/> <key>AddMCHC_0008</key> <false/> <key>AddPNLF_1000000</key> <true/> <key>DeleteUnused_400000</key> <true/> <key>FIX_ACST_4000000</key> <true/> <key>FIX_ADP1_800000</key> <true/> <key>FIX_INTELGFX_100000</key> <false/> <key>FIX_RTC_20000</key> <true/> <key>FIX_S3D_2000000</key> <true/> <key>FIX_TMR_40000</key> <true/> <key>FIX_WAK_200000</key> <true/> <key>FakeLPC_0020</key> <false/> <key>FixAirport_4000</key> <true/> <key>FixDarwin_0002</key> <false/> <key>FixDisplay_0100</key> <true/> <key>FixFirewire_0800</key> <true/> <key>FixHDA_8000</key> <true/> <key>FixHPET_0010</key> <true/> <key>FixIDE_0200</key> <false/> <key>FixIPIC_0040</key> <true/> <key>FixLAN_2000</key> <true/> <key>FixRegions_10000000</key> <true/> <key>FixSATA_0400</key> <false/> <key>FixSBUS_0080</key> <false/> <key>FixShutdown_0004</key> <true/> <key>FixUSB_1000</key> <false/> <key>NewWay_80000000</key> <true/> </dict> <key>Name</key> <string>DSDT.aml</string> </dict> <key>DropTables</key> <array> <dict> <key>Signature</key> <string>DMAR</string> </dict> <dict> <key>Signature</key> <string>SSDT</string> <key>TableId</key> <string>CpuPm</string> </dict> <dict> <key>Signature</key> <string>SSDT</string> <key>TableId</key> <string>Cpu0Ist</string> </dict> </array> <key>HaltEnabler</key> <true/> <key>SSDT</key> <dict> <key>EnableC2</key> <false/> <key>EnableC4</key> <false/> <key>EnableC6</key> <true/> <key>EnableC7</key> <false/> <key>Generate</key> <dict> <key>CStates</key> <true/> <key>PStates</key> <true/> </dict> </dict> </dict> <key>Boot</key> <dict> <key>Arguments</key> <string>kext-dev-mode=1 rootless=0</string> <key>CustomLogo</key> <false/> <key>DefaultVolume</key> <string>EL CAPITAN</string> <key>Fast</key> <false/> <key>Legacy</key> <string>PBR</string> <key>Log</key> <false/> <key>Timeout</key> <integer>0</integer> <key>XMPDetection</key> <string>-1</string> </dict> <key>Devices</key> <dict> <key>Audio</key> <dict> <key>Inject</key> <string>No</string> </dict> <key>FakeID</key> <dict> <key>ATI</key> <string>0x0</string> <key>IMEI</key> <string>0x0</string> <key>IntelGFX</key> <string>0x0</string> <key>LAN</key> <string>0x0</string> <key>NVidia</key> <string>0x0</string> <key>SATA</key> <string>0x0</string> <key>WIFI</key> <string>0x0</string> <key>XHCI</key> <string>0x0</string> </dict> <key>Inject</key> <false/> <key>USB</key> <dict> <key>AddClockID</key> <true/> <key>FixOwnership</key> <true/> <key>Inject</key> <true/> </dict> </dict> <key>DisableDrivers</key> <array> <string>Nothing</string> </array> <key>GUI</key> <dict> <key>Hide</key> <array> <string>Windows</string> <string>BOOTX64.EFI</string> </array> <key>Language</key> <string>en:0</string> <key>Mouse</key> <dict> <key>Enabled</key> <true/> <key>Speed</key> <integer>8</integer> </dict> <key>Scan</key> <dict> <key>Entries</key> <true/> <key>Legacy</key> <true/> <key>Tool</key> <true/> </dict> <key>TextOnly</key> <false/> <key>Theme</key> <string>applestyle</string> </dict> <key>Graphics</key> <dict> <key>Inject</key> <dict> <key>ATI</key> <false/> <key>Intel</key> <true/> <key>NVidia</key> <false/> </dict> <key>PatchVBios</key> <false/> </dict> <key>KernelAndKextPatches</key> <dict> <key>AppleRTC</key> <true/> <key>AsusAICPUPM</key> <true/> <key>Debug</key> <false/> <key>KernelCpu</key> <false/> <key>KextsToPatch</key> <array> <dict> <key>Comment</key> <string>Patching 10ec0885 with 10ec0888 codec</string> <key>Find</key> <data> hQjsEA== </data> <key>Name</key> <string>AppleAHCIPort</string> <key>Replace</key> <data> iAjsEA== </data> </dict> </array> </dict> <key>RtVariables</key> <dict> <key>BooterConfig</key> <string>0x28</string> <key>CsrActiveConfig</key> <string>0x67</string> <key>LogEveryBoot</key> <string>10</string> <key>LogLineCount</key> <integer>3000</integer> <key>MountEFI</key> <true/> </dict> <key>SMBIOS</key> <dict> <key>BiosReleaseDate</key> <string>09/03/2013</string> <key>BiosVendor</key> <string>Apple Inc.</string> <key>BiosVersion</key> <string>IM141.88Z.0118.B00.1309031248</string> <key>Board-ID</key> <string>Mac-031B6874CF7F642A</string> <key>BoardManufacturer</key> <string>Apple Inc.</string> <key>BoardType</key> <integer>10</integer> <key>ChassisAssetTag</key> <string>iMac-Aluminum</string> <key>ChassisManufacturer</key> <string>Apple Inc.</string> <key>ChassisType</key> <string>13</string> <key>Family</key> <string>iMac</string> <key>Manufacturer</key> <string>Apple Inc.</string> <key>ProductName</key> <string>iMac14,1</string> <key>SerialNumber</key> <string>C02LXB47F8J2</string> <key>Trust</key> <false/> <key>Version</key> <string>1.0</string> </dict> <key>SystemParameters</key> <dict> <key>InjectKexts</key> <string>Detect</string> <key>InjectSystemID</key> <true/> </dict> </dict> </plist> Thanks for taking time for me ! hope you will find anything to help me... Marco Link to comment Share on other sites More sharing options...
carbo178 Posted January 11, 2016 Share Posted January 11, 2016 Your config.plist have something wrong, put this in substitution of the original config.plist.zip Reboot and download MacIasl, launch the app and extract the DSDT, save the file as DSDT.dsl, compress and send it Link to comment Share on other sites More sharing options...
marcoscar Posted January 11, 2016 Author Share Posted January 11, 2016 Your config.plist have something wrong, put this in substitution of the original config.plist.zip Reboot and download MacIasl, launch the app and extract the DSDT, save the file as DSDT.dsl, compress and send it Can you just tell me what is wrong in my .plist? I will try yours tonignt.... i'm at work now... thks Link to comment Share on other sites More sharing options...
Codinger Posted January 11, 2016 Share Posted January 11, 2016 Your config.plist have something wrong, put this in substitution of the original config.plist.zip Reboot and download MacIasl, launch the app and extract the DSDT, save the file as DSDT.dsl, compress and send it Why not clover f4? Link to comment Share on other sites More sharing options...
carbo178 Posted January 11, 2016 Share Posted January 11, 2016 Can you just tell me what is wrong in my .plist? I will try yours tonignt.... i'm at work now... thks Your smbios, in primis. Also qcpi aection, with new way active is not cor Why not clover f4? Because Clover is installed in the root partition, F4 key working only if Clover is installed in the ESP rect for your system Link to comment Share on other sites More sharing options...
marcoscar Posted January 11, 2016 Author Share Posted January 11, 2016 Your smbios, in primis. Also qcpi aection, with new way active is not cor Because Clover is installed in the root partition, F4 key working only if Clover is installed in the ESP rect for your system # carbo : thks Also qcpi aection, with new way active is not cor??? what do you mean? I don't need new clover? that's it, F4? thks Link to comment Share on other sites More sharing options...
Codinger Posted January 11, 2016 Share Posted January 11, 2016 # carbo : thks Also qcpi aection, with new way active is not cor??? what do you mean? I don't need new clover? that's it, F4? thks You can dump your DSDT with clover using F4 key Link to comment Share on other sites More sharing options...
marcoscar Posted January 11, 2016 Author Share Posted January 11, 2016 You can dump your DSDT with clover using F4 key ok... what about the "active is not cor".... what "cor" mean ? Link to comment Share on other sites More sharing options...
Codinger Posted January 11, 2016 Share Posted January 11, 2016 ok... what about the "active is not cor".... what "cor" mean ?Correct maybeeee Link to comment Share on other sites More sharing options...
carbo178 Posted January 11, 2016 Share Posted January 11, 2016 ok... what about the "active is not cor".... what "cor" mean ? Sorry, not correct I'm stoned today, this is the right: Also in ACPI section, new way active is not correct. You can dump your DSDT with clover using F4 key He can't, Clover is not installed in the ESP Link to comment Share on other sites More sharing options...
marcoscar Posted January 11, 2016 Author Share Posted January 11, 2016 as soon as I can try your advice i will tell you the result... thks for taking the time to help me ! read you soon! Marc Link to comment Share on other sites More sharing options...
marcoscar Posted January 12, 2016 Author Share Posted January 12, 2016 Your config.plist have something wrong, put this in substitution of the original config.plist.zip Reboot and download MacIasl, launch the app and extract the DSDT, save the file as DSDT.dsl, compress and send it Hello.. I tried your .plist.... It in not working. I can't Boot... At the boot disk selct I choose ma "El capitan' here are my screenshot... can they help you? any idea? boot select creen : the last line before reboot thanks for helping...! ready to try anythin else! Link to comment Share on other sites More sharing options...
carbo178 Posted January 12, 2016 Share Posted January 12, 2016 Ok, go to Options at clover boot screen, in the section kernel and kext patches flag Asus AICPUPM (Enter), press Esc to come back to main boot screen and boot the system, change config.plist with this config.plist.zip Link to comment Share on other sites More sharing options...

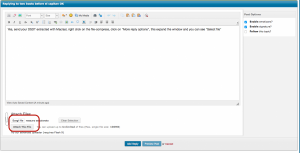

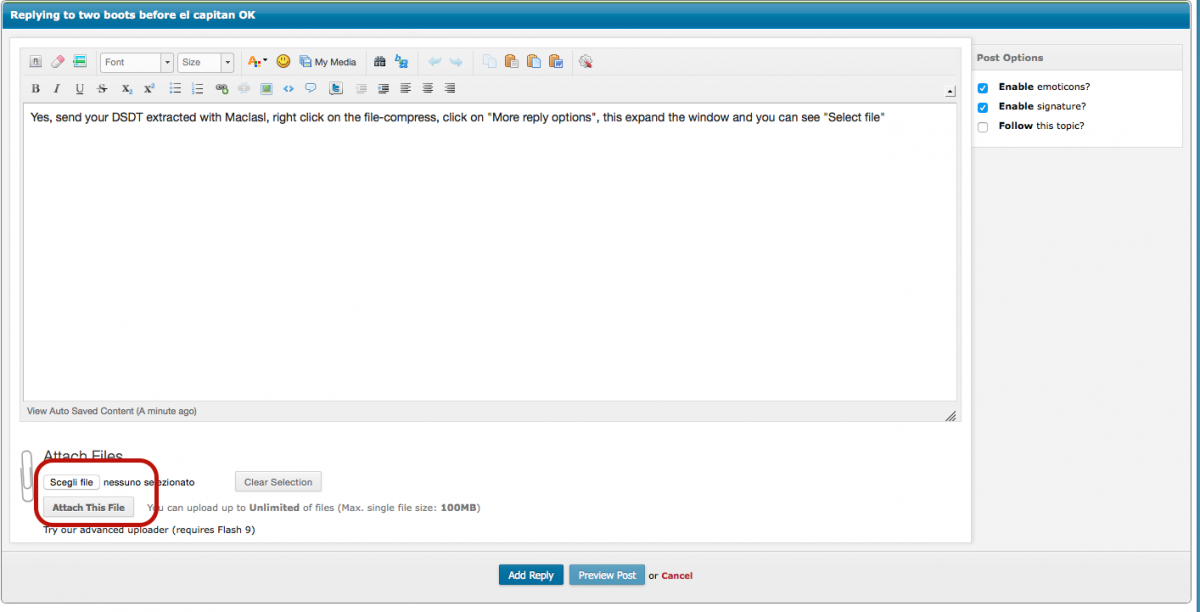

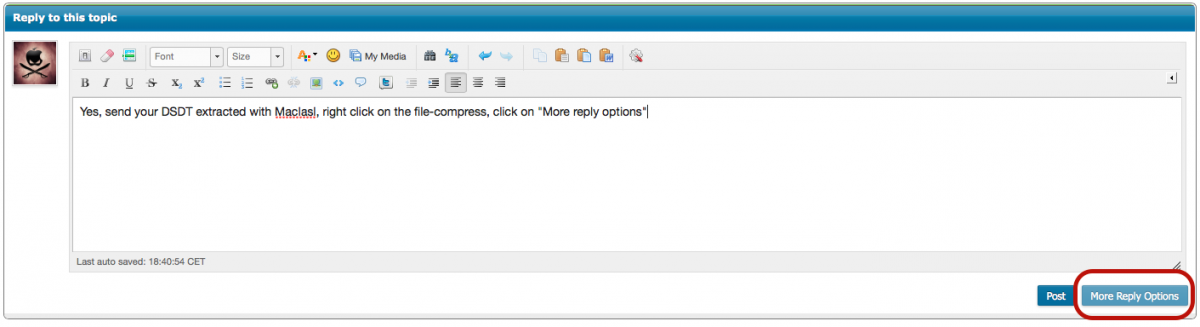

carbo178 Posted January 12, 2016 Share Posted January 12, 2016 Yes, send your DSDT extracted with MacIasl, right click on the file-compress, click on "More reply options" this expand the window and you can see "Select file", browse the compressed file and press "Attach this file"; Last thing: "Add Reply" in the bottom of the window Et voilà les joeux son fait Link to comment Share on other sites More sharing options...
marcoscar Posted January 12, 2016 Author Share Posted January 12, 2016 Yes, send your DSDT extracted with MacIasl, right click on the file-compress, click on "More reply options", this expand the window and you can see "Select file", browse the compressed file and press "Attach this file"; Last thing: "Add Reply" in the bottom of the window Et voilà les joeux son fait ok... 1- I must choose my OS disk, that's it? or the recovery one? 2 - Do I need to change my .plist before or after booting with option? 3 - I just tried to boot with going to option on my system disk el capitan... but I don't know what i have to type and where, which line? here my "clover boot screen " option : Could you just tell me what I have to type exactly? and where? where can I find "in the section kernel and kext patches flag Asus AICPUPM (Enter)" and what does that excatly mean? i'm lost :) I extract my DSDT after that? and send it? thanks... Link to comment Share on other sites More sharing options...
carbo178 Posted January 12, 2016 Share Posted January 12, 2016 1. Choose your disk, not recovery 2. Simply replace config.plist with the last attached at post #16 (when you have booted the system) 3. My mistake, go to Binary patching menu and flag AsusAICPUPM After that extract, compress and send the DSDT Link to comment Share on other sites More sharing options...
marcoscar Posted January 12, 2016 Author Share Posted January 12, 2016 1. Choose your disk, not recovery 2. Simply replace config.plist with the last attached at post #16 (when you have booted the system) 3. My mistake, go to Binary patching menu and flag AsusAICPUPM After that extract, compress and send the DSDT hi again....! I don't have this flag "AsusAICPUPM" in Binary patchning... but I have AppleIntelCPUPMpatch.... So I choosed it and.... it didn't boot.... Are you sure I can find AsusAICPUPM in Binary patching? because I can't find it... sorry for all this questions.... Marc here are my flag in binary patching.... any other idea? is this flag can be in an other .plist? the first you sent to me??? Link to comment Share on other sites More sharing options...
carbo178 Posted January 12, 2016 Share Posted January 12, 2016 Yes, in the Clover options the name is AppleIntelCPUPM, boot the system with USB installer (choose your HD) and replace the config.plist Link to comment Share on other sites More sharing options...
marcoscar Posted January 12, 2016 Author Share Posted January 12, 2016 Yes, in the Clover options the name is AppleIntelCPUPM, boot the system with USB installer (choose your HD) and replace the config.plist hi... no way... I tried again but same problem. I boot with my USB Key installer.... choose my capitan disk... option appleintelCPUPM... let run.... and reboot again and again... see my step by step screenshots : 1- my clover boot screen : my HD, the recovry and my USB installer 2- choose the Binaries patching menu, any boot Args to type? : 3- tick the "AppleIntelCPUPM" option, do I have any more option to tick? Do I have to let the "Kext patching allowed" ticked? : 4- boot on my capitan disk : 5- let run and wait.... first "stop" (about 30 seconds): last line before second stop and reboot : Do I have to change my .plist on my USB installer with yours? before doing this differnts steps? I used the same usb Installer than I used to instal Capitan.. with my first .plist, the one I sent you... and you told me it was something wrong.... do you have any oher ideas? sorry... it get me mad!! Thks Marco Link to comment Share on other sites More sharing options...
carbo178 Posted January 12, 2016 Share Posted January 12, 2016 Delete RealtekRTL81xx.kext and retry Link to comment Share on other sites More sharing options...
marcoscar Posted January 12, 2016 Author Share Posted January 12, 2016 Delete RealtekRTL81xx.kext and retryHow can I delete it? In the plist? In my usb installer? Or in a folder on my Hd? Clover is new for me.... So I don't Know a lot of things.... You gonna think I'm stupid but I dont want to make a error... Link to comment Share on other sites More sharing options...
carbo178 Posted January 12, 2016 Share Posted January 12, 2016 From any Place you find the kext Link to comment Share on other sites More sharing options...
