Power management not working as expected

16 posts in this topic

Recommended Posts

Hello everyone!
I generated an ssdt using https://github.com/Piker-Alpha/ssdtPRGen.shbut as a result PM its not working properly.

System is that from signature.

Bootloader used : Ozmosis 167x

CPU: i5 4570

OS: OS X 10.11.3

SMBIOS: iMac 14,2

ssdt its in EFI partition ACPI / Load.

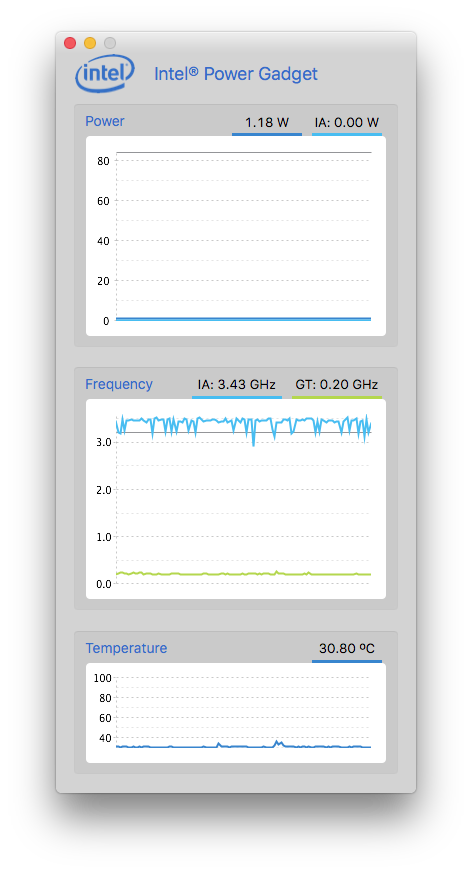

At full speed CPU remains stucked at 3.5 Ghz, not it's original 3.6 Ghz.

If anyone has AppleIntelInfo 1.2 compiled kext to verify P-States, I appreciate. I can't download XCode right now.



What could be the problem?


Share this post


Link to post
Share on other sites
Advertisement

Download Piker's latest Beta version and you should be Ok. Just make sure to:

  • remove any NullCPUPM kext
  • activate KernelPM option (or use the pre-patched Haswell kernel) if necessary (not sure it's required on desktops)
  • activate DropSSDT boot loader option (if applicable to Ozmosis)



This being said, nominal max. frequency of your i5-4570 is 3.2GHz with Turbo boost up to 3.6GHz. You may not always see that max. turbo speed, it can depends on the SMBIOS profile you use. It does not mean there is something not working with your system. Remember that a Hackintosh is not a real Mac...

Share this post


Link to post
Share on other sites

NullCPU is not present.

Kernel PM seems activated in ozmosis defaults.plist (-xcpm argument) xcpm registered in console log.

ssdt is loaded at boot (bdmesg log)

Share this post


Link to post
Share on other sites

Is system bootable without xcpm option? Did you try to monitor SpeedStep multipliers with a facility such as provided by DCPIManager?

Share this post


Link to post
Share on other sites

Dpcimanager isn't working with el capitan. Yeah system boots even without xcpm argument. Motherboard is PM free ( no need for PMpatch).

Share this post


Link to post
Share on other sites

I think I've found the problem. AppleIntelCPUPowermanagement.kext doesn't gets load at system boot for some reason, only manually kextload by terminal.

CSR OFF, SMBIOS iMac 14,2, Which may be the cause?

Thanks.

Share this post


Link to post
Share on other sites

:whistle: Nope. CPU power management for Haswell CPU is handled by kernel, not AIPCUPM which is applicable to previous CPU generations. As such, it is perfectly normal for you to see that AICPUPM is not loaded. Loading it manually through kextload command ain't gonna change anything.

Share this post


Link to post
Share on other sites

i used to see somewhere, i can't remember where -xcpm argument inserted into defaults.plist.

Do I have to patch the kernel if my mobo isn't MSR Locked?

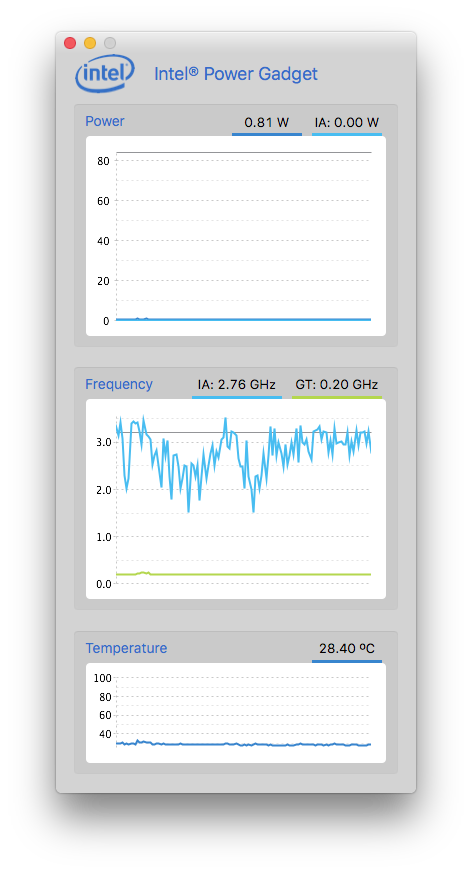

EDIT: Solved by disabling EIST into CPU PM settings and boot argument -xcpm in Defaults.plist of Ozmosis (167X-MASS).
Thanks.



AppleIntelInfo.kext v1.2 Copyright © 2012-2015 Pike R. Alpha. All rights reserved

Settings:
------------------------------------
logMSRs............................: 1
logIGPU............................: 1
logIntelRegs.......................: 1
logCStates.........................: 1
logIPGStyle........................: 1
InitialTSC.........................: 0x2accce99aa0
MWAIT C-States.....................: 270624

Model Specific Regiters
------------------------------------
MSR_CORE_THREAD_COUNT......(0x35)  : 0x40004
MSR_PLATFORM_INFO..........(0xCE)  : 0x80838F3012000
MSR_PMG_CST_CONFIG_CONTROL.(0xE2)  : 0x1E000005
MSR_PMG_IO_CAPTURE_BASE....(0xE4)  : 0x1814
IA32_MPERF.................(0xE7)  : 0x9C96F29BC
IA32_APERF.................(0xE8)  : 0xA7F7E5062
MSR_FLEX_RATIO.............(0x194) : 0x0
MSR_IA32_PERF_STATUS.......(0x198) : 0x228000002300
MSR_IA32_PERF_CONTROL......(0x199) : 0x2400
IA32_CLOCK_MODULATION......(0x19A) : 0x0
IA32_THERM_STATUS..........(0x19C) : 0x88490000
IA32_MISC_ENABLES..........(0x1A0) : 0x850089
MSR_MISC_PWR_MGMT..........(0x1AA) : 0x1
MSR_TURBO_RATIO_LIMIT......(0x1AD) : 0x24242424
IA32_ENERGY_PERF_BIAS......(0x1B0) : 0x1
MSR_POWER_CTL..............(0x1FC) : 0x4005F
MSR_RAPL_POWER_UNIT........(0x606) : 0xA0E03
MSR_PKG_POWER_LIMIT........(0x610) : 0xFFD00000EA82
MSR_PKG_ENERGY_STATUS......(0x611) : 0xD28C96
MSR_PKG_POWER_INFO.........(0x614) : 0x2A0
MSR_PP0_CURRENT_CONFIG.....(0x601) : 0x1F40
MSR_PP0_POWER_LIMIT........(0x638) : 0xFFD0
MSR_PP0_ENERGY_STATUS......(0x639) : 0x0
MSR_PP0_POLICY.............(0x63a) : 0x0
MSR_PP1_POWER_LIMIT........(0x640) : 0xFFD0
MSR_PP1_ENERGY_STATUS......(0x641) : 0x0
MSR_PP1_POLICY.............(0x642) : 0x18
MSR_CONFIG_TDP_NOMINAL.....(0x648) : 0x20
MSR_CONFIG_TDP_LEVEL1......(0x649) : 0x0
MSR_CONFIG_TDP_LEVEL2......(0x64a) : 0x0
MSR_CONFIG_TDP_CONTROL.....(0x64b) : 0x80000000
MSR_TURBO_ACTIVATION_RATIO.(0x64c) : 0x0
MSR_PKGC3_IRTL.............(0x60a) : 0x8842
MSR_PKGC6_IRTL.............(0x60b) : 0x8873
MSR_PKGC7_IRTL.............(0x60c) : 0x8891
MSR_PKG_C2_RESIDENCY.......(0x60d) : 0x19814B1F940
MSR_PKG_C3_RESIDENCY.......(0x3f8) : 0x0
MSR_PKG_C6_RESIDENCY.......(0x3f9) : 0x0
MSR_PKG_C7_RESIDENCY.......(0x3fa) : 0x0
IA32_TSC_DEADLINE..........(0x6E0) : 0x2ACCF5660FD
PCH device.................: 0x8C448086

Intel Register Data
------------------------------------
CPU_VGACNTRL...............: 0x3AD092E1
IS_HASWELL(devid) || IS_BROADWELL(devid)
HSW_PWR_WELL_CTL1..........: 0xe5ef9a81
HSW_PWR_WELL_CTL2..........: 0x4700ffc5
HSW_PWR_WELL_CTL3..........: 0xfa26cdb8
HSW_PWR_WELL_CTL4..........: 0xd487c238
HSW_PWR_WELL_CTL5..........: 0x33f6d6a4
HSW_PWR_WELL_CTL6..........: 0xdaaadc31
PIPE_DDI_FUNC_CTL_A........: 0xff0c0c0c (enabled, port reserved, mode reserved, 8 bpc, -VSync, -HSync, EDP A ON, reserved width)
PIPE_DDI_FUNC_CTL_B........: 0x34384545 (disabled, DDID, FDI, 12 bpc, -VSync, -HSync, EDP A ONOFF, reserved width)
PIPE_DDI_FUNC_CTL_C........: 0xfff4f4f4 (enabled, port reserved, mode reserved, bpc reserved, -VSync, -HSync, EDP input reserved, reserved width)
PIPE_DDI_FUNC_CTL_EDP......: 0x5f534e45 (disabled, port reserved, mode reserved, bpc reserved, +VSync, +HSync, EDP A ONOFF, reserved width)
DP_TP_CTL_A................: 0x00000000
DP_TP_CTL_B................: 0x00000000
DP_TP_CTL_C................: 0x00000000
DP_TP_CTL_D................: 0x00000000
DP_TP_CTL_E................: 0x00000000
DP_TP_STATUS_A.............: 0x00000000
DP_TP_STATUS_B.............: 0x00000000
DP_TP_STATUS_C.............: 0x00000000
DP_TP_STATUS_D.............: 0x00000000
DP_TP_STATUS_E.............: 0x00000000
DDI_BUF_CTL_A..............: 0x00000000 (disabled not reversed x1 not detected)
DDI_BUF_CTL_B..............: 0x00000000 (disabled not reversed x1 not detected)
DDI_BUF_CTL_C..............: 0x00000000 (disabled not reversed x1 not detected)
DDI_BUF_CTL_D..............: 0x00000000 (disabled not reversed x1 not detected)
DDI_BUF_CTL_E..............: 0x00000000 (disabled not reversed x1 not detected)
SPLL_CTL...................: 0x00000000
LCPLL_CTL..................: 0x00000000
WRPLL_CTL1.................: 0x00000000
WRPLL_CTL2.................: 0x1f7b5438
PORT_CLK_SEL_A.............: 0x00000000 (LCPLL 2700)
PORT_CLK_SEL_B.............: 0x00000000 (LCPLL 2700)
PORT_CLK_SEL_C.............: 0x353ebaf0 (LCPLL 1350)
PORT_CLK_SEL_D.............: 0x00000001 (LCPLL 2700)
PORT_CLK_SEL_E.............: 0x00000000 (LCPLL 2700)
PIPE_CLK_SEL_A.............: 0x00000000 (None)
PIPE_CLK_SEL_B.............: 0x00000000 (None)
PIPE_CLK_SEL_C.............: 0x00000000 (None)
SFUSE_STRAP................: 0xffffffff (display disabled, crt yes, lane reversal yes, port b yes, port c yes, port d yes)
PIPEASRC...................: 0xff0d0d0d (65294, 3342)
DSPACNTR...................: 0x1c000000 (disabled)
DSPASTRIDE.................: 0x1a000000 (6815744)
DSPASURF...................: 0x15000000
DSPATILEOFF................: 0x13000000 (0, 4864)
PIPEBSRC...................: 0x0a453031 (2630, 12338)
DSPBCNTR...................: 0x726f5f65 (disabled)
DSPBSTRIDE.................: 0x00000000 (0)
DSPBSURF...................: 0x3804c6c3
DSPBTILEOFF................: 0x00000000 (0, 0)
PIPECSRC...................: 0xfff7f7f7 (65528, 63480)
DSPCCNTR...................: 0x00000002 (disabled)
DSPCSTRIDE.................: 0x36f85d39 (14410100)
DSPCSURF...................: 0x00000001
DSPCTILEOFF................: 0x00000009 (9, 0)
PIPEACONF..................: 0x18000000 (disabled, inactive, pf-pd, rotate 0, 8bpc)
HTOTAL_A...................: 0xff0c0c0c (3085 active, 65293 total)
HBLANK_A...................: 0xff0c0c0c (3085 start, 65293 end)
HSYNC_A....................: 0xff0d0d0d (3342 start, 65294 end)
VTOTAL_A...................: 0xff0d0d0d (3342 active, 65294 total)
VBLANK_A...................: 0xff0d0d0d (3342 start, 65294 end)
VSYNC_A....................: 0xff0d0d0d (3342 start, 65294 end)
VSYNCSHIFT_A...............: 0xff0d0d0d
PIPEA_DATA_M1..............: 0xff0c0c0c (TU 128, val 0xc0c0c 789516)
PIPEA_DATA_N1..............: 0xff0d0d0d (val 0xd0d0d 855309)
PIPEA_LINK_M1..............: 0xff0c0c0c (val 0xc0c0c 789516)
PIPEA_LINK_N1..............: 0xff0d0d0d (val 0xd0d0d 855309)
PIPEBCONF..................: 0x00000000 (disabled, inactive, pf-pd, rotate 0, 8bpc)
HTOTAL_B...................: 0x43303045 (12358 active, 17201 total)
HBLANK_B...................: 0x37414542 (17731 start, 14146 end)
HSYNC_B....................: 0x33344242 (16963 start, 13109 end)
VTOTAL_B...................: 0x370a4132 (16691 active, 14091 total)
VBLANK_B...................: 0x44343030 (12337 start, 17461 end)
VSYNC_B....................: 0x42443230 (12849 start, 16965 end)
VSYNCSHIFT_B...............: 0x34394446
PIPEB_DATA_M1..............: 0x3036360a (TU 25, val 0x36360a 3552778)
PIPEB_DATA_N1..............: 0x32313842 (val 0x313842 3225666)
PIPEB_LINK_M1..............: 0x41350a44 (val 0x350a44 3476036)
PIPEB_LINK_N1..............: 0x44464135 (val 0x464135 4604213)
PIPECCONF..................: 0x36f85d37 (disabled, inactive, rsvd, rotate 90, 10bpc)
HTOTAL_C...................: 0xfff7f7f7 (63480 active, 65528 total)
HBLANK_C...................: 0xfff7f7f7 (63480 start, 65528 end)
HSYNC_C....................: 0xfff7f7f7 (63480 start, 65528 end)
VTOTAL_C...................: 0xfff3f3f3 (62452 active, 65524 total)
VBLANK_C...................: 0xfff7f7f7 (63480 start, 65528 end)
VSYNC_C....................: 0xfff7f7f7 (63480 start, 65528 end)
VSYNCSHIFT_C...............: 0xfff7f7f7
PIPEC_DATA_M1..............: 0xfff7f7f7 (TU 128, val 0xf7f7f7 16250871)
PIPEC_DATA_N1..............: 0xfff7f7f7 (val 0xf7f7f7 16250871)
PIPEC_LINK_M1..............: 0xfff7f7f7 (val 0xf7f7f7 16250871)
PIPEC_LINK_N1..............: 0xfff6f6f6 (val 0xf6f6f6 16185078)
PIPEEDPCONF................: 0x00000002 (disabled, inactive, pf-pd, rotate 0, 8bpc)
HTOTAL_EDP.................: 0x45736369 (25450 active, 17780 total)
HBLANK_EDP.................: 0x45767646 (30279 start, 17783 end)
HSYNC_EDP..................: 0x3553504a (20555 start, 13652 end)
VTOTAL_EDP.................: 0x4545455f (17760 active, 17734 total)
VBLANK_EDP.................: 0x395f534e (21327 start, 14688 end)
VSYNC_EDP..................: 0x6f6c6c61 (27746 start, 28525 end)
VSYNCSHIFT_EDP.............: 0x76453044
PIPEEDP_DATA_M1............: 0x74534b4e (TU 59, val 0x534b4e 5458766)
PIPEEDP_DATA_N1............: 0x315f5f33 (val 0x5f5f33 6250291)
PIPEEDP_LINK_M1............: 0x6e6f6974 (val 0x6f6974 7301492)
PIPEEDP_LINK_N1............: 0x665f5f36 (val 0x5f5f36 6250294)
PFA_CTL_1..................: 0x7700007f (disable, auto_scale no, auto_scale_cal yes, v_filter bypass, vadapt disable, mode most, filter_sel edge_enhance,chroma pre-filter disable, vert3tap auto, v_inter_invert field 1)
PFA_WIN_POS................: 0x2e00007f (3584, 127)
PFA_WIN_SIZE...............: 0x1e0066e1 (7680, 1761)
PFB_CTL_1..................: 0x6500007f (disable, auto_scale no, auto_scale_cal yes, v_filter enable, vadapt disable, mode reserved, filter_sel edge_enhance,chroma pre-filter disable, vert3tap auto, v_inter_invert field 1)
PFB_WIN_POS................: 0x2300007f (768, 127)
PFB_WIN_SIZE...............: 0x0e000240 (3584, 576)
PFC_CTL_1..................: 0x02040810 (disable, auto_scale yes, auto_scale_cal no, v_filter enable, vadapt disable, mode moderate, filter_sel programmed,chroma pre-filter disable, vert3tap auto, v_inter_invert field 1)
PFC_WIN_POS................: 0x08102040 (2064, 64)
PFC_WIN_SIZE...............: 0x40810204 (129, 516)
TRANS_HTOTAL_A.............: 0xffffffff (65536 active, 65536 total)
TRANS_HBLANK_A.............: 0xffffffff (65536 start, 65536 end)
TRANS_HSYNC_A..............: 0xffffffff (65536 start, 65536 end)
TRANS_VTOTAL_A.............: 0xffffffff (65536 active, 65536 total)
TRANS_VBLANK_A.............: 0xffffffff (65536 start, 65536 end)
TRANS_VSYNC_A..............: 0xffffffff (65536 start, 65536 end)
TRANS_VSYNCSHIFT_A.........: 0xffffffff
TRANSACONF.................: 0xffffffff (enable, active, rsvd)
FDI_RXA_MISC...............: 0xffffffff (FDI Delay 8191)
FDI_RXA_TUSIZE1............: 0xffffffff
FDI_RXA_IIR................: 0xffffffff
FDI_RXA_IMR................: 0xffffffff
BLC_PWM_CPU_CTL2...........: 0x13850fc0 (enable 0, pipe A, blinking 1, granularity 128)
BLC_PWM_CPU_CTL............: 0xe9fffe7a (cycle 65146, freq 59903)
BLC_PWM2_CPU_CTL2..........: 0x45894800 (enable 0, pipe C, blinking 0, granularity 128)
BLC_PWM2_CPU_CTL...........: 0x7843e9b0 (cycle 59824, freq 30787)
BLC_MISC_CTL...............: 0x012b37e7 (PWM1-CPU PWM2-PCH)
BLC_PWM_PCH_CTL1...........: 0x00000000 (enable 0, override 0, inverted polarity 0)
BLC_PWM_PCH_CTL2...........: 0x00000000 (freq 0, cycle 0)
UTIL_PIN_CTL...............: 0x4100007f (enable 0, transcoder C, mode PWM, data 0 inverted polarity 0)
PCH_PP_STATUS..............: 0xffffffff (on, ready, sequencing unknown)
PCH_PP_CONTROL.............: 0xffffffff (blacklight enabled, power down on reset, panel on)
PCH_PP_ON_DELAYS...........: 0xffffffff
PCH_PP_OFF_DELAYS..........: 0xffffffff
PCH_PP_DIVISOR.............: 0xffffffff
PIXCLK_GATE................: 0x00000000
SDEISR.....................: 0xffececec (port d:1, port c:1, port b:1, crt:1)
RC6_RESIDENCY_TIME.........: 0x3b010000
IS_GEN6(devid) || IS_GEN7(devid)
FENCE START 0..............: 0xfff6f6f6
FENCE END 0................: 0xfff7f7f7
FENCE START 1..............: 0xfff3f3f3
FENCE END 1................: 0xfff4f4f4
FENCE START 2..............: 0xfff7f7f7
FENCE END 2................: 0xfff4f4f4
FENCE START 3..............: 0xfff6f6f6
FENCE END 3................: 0xfff4f4f4
FENCE START 4..............: 0xfff7f7f7
FENCE END 4................: 0xfff7f7f7
FENCE START 5..............: 0xfff7f7f7
FENCE END 5................: 0xfff7f7f7
FENCE START 6..............: 0xfff7f7f7
FENCE END 6................: 0xfff4f4f4
FENCE START 7..............: 0xfff3f3f3
FENCE END 7................: 0xfff3f3f3
FENCE START 8..............: 0xfff7f7f7
FENCE END 8................: 0xfff4f4f4
FENCE START 9..............: 0xfff7f7f7
FENCE END 9................: 0xfff3f3f3
FENCE START 10.............: 0xfff7f7f7
FENCE END 10...............: 0xfff7f7f7
FENCE START 11.............: 0xfff4f4f4
FENCE END 11...............: 0xfff3f3f3
FENCE START 12.............: 0xfff3f3f3
FENCE END 12...............: 0xfff4f4f4
FENCE START 13.............: 0xfff7f7f7
FENCE END 13...............: 0xfff7f7f7
FENCE START 14.............: 0xfff7f7f7
FENCE END 14...............: 0xfff4f4f4
FENCE START 15.............: 0xfff4f4f4
FENCE END 15...............: 0xfff4f4f4
FENCE START 16.............: 0xfff7f7f7
FENCE END 16...............: 0xfff7f7f7
FENCE START 17.............: 0xfff3f3f3
FENCE END 17...............: 0xfff3f3f3
FENCE START 18.............: 0xfff4f4f4
FENCE END 18...............: 0xfff6f6f6
FENCE START 19.............: 0xfff7f7f7
FENCE END 19...............: 0xfff3f3f3
FENCE START 20.............: 0xfff3f3f3
FENCE END 20...............: 0xfff4f4f4
FENCE START 20.............: 0xfff3f3f3
FENCE END 20...............: 0xfff4f4f4
FENCE START 21.............: 0xfff3f3f3
FENCE END 21...............: 0xfff7f7f7
FENCE START 22.............: 0xfff7f7f7
FENCE END 22...............: 0xfff6f6f6
FENCE START 23.............: 0xfff6f6f6
FENCE END 23...............: 0xfff4f4f4
FENCE START 24.............: 0xfff7f7f7
FENCE END 24...............: 0xfff7f7f7
FENCE START 25.............: 0xfff3f3f3
FENCE END 25...............: 0xfff7f7f7
FENCE START 26.............: 0xfff6f6f6
FENCE END 26...............: 0xfff6f6f6
FENCE START 27.............: 0xfff5f5f5
FENCE END 27...............: 0xfff7f7f7
FENCE START 28.............: 0xfff4f4f4
FENCE END 28...............: 0xfff6f6f6
FENCE START 29.............: 0xfff3f3f3
FENCE END 29...............: 0xfff7f7f7
FENCE START 30.............: 0xfff6f6f6
FENCE END 30...............: 0xfff7f7f7
FENCE START 31.............: 0xfff7f7f7
FENCE END 31...............: 0xfff7f7f7
GEN6_RP_CONTROL............: 0x00000000 (disabled)
GEN6_RPNSWREQ..............: 0x00000000
GEN6_RP_DOWN_TIMEOUT.......: 0x00000000
GEN6_RP_INTERRUPT_LIMITS...: 0x00000000
GEN6_RP_UP_THRESHOLD.......: 0x00000000
GEN6_RP_UP_EI..............: 0x00000000
GEN6_RP_DOWN_EI............: 0x00000000
GEN6_RP_IDLE_HYSTERSIS.....: 0x00000000
GEN6_RC_STATE..............: 0x00000000
GEN6_RC_CONTROL............: 0x00000000
GEN6_RC1_WAKE_RATE_LIMIT...: 0x00000000
GEN6_RC6_WAKE_RATE_LIMIT...: 0x00000000
GEN6_RC_EVALUATION_INTERVAL: 0x00000000
GEN6_RC_IDLE_HYSTERSIS.....: 0x00000000
GEN6_RC_SLEEP..............: 0x00000000
GEN6_RC1e_THRESHOLD........: 0x00000000
GEN6_RC6_THRESHOLD.........: 0x00000000
GEN6_RC_VIDEO_FREQ.........: 0x00000000
GEN6_PMIER.................: 0xffe9eaed
GEN6_PMIMR.................: 0xffe9eaed
GEN6_PMINTRMSK.............: 0x00000000

CPU Ratio Info:
------------------------------------
CPU Low Frequency Mode.............: 800 MHz
CPU Maximum non-Turbo Frequency....: 3200 MHz
CPU Maximum Turbo Frequency........: 3600 MHz

IGPU Info:
------------------------------------
IGPU Current Frequency.............:  200 MHz
IGPU Minimum Frequency.............:  200 MHz
IGPU Maximum Non-Turbo Frequency...:  350 MHz
IGPU Maximum Turbo Frequency.......: 1150 MHz
IGPU Maximum limit.................: No Limit

CPU P-States [ 31 (32) 36 ] iGPU P-States [ (4) ]
CPU C3-Cores [ 0 1 3 ]
CPU C6-Cores [ 0 1 3 ]
CPU C7-Cores [ 0 1 3 ]
CPU P-States [ (8) 26 31 32 36 ] iGPU P-States [ (4) ]
CPU C3-Cores [ 0 1 2 3 ]
CPU C6-Cores [ 0 1 2 3 ]
CPU C7-Cores [ 0 1 2 3 ]
CPU P-States [ (8) 24 26 31 32 36 ] iGPU P-States [ (4) ]
CPU P-States [ 8 23 24 26 31 (32) 36 ] iGPU P-States [ (4) ]
CPU P-States [ 8 23 24 26 31 (32) 34 36 ] iGPU P-States [ (4) ]
 (36) ] iGPU P-States [ (4) ]
CPU P-States [ (8) 27 29 30 31 32 33 34 35 36 ] iGPU P-States [ (4) ]
CPU P-States [ (8) 26 27 29 30 31 32 33 34 35 36 ] iGPU P-States [ (4) ]
CPU P-States [ 8 24 26 27 29 30 31 (32) 33 34 35 36 ] iGPU P-States [ (4) ]
CPU P-States [ 8 24 26 27 28 29 30 31 (32) 33 34 35 36 ] iGPU P-States [ (4) ]
CPU P-States [ (8) 24 25 26 27 28 29 30 31 32 33 34 35 36 ] iGPU P-States [ (4) ]
CPU P-States [ 8 22 24 25 26 27 28 29 30 31 (32) 33 34 35 36 ] iGPU P-States [ (4) ]
CPU P-States [ (8) 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 ] iGPU P-States [ (4) ]
CPU P-States [ (8) 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 ] iGPU P-States [ 4 (8) ]
CPU P-States [ 8 22 23 24 25 26 27 28 29 30 31 (32) 33 34 35 36 ] iGPU P-States [ 4 (7) 8 ]
CPU P-States [ 8 22 23 24 25 26 27 28 29 30 31 (32) 33 34 35 36 ] iGPU P-States [ 4 (5) 7 8 ]
CPU P-States [ 8 22 23 24 25 26 27 28 29 30 31 32 33 (34) 35 36 ] iGPU P-States [ 4 5 (6) 7 8 ]
CPU P-States [ (8) 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 ] iGPU P-States [ 4 5 6 7 8 (9) ]
CPU P-States [ 8 22 23 24 25 26 27 28 29 30 31 (32) 33 34 35 36 ] iGPU P-States [ 4 5 6 7 8 9 (10) ]
CPU P-States [ (8) 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 ] iGPU P-States [ 4 5 6 7 8 9 10 (12) ]
CPU P-States [ 8 21 22 23 24 25 26 27 28 29 30 31 (32) 33 34 35 36 ] iGPU P-States [ (4) 5 6 7 8 9 10 12 ]



Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.

×
