_mur_ Posted December 24, 2015 Author Share Posted December 24, 2015 Ma perché hai modificato il BIOS ? Per quale motivo ? Il bios sei costretto a modificarlo .... o meglio impostarlo.... le impostazioni di default non ti permettono di caricare OSX Link to comment Share on other sites More sharing options...
magnifico Posted December 24, 2015 Share Posted December 24, 2015 Per modificarlo significa fare una mod. .e riflashare. .forse intendi dire disabilitare quello che fa la patch di Pike? Link to comment Share on other sites More sharing options...
_mur_ Posted December 24, 2015 Author Share Posted December 24, 2015 Niente da fare..... PenDrive ricreata ..... installato ultimo Clover 3330....impostato il config.plist con patch pike , ma niente da fare.... errore identico alla schermata che ho postato in precedenza. L'Smbios che viene caricato in automatico è l'iMac 17,1 . Sto' perdendo le speranze ...... Ho già fatto diverse installazioni di OSX su diverse macchine... ma non ho mai riscontrato così' tanti problemi.... Link to comment Share on other sites More sharing options...
magnifico Posted December 24, 2015 Share Posted December 24, 2015 io in questi config plist non vedo la patch di pike da nessuna parte Link to comment Share on other sites More sharing options...
_mur_ Posted December 24, 2015 Author Share Posted December 24, 2015 io in questi config plist non vedo la patch di pike da nessuna parte Questo è il config.plist attuale : <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd"> <plist version="1.0"> <dict> <key>ACPI</key> <dict> <key>DSDT</key> <dict> <key>Debug</key> <false/> <key>DropOEM_DSM</key> <false/> <key>Name</key> <string>DSDT.aml</string> <key>ReuseFFFF</key> <false/> </dict> <key>SSDT</key> <dict> <key>DropOem</key> <false/> <key>Generate</key> <false/> </dict> </dict> <key>Boot</key> <dict> <key>Arguments</key> <string>-v nvda_drv=1</string> <key>Debug</key> <false/> <key>DefaultVolume</key> <string>MacHDD</string> <key>Legacy</key> <string>PBR</string> <key>Secure</key> <false/> <key>Timeout</key> <integer>10</integer> <key>XMPDetection</key> <false/> </dict> <key>Devices</key> <dict> <key>Audio</key> <dict> <key>Inject</key> <string>1</string> </dict> <key>FakeID</key> <dict> <key>ATI</key> <string>0x0</string> <key>IMEI</key> <string>0x0</string> <key>IntelGFX</key> <string>0x0</string> <key>LAN</key> <string>0x0</string> <key>NVidia</key> <string>0x0</string> <key>SATA</key> <string>0x0</string> <key>WIFI</key> <string>0x0</string> <key>XHCI</key> <string>0x0</string> </dict> <key>USB</key> <dict> <key>AddClockID</key> <true/> <key>FixOwnership</key> <true/> <key>HighCurrent</key> <true/> <key>Inject</key> <true/> </dict> </dict> <key>DisableDrivers</key> <array> <string>Nothing</string> </array> <key>GUI</key> <dict> <key>Hide</key> <array> <string>\EFI\BOOT\BOOTX64.EFI</string> <string>Windows</string> </array> <key>Language</key> <string>en:0</string> <key>Mouse</key> <dict> <key>DoubleClick</key> <integer>500</integer> <key>Enabled</key> <true/> <key>Mirror</key> <false/> <key>Speed</key> <integer>8</integer> </dict> <key>Scan</key> <dict> <key>Entries</key> <true/> <key>Legacy</key> <string>First</string> <key>Tool</key> <true/> </dict> <key>ScreenResolution</key> <string>1920x1080</string> <key>Theme</key> <string>tonymacx86</string> </dict> <key>Graphics</key> <dict> <key>Inject</key> <dict> <key>ATI</key> <false/> <key>Intel</key> <false/> <key>NVidia</key> <false/> </dict> <key>NvidiaSingle</key> <false/> </dict> <key>KernelAndKextPatches</key> <dict> <key>AppleRTC</key> <false/> <key>AsusAICPUPM</key> <false/> <key>Debug</key> <false/> <key>KernelCpu</key> <false/> <key>KernelHaswellE</key> <false/> <key>KernelLapic</key> <false/> <key>KernelPm</key> <true/> <key>KextsToPatch</key> <array> <dict> <key>Comment</key> <string>Skylake AppleAPIC Patch � Pike R. Alpha</string> <key>Find</key> <data> wegQD7bw </data> <key>Name</key> <string>AppleAPIC</string> <key>Replace</key> <data> vhcAAACQ </data> </dict> <dict> <key>Comment</key> <string>External icons patch</string> <key>Find</key> <data> RXh0ZXJuYWw= </data> <key>Name</key> <string>AppleAHCIPort</string> <key>Replace</key> <data> SW50ZXJuYWw= </data> </dict> </array> </dict> <key>RtVariables</key> <dict> <key>BooterConfig</key> <string>0x28</string> <key>CsrActiveConfig</key> <string>0x67</string> </dict> <key>SystemParameters</key> <dict> <key>InjectKexts</key> <string>Yes</string> <key>InjectSystemID</key> <true/> <key>NoCaches</key> <true/> </dict> </dict> </plist> Pensi ci sia qualcosa di sbagliato ? Link to comment Share on other sites More sharing options...
Jolly Posted December 24, 2015 Share Posted December 24, 2015 Posta il config zippato non il contenuto Link to comment Share on other sites More sharing options...
magnifico Posted December 24, 2015 Share Posted December 24, 2015 Ma hai convertito quei valori ? Link to comment Share on other sites More sharing options...
GPB Posted December 24, 2015 Share Posted December 24, 2015 Immagino che il bios l'hai modificato in questo modo: Boot\Secure >> os type= other os vt-d= disable CSM= disable graphics= pcie Link to comment Share on other sites More sharing options...
_mur_ Posted December 24, 2015 Author Share Posted December 24, 2015 Si Immagino che il bios l'hai modificato in questo modo: Boot\Secure >> os type= other os ----- Non posso impostarlo vt-d= disable ----------- ok CSM= disable ---------- ok graphics= pcie ----------ok Link to comment Share on other sites More sharing options...
magnifico Posted December 24, 2015 Share Posted December 24, 2015 @ carbo. .gli hai convertito quei valori ? Considerato che non mi risponde. .lo chiedo a te . Link to comment Share on other sites More sharing options...
Jolly Posted December 24, 2015 Share Posted December 24, 2015 A me sembra che la patch non sia applicata correttamente. Torno a chiederti, passa il config che è meglio I valori sono giusti Link to comment Share on other sites More sharing options...
GPB Posted December 24, 2015 Share Posted December 24, 2015 Si Questa impostazione se non è così l'installazione non parte sul mio pc. Boot\Secure >> os type= other os Link to comment Share on other sites More sharing options...
magnifico Posted December 24, 2015 Share Posted December 24, 2015 Questa impostazione se non è così l'installazione non parte sul mio pc. Boot\Secure >> os type= other os Ma hai un z170? Link to comment Share on other sites More sharing options...
_mur_ Posted December 24, 2015 Author Share Posted December 24, 2015 Questa impostazione se non è così l'installazione non parte sul mio pc. Boot\Secure >> os type= other os Purtroppo la mia scheda madre non ti fa selezionare il tipo di OS Posto il mio config.plist config.plist.zip Link to comment Share on other sites More sharing options...
GPB Posted December 24, 2015 Share Posted December 24, 2015 Ma hai un z170? Quella in firma. Link to comment Share on other sites More sharing options...
_mur_ Posted December 24, 2015 Author Share Posted December 24, 2015 Ma hai un z170? AsRock Z170 EXTREME 4 Ho pure aggiornato il bios , portandolo all'ultima versione , pensando potesse cambiare qualcosa Link to comment Share on other sites More sharing options...
GPB Posted December 24, 2015 Share Posted December 24, 2015 Purtroppo la mia scheda madre non ti fa selezionare il tipo di OS Posto il mio config.plist config.plist.zip Se vuoi ti passo la cartella EFI della mia usb... Link to comment Share on other sites More sharing options...
magnifico Posted December 24, 2015 Share Posted December 24, 2015 Quella in firma.Non vedo firma Link to comment Share on other sites More sharing options...
carbo178 Posted December 24, 2015 Share Posted December 24, 2015 @ carbo. .gli hai convertito quei valori ? Considerato che non mi risponde. .lo chiedo a te . Certo, valori convertiti, se lo apri con Clover Configurator vedrai che i valori corrispondono. Prova questo, ho tolto tutte le iniezioni delle USB ( che potrai al bisogno inserire nelle opzioni di avvio dalla schermata di Clover), e messo nv_disable=1 config.plist.zip Link to comment Share on other sites More sharing options...
magnifico Posted December 24, 2015 Share Posted December 24, 2015 Certo, valori convertiti, se lo apri con Clover Configurator vedrai che i valori corrispondono. Prova questo, ho tolto tutte le iniezioni delle USB ( che potrai al bisogno inserire nelle opzioni di avvio dalla schermata di Clover), e messo nv_disable=1 Carbo non mi fido di quella utility. .hai anche verificato con un convertitore hex? Link to comment Share on other sites More sharing options...
GPB Posted December 24, 2015 Share Posted December 24, 2015 Non vedo firma Come non si vede, io visualizzo questa: | Asus Z170 Deluxe | Intel I5-6600K | Corsair DDR4 16GB | EVGA GTX970 | SSD Crucial C300 | Asus VG278H| EL Capitan 10.11.2 | Gigabyte Z68XP UD5; Intel 2600K; G.Skill DDR3 8GB; GTX470; Samsung XL2370HD Link to comment Share on other sites More sharing options...
magnifico Posted December 24, 2015 Share Posted December 24, 2015 @ carbo Sto pensando che sia un kp sulla CPU. ..vuoi vedere che il BIOS ha , forse , MSR 0XE2 locked ? Link to comment Share on other sites More sharing options...
carbo178 Posted December 24, 2015 Share Posted December 24, 2015 Se vuoi ti passo la cartella EFI della mia usb... Sarebbe sufficiente il config.plist e la cartella kexts Carbo non mi fido di quella utility. .hai anche verificato con un convertitore hex? A che pro? Corrisponde a quanto riportato da Pike sul suo sito, sia per il valore ex che per il convertito Link to comment Share on other sites More sharing options...

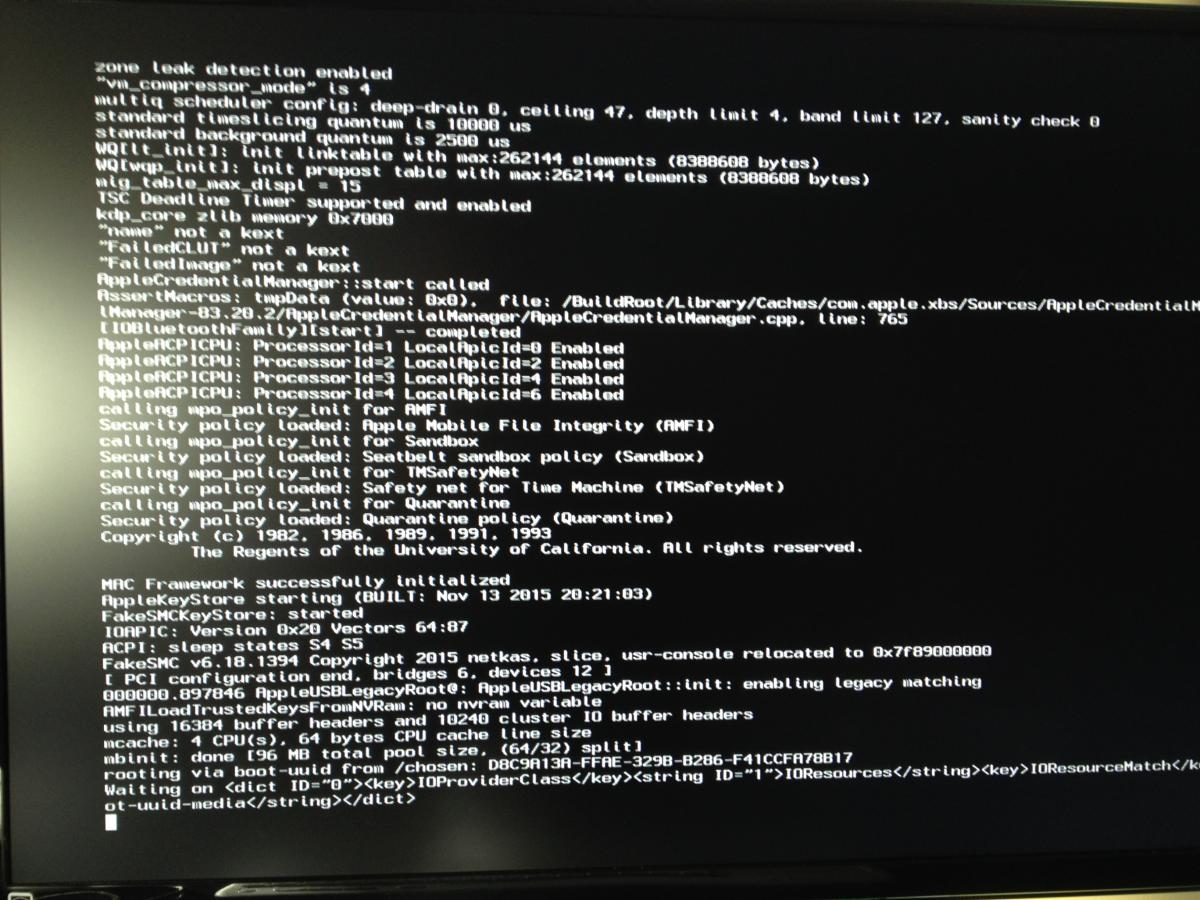

_mur_ Posted December 24, 2015 Author Share Posted December 24, 2015 Situazione attuale con il config.plist di carbo .... Senza gli inject su usb , si blocca su questa schermata : @ carboSto pensando che sia un kp sulla CPU. ..vuoi vedere che il BIOS ha , forse , MSR 0XE2 locked ? è qualche tipo di blocco sul uefi ? Link to comment Share on other sites More sharing options...
GPB Posted December 24, 2015 Share Posted December 24, 2015 Ieri ho postato il mio config l'hai provato ? Link to comment Share on other sites More sharing options...
