jukno Posted June 21, 2015 Share Posted June 21, 2015 I've been experiencing a peculiar problem on my hackintosh. After graphics kexts are loaded during boot there appears a white noise screen for almost 5 seconds. which goes away but the problem is when everything loaded there is colored static everywhere on the screen. so far tried patching framebuffer using toleda methodbut to no avail. Here is my configuration : i5 4690 Gigabyte H97 D3H WD 1TB 8 GB Kingston Hyperx Ram Yosemite 10.10.3 Link to comment https://www.insanelymac.com/forum/topic/306766-colored-static-distortion-hd-4600-10103/ Share on other sites More sharing options...
vusun123 Posted June 21, 2015 Share Posted June 21, 2015 Use the correct script, usually a or b for HDMI port Link to comment https://www.insanelymac.com/forum/topic/306766-colored-static-distortion-hd-4600-10103/#findComment-2146959 Share on other sites More sharing options...
jukno Posted June 21, 2015 Author Share Posted June 21, 2015 i did been doing it from last two days. after patching with script the only difference is display looks good but it is very unstable. i mean i get white noise screen with little bit of glimpse of desktop every few seconds making it unusable. I used IntelAzulFB=10 like it said in the guide. It's getting really frustrating. Link to comment https://www.insanelymac.com/forum/topic/306766-colored-static-distortion-hd-4600-10103/#findComment-2146987 Share on other sites More sharing options...
jukno Posted June 22, 2015 Author Share Posted June 22, 2015 anybody have answer for my problem? my monitor is connected using HDMI to port05 but when i use patches with cdmi on port 5 it solves the problem but white-noise is there i only get glimpse of desktop. can anybody help me? Link to comment https://www.insanelymac.com/forum/topic/306766-colored-static-distortion-hd-4600-10103/#findComment-2147169 Share on other sites More sharing options...
toleda Posted June 22, 2015 Share Posted June 22, 2015 it solves the problem but white-noise is there i only get glimpse of desktop. Desktop, yes or no? Attach IOReg. Link to comment https://www.insanelymac.com/forum/topic/306766-colored-static-distortion-hd-4600-10103/#findComment-2147285 Share on other sites More sharing options...
jukno Posted June 23, 2015 Author Share Posted June 23, 2015 Hi Toleda, thanks for helping. Yes its desktop. here is io-reg dump : https://www.dropbox.com/s/0neacr54eiyjbya/jukno-ioreg.ioreg?dl=0 I am using clover (UEFI) : here is my config.plist https://www.dropbox.com/s/70x1612zrqc9x5q/config.plist?dl=0 Link to comment https://www.insanelymac.com/forum/topic/306766-colored-static-distortion-hd-4600-10103/#findComment-2147346 Share on other sites More sharing options...
toleda Posted June 23, 2015 Share Posted June 23, 2015 Yes its desktop. Not clear what problem you want to solve. Port 0x5 DP to HDMI patch, download config-hdmi_hd4600-100.plist.zip. paste KernelAndKextPatches/KextsToPatch/10.10-Azul-Port_0x5-DP2HDMI to EFI/CLOVER/config.plist Find the Yosemite/IOGraphicsFamily second stage patch and add to config.plist Reply with edited config.plist and new IOReg. Link to comment https://www.insanelymac.com/forum/topic/306766-colored-static-distortion-hd-4600-10103/#findComment-2147634 Share on other sites More sharing options...

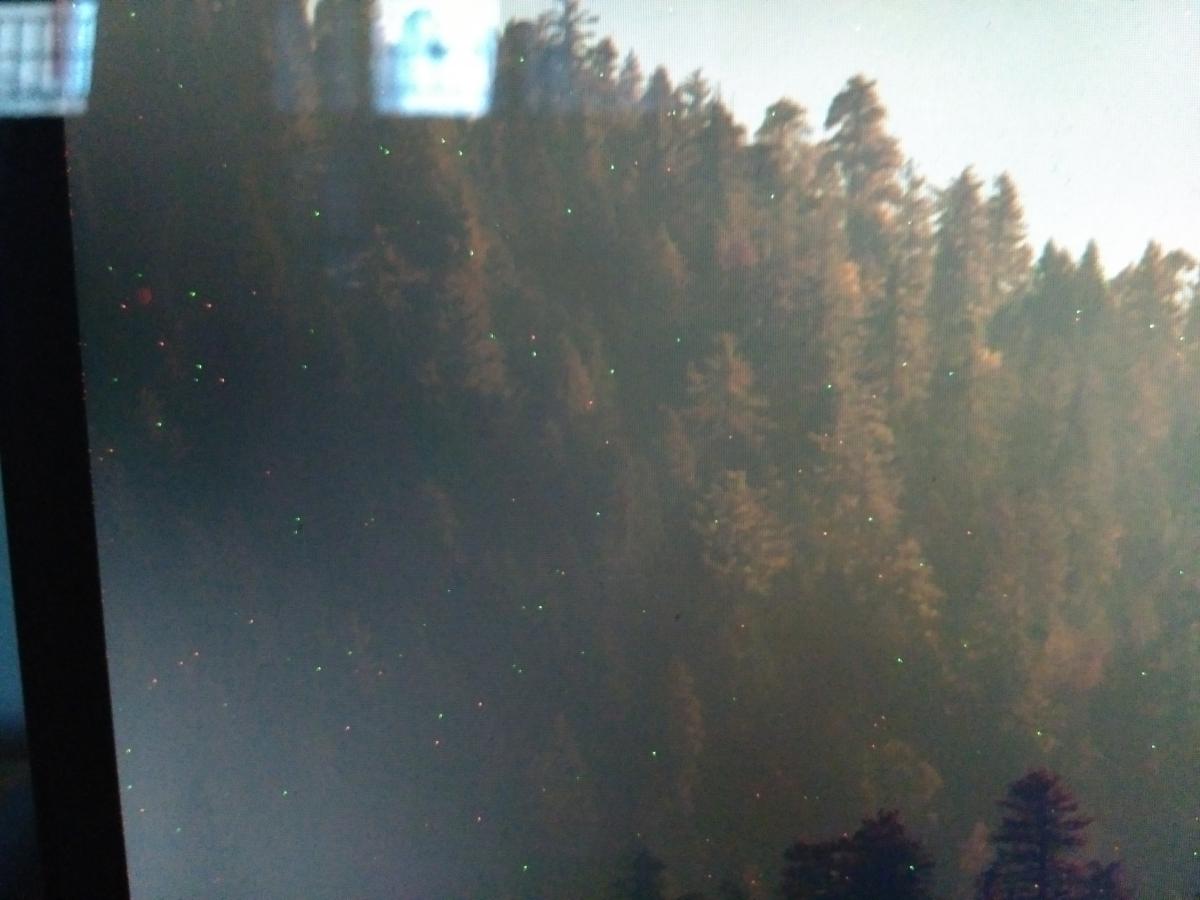

jukno Posted June 24, 2015 Author Share Posted June 24, 2015 I added the kext patch now problem is the same as when i use intel framebuffer patch script. Here is the video of the problem it keep son doing this over and over. https://youtu.be/ydF9ArJeO9o But when i use native framebuffer after few seconds of white noise desktop appears but with lots of noise. See attached photo. Link to comment https://www.insanelymac.com/forum/topic/306766-colored-static-distortion-hd-4600-10103/#findComment-2147696 Share on other sites More sharing options...
toleda Posted June 24, 2015 Share Posted June 24, 2015 I added the kext patch now problem is the same as when i use intel framebuffer patch script. Requested attachments not included with reply, not helpful. What HDMI device and what cable? Link to comment https://www.insanelymac.com/forum/topic/306766-colored-static-distortion-hd-4600-10103/#findComment-2147820 Share on other sites More sharing options...
jukno Posted June 24, 2015 Author Share Posted June 24, 2015 Thatsthe problem after patching i cant no longer use desktop thats why cant dump ioreg. I can only use safe mode with -f -F boot flags. I used all the patches one by one. Im using hdmi cable to connect to monitor. Link to comment https://www.insanelymac.com/forum/topic/306766-colored-static-distortion-hd-4600-10103/#findComment-2147908 Share on other sites More sharing options...
toleda Posted June 24, 2015 Share Posted June 24, 2015 Im using hdmi cable to connect to monitor. Really not helpful. Manufacturer and model of both? Link to comment https://www.insanelymac.com/forum/topic/306766-colored-static-distortion-hd-4600-10103/#findComment-2147948 Share on other sites More sharing options...
jukno Posted June 25, 2015 Author Share Posted June 25, 2015 Dell s2240l and stock hdmi cable cable is working fine on windows. Edit : Tried 3 different cables to no avail. Link to comment https://www.insanelymac.com/forum/topic/306766-colored-static-distortion-hd-4600-10103/#findComment-2148069 Share on other sites More sharing options...
jukno Posted June 25, 2015 Author Share Posted June 25, 2015 Success : It turned out HDMI connector on monitor was damaged. Thanks Toleda for sticking out with me. . Looking forward to being a constructive member of this awesome communiy. Link to comment https://www.insanelymac.com/forum/topic/306766-colored-static-distortion-hd-4600-10103/#findComment-2148164 Share on other sites More sharing options...
