Novar Posted October 30, 2014 Share Posted October 30, 2014 Hello!' My problem in next: the system is rebooted or freezes periodically. Often, appear on the screen graphics artifacts. Often, just a black screen and reboot. The system can run for one minute maybe 30 minutes. Always differently. Please help? I have tried a lot of different solutions, but nothing helped. my system working with Clover. Configuration: Intel Core I3 2330M Quanta TWH TBD Intel HM65 (b2) Intel HD 3000 + GeForce 520M Atheros AR8151 Lan RTL8188CE -> I replaced it with Atheros AR5B195 (WiFi+Bt) Installed kexts: AHCIPortInjector AppleACPIPS2Nub ApplePS2Controller FakeSMC GenericUSBXHCI I also did a lot of RehabMan’s patches: [1.2] TNOT [2.12] Rename GFX0 to IGPU [2.10] Brightness Fix (HD3000/HD4000) [7.01] up to [7.14] except [7.04] and [7.10] My DSDT and config.plist in attachment. dsdt_and_config.zip Link to comment https://www.insanelymac.com/forum/topic/302171-intel-hd-3000-rebooting-or-freezes/ Share on other sites More sharing options...
Novar Posted October 31, 2014 Author Share Posted October 31, 2014 Sometimes in system log i saw that: Oct 31 17:23:15 mbp-nova kernel[0]: stampWait: Overflowed checking for stamp 0xc6740 on MAIN ring: called from Oct 31 17:23:15 mbp-nova kernel[0]: timestamp = 0xc673d Oct 31 17:23:15 mbp-nova kernel[0]: **** Debug info for *possible* hang in MAIN graphics engine **** Oct 31 17:23:15 mbp-nova kernel[0]: ring head = 0x6da07580, wrap count = 877 Oct 31 17:23:15 mbp-nova kernel[0]: ring tail = 0x00007698 Oct 31 17:23:15 mbp-nova kernel[0]: ring control = 0x0000f001 enabled, auto report disabled, not waiting, semaphore not waiting, length = 0x010 4KB pages Oct 31 17:23:15 mbp-nova kernel[0]: timestamps = 0xc673d Oct 31 17:23:15 mbp-nova kernel[0]: Semaphore register values: Oct 31 17:23:15 mbp-nova kernel[0]: VRSYNC: (0x12044) = 0xc673d Oct 31 17:23:15 mbp-nova kernel[0]: BRSYNC: (0x22040) = 0x0 Oct 31 17:23:15 mbp-nova kernel[0]: RVSYNC: (0x 2040) = 0x0 Oct 31 17:23:15 mbp-nova kernel[0]: BVSYNC: (0x22044) = 0x0 Oct 31 17:23:15 mbp-nova kernel[0]: RBSYNC: (0x 2044) = 0x0 Oct 31 17:23:15 mbp-nova kernel[0]: VBSYNC: (0x12040) = 0x0 Link to comment https://www.insanelymac.com/forum/topic/302171-intel-hd-3000-rebooting-or-freezes/#findComment-2079029 Share on other sites More sharing options...
jl4c Posted October 31, 2014 Share Posted October 31, 2014 Attach IOReg Link to comment https://www.insanelymac.com/forum/topic/302171-intel-hd-3000-rebooting-or-freezes/#findComment-2079060 Share on other sites More sharing options...
Novar Posted October 31, 2014 Author Share Posted October 31, 2014 Please tell me more -) how to do that? Link to comment https://www.insanelymac.com/forum/topic/302171-intel-hd-3000-rebooting-or-freezes/#findComment-2079100 Share on other sites More sharing options...
jl4c Posted October 31, 2014 Share Posted October 31, 2014 File > Save a Copy As IORegistryExplorer-SLRID_v10.6.3.zip Link to comment https://www.insanelymac.com/forum/topic/302171-intel-hd-3000-rebooting-or-freezes/#findComment-2079101 Share on other sites More sharing options...
Novar Posted October 31, 2014 Author Share Posted October 31, 2014 If i understood correctly. MacBook Pro — Nova.zip Link to comment https://www.insanelymac.com/forum/topic/302171-intel-hd-3000-rebooting-or-freezes/#findComment-2079107 Share on other sites More sharing options...
jl4c Posted October 31, 2014 Share Posted October 31, 2014 Corrupted, try again... Link to comment https://www.insanelymac.com/forum/topic/302171-intel-hd-3000-rebooting-or-freezes/#findComment-2079109 Share on other sites More sharing options...
Novar Posted October 31, 2014 Author Share Posted October 31, 2014 ones more ioreg_nova.zip Link to comment https://www.insanelymac.com/forum/topic/302171-intel-hd-3000-rebooting-or-freezes/#findComment-2079113 Share on other sites More sharing options...
jl4c Posted October 31, 2014 Share Posted October 31, 2014 Attach config.plist from clover Edit: Also attach the rest of ssdt tables Link to comment https://www.insanelymac.com/forum/topic/302171-intel-hd-3000-rebooting-or-freezes/#findComment-2079115 Share on other sites More sharing options...
Novar Posted October 31, 2014 Author Share Posted October 31, 2014 Config in attachment. SSDT i don't have. How to do that? config.plist.zip Link to comment https://www.insanelymac.com/forum/topic/302171-intel-hd-3000-rebooting-or-freezes/#findComment-2079120 Share on other sites More sharing options...
jl4c Posted October 31, 2014 Share Posted October 31, 2014 Reboot, enter GUI Clover and press F4, this will save all your ACPI tables in EFI/Clover/ACPI/origin. Attach all them. Link to comment https://www.insanelymac.com/forum/topic/302171-intel-hd-3000-rebooting-or-freezes/#findComment-2079123 Share on other sites More sharing options...
Novar Posted October 31, 2014 Author Share Posted October 31, 2014 there are all files from ACPI/orign acpi-origin.zip Link to comment https://www.insanelymac.com/forum/topic/302171-intel-hd-3000-rebooting-or-freezes/#findComment-2079127 Share on other sites More sharing options...
jl4c Posted October 31, 2014 Share Posted October 31, 2014 Question: do you have the option to disable your Nvidia in BIOS? Link to comment https://www.insanelymac.com/forum/topic/302171-intel-hd-3000-rebooting-or-freezes/#findComment-2079139 Share on other sites More sharing options...
Novar Posted October 31, 2014 Author Share Posted October 31, 2014 No (( i can't do anything in bios. It's very bad BIOS. (( And don't have any updates!! Link to comment https://www.insanelymac.com/forum/topic/302171-intel-hd-3000-rebooting-or-freezes/#findComment-2079145 Share on other sites More sharing options...
jl4c Posted October 31, 2014 Share Posted October 31, 2014 Reply with IOReg config.plist.zip dsdt.aml.zip Link to comment https://www.insanelymac.com/forum/topic/302171-intel-hd-3000-rebooting-or-freezes/#findComment-2079165 Share on other sites More sharing options...
Novar Posted October 31, 2014 Author Share Posted October 31, 2014 what do u mean with «Reply with IOReg»?? Link to comment https://www.insanelymac.com/forum/topic/302171-intel-hd-3000-rebooting-or-freezes/#findComment-2079175 Share on other sites More sharing options...
jl4c Posted October 31, 2014 Share Posted October 31, 2014 See post #5 Link to comment https://www.insanelymac.com/forum/topic/302171-intel-hd-3000-rebooting-or-freezes/#findComment-2079177 Share on other sites More sharing options...
Novar Posted October 31, 2014 Author Share Posted October 31, 2014 I don't understand (( sorry... apply dsdt and config which u gave? and make again ioreg file? Link to comment https://www.insanelymac.com/forum/topic/302171-intel-hd-3000-rebooting-or-freezes/#findComment-2079180 Share on other sites More sharing options...
jl4c Posted October 31, 2014 Share Posted October 31, 2014 Yes, attach IOReg after reboot of course. Link to comment https://www.insanelymac.com/forum/topic/302171-intel-hd-3000-rebooting-or-freezes/#findComment-2079185 Share on other sites More sharing options...

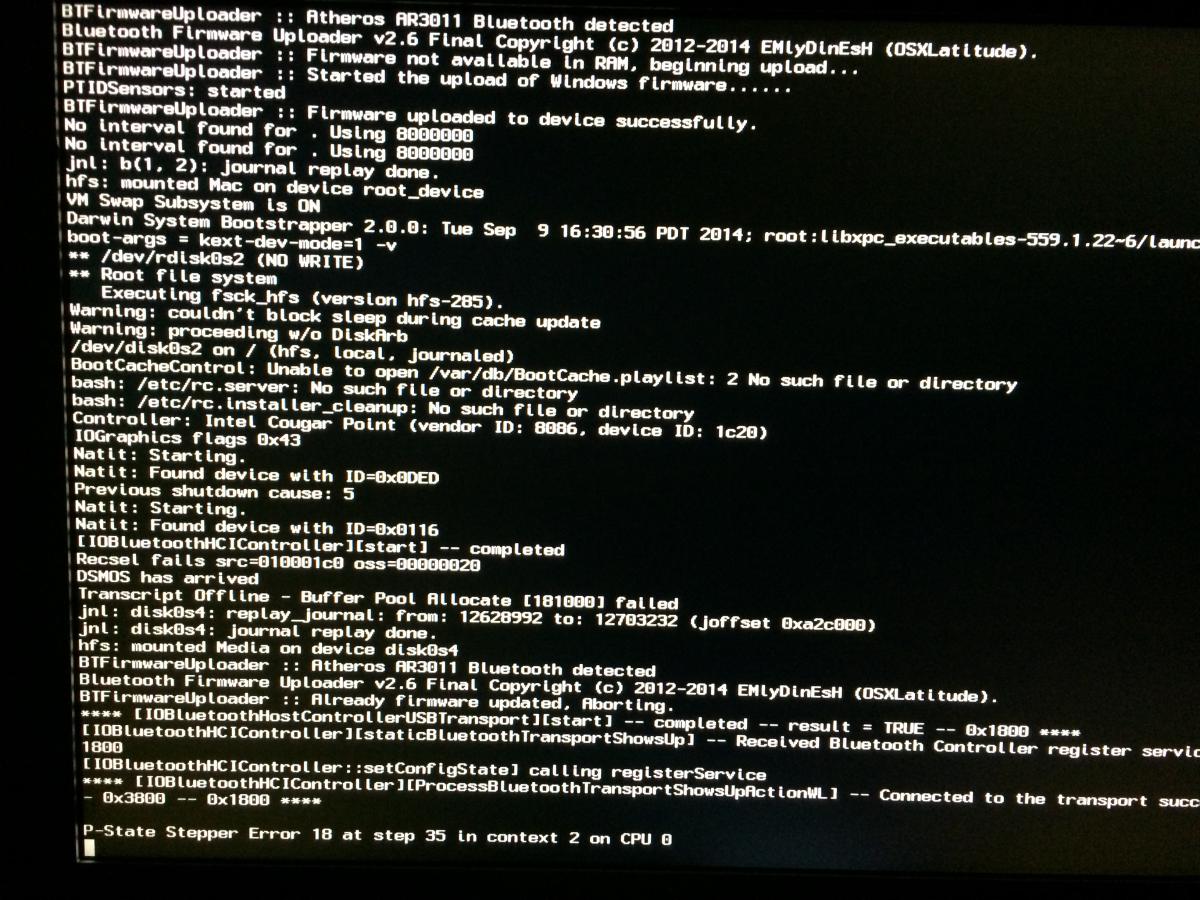

Novar Posted October 31, 2014 Author Share Posted October 31, 2014 Can't boot, see this error: Link to comment https://www.insanelymac.com/forum/topic/302171-intel-hd-3000-rebooting-or-freezes/#findComment-2079196 Share on other sites More sharing options...
jl4c Posted October 31, 2014 Share Posted October 31, 2014 Use this If u can't boot os x, in clover gui go to option and search for usb injection and check all them. Also go to cpu option and check generate p-states and c-states config.plist.zip Link to comment https://www.insanelymac.com/forum/topic/302171-intel-hd-3000-rebooting-or-freezes/#findComment-2079199 Share on other sites More sharing options...

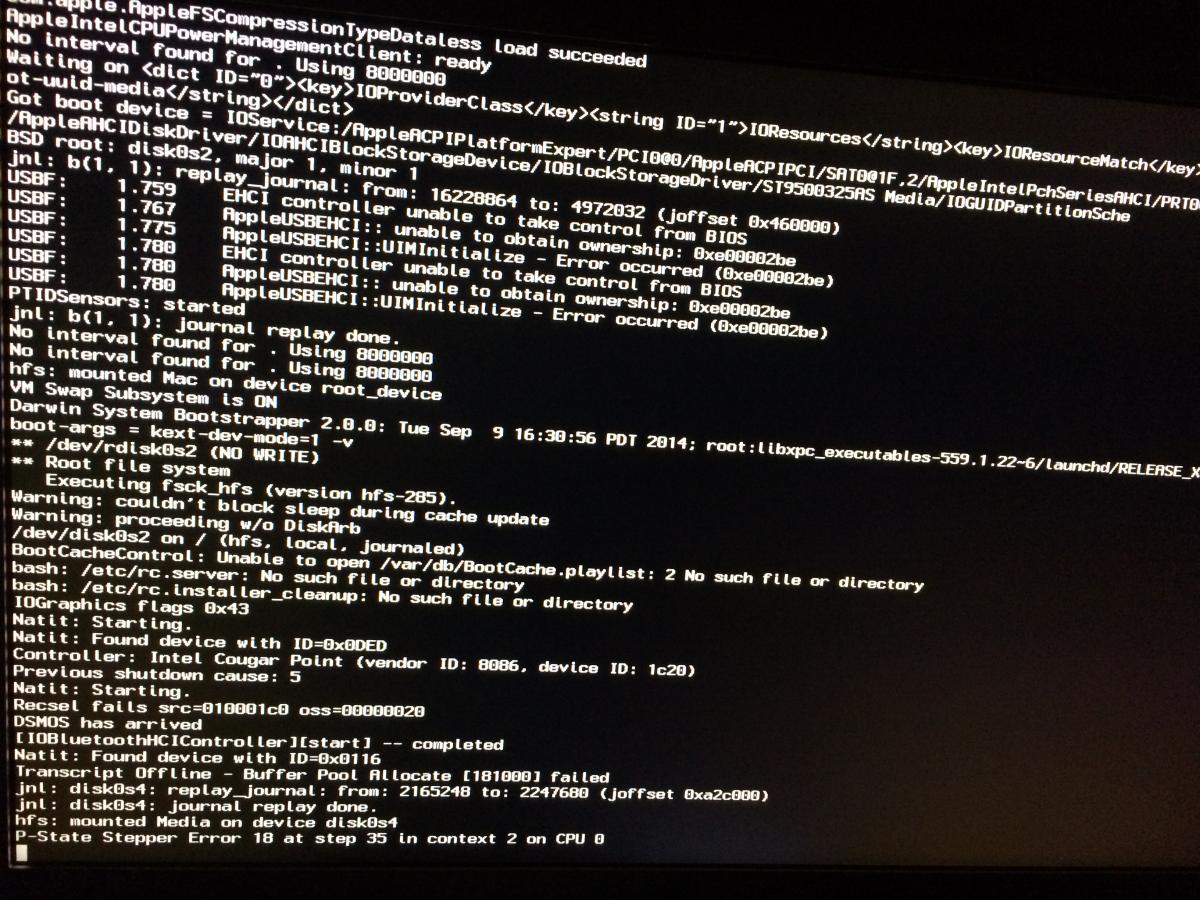

Novar Posted October 31, 2014 Author Share Posted October 31, 2014 Saw this error again, but with new messages. Sorry didn't tried what did you wrote. Will try... one moment Link to comment https://www.insanelymac.com/forum/topic/302171-intel-hd-3000-rebooting-or-freezes/#findComment-2079209 Share on other sites More sharing options...
jl4c Posted October 31, 2014 Share Posted October 31, 2014 Try using "drop oem" Link to comment https://www.insanelymac.com/forum/topic/302171-intel-hd-3000-rebooting-or-freezes/#findComment-2079210 Share on other sites More sharing options...
Novar Posted October 31, 2014 Author Share Posted October 31, 2014 System started with drop all oemBut not working some things, for ex wifi card which I patched in dsdt ioreg in attachment ioreg_nova.zip Link to comment https://www.insanelymac.com/forum/topic/302171-intel-hd-3000-rebooting-or-freezes/#findComment-2079219 Share on other sites More sharing options...
jl4c Posted October 31, 2014 Share Posted October 31, 2014 Try this files. ssdt and dsdt must be in EFI/Clover/ACPI/patched/ Reply with IOReg config.plist.zip dsdt.aml.zip ssdt.aml.zip Link to comment https://www.insanelymac.com/forum/topic/302171-intel-hd-3000-rebooting-or-freezes/#findComment-2079256 Share on other sites More sharing options...
