firestrife2382 Posted August 29, 2014 Share Posted August 29, 2014 I’m trying my best to follow the guide from here to enable HDMI audio for GeForce GTX 760. From my understanding is that I need to somehow generate DSDT or SSDT file to make the use of HDMI Audio… unfortunately my system is DSDT free since most of stuff work out of box except for wifi. Please advise.My Setup:Mac OS X MaverickChimera BootloaderGA-Z87N-WIFIGeForce GTX 76016GB RAM250GB SSDI've uploaded zip files with copy of IOJone and org.chameleon.Boot.plist firestrife2382.zip Link to comment https://www.insanelymac.com/forum/topic/300589-geforce-760-gtx-hdmi-audio-need-help/ Share on other sites More sharing options...
toleda Posted August 29, 2014 Share Posted August 29, 2014 my system is DSDT free since most of stuff work out of box except for wifi. OS X HDMI audio does not work OOB on non native hardware; dsdt edits or HDMI audio ssdt required. Choose one method and install. Link to comment https://www.insanelymac.com/forum/topic/300589-geforce-760-gtx-hdmi-audio-need-help/#findComment-2056505 Share on other sites More sharing options...
firestrife2382 Posted August 30, 2014 Author Share Posted August 30, 2014 Thank you for your quick respond. My motherboard doesn't require DSDT or SSDT and that's why my Extra folder doesn't contain DSDT or SSDT file which is nice until I learned about HDMI audio issue... so which is preferable to generate DSDT or SSDT and how do I create those? I would like to learn how rather than scorning the internet to find a working copy of DSDT or SSDT file. Link to comment https://www.insanelymac.com/forum/topic/300589-geforce-760-gtx-hdmi-audio-need-help/#findComment-2056643 Share on other sites More sharing options...
firestrife2382 Posted August 30, 2014 Author Share Posted August 30, 2014 UPDATE: Ok tell me if I'm doing it right or wrong... I use MaciASL to generate DSDT, applied two of your patches: ib1-ami_efi_clean_compile uefi1-hdmi_audio-1 However, I ran into 1 error during compiling which complained about "syntax error unexpected parseop_if Arg0" and I removed that offending line... Link to comment https://www.insanelymac.com/forum/topic/300589-geforce-760-gtx-hdmi-audio-need-help/#findComment-2056649 Share on other sites More sharing options...
toleda Posted August 30, 2014 Share Posted August 30, 2014 tell me if I'm doing it right or wrong... Wrong repo, for Z87N/8 Series motherboards, configure MaciASL/Preferences/Sources/+ with URL: https://raw.github.com/toleda/audio_hdmi_8series/master Apply MaciASL/Patch/ AMI-Clean_Compile-8series AMI-HD4600-AMD-Nvidia-A1 Link to comment https://www.insanelymac.com/forum/topic/300589-geforce-760-gtx-hdmi-audio-need-help/#findComment-2056713 Share on other sites More sharing options...

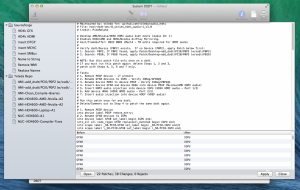

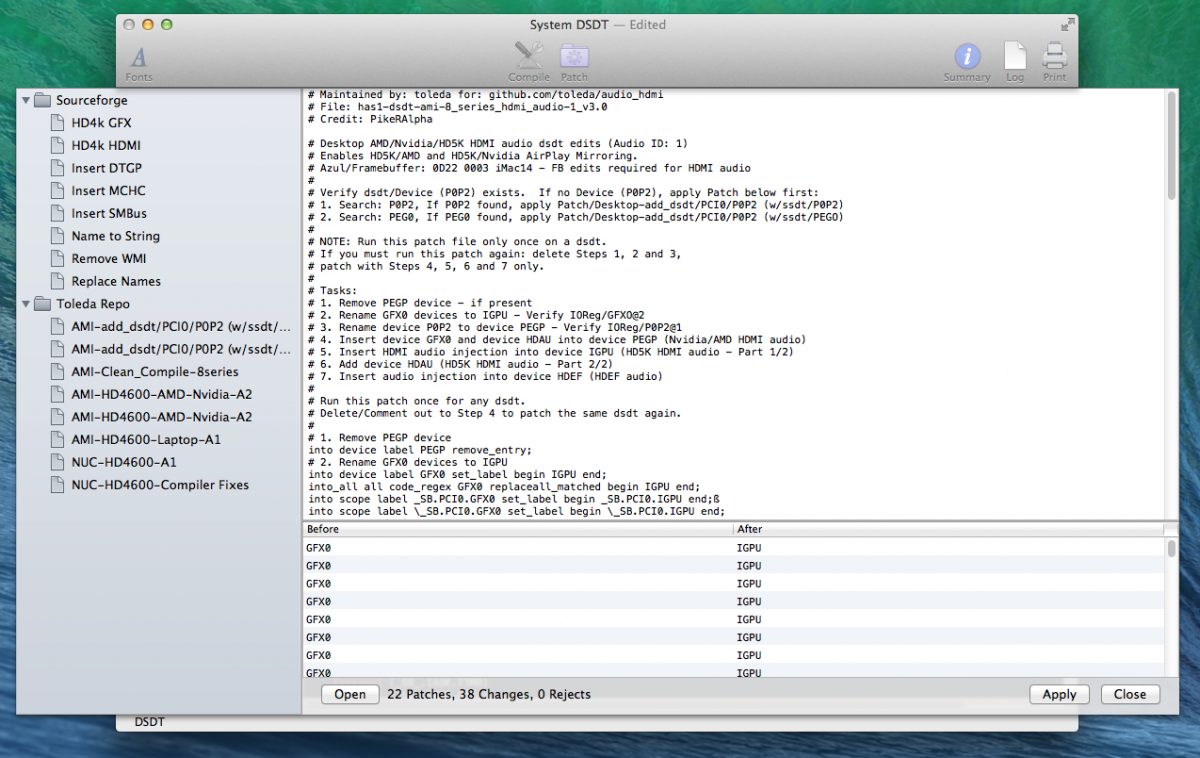

firestrife2382 Posted August 30, 2014 Author Share Posted August 30, 2014 Added your repo... I'm seeing duplication - AMI-HD4600-AMD-Nvidia-A2 (see screenshot) Link to comment https://www.insanelymac.com/forum/topic/300589-geforce-760-gtx-hdmi-audio-need-help/#findComment-2056738 Share on other sites More sharing options...
toleda Posted August 30, 2014 Share Posted August 30, 2014 I'm seeing duplication Fixed. Restart MaciASL. Link to comment https://www.insanelymac.com/forum/topic/300589-geforce-760-gtx-hdmi-audio-need-help/#findComment-2056747 Share on other sites More sharing options...

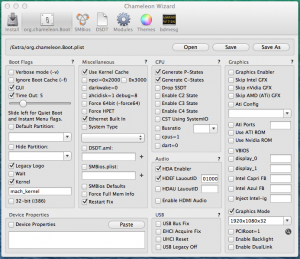

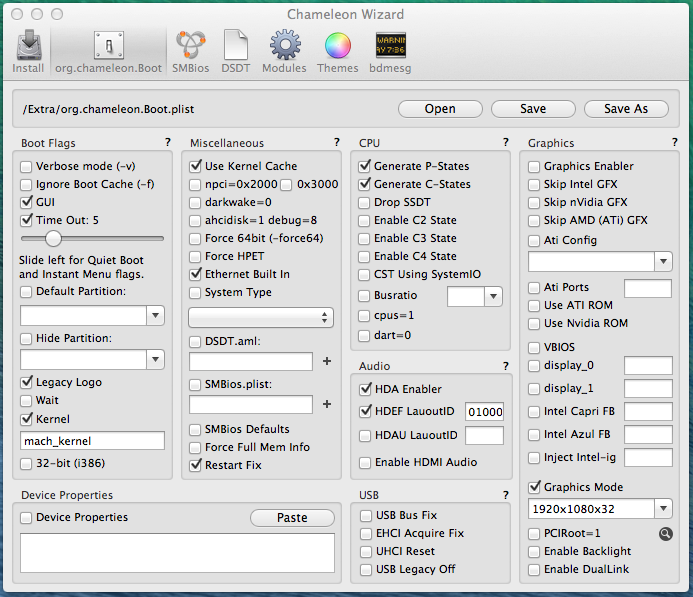

firestrife2382 Posted August 31, 2014 Author Share Posted August 31, 2014 Compiled without error, and that's awesome! I also noticed my CPU temp dropped by 10 degree with DSDT which is nice side effect! But I'm not seeing HDMI Audio in Sound preference... I'm already using MultiB****'s patched AppleHDA.kext and I think it may have something to do with my chameleon plist... see below. Link to comment https://www.insanelymac.com/forum/topic/300589-geforce-760-gtx-hdmi-audio-need-help/#findComment-2056852 Share on other sites More sharing options...
toleda Posted August 31, 2014 Share Posted August 31, 2014 I'm not seeing HDMI Audio in Sound preference.. The dsdt does HDEF injection, remove. Attach an IOReg and the edited dsdt. Link to comment https://www.insanelymac.com/forum/topic/300589-geforce-760-gtx-hdmi-audio-need-help/#findComment-2056854 Share on other sites More sharing options...
firestrife2382 Posted August 31, 2014 Author Share Posted August 31, 2014 There you go Archive.zip Link to comment https://www.insanelymac.com/forum/topic/300589-geforce-760-gtx-hdmi-audio-need-help/#findComment-2056855 Share on other sites More sharing options...
toleda Posted August 31, 2014 Share Posted August 31, 2014 There you go IOReg does not show the dsdt edits; install Extra/DSDT.aml Link to comment https://www.insanelymac.com/forum/topic/300589-geforce-760-gtx-hdmi-audio-need-help/#findComment-2056859 Share on other sites More sharing options...
firestrife2382 Posted August 31, 2014 Author Share Posted August 31, 2014 That's odd it's already there, I even renamed it from dsdt.aml to DSDT.aml. Here's newly generated IOReg UPDATE: It's working now after rebuilding cache and reboot, I'm going to mark this as solved and thank you for your help! Firestrife2382.zip Link to comment https://www.insanelymac.com/forum/topic/300589-geforce-760-gtx-hdmi-audio-need-help/#findComment-2056861 Share on other sites More sharing options...
