Still got a garbled screen after a week trying to sort it out… help appreciated….

[laadmaaf]

Lenovo Thinkpad X201 tablet

Niresh mavericks 10.9.0

Intel HD intergraded graphics (Ironlake)

Intel i7 2.1GHz

3GB RAM





I can successfully install using the boot flags: npci=0x3000 PCIRootUID=1 GraphicsEnabler=No -X -v

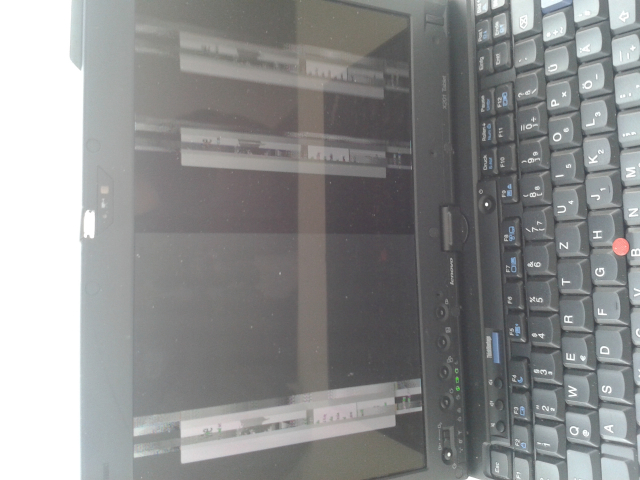

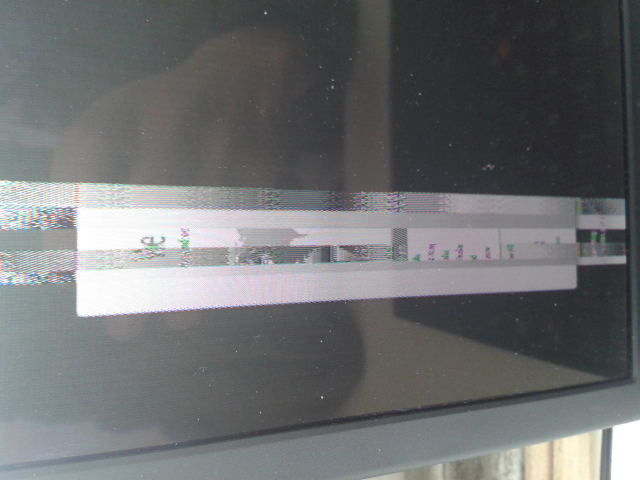

On first boot I get a garbled screen (through the glitch I can see my mouse moving and a vague window, possibly OSX welcome screen) so I think everything is working apart from a graphics glitch… see attached photos.





So I tried to delete AppleIntelHDGraphics* and replace with the CIQE version available here for 10.9.0. When I do this, the boot gets stuck shortly after DSMOS has arrived, showing a backtrace of AppleIntelHDGraphics and dependancies. I've tried simply waiting, but nothing happens after 10 minutes.



So I put back the original AppleIntelHDGraphics* files and just swapped the FB. Then the boot hangs at same place. Then tried swapping at least 5 different FB files I've grabbed from this forum, all yielding the same result of the boot hanging. I've also swapped some files from the 201X boot pack extras over at osxlatitude, and that breaks the entire install and get's a kernel panic very early on. I also tried using my hack but I cannot even install using that method, even with the supplied 201X boot pack which is supposed to work for my laptop.



In fact the closest I get is with the original AppleIntelHDGraphics* IE the fresh install, but with this garbled screen - as anything I seem to do makes the boot hang or panic.



Any ideas? Would be much appreciated!
