RobertX

Asus Radeon HD 6570

4 posts in this topic

Recommended Posts

...hmmm, got this card on the cheap...installed and running with default framebuffer for now....I'll have to get the ports and personality figured out...but all looks like a go... :smoke:(GraphicsEnabler=No for now)



...edit: seems to work with pithecia

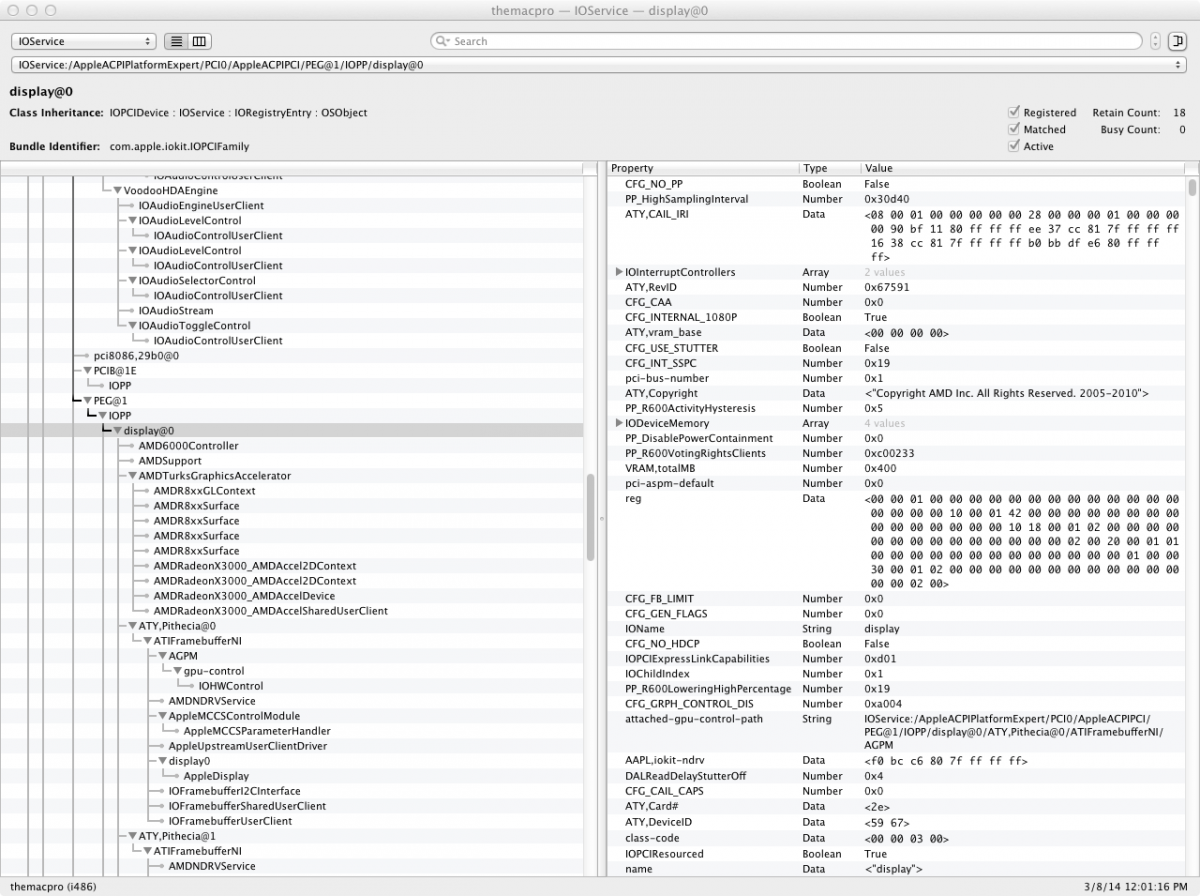

take peek...




 ...still testing :smoke:





             AMD Radeon HD 6570/7570 Series

  Chipset Model:    AMD Radeon HD 6570/7570 Series
  Type:    GPU
  Bus:    PCIe
  PCIe Lane Width:    x16
  VRAM (Total):    1024 MB
  Vendor:    ATI (0x1002)
  Device ID:    0x6759
  Revision ID:    0x0000
  Displays:
BenQ GW2250:
  Resolution:    1920 x 1080 @ 60 Hz
  Pixel Depth:    32-Bit Color (ARGB8888)
  Display Serial Number:    5BC07263SL0
  Main Display:    Yes
  Mirror:    Off
  Online:    Yes
  Rotation:    Supported


edit: seems only working port is hdmi(using DVI/HDMI adapter) i'll look into personality mods next  :smoke:

Share this post


Link to post
Share on other sites

...was playing around with RBE(RadeonBiosEditor) in Win8.1 and did a bit of overclocking...and instead of flashing the card , i just saved the rom...restarted os x, retrieved the rom from windows and renamed it 1002_6759_04031043.rom ...moved the file into /Extra...then adjusted org.chameleon.boot.plist to include UseAtiROM=Yes...voila'! ...increased core from 650 to 800MHz and memory from 900 to 1000...increased fan duty cycle from 15 to 26% @46 degrees C, ramping up from there...below is from OpenCL_OceanWave...it shows the increase...runs smooth...idles @44-48 degrees C :smoke:  ...no voltage mods...stock cooler/w fan...i left the first 2 power settings in rom  alone ... so AGPM still lets the card idle down...







NITIALISING: 1 OpenCL platform found!

[Platform 0]
Name: Apple
Vendor: Apple
Version: OpenCL 1.2 (Dec 8 2013 21:07:05)
Profile: FULL_PROFILE
Extensions: cl_APPLE_SetMemObjectDestructor cl_APPLE_ContextLoggingFunctions cl_APPLE_clut cl_APPLE_query_kernel_names cl_APPLE_gl_sharing cl_khr_gl_event


[OpenCL-only Context]
2 OpenCL devices found!

[Device 0]
Name: Intel® Core2 Duo CPU E6850 @ 3.00GHz
Vendor: Intel
Type: CPU
Device Version: OpenCL 1.2
Driver Version: 1.1
Compute Units: 2
Work Group Size: 1024
Clock: 2992 MHz
Global Memory (Total): 8192 MB
Global Memory (Host): 8192 MB
Global Memory (PCIe): 0 MB
Local Memory: 32 KB
Cache Size: 0.0625 KB
Cache Line Size: 4194304 Bytes
Available: Yes
Double-Precision: Yes
Extensions:
cl_APPLE_SetMemObjectDestructor
cl_APPLE_ContextLoggingFunctions
cl_APPLE_clut
cl_APPLE_query_kernel_names
cl_APPLE_gl_sharing
cl_khr_gl_event
cl_khr_fp64
cl_khr_global_int32_base_atomics
cl_khr_global_int32_extended_atomics
cl_khr_local_int32_base_atomics
cl_khr_local_int32_extended_atomics
cl_khr_byte_addressable_store
cl_khr_int64_base_atomics
cl_khr_int64_extended_atomics
cl_khr_3d_image_writes
cl_khr_image2d_from_buffer
cl_APPLE_fp64_basic_ops
cl_APPLE_fixed_alpha_channel_orders
cl_APPLE_biased_fixed_point_image_formats
cl_APPLE_command_queue_priority

[Device 1]
Name: ATI Radeon Turks PRO Prototype
Vendor: AMD
Type: GPU
Device Version: OpenCL 1.2
Driver Version: 1.2 (Jan 28 2014 20:11:46)
Compute Units: 6
Work Group Size: 256
Clock: 800 MHz
Global Memory: 1024 MB
Local Memory: 32 KB
Cache Size: 0 KB
Cache Line Size: 0 Bytes
Available: Yes
Double-Precision: No
Extensions:
cl_APPLE_SetMemObjectDestructor
cl_APPLE_ContextLoggingFunctions
cl_APPLE_clut
cl_APPLE_query_kernel_names
cl_APPLE_gl_sharing
cl_khr_gl_event
cl_khr_global_int32_base_atomics
cl_khr_global_int32_extended_atomics
cl_khr_local_int32_base_atomics
cl_khr_local_int32_extended_atomics
cl_khr_byte_addressable_store
cl_khr_image2d_from_buffer
cl_khr_depth_images

[shared OpenCL+OpenGL Context]
2 OpenCL devices found!

[Device 0]
Name: ATI Radeon Turks PRO Prototype
Vendor: AMD
Type: GPU
Device Version: OpenCL 1.2
Driver Version: 1.2 (Jan 28 2014 20:11:46)
Compute Units: 6
Work Group Size: 256
Clock: 800 MHz
Global Memory: 1024 MB
Local Memory: 32 KB
Cache Size: 0 KB
Cache Line Size: 0 Bytes
Available: Yes
Double-Precision: No
Extensions:
cl_APPLE_SetMemObjectDestructor
cl_APPLE_ContextLoggingFunctions
cl_APPLE_clut
cl_APPLE_query_kernel_names
cl_APPLE_gl_sharing
cl_khr_gl_event
cl_khr_global_int32_base_atomics
cl_khr_global_int32_extended_atomics
cl_khr_local_int32_base_atomics
cl_khr_local_int32_extended_atomics
cl_khr_byte_addressable_store
cl_khr_image2d_from_buffer
cl_khr_depth_images

[Device 1]
Name: Intel® Core2 Duo CPU E6850 @ 3.00GHz
Vendor: Intel
Type: CPU
Device Version: OpenCL 1.2
Driver Version: 1.1
Compute Units: 2
Work Group Size: 1024
Clock: 2992 MHz
Global Memory (Total): 8192 MB
Global Memory (Host): 8192 MB
Global Memory (PCIe): 0 MB
Local Memory: 32 KB
Cache Size: 0.0625 KB
Cache Line Size: 4194304 Bytes
Available: Yes
Double-Precision: Yes
Extensions:
cl_APPLE_SetMemObjectDestructor
cl_APPLE_ContextLoggingFunctions
cl_APPLE_clut
cl_APPLE_query_kernel_names
cl_APPLE_gl_sharing
cl_khr_gl_event
cl_khr_fp64
cl_khr_global_int32_base_atomics
cl_khr_global_int32_extended_atomics
cl_khr_local_int32_base_atomics
cl_khr_local_int32_extended_atomics
cl_khr_byte_addressable_store
cl_khr_int64_base_atomics
cl_khr_int64_extended_atomics
cl_khr_3d_image_writes
cl_khr_image2d_from_buffer
cl_APPLE_fp64_basic_ops
cl_APPLE_fixed_alpha_channel_orders
cl_APPLE_biased_fixed_point_image_formats
cl_APPLE_command_queue_priority



Share this post


Link to post
Share on other sites

...and we are a go!....with assistance from Slice...





AMD Radeon HD 6570/7570 Series:

  Chipset Model:    AMD Radeon HD 6570/7570 Series
  Type:    GPU
  Bus:    PCIe
  PCIe Lane Width:    x16
  VRAM (Total):    1024 MB
  Vendor:    ATI (0x1002)
  Device ID:    0x6759
  Revision ID:    0x0000
  Displays:
Apple Studio Display:
  Display Type:    LCD
  Resolution:    1280 x 1024
  Pixel Depth:    32-Bit Color (ARGB8888)
  Main Display:    Yes
  Mirror:    Off
  Online:    Yes
  Rotation:    Supported
L05HD:
  Resolution:    1280 x 720 @ 60Hz (720p)
  Pixel Depth:    32-Bit Color (ARGB8888)
  Mirror:    Off
  Online:    Yes
  Rotation:    Supported
  Television:    Yes



...using modified Ipomoea personality(suggested by Slice)  :smoke:  DVI/HDMI ...VGA not tested
...using Chameleon 2377 GraphicsEnabler=Yes  Ati_Config=Ipomoea

...the modified personality is here:  http://www.insanelymac.com/forum/topic/288601-patched-framebuffer-repository/?do=findComment&comment=2004926
