Installation hanging

1 post in this topic

Recommended Posts

Hi there, I was getting a message popping up every time I was booting OS X it was a KP:

Anonymous UUID:       58750775-EF53-FD51-1AC1-FBF17F064017
Sat Aug 31 22:52:07 2013
panic(cpu 6 caller 0xffffff80002b8655): Kernel trap at 0xffffff8000643edd, type 13=general protection, registers:
CR0: 0x0000000080010033, CR2: 0x00007fb01c00b1fe, CR3: 0x000000000af61005, CR4: 0x00000000000606e0
RAX: 0x00ea6766e7ff0cc4, RBX: 0xffffff80117ab000, RCX: 0xffffff8011ab7800, RDX: 0xffffff8011964940
RSP: 0xffffff80eb28bdd0, RBP: 0xffffff80eb28be10, RSI: 0xffffff8011964940, RDI: 0xffffff8011902c40
R8:  0x00000000000000de, R9:  0x0000000000000001, R10: 0xffffff8011783c00, R11: 0x0000000000000206
R12: 0xffffff8011902c40, R13: 0xffffff8011964940, R14: 0x0000000000000057, R15: 0xffffff8012d65900
RFL: 0x0000000000010282, RIP: 0xffffff8000643edd, CS:  0x0000000000000008, SS:  0x0000000000000010
Fault CR2: 0x00007fb01c00b1fe, Error code: 0x0000000000000000, Fault CPU: 0x6
Backtrace (CPU 6), Frame : Return Address
0xffffff80eb28ba70 : 0xffffff800021d626
0xffffff80eb28bae0 : 0xffffff80002b8655
0xffffff80eb28bcb0 : 0xffffff80002ce17d
0xffffff80eb28bcd0 : 0xffffff8000643edd
0xffffff80eb28be10 : 0xffffff8000643fa6
0xffffff80eb28be40 : 0xffffff8000667fee
0xffffff80eb28be50 : 0xffffff8000296711
0xffffff80eb28be80 : 0xffffff8000220b3d
0xffffff80eb28beb0 : 0xffffff8000210448
0xffffff80eb28bf00 : 0xffffff800021961b
0xffffff80eb28bf70 : 0xffffff80002a6536
0xffffff80eb28bfb0 : 0xffffff80002ce9e3
BSD process name corresponding to current thread: kextd
Boot args: npci=0x2000 slide=0 darkwake=0
Mac OS version:
Kernel version:
Darwin Kernel Version 12.4.0: Wed May  1 17:57:12 PDT 2013; root:xnu-2050.24.15~1/RELEASE_X86_64
Kernel UUID: 896CB1E3-AB79-3DF1-B595-549DFFDF3D36
System model name: MacBookPro8,2 (Mac-942459F5819B171B)
System uptime in nanoseconds: 358986121037
last loaded kext at 358985419219: com.apple.driver.AppleUSBCDC 4.1.23 (addr 0xffffff7f81def000, size 16384)
last unloaded kext at 155026311414: com.apple.driver.AppleUSBXHCI 5.6.0 (addr 0xffffff7f80bc4000, size 102400)
loaded kexts:
com.nvidia.CUDA 1.1.0
org.rehabman.voodoo.driver.PS2Trackpad 1.8.5
org.rehabman.voodoo.driver.PS2Keyboard 1.8.5
net.osx86.kexts.GenericUSBXHCI 1.2.4
org.hwsensors.driver.ACPISensors 243
org.rehabman.voodoo.driver.PS2Controller 1.8.5
org.hwsensors.driver.CPUSensors 249
org.netkas.driver.FakeSMC 480
com.apple.driver.AppleUSBCDC 4.1.23
com.apple.filesystems.msdosfs 1.8.1
com.apple.filesystems.exfat 1.3
com.apple.driver.AppleHWSensor 1.9.5d0
com.apple.driver.AudioAUUC 1.60
com.apple.filesystems.ntfs 3.10
com.apple.driver.AGPM 100.12.87
com.apple.filesystems.autofs 3.0
com.apple.driver.AppleHDA 2.3.0f2
com.apple.driver.AppleUpstreamUserClient 3.5.10
com.apple.iokit.IOUserEthernet 1.0.0d1
com.apple.iokit.IOBluetoothSerialManager 4.1.4f2
com.apple.driver.AppleIntelHD3000Graphics 8.1.2
com.apple.Dont_Steal_Mac_OS_X 7.0.0
com.apple.driver.AppleBacklight 170.2.5
com.apple.driver.AppleSMCPDRC 1.0.0
com.apple.driver.AppleLPC 1.6.0
com.apple.driver.ApplePolicyControl 3.4.5
com.apple.driver.AppleMCCSControl 1.1.11
com.apple.driver.ACPI_SMC_PlatformPlugin 1.0.0
com.apple.driver.AppleIntelSNBGraphicsFB 8.0.0
com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1
com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0d1
com.apple.BootCache 34
com.apple.iokit.SCSITaskUserClient 3.5.5
com.apple.driver.XsanFilter 404
com.apple.iokit.IOAHCIBlockStorage 2.3.1
com.apple.driver.AppleUSBHub 5.5.5
com.apple.driver.AppleSDXC 1.4.2
com.apple.iokit.AppleBCM5701Ethernet 9.2.5b3
com.apple.driver.AirPort.Atheros40 600.72.2
com.apple.driver.AppleAHCIPort 2.5.2
com.apple.driver.AppleUSBEHCI 5.5.0
com.apple.driver.AppleEFINVRAM 1.7
com.apple.driver.AppleACPIBatteryManager 1
com.apple.driver.AppleACPIEC 1.3.6
com.apple.driver.AppleACPIButtons 1.3.6
com.apple.driver.AppleRTC 1.5
com.apple.driver.AppleHPET 1.8
com.apple.driver.AppleSMBIOS 1.9
com.apple.driver.AppleAPIC 1.6
com.apple.driver.AppleIntelCPUPowerManagementClient 196.0.0
com.apple.nke.applicationfirewall 4.0.39
com.apple.security.quarantine 2.1
com.apple.driver.AppleIntelCPUPowerManagement 196.0.0
com.apple.kext.triggers 1.0
com.apple.driver.DspFuncLib 2.3.0f2
com.apple.iokit.IOAudioFamily 1.8.9fc11
com.apple.kext.OSvKernDSPLib 1.6
com.apple.iokit.IOSurface 86.0.4
com.apple.iokit.IOSerialFamily 10.0.6
com.apple.iokit.IOBluetoothFamily 4.1.4f2
com.apple.driver.AppleBacklightExpert 1.0.4
com.apple.driver.AppleHDAController 2.3.0f2
com.apple.iokit.IOHDAFamily 2.3.0f2
com.apple.driver.AppleSMBusPCI 1.0.11d0
com.apple.driver.AppleGraphicsControl 3.4.5
com.apple.iokit.IONDRVSupport 2.3.7
com.apple.driver.AppleSMBusController 1.0.11d0
com.apple.driver.AppleSMC 3.1.4d2
com.apple.driver.IOPlatformPluginLegacy 1.0.0
com.apple.driver.IOPlatformPluginFamily 5.3.0d51
com.apple.iokit.IOGraphicsFamily 2.3.7
com.apple.driver.AppleUSBComposite 5.2.5
com.apple.iokit.IOSCSIMultimediaCommandsDevice 3.5.5
com.apple.iokit.IOBDStorageFamily 1.7
com.apple.iokit.IODVDStorageFamily 1.7.1
com.apple.iokit.IOCDStorageFamily 1.7.1
com.apple.iokit.IOAHCISerialATAPI 2.5.1
com.apple.iokit.IOSCSIArchitectureModelFamily 3.5.5
com.apple.iokit.IOUSBUserClient 5.5.5
com.apple.iokit.IOEthernetAVBController 1.0.2b1
com.apple.iokit.IO80211Family 530.4
com.apple.iokit.IONetworkingFamily 3.0
com.apple.iokit.IOAHCIFamily 2.3.1
com.apple.iokit.IOUSBFamily 5.6.0
com.apple.driver.AppleEFIRuntime 1.7
com.apple.iokit.IOSMBusFamily 1.1
com.apple.iokit.IOHIDFamily 1.8.1
com.apple.security.sandbox 220.3
com.apple.kext.AppleMatch 1.0.0d1
com.apple.security.TMSafetyNet 7
com.apple.driver.DiskImages 345
com.apple.iokit.IOStorageFamily 1.8
com.apple.driver.AppleKeyStore 28.21
com.apple.driver.AppleACPIPlatform 1.3.6
com.apple.iokit.IOPCIFamily 2.7.3
com.apple.iokit.IOACPIFamily 1.4
com.apple.kec.corecrypto 1.0
Model: MacBookPro8,2, BootROM MBP82.0047.B27, 4 processors, Intel Core i7, 2.00 GHz, 8 GB, SMC 1.70f5
Graphics: Intel HD Graphics 3000, Intel HD Graphics 3000, Built-In, 512 MB
Memory Module: BANK0/DIMM0, 4 GB, DDR3, 1333 MHz, Micron Technology, 16KTF51264HZ-1G4K1K1
Memory Module: BANK1/DIMM0, 4 GB, DDR3, 1333 MHz, Micron Technology, 16KTF51264HZ-1G4K1K1
AirPort: spairport_wireless_card_type_airport_extreme (0x168C, 0x8F), Atheros 9287:
Network Service: Wi-Fi, AirPort, en0
Serial ATA Device: TOSHIBA MK6465GSX, 640.14 GB
USB Device: Hub
USB Device: 1.3M HD WebCam
USB Device: Hub
USB Device: USB Flash Memory
Thunderbolt Bus:


So I saw the kernel was 10.8.4 and related to USB kexts but didn't know how to solve it, so I decided to do a clean install. I already had Clover installed to my system via UEFI and it is working fine, apart from now. I am trying to reinstall 10.8.3 from a vanilla USB and then use Clover which is already installed to boot it.

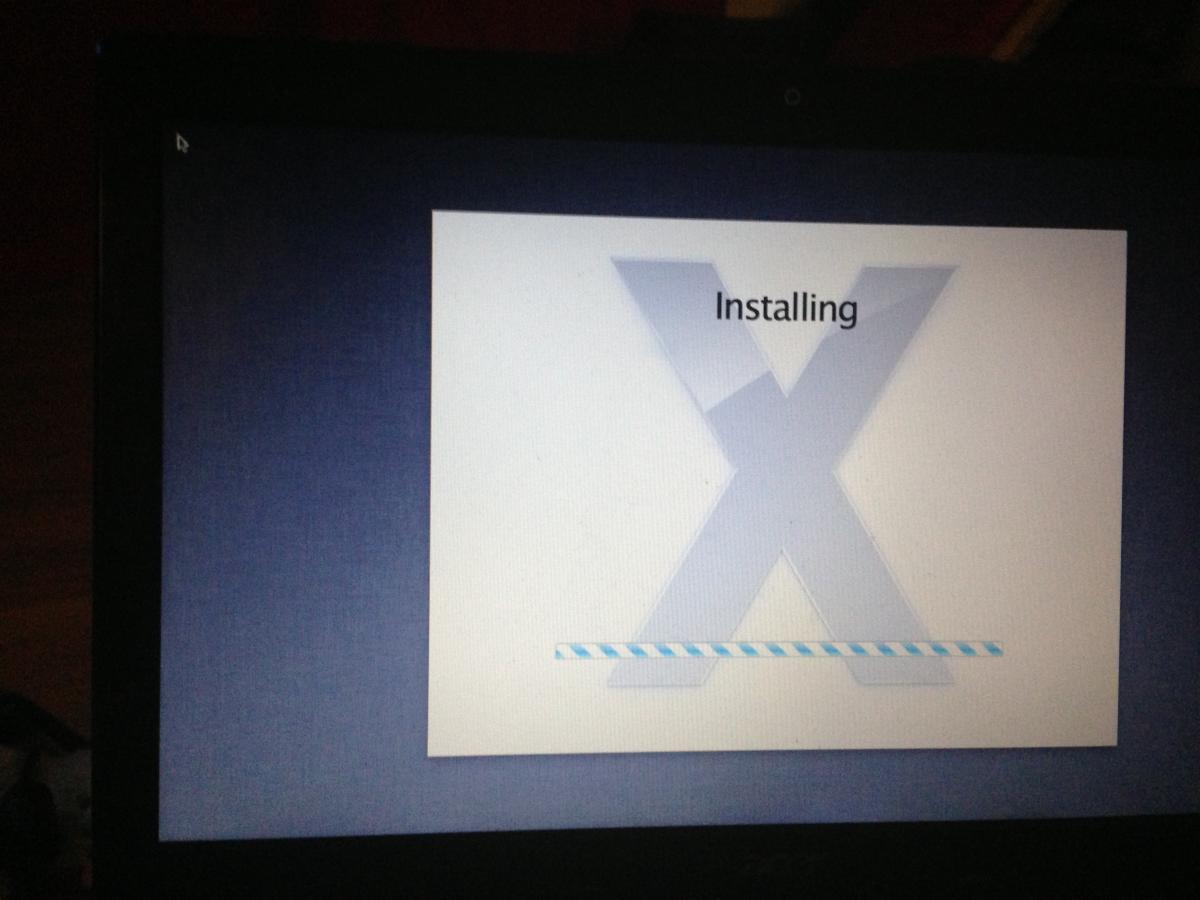

I can install 10.8.3 with kexts and no cache, but upon where the system restarts I choose the new OS X install in Clover and it gets stuck at the screenshot which is attached. I know this installer is created correctly because I have installed from it before. On that screen my trackpad and keyboard doesn't work so it feels like Clover is not injecting the kexts correctly. However something must be right because I can get to that screen which means that FakeSMC is being detected and used?




Not sure what else to do, any help?

I have already previously installed 10.8 so I know its possible I just don't understand why its hanging.


EDIT: I also have 10.9 installed on another partition but when booting that, I still get that message each time I boot, even though 10.8 is not installed, also the kexts within that report are not correct. Some were removed a long time ago.
