datwsui Posted September 8, 2012 Share Posted September 8, 2012 I have a Sony VGN-FW490 laptop with ATI Mobility Radeon HD 4650. When I decode video bios rom, I can't find senseline for LVDS. How can I get senseID for LVDS then? Any help will be appreciated. Here is my video rom: ATOM BIOS Rom: SubsystemVendorID: 0x104d SubsystemID: 0x9035 IOBaseAddress: 0xd000 Filename: BR32701.001 BIOS Bootup Message: Sony_M763_M96M2LP_gDDR3 M96 GDDR3 128bit 450e/600m PCI ID: 1002:9480 Connector at index 0 Type [@offset 45890]: LVDS (7) Encoder [@offset 45894]: INTERNAL_UNIPHY2 (0x21) Connector at index 1 Type [@offset 45900]: VGA (1) Encoder [@offset 45904]: INTERNAL_KLDSCP_DAC1 (0x15) i2cid [@offset 45971]: 0x90, OSX senseid: 0x1 Connector at index 2 Type [@offset 45910]: HDMI-A (11) Encoder [@offset 45914]: INTERNAL_UNIPHY (0x1e) i2cid [@offset 45994]: 0x94, OSX senseid: 0x5 Any one can help me with this? Link to comment https://www.insanelymac.com/forum/topic/282637-ati-mobility-radeon-hd-4650-cant-find-lvds-senseline/ Share on other sites More sharing options...
datwsui Posted September 11, 2012 Author Share Posted September 11, 2012 no body? Link to comment https://www.insanelymac.com/forum/topic/282637-ati-mobility-radeon-hd-4650-cant-find-lvds-senseline/#findComment-1852063 Share on other sites More sharing options...
SergeySW Posted September 14, 2012 Share Posted September 14, 2012 I have Sony VGN laptop too. Sony don't connect LVDS to I2C bus, therefore in video bios rom no senseid for LVDS. You can used any free value senseid in ConnectorInfo LVDS record. But in this case video driver can't read EDID of LVDS panel. I solved this problem by adding EDID of LVDS to DSDT in _DSM method of video card device key "AAPL00,override-no-connect". P.S. Sorry for my bad English. 1 Link to comment https://www.insanelymac.com/forum/topic/282637-ati-mobility-radeon-hd-4650-cant-find-lvds-senseline/#findComment-1852799 Share on other sites More sharing options...
datwsui Posted September 23, 2012 Author Share Posted September 23, 2012 I have Sony VGN laptop too. Sony don't connect LVDS to I2C bus, therefore in video bios rom no senseid for LVDS. You can used any free value senseid in ConnectorInfo LVDS record. But in this case video driver can't read EDID of LVDS panel. I solved this problem by adding EDID of LVDS to DSDT in _DSM method of video card device key "AAPL00,override-no-connect". P.S. Sorry for my bad English. Could u show me how did u do? Where exactly should I insert EDID? Would u mind paste ur code? Link to comment https://www.insanelymac.com/forum/topic/282637-ati-mobility-radeon-hd-4650-cant-find-lvds-senseline/#findComment-1855072 Share on other sites More sharing options...
SergeySW Posted September 24, 2012 Share Posted September 24, 2012 Could u show me how did u do? Where exactly should I insert EDID? Would u mind paste ur code? My DSDT video card section Perhaps will work without "AAPL00,EDID", "@0,EDID", "@0,override-no-edid" keys. But video card started working only when I added "AAPL00,override-no-connect" key. Device (PEGP) { Name (_ADR, 0x00010000) Device (GFX0) { OperationRegion (ATFX, PCI_Config, Zero, 0x10) Field (ATFX, AnyAcc, NoLock, Preserve) { ATID, 16 } Name (_ADR, Zero) OperationRegion (AVFX, PCI_Config, Zero, 0x10) Field (AVFX, AnyAcc, NoLock, Preserve) { AVID, 16 } Method (_STA, 0, NotSerialized) { Return (0x0F) } Method (_DSM, 4, NotSerialized) { Store(Package (0x48) { "@0,compatible", Buffer (0x0B) { "ATY,Gliff" }, "@0,device_type", Buffer (0x08) { "display" }, "@0,name", Buffer (0x0B) { "ATY,Gliff" }, "@0,VRAM,memsize", Buffer (0x04) { 0x00, 0x00, 0x00, 0x40 }, "@0,display-type", Buffer (0x08) { "LCD1234" }, "@0,AAPL,boot-display", Buffer (0x04) { 0x00, 0x00, 0x00, 0x00 }, "@1,AAPL,boot-display", Buffer (0x04) { 0x01, 0x00, 0x00, 0x00 }, "@0,backlight-control", Buffer (0x04) { 0x01, 0x00, 0x00, 0x00 }, "@0,built-in", Buffer (One) { 0x01 }, "@1,compatible", Buffer (0x0B) { "ATY,Gliff" }, "@1,device_type", Buffer (0x08) { "display" }, "@1,name", Buffer (0x0B) { "ATY,Gliff" }, "@1,VRAM,memsize", Buffer (0x04) { 0x00, 0x00, 0x00, 0x40 }, "@1,display-type", Buffer (0x04) { "CRT" }, "device_type", Buffer (0x12) { "ATY,GliffParent" }, "device-id", Buffer (0x04) { 0x90, 0x94, 0x00, 0x00 }, "vendor-id", Buffer (0x04) { 0x02, 0x10, 0x00, 0x00 }, "AAPL,aux-power-connected", Buffer (0x04) { 0x01, 0x00, 0x00, 0x00 }, "AAPL,backlight-control", Buffer (0x04) { 0x01, 0x00, 0x00, 0x00 }, "AAPL,HasPanel", Buffer (0x04) { 0x01, 0x00, 0x00, 0x00 }, "AAPL,Haslid", Buffer (0x04) { 0x01, 0x00, 0x00, 0x00 }, "AAPL,slot-name", Buffer (0x07) { "Slot-1" }, "ATY,PlatformInfo", Buffer (0x80) { 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, "ATY,EFIOrientation", Buffer (0x02) { 0x02, 0x00 }, "ATY,RefCLK", Buffer (0x04) { 0x8c, 0x0a, 0x00, 0x00 }, "ATY,RefClock", Buffer (0x04) { 0x8c, 0x0a, 0x00, 0x00 }, "ATY,MCLK", Buffer (0x04) { 0x60, 0xea, 0x00, 0x00 }, "ATY,SCLK", Buffer (0x04) { 0xc8, 0xaf, 0x00, 0x00 }, "ATY,memsize", Buffer (0x04) { 0x00, 0x00, 0x00, 0x40 }, "AAPL00,EDID", Buffer (0x80) { 0x00, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x00, 0x4D, 0xD9, 0xFA, 0x07, 0x00, 0x00, 0x00, 0x00, 0x00, 0x12, 0x01, 0x03, 0x80, 0x32, 0x1C, 0x78, 0xF2, 0xCE, 0x50, 0xA3, 0x57, 0x4C, 0x99, 0x26, 0x0F, 0x50, 0x54, 0x21, 0x08, 0x00, 0x31, 0x40, 0x45, 0x40, 0x61, 0x40, 0x71, 0x40, 0x81, 0x40, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0xCC, 0x39, 0x80, 0x10, 0x71, 0x38, 0x2D, 0x40, 0x5C, 0x50, 0xFA, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x02 }, "AAPL00,override-no-connect", Buffer (0x80) { 0x00, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x00, 0x4D, 0xD9, 0xFA, 0x07, 0x00, 0x00, 0x00, 0x00, 0x00, 0x12, 0x01, 0x03, 0x80, 0x32, 0x1C, 0x78, 0xF2, 0xCE, 0x50, 0xA3, 0x57, 0x4C, 0x99, 0x26, 0x0F, 0x50, 0x54, 0x21, 0x08, 0x00, 0x31, 0x40, 0x45, 0x40, 0x61, 0x40, 0x71, 0x40, 0x81, 0x40, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0xCC, 0x39, 0x80, 0x10, 0x71, 0x38, 0x2D, 0x40, 0x5C, 0x50, 0xFA, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x02 }, "@0,EDID", Buffer (0x80) { 0x00, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x00, 0x4D, 0xD9, 0xFA, 0x07, 0x00, 0x00, 0x00, 0x00, 0x00, 0x12, 0x01, 0x03, 0x80, 0x32, 0x1C, 0x78, 0xF2, 0xCE, 0x50, 0xA3, 0x57, 0x4C, 0x99, 0x26, 0x0F, 0x50, 0x54, 0x21, 0x08, 0x00, 0x31, 0x40, 0x45, 0x40, 0x61, 0x40, 0x71, 0x40, 0x81, 0x40, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0xCC, 0x39, 0x80, 0x10, 0x71, 0x38, 0x2D, 0x40, 0x5C, 0x50, 0xFA, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x02 }, "@0,override-no-edid", Buffer (0x80) { 0x00, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x00, 0x4D, 0xD9, 0xFA, 0x07, 0x00, 0x00, 0x00, 0x00, 0x00, 0x12, 0x01, 0x03, 0x80, 0x32, 0x1C, 0x78, 0xF2, 0xCE, 0x50, 0xA3, 0x57, 0x4C, 0x99, 0x26, 0x0F, 0x50, 0x54, 0x21, 0x08, 0x00, 0x31, 0x40, 0x45, 0x40, 0x61, 0x40, 0x71, 0x40, 0x81, 0x40, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0xCC, 0x39, 0x80, 0x10, 0x71, 0x38, 0x2D, 0x40, 0x5C, 0x50, 0xFA, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x02 }, "VRAM,memsize", Buffer (0x04) { 0x00, 0x00, 0x00, 0x40 }, "model", Buffer (0x23) { "ATI Mobility Radeon HD 4650" }, "ATY,bin_image", Buffer (0xFC00) { /* 0000 */ 0x55, 0xAA, 0x7E, 0xE9, 0x15, 0x02, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, /* 0010 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xC8, 0x01, 0x00, 0x00, 0x00, 0x00, 0x49, 0x42, /* the part of ATI Bios image is cut off */ /* FBE0 */ 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, /* FBF0 */ 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF } }, Local0) DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0)) Return (Local0) } 1 Link to comment https://www.insanelymac.com/forum/topic/282637-ati-mobility-radeon-hd-4650-cant-find-lvds-senseline/#findComment-1855304 Share on other sites More sharing options...
datwsui Posted September 24, 2012 Author Share Posted September 24, 2012 My DSDT video card section Perhaps will work without "AAPL00,EDID", "@0,EDID", "@0,override-no-edid" keys. But video card started working only when I added "AAPL00,override-no-connect" key. First of all, thank u for ur sharing. Unfortunately, I got a bunch of problem here. 1. In my dsdt.aml, which has been patched by Patcher02Beta5, Device(GFX0) is not included in Device(PEGP). So in my case, in which device I should add method _DSM? 2. In method _DSM, how many parameters I should change to my specific values, such as device-id, vender-id, "ATY, platformInfo"? Link to comment https://www.insanelymac.com/forum/topic/282637-ati-mobility-radeon-hd-4650-cant-find-lvds-senseline/#findComment-1855316 Share on other sites More sharing options...
SergeySW Posted September 24, 2012 Share Posted September 24, 2012 First of all, thank u for ur sharing. Unfortunately, I got a bunch of problem here. 1. In my dsdt.aml, which has been patched by Patcher02Beta5, Device(GFX0) is not included in Device(PEGP). So in my case, in which device I should add method _DSM? 2. In method _DSM, how many parameters I should change to my specific values, such as device-id, vender-id, "ATY, platformInfo"? 1. Laptop as a rule have two video cards integrated and discrete. Discrete video card device must be included in Device(PEGP). In you case probably named Device(VGA). 2. You may used same values of parameters in your DSDT. You only need change "ATY,bin_image" paste your ATI Atom BIOS in hex code it easy to make by rom_dsdt_converter program and maybe change "ATY,memsize" if your video memory size not equal 1Gb. device-id, vender-id not critical IMHO but may used your native values 0x80, 0x94, 0x00, 0x00 and 0x02, 0x10, 0x00, 0x00, respectively. Also you need add in /System/Library/Extensions/ATI4600Controller.kext/Contents/Info.plist file 0x94801002 value to "IOPCIMatch" key. And patch /System/Library/Extensions/ATI4600Controller.kext/Contents/MacOS/ATI4600Controller file by your custom personalities how do this describe here. Also may need use dsdt dual link patch if your LVDS panel have Pixel Clock >165MHz. Pixel Clock can be found in EDID (56th and 55th bytes) in my case it is 0x39CC=14796 in MHz is 147,96MHz. And finaly used key GraphicsEnabler=No in your Chimera bootloader and don't use ATY_Init.kext and like other kexts. 1 Link to comment https://www.insanelymac.com/forum/topic/282637-ati-mobility-radeon-hd-4650-cant-find-lvds-senseline/#findComment-1855365 Share on other sites More sharing options...
datwsui Posted September 25, 2012 Author Share Posted September 25, 2012 1. Laptop as a rule have two video cards integrated and discrete. Discrete video card device must be included in Device(PEGP). In you case probably named Device(VGA). I would like to tnank you thousands of times, SergeySW, it works!!! However, the display color is chaos. As below is my _DSM method, I changed all memsize to 512M or should I? BTW, my pixel clock seems to be less than 90MHz and I has updated to LIon 10.7.5, so ATI4600Controller is 10.7.5 version. Would the new version kext be the problem? Method (_DSM, 4, NotSerialized) { Store(Package (0x48) { "@0,compatible", Buffer (0x0B) { "ATY,Gliff" }, "@0,device_type", Buffer (0x08) { "display" }, "@0,name", Buffer (0x0B) { "ATY,Gliff" }, "@0,VRAM,memsize", Buffer (0x04) { 0x00, 0x00, 0x00, 0x20 }, "@0,display-type", Buffer (0x08) { "LCD1234" }, "@0,AAPL,boot-display", Buffer (0x04) { 0x00, 0x00, 0x00, 0x00 }, "@1,AAPL,boot-display", Buffer (0x04) { 0x01, 0x00, 0x00, 0x00 }, "@0,backlight-control", Buffer (0x04) { 0x01, 0x00, 0x00, 0x00 }, "@0,built-in", Buffer (One) { 0x01 }, "@1,compatible", Buffer (0x0B) { "ATY,Gliff" }, "@1,device_type", Buffer (0x08) { "display" }, "@1,name", Buffer (0x0B) { "ATY,Gliff" }, "@1,VRAM,memsize", Buffer (0x04) { 0x00, 0x00, 0x00, 0x20 }, "@1,display-type", Buffer (0x04) { "CRT" }, "device_type", Buffer (0x12) { "ATY,GliffParent" }, "device-id", Buffer (0x04) { 0x80, 0x94, 0x00, 0x00 }, "vendor-id", Buffer (0x04) { 0x02, 0x10, 0x00, 0x00 }, "AAPL,aux-power-connected", Buffer (0x04) { 0x01, 0x00, 0x00, 0x00 }, "AAPL,backlight-control", Buffer (0x04) { 0x01, 0x00, 0x00, 0x00 }, "AAPL,HasPanel", Buffer (0x04) { 0x01, 0x00, 0x00, 0x00 }, "AAPL,Haslid", Buffer (0x04) { 0x01, 0x00, 0x00, 0x00 }, "AAPL,slot-name", Buffer (0x07) { "Slot-1" }, "ATY,PlatformInfo", Buffer (0x80) { 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, "ATY,EFIOrientation", Buffer (0x02) { 0x02, 0x00 }, "ATY,RefCLK", Buffer (0x04) { 0x8c, 0x0a, 0x00, 0x00 }, "ATY,RefClock", Buffer (0x04) { 0x8c, 0x0a, 0x00, 0x00 }, "ATY,MCLK", Buffer (0x04) { 0x60, 0xea, 0x00, 0x00 }, "ATY,SCLK", Buffer (0x04) { 0xc8, 0xaf, 0x00, 0x00 }, "ATY,memsize", Buffer (0x04) { 0x00, 0x00, 0x00, 0x20 }, "AAPL00,EDID", Buffer (0x80) { /* 0000 */ 0x00, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x00, /* 0008 */ 0x4D, 0xD9, 0xFA, 0x06, 0x00, 0x00, 0x00, 0x00, /* 0010 */ 0x00, 0x12, 0x01, 0x03, 0x80, 0x2A, 0x17, 0x78, /* 0018 */ 0xF2, 0xCE, 0x50, 0xA3, 0x57, 0x4C, 0x99, 0x26, /* 0020 */ 0x0F, 0x50, 0x54, 0x21, 0x08, 0x00, 0x31, 0x40, /* 0028 */ 0x45, 0x40, 0x61, 0x40, 0x71, 0x40, 0x01, 0x01, /* 0030 */ 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0xEC, 0x22, /* 0038 */ 0x40, 0x20, 0x60, 0x84, 0x0D, 0x30, 0x08, 0x10, /* 0040 */ 0x44, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, /* 0048 */ 0x00, 0x00, 0x00, 0x10, 0x00, 0x00, 0x00, 0x00, /* 0050 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, /* 0058 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x00, 0x00, /* 0060 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, /* 0068 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, /* 0070 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, /* 0078 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x35 }, "AAPL00,override-no-connect", Buffer (0x80) { /* 0000 */ 0x00, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x00, /* 0008 */ 0x4D, 0xD9, 0xFA, 0x06, 0x00, 0x00, 0x00, 0x00, /* 0010 */ 0x00, 0x12, 0x01, 0x03, 0x80, 0x2A, 0x17, 0x78, /* 0018 */ 0xF2, 0xCE, 0x50, 0xA3, 0x57, 0x4C, 0x99, 0x26, /* 0020 */ 0x0F, 0x50, 0x54, 0x21, 0x08, 0x00, 0x31, 0x40, /* 0028 */ 0x45, 0x40, 0x61, 0x40, 0x71, 0x40, 0x01, 0x01, /* 0030 */ 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0xEC, 0x22, /* 0038 */ 0x40, 0x20, 0x60, 0x84, 0x0D, 0x30, 0x08, 0x10, /* 0040 */ 0x44, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, /* 0048 */ 0x00, 0x00, 0x00, 0x10, 0x00, 0x00, 0x00, 0x00, /* 0050 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, /* 0058 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x00, 0x00, /* 0060 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, /* 0068 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, /* 0070 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, /* 0078 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x35 }, "@0,EDID", Buffer (0x80) { /* 0000 */ 0x00, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x00, /* 0008 */ 0x4D, 0xD9, 0xFA, 0x06, 0x00, 0x00, 0x00, 0x00, /* 0010 */ 0x00, 0x12, 0x01, 0x03, 0x80, 0x2A, 0x17, 0x78, /* 0018 */ 0xF2, 0xCE, 0x50, 0xA3, 0x57, 0x4C, 0x99, 0x26, /* 0020 */ 0x0F, 0x50, 0x54, 0x21, 0x08, 0x00, 0x31, 0x40, /* 0028 */ 0x45, 0x40, 0x61, 0x40, 0x71, 0x40, 0x01, 0x01, /* 0030 */ 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0xEC, 0x22, /* 0038 */ 0x40, 0x20, 0x60, 0x84, 0x0D, 0x30, 0x08, 0x10, /* 0040 */ 0x44, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, /* 0048 */ 0x00, 0x00, 0x00, 0x10, 0x00, 0x00, 0x00, 0x00, /* 0050 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, /* 0058 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x00, 0x00, /* 0060 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, /* 0068 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, /* 0070 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, /* 0078 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x35 }, "@0,override-no-edid", Buffer (0x80) { /* 0000 */ 0x00, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x00, /* 0008 */ 0x4D, 0xD9, 0xFA, 0x06, 0x00, 0x00, 0x00, 0x00, /* 0010 */ 0x00, 0x12, 0x01, 0x03, 0x80, 0x2A, 0x17, 0x78, /* 0018 */ 0xF2, 0xCE, 0x50, 0xA3, 0x57, 0x4C, 0x99, 0x26, /* 0020 */ 0x0F, 0x50, 0x54, 0x21, 0x08, 0x00, 0x31, 0x40, /* 0028 */ 0x45, 0x40, 0x61, 0x40, 0x71, 0x40, 0x01, 0x01, /* 0030 */ 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0xEC, 0x22, /* 0038 */ 0x40, 0x20, 0x60, 0x84, 0x0D, 0x30, 0x08, 0x10, /* 0040 */ 0x44, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, /* 0048 */ 0x00, 0x00, 0x00, 0x10, 0x00, 0x00, 0x00, 0x00, /* 0050 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, /* 0058 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x00, 0x00, /* 0060 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, /* 0068 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, /* 0070 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, /* 0078 */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x35 }, "VRAM,memsize", Buffer (0x04) { 0x00, 0x00, 0x00, 0x20 }, "model", Buffer (0x23) { "ATI Mobility Radeon HD 4650" }, "ATY,bin_image", Buffer (0xFC00) { /* 0000 */ 0x55,0xAA,0x7E,0xE9,0x15,0x02,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, /* 0010 */ 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC8,0x01,0x00,0x00,0x00,0x00,0x49,0x42, /* cut off code */ /* FBE0 */ 0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF, /* FBF0 */ 0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF } }, Local0) DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0)) Return (Local0) } Link to comment https://www.insanelymac.com/forum/topic/282637-ati-mobility-radeon-hd-4650-cant-find-lvds-senseline/#findComment-1855655 Share on other sites More sharing options...
SergeySW Posted September 25, 2012 Share Posted September 25, 2012 However, the display color is chaos. As below is my _DSM method, I changed all memsize to 512M or should I? BTW, my pixel clock seems to be less than 90MHz and I has updated to LIon 10.7.5, so ATI4600Controller is 10.7.5 version. Would the new version kext be the problem? I have tested on Lion 10.7.4 as yet and all works well. Memsize have right value for 512M. Can you post screenshot? 1 Link to comment https://www.insanelymac.com/forum/topic/282637-ati-mobility-radeon-hd-4650-cant-find-lvds-senseline/#findComment-1855659 Share on other sites More sharing options...

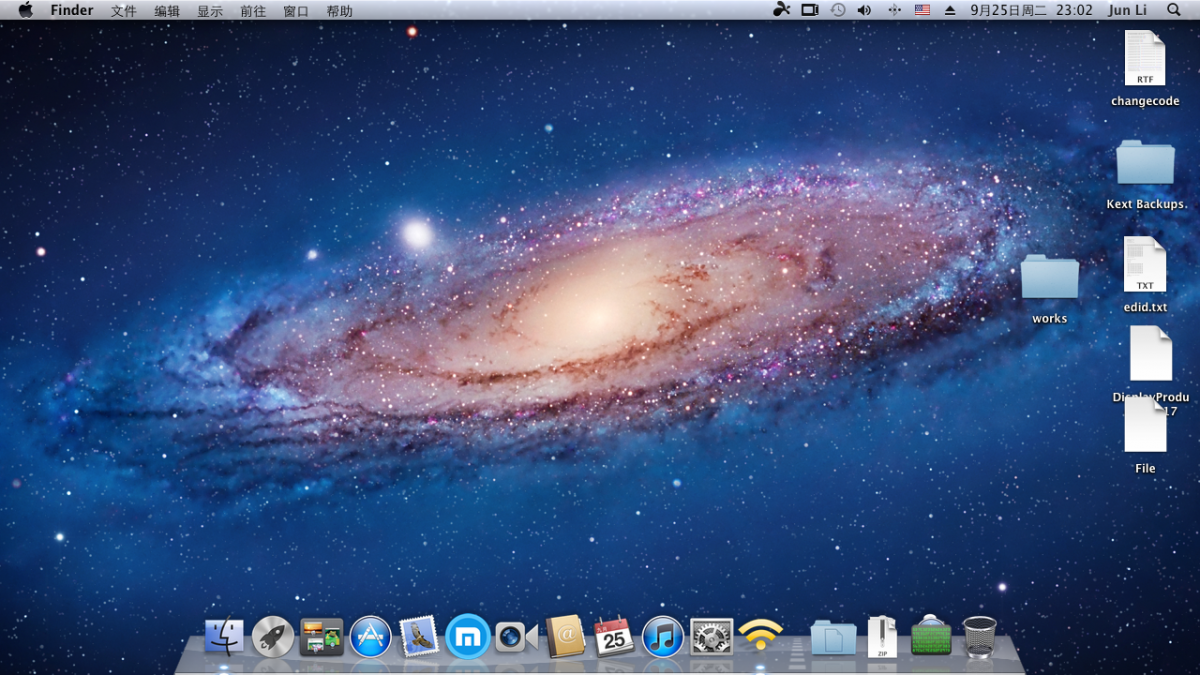

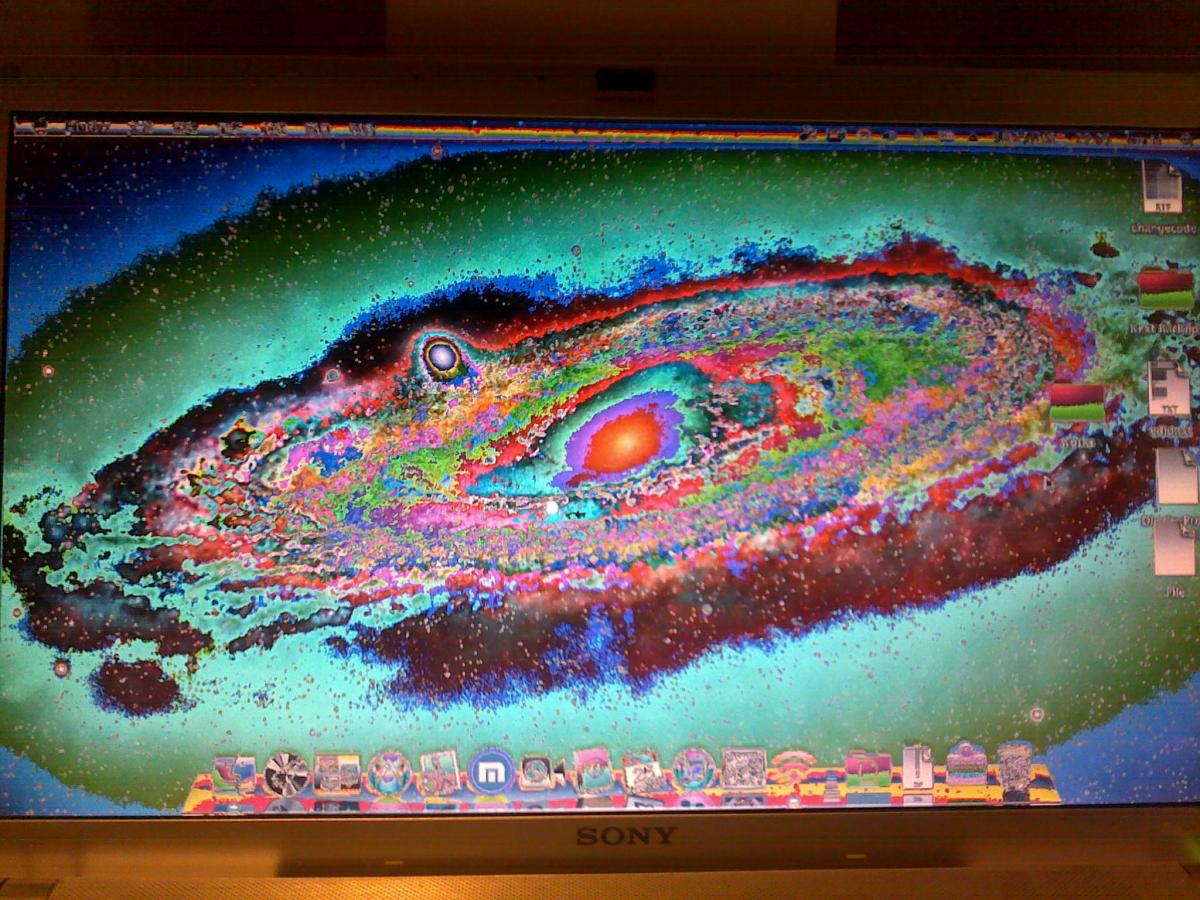

datwsui Posted September 25, 2012 Author Share Posted September 25, 2012 I have tested on Lion 10.7.4 as yet and all works well. Memsize have right value for 512M. Can you post screenshot? when i took screen shot in lion and view the png in windows, the screen appeared to be normal, just like this: so i took pic by camera to show the chaos: BTW, I used personlity of Shrike Link to comment https://www.insanelymac.com/forum/topic/282637-ati-mobility-radeon-hd-4650-cant-find-lvds-senseline/#findComment-1855674 Share on other sites More sharing options...
SergeySW Posted September 25, 2012 Share Posted September 25, 2012 BTW, I used personlity of Shrike If you used personlity of Shrike and patched ATI4600Controller.kext only for Shrike framebuffer, then you must replace strings "ATY,Gliff" and "ATY,GliffParent" to "ATY,Shrike" and "ATY,ShrikeParent" in your DSDT video card section. Most likely this is reason of your "chaos of colors", because by default Gliff framebuffer have UNIPHY2_DualLink transmitter and DIG2( B ) encoder and in your case should be UNIPHY2_LinkA transmitter and DIG1(A) encoder. And also to make native brightness slider work, you need to add PNLF device in your DSDT: Device (PNLF) { Name (_HID, EisaId ("APP0002")) Name (_CID, "backlight") Name (_UID, 0x0A) Name (_STA, 0x0B) } And under video card device, there are other devices (usually LCD, CRT, TV...). Look for the device that has those methods (_BCM, _BCQ and _BCL) and then put Name (_HID, EisaId ("LCD1234")). Like this: Device (LCD) { Name (_HID, EisaId ("LCD1234")) Name (_ADR, 0x0110) Method (_BCL, 0, NotSerialized) { /* cut off code */ } Method (_BCM, 1, NotSerialized) { /* cut off code */ } Method (_BQC, 0, NotSerialized) { /* cut off code */ } } 1 Link to comment https://www.insanelymac.com/forum/topic/282637-ati-mobility-radeon-hd-4650-cant-find-lvds-senseline/#findComment-1855714 Share on other sites More sharing options...
datwsui Posted September 26, 2012 Author Share Posted September 26, 2012 If you used personlity of Shrike and patched ATI4600Controller.kext only for Shrike framebuffer, then you must replace strings "ATY,Gliff" and "ATY,GliffParent" to "ATY,Shrike" and "ATY,ShrikeParent" in your DSDT video card section. Most likely this is reason of your "chaos of colors", because by default Gliff framebuffer have UNIPHY2_DualLink transmitter and DIG2( B ) encoder and in your case should be UNIPHY2_LinkA transmitter and DIG1(A) encoder. And also to make native brightness slider work, you need to add PNLF device in your DSDT: Added all code u provided & changed Gliff to Shrike in dsdt, can't even get Ati4600Contoller.kext loaded! Then I tried personality of Gliff, still got chaos:( Silly question, where should I insert Device(PNLF)? I put it just before Device(PWRB) according to some search results. Link to comment https://www.insanelymac.com/forum/topic/282637-ati-mobility-radeon-hd-4650-cant-find-lvds-senseline/#findComment-1855875 Share on other sites More sharing options...
SergeySW Posted September 26, 2012 Share Posted September 26, 2012 Added all code u provided & changed Gliff to Shrike in dsdt, can't even get Ati4600Contoller.kext loaded! Then I tried personality of Gliff, still got chaos:( Silly question, where should I insert Device(PNLF)? I put it just before Device(PWRB) according to some search results. Can you show ConnectorInfo for your personality? How you find offset of binary file Ati4600Contoller? For example, in my case perl script show offsets for x86 architecture by default and for x64 with "-x" key. I added Device(PNLF) into Scope (_SB ). Full code of this device: Assumed path for LCD device is _SB->PCI0->PEGP->VGA->LCD and LCD device have _BCL, _BCM, _DOS methods. Device (PNLF) { Name (_HID, EisaId ("APP0002")) Name (_CID, "backlight") Name (_UID, 0x0A) Name (_STA, 0x0B) Method (_BCL, 0, NotSerialized) { Return (^^PCI0.PEGP.VGA.LCD._BCL ()) } Method (_BCM, 1, NotSerialized) { ^^PCI0.PEGP.GFX0.LCD._BCM(Arg0) } Method (_BQC, 0, NotSerialized) { Return (^^PCI0.PEGP.GFX0.LCD._BQC ()) } Method (_DOS, 1, NotSerialized) { ^^PCI0.PEGP.GFX0._DOS (Arg0) } } 1 Link to comment https://www.insanelymac.com/forum/topic/282637-ati-mobility-radeon-hd-4650-cant-find-lvds-senseline/#findComment-1855881 Share on other sites More sharing options...
datwsui Posted September 26, 2012 Author Share Posted September 26, 2012 Can you show ConnectorInfo for your personality? How you find offset of binary file Ati4600Contoller? For example, in my case perl script show offsets for x86 architecture by default and for x64 with "-x" key. I added Device(PNLF) into Scope (_SB ). Full code of this device: Assumed path for LCD device is _SB->PCI0->PEGP->VGA->LCD and LCD device have _BCL, _BCM, _DOS methods. Thank you for your patience, bro. My connectorinfo: Sony_M763_M96M2LP_gDDR3 M96 GDDR3 128bit 450e/600m Subsystem Vendor ID: 104d Subsystem ID: 9035 Object Header Structure Size: 193 Connector Object Table Offset: 32 Router Object Table Offset: 0 Encoder Object Table Offset: 93 Display Path Table Offset: 10 Connector Object Id [14] which is [LVDS] encoder obj id [0x21] which is [iNTERNAL_UNIPHY2 (osx txmit 0x12 [duallink 0x2] enc 0x4)] linkb: false Connector Object Id [5] which is [VGA] encoder obj id [0x15] which is [iNTERNAL_KLDSCP_DAC1 (osx txmit 0x00 enc 0x10?)] linkb: false Connector Object Id [12] which is [HDMI_TYPE_A] encoder obj id [0x1e] which is [iNTERNAL_UNIPHY (osx txmit 0x10 [duallink 0x0] enc 0x0)] linkb: false As below is my own personality used to patch Ati4600Controller: LVDS: 02 00 00 00 40 00 00 00 09 01 00 00 12 04 00 00 HDMI: 00 08 00 00 00 02 00 00 00 71 00 00 10 00 01 05 VGA: 10 00 00 00 10 00 00 00 00 01 00 00 00 10 02 01 I use HexEdit to find & replace. Regarding the Device(PNLF), I'm still confused. When we insert Device(PNLF), not only Name (_HID, EisaId ("APP0002")) Name (_CID, "backlight") Name (_UID, 0x0A) Name (_STA, 0x0B) should be included, but also methods that device LCD have, in my case, which are _DSS, _BQC, _BCM, _BCL. Is this what you mean? Link to comment https://www.insanelymac.com/forum/topic/282637-ati-mobility-radeon-hd-4650-cant-find-lvds-senseline/#findComment-1855921 Share on other sites More sharing options...
SergeySW Posted September 26, 2012 Share Posted September 26, 2012 datwsui, sorry for my bad English. Probably my explanations it is impossible to understand Try this personality for LVDS: 02 00 00 00 40 00 00 00 09 01 00 00 12 00 00 02 I think not correct used value 0 for SenseID (maybe I'm wrong) and your case encoder value must be equal 0 in spite of atom bios parser result. Regarding the Device(PNLF). I added Device(PNLF) into Scope (_SB ). Code see above in my post. LCD Device must be located into Scope(_SB )->Device(PCI0)->Device(PEGP)->Device(VGA) And Device(LCD) must have _BCL, _BCM, _DOS methods. Link to comment https://www.insanelymac.com/forum/topic/282637-ati-mobility-radeon-hd-4650-cant-find-lvds-senseline/#findComment-1855926 Share on other sites More sharing options...
datwsui Posted September 26, 2012 Author Share Posted September 26, 2012 tried LVDS: 02 00 00 00 40 00 00 00 09 01 00 00 12 00 00 02 not working, chaos it is Link to comment https://www.insanelymac.com/forum/topic/282637-ati-mobility-radeon-hd-4650-cant-find-lvds-senseline/#findComment-1855930 Share on other sites More sharing options...
SergeySW Posted September 26, 2012 Share Posted September 26, 2012 tried LVDS: 02 00 00 00 40 00 00 00 09 01 00 00 12 00 00 02 not working, chaos it is When you use HexEdit to find & replace, you must change ConnectorInfo record in two places for each framebuffers, first place for x86 architecture cpu and second for x64 architecture cpu. Link to comment https://www.insanelymac.com/forum/topic/282637-ati-mobility-radeon-hd-4650-cant-find-lvds-senseline/#findComment-1855937 Share on other sites More sharing options...
datwsui Posted September 26, 2012 Author Share Posted September 26, 2012 Any changes in org.chameleon.Boot.plist? In addition, what version do you use for chameleon? Fremebuffers? I only patched 2 places in /S/L/E/ATI4600Controller.kext/Contents/MacOS/ATI4600Controller. Did I miss other files? Link to comment https://www.insanelymac.com/forum/topic/282637-ati-mobility-radeon-hd-4650-cant-find-lvds-senseline/#findComment-1855942 Share on other sites More sharing options...
SergeySW Posted September 26, 2012 Share Posted September 26, 2012 Any changes in org.chameleon.Boot.plist? In addition, what version do you use for chameleon? Fremebuffers? I only patched 2 places in /S/L/E/ATI4600Controller.kext/Contents/MacOS/ATI4600Controller. Did I miss other files? Correct, only 2 places in /S/L/E/ATI4600Controller.kext/Contents/MacOS/ATI4600Controller file not other files need. I used bootloader chimera 1.10.0. About your chaos of colors maybe this method will help you. P.S. Forgot to tell after patched kext file you must restore permissions of files on your mac partition of hdd by disk utility program. Link to comment https://www.insanelymac.com/forum/topic/282637-ati-mobility-radeon-hd-4650-cant-find-lvds-senseline/#findComment-1855954 Share on other sites More sharing options...
datwsui Posted September 26, 2012 Author Share Posted September 26, 2012 thanks, bro, i'll try to figure it out. After kext patched, i always use kext wizard to install & restore. Link to comment https://www.insanelymac.com/forum/topic/282637-ati-mobility-radeon-hd-4650-cant-find-lvds-senseline/#findComment-1856095 Share on other sites More sharing options...
codesn Posted April 11, 2013 Share Posted April 11, 2013 I have a Sony VGN-FW460J and its graphics card is same with yours. Could you find any solution for this problem ? Is it still same? link to image 1 Link to comment https://www.insanelymac.com/forum/topic/282637-ati-mobility-radeon-hd-4650-cant-find-lvds-senseline/#findComment-1905999 Share on other sites More sharing options...
