dan b Posted August 15, 2012 Share Posted August 15, 2012 hello everybody. my problem is this: i have a nvidia 8500gt with 256 ram Low-profile manufactured by MSI. (DVI+HDMI) i installed Mountain Lion and my graphic card is working (GraphicEnabler=Yes) only on DVI port (recognized as GeForce 8500GT 256VRam) (i use dvi-hdmi converter) and black screen on HDMI port. i have a custom dsdt but no gfx injection and i use dsdt for hdaudio and other fixes. i tried to edit plist in nvda kexsts and nvenabler64 (not used since now) to add my devid (0x042110de) but no luck... any help will be apreciated. thanks Link to comment https://www.insanelymac.com/forum/topic/281848-need-help-nvidia-gforce-8500-gt-256-vram/ Share on other sites More sharing options...
Rampage Dev Posted August 15, 2012 Share Posted August 15, 2012 Post your DSDT and IOreg(From IOreg app) and I will inject your GPU into your DSDT. Link to comment https://www.insanelymac.com/forum/topic/281848-need-help-nvidia-gforce-8500-gt-256-vram/#findComment-1844307 Share on other sites More sharing options...
dan b Posted August 15, 2012 Author Share Posted August 15, 2012 Post your DSDT and IOreg(From IOreg app) and I will inject your GPU into your DSDT. thank you v much. here's my files: My.DSDT.and.ioreg.zip Link to comment https://www.insanelymac.com/forum/topic/281848-need-help-nvidia-gforce-8500-gt-256-vram/#findComment-1844322 Share on other sites More sharing options...
Rampage Dev Posted August 15, 2012 Share Posted August 15, 2012 Cleaned it up a bit not completely. Injected your GPU into your DSDT. Remove GraphicsEnabler=Yes If you can not boot with this DSDT boot with: DSDT=No Note this is case sensitive. Also if you get a black screen that means that I have to apply another edit. DSDT.aml.zip Link to comment https://www.insanelymac.com/forum/topic/281848-need-help-nvidia-gforce-8500-gt-256-vram/#findComment-1844342 Share on other sites More sharing options...
dan b Posted August 15, 2012 Author Share Posted August 15, 2012 thank you. i'll try it in the morning and i'll post results. LE. tried now: DVI works, HDMI black screen. and Orange icons... also No HDaudio now... Link to comment https://www.insanelymac.com/forum/topic/281848-need-help-nvidia-gforce-8500-gt-256-vram/#findComment-1844347 Share on other sites More sharing options...
Rampage Dev Posted August 15, 2012 Share Posted August 15, 2012 Ok, I will apply the other edit tonight that should get ride of the Black screen. Link to comment https://www.insanelymac.com/forum/topic/281848-need-help-nvidia-gforce-8500-gt-256-vram/#findComment-1844350 Share on other sites More sharing options...
dan b Posted August 15, 2012 Author Share Posted August 15, 2012 ok thanks. i'll wait. it is no rush i added PCIRoot=0 in boot.plist and now audio and icons are ok but still no hdmi working (only DVI) Link to comment https://www.insanelymac.com/forum/topic/281848-need-help-nvidia-gforce-8500-gt-256-vram/#findComment-1844352 Share on other sites More sharing options...
Rampage Dev Posted August 15, 2012 Share Posted August 15, 2012 Post a new IOreg. Thanks. Link to comment https://www.insanelymac.com/forum/topic/281848-need-help-nvidia-gforce-8500-gt-256-vram/#findComment-1844384 Share on other sites More sharing options...

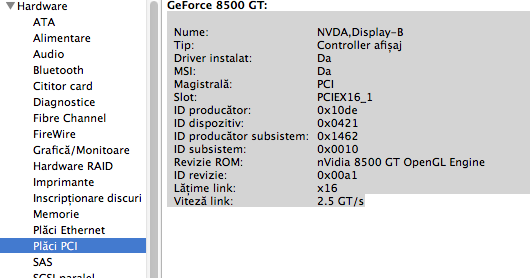

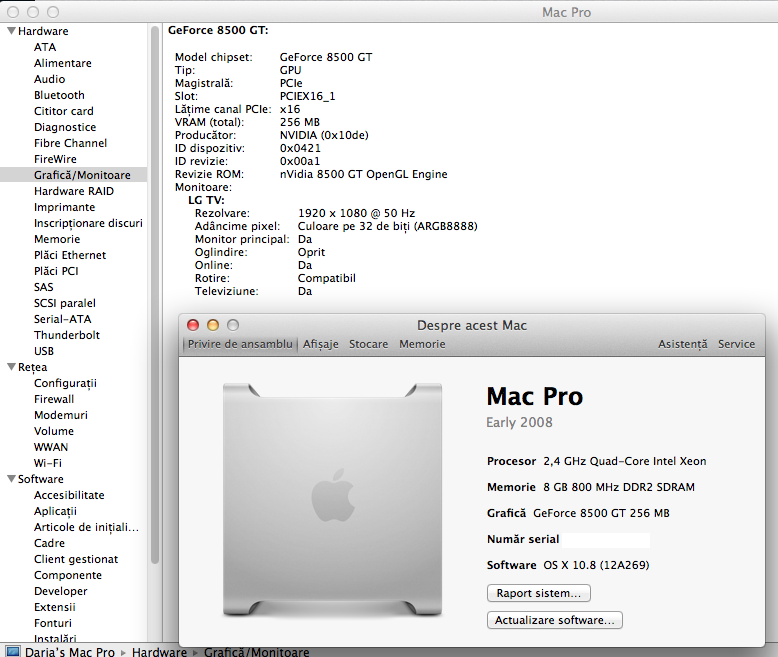

dan b Posted August 15, 2012 Author Share Posted August 15, 2012 In a few minutes... I observed that when i plug hdmi cable in a second Monitor (using HDMI port), first Monitor turned blue (DVI port) and second Black (No signal). Post a new IOreg. Thanks. here is latest ioreg using dsdt edited by U maybe this will help: using enoch boot loader (using graphicenabler=yes) i got this: Using PCI-Root-UID value: 0 GeForce 8500 GT 256MB NV86 [10de:0421]-[1462:0921] :: PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x0) device number: 1 info that might help jbtcmac.ioreg.zip Link to comment https://www.insanelymac.com/forum/topic/281848-need-help-nvidia-gforce-8500-gt-256-vram/#findComment-1844385 Share on other sites More sharing options...
Rampage Dev Posted August 15, 2012 Share Posted August 15, 2012 Ok, here is with the first edit for black screen. Report the results. DSDT.aml.zip Link to comment https://www.insanelymac.com/forum/topic/281848-need-help-nvidia-gforce-8500-gt-256-vram/#findComment-1844405 Share on other sites More sharing options...
dan b Posted August 16, 2012 Author Share Posted August 16, 2012 using last edited DSDT, my system did not boot (hangs when it is supposed to load desktop graphic interface)... not loading NVDANV50Hal.kext Link to comment https://www.insanelymac.com/forum/topic/281848-need-help-nvidia-gforce-8500-gt-256-vram/#findComment-1844521 Share on other sites More sharing options...
Rampage Dev Posted August 16, 2012 Share Posted August 16, 2012 So you get a black screen when the desktop is supposed to appear? Correct? Link to comment https://www.insanelymac.com/forum/topic/281848-need-help-nvidia-gforce-8500-gt-256-vram/#findComment-1844656 Share on other sites More sharing options...
dan b Posted August 16, 2012 Author Share Posted August 16, 2012 No. IT hangs when desktop is supposed ro apear...Not loading Black screen. Link to comment https://www.insanelymac.com/forum/topic/281848-need-help-nvidia-gforce-8500-gt-256-vram/#findComment-1844660 Share on other sites More sharing options...
Rampage Dev Posted August 16, 2012 Share Posted August 16, 2012 This DSDT should address the black screen issue: DSDT.aml.zip Link to comment https://www.insanelymac.com/forum/topic/281848-need-help-nvidia-gforce-8500-gt-256-vram/#findComment-1844667 Share on other sites More sharing options...
dan b Posted August 16, 2012 Author Share Posted August 16, 2012 I'll Try in the morning to reinstall ML and test again last DSDT. I'll post the results tomorrow. Link to comment https://www.insanelymac.com/forum/topic/281848-need-help-nvidia-gforce-8500-gt-256-vram/#findComment-1844693 Share on other sites More sharing options...
dan b Posted August 27, 2012 Author Share Posted August 27, 2012 IT seems that my graphic card was the problem. Yesterday died totally. Replaced with a new card Asus gf g210 1024 vram and hdmi-dvi-vga working all. Link to comment https://www.insanelymac.com/forum/topic/281848-need-help-nvidia-gforce-8500-gt-256-vram/#findComment-1848116 Share on other sites More sharing options...
Rampage Dev Posted August 27, 2012 Share Posted August 27, 2012 Your DSDT will need to be reedited.... Link to comment https://www.insanelymac.com/forum/topic/281848-need-help-nvidia-gforce-8500-gt-256-vram/#findComment-1848190 Share on other sites More sharing options...
dan b Posted August 27, 2012 Author Share Posted August 27, 2012 I know that. I'll extract a new one from windows Link to comment https://www.insanelymac.com/forum/topic/281848-need-help-nvidia-gforce-8500-gt-256-vram/#findComment-1848203 Share on other sites More sharing options...
Rampage Dev Posted August 27, 2012 Share Posted August 27, 2012 No, you just need to change the name of the GPU in the DSDT thats it... Link to comment https://www.insanelymac.com/forum/topic/281848-need-help-nvidia-gforce-8500-gt-256-vram/#findComment-1848237 Share on other sites More sharing options...
dan b Posted August 28, 2012 Author Share Posted August 28, 2012 I removed graphic card from dsdt cose it's working OOB with GE=Yes Link to comment https://www.insanelymac.com/forum/topic/281848-need-help-nvidia-gforce-8500-gt-256-vram/#findComment-1848391 Share on other sites More sharing options...
