...thought I'd add my box to the list...



...I added a Zotac GT 520 to the mix...and a 21" vintage Apple Studio Display...and a 500Gb e-sata drive

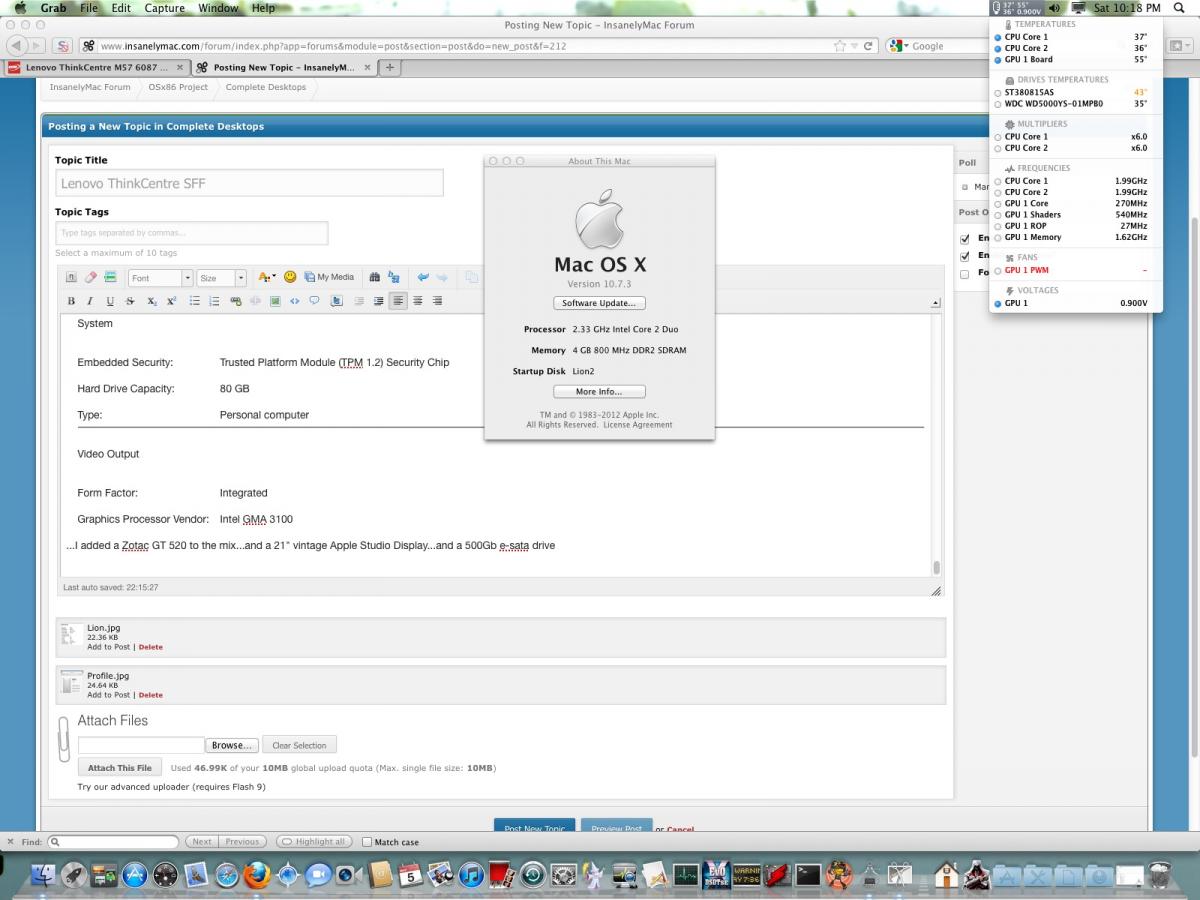

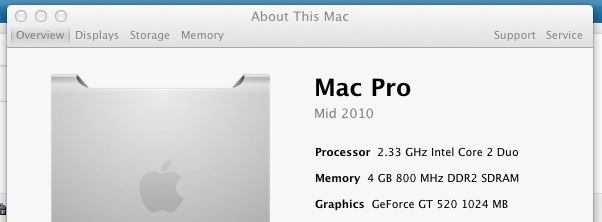

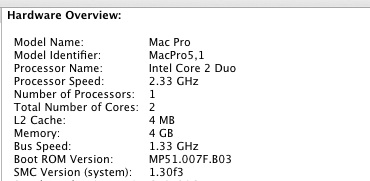

post-11772-0-80734600-1336270522_thumb.jpg post-11772-0-81548700-1336270539_thumb.jpg post-11772-0-15035400-1336270827_thumb.jpg



Speaker Type:   None

Cache Memory

Installed Size:   4 MB
Per Processor Size:   4 MB
Type:   L2 cache

Chassis

Form Factor:   Desktop slimline
Manufacturer Form Factor:   Small form factor

Environmental Standards

ENERGY STAR Qualified:   Yes
EPEAT Compliant:   Yes
EPEAT Level:   EPEAT Gold

Hard Drive

Installed Qty:   1
Spindle Speed:   7200 rpm
Type:   Standard

Hard Drive (2nd)

Type:   None

Hard Drive (3rd)

Type:   None

Keyboard

Interface:   USB
Keyboard Name:   Preferred Pro USB

Mouse

Features:   Scroll
Interface:   USB
Technology:   Optical

Multimedia Functionality

TV Tuner Type:   None

Video Memory

Memory Allocation Technology:   Dynamic Video Memory Technology 4.0

Processor

64-bit Computing:   Yes
Clock Speed:   2.33 GHz
Installed Qty:   1
Manufacturer:   Intel
Max Supported Qty:   1
Number of Cores:   Dual-Core
Processor Main Features:   Enhanced Intel SpeedStep Technology , Intel Execute Disable Bit , Intel Extended Memory 64 Technology , Intel Virtualization Technology
Processor Number:   E6550
Type:   Core 2 Duo

Optical Storage

Interface Type:   Serial ATA
Read Speed:   16x
Type:   DVD-ROM

Storage Hard Drive

Capacity:   80 GB
Features:   Vibration dampening
Interface Type:   Serial ATA-300

Audio Input

Type:   None

Audio Output

Compliant Standards:   High Definition Audio
Form Factor:   Integrated
Type:   Sound card

Bay Provided

Form Factor:   5.25" x 1/2H
Free Qty:   0
Total Qty:   1
Type:   Front accessible

Form Factor:   3.5" x 1/3H
Type:   Internal

Form Factor:   3.5" x 1/6H
Free Qty:   1

Cabinet

Chassis Built-in Devices:   Speaker

Dimensions & Weight

Depth:   34.1 cm
Height:   9.9 cm
Weight:   7.4 kg
Width:   31.7 cm

Display

Type:   None.

Environmental Parameters

Humidity Range Operating:   10 - 80%
Max Operating Temperature:   35 °C
Min Operating Temperature:   10 °C
Sound Emission:   24 DBA

Header

Compatibility:   PC
Manufacturer:   Lenovo
Model:   6087
Packaged Quantity:   1
Product Line:   Lenovo ThinkCentre M57

RAM

Data Integrity Check:   Non-ECC
Features:   Dual channel memory architecture
Form Factor:   DIMM 240-pin
Installed Size:   2 GB
Max Supported Size:   8 GB
Memory Specification Compliance:   PC2-5300
Memory Speed:   667 MHz
Technology:   DDR2 SDRAM

Service & Support

Type:   3 years warranty

Input Device

Type:   Keyboard , Mouse

Interface Provided

Connector Type:   4 pin USB Type A
Location (AA):   2 in front
Qty:   8
Type:   Hi-Speed USB

Connector Type:   Mini-phone stereo 3.5 mm
Interface:   Input
Location (AA):   1 in front
Qty:   2
Type:   Microphone

Interface:   Output
Qty:   1
Type:   Headphones

Connector Type:   9 pin D-Sub (DB-9)
Interface:   RS-232
Type:   Serial

Connector Type:   25 pin D-Sub (DB-25)
Interface:   IEEE 1284 (EPP/ECP)
Type:   Parallel

Connector Type:   RJ-45
Interface:   Ethernet 10Base-T/100Base-TX/1000Base-T
Type:   Network

Connector Type:   15 pin HD D-Sub (HD-15)
Interface:   VGA
Type:   Display / video

Interface:   Line-out
Type:   Audio

Interface:   Line-in

Interface:   eSATA
Type:   Storage

Mainboard

Chipset Type:   Intel Q35 Express
Data Bus Speed:   1333 MHz

Miscellaneous

Color:   Business black
Compliant Standards:   ACA , ACPI 2.3 , BSMI CNS 13438 Class B , C-Tick , CB , CCC , CE , {censored} , FCC Part 15 B , GOST , IRAM , ISO 9241-3 , JEITA , NOM , SABS , SASO , TUV GS , UL , VCCI Class B ITE
Features:   Administrator password , Boot sequence control , Boot without keyboard or mouse , Diskette I/O control , Fan speed monitoring , Hard drive I/O control , Hard drive password , Parallel port I/O control , Power-on password , Security lock slot (cable lock sold separately) , Serial port I/O control , Thermal monitoring , USB port control , Voltage monitoring

Networking

Compliant Standards:   IEEE 802.3
Data Link Protocol:   Ethernet , Fast Ethernet , Gigabit Ethernet
Ethernet Controller(s):   Intel 82566DM
Features (AA):   ACPI support
Form Factor:   Integrated
Interface Type:   PCI Express x1
Remote Management Protocol:   ASF 2.0 , DMI 2.0
Type:   Network adapter

Modem

Type:   None

Optical Storage (2nd)

Type:   None

OS Provided

Type:   Microsoft Windows Vista Business

Power Device

Frequency Required:   50/60 Hz
Nominal Voltage:   AC 120/230 V
Power Provided:   280 Watt
Type:   Power supply

Printer

Type:   None

Slot Provided

Form Factor:   DIMM 240-pin
Total Qty:   4
Type:   Memory

Form Factor:   Low-profile
Free Qty:   1
Total Qty:   1
Type:   PCI Express x16

Type:   PCI

Form Factor:   LGA775 Socket
Free Qty:   0
Type:   Processor

Storage Controller

Channel Qty:   3
Controller Interface Type:   Serial ATA-300
Form Factor:   Integrated
Installed Qty:   1
RAID Level:   RAID 0 , RAID 1
Type:   Serial ATA

Storage Controller (2nd)

Type:   None

Storage Floppy Drive

Type:   None

Storage Removable

Type:   None

System

Embedded Security:   Trusted Platform Module (TPM 1.2) Security Chip
Hard Drive Capacity:   80 GB
Type:   Personal computer

Video Output

Form Factor:   Integrated
Graphics Processor Vendor:   Intel GMA 3100





running almost perfect...speedstepping and AGPM still to be fine-tuned...onboard audio working with VoodooHDA...hdmi audio not working...did some of this: http://www.insanelym...howtopic=266318 for the gfx card(disabled onboard video)
