jmicron jmb36x controller not working after 10.7.2 update

[sunlit]

I have updated to 10.7.2 and had zero troubles until I had to backup to ESATA drive (ASUS Rampage II mobo with jmicron ESATA controller). It used to work in 10.7.1 with jmicron kext in S/L/E (from Lionize package by .: ErmaC :.)

The system profiler now shows the Jmicron AHCI controller even when I delete the jmicron36xsata.kext, and nothing working! The kext does not seem to be loading anyway (as reported by kext wizard app).

Can anyone please point out to me where to look?

My DSDT has the following code for the jmicron



Device (JMB0)
			{
				Name (_ADR, Zero)
				OperationRegion (BAR0, PCI_Config, 0x40, 0x04)
				Field (BAR0, WordAcc, NoLock, Preserve)
				{
					M1,	 8,
					M2,	 8,
					M3,	 8
				}
				Method (_DSM, 4, NotSerialized)
				{
					Store (0xB3, M1)
					Store (0xA1, M2)
					Store (0xC2, M3)
					Store (Package (0x02)
						{
							"name",
							Buffer (0x16)
							{
								"J-Micron JMB36x eSATA"
							}
						}, Local0)
					DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
					Return (Local0)
				}
			}
			Device (JMB1)
			{
				Name (_ADR, One)
				OperationRegion (BAR0, PCI_Config, 0x40, 0x04)
				Field (BAR0, WordAcc, NoLock, Preserve)
				{
					M1,	 8,
					M2,	 8,
					M3,	 8
				}
				Method (_DSM, 4, NotSerialized)
				{
					Store (Zero, M1)
					Store (Zero, M2)
					Store (Zero, M3)
					Return (Zero)
				}
			}
		}



but that seems no longer working in 10.7.2 for some reason

[sunlit]

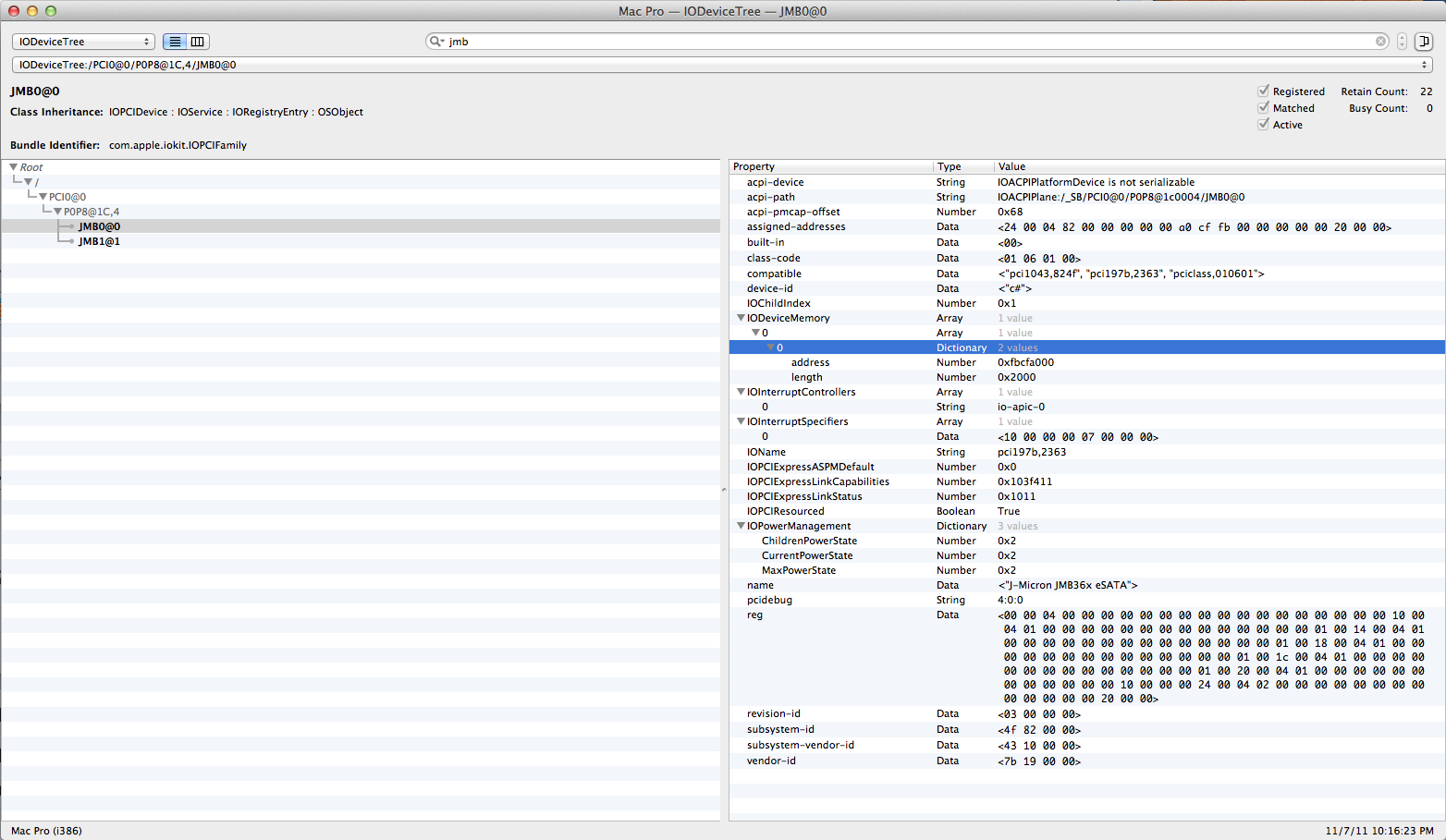

For some reason the forum won't allow me to upload my ioregistry explorer's dump,

so here is a screenshot.



[sunlit]

when I connect a disk to ESATA port I get



11/7/11 11:25:02.000 PM kernel: SATA WARNING: IDENTIFY DEVICE checksum not implemented.



in the console,

and after a minute or two, the system returns "The disk you inserted was not readable by this computer"

[sunlit]

and, funny thing, even if I edit out the JMB enties (see above posts) from DSDT, I still get the Jmicron controller recognized in the System Profiler. My original thinking was that it would revert to "unknown AHCI controller".

Can anyone at least point out which kexts are used to drive the jmicron, I might consider downgrading back to some 10.7.1 kexts, since in 10.7.1 it was working. Still need help. Anyone?
