dsdt.aml Compaq CQ61-125EQ

bci24sg22 · August 16, 2011

I have S.L. 10.6.8 up to date. I have some problems with my laptop. I have also a PC with motherboard P5E3 premium which works great because i found the dsdt for my motherboard .

For the laptop i didn`t found anything. So i decided to learn, to test various patches until i got it to work correctly.

I extracted the dsdt from "DSDT Editor" which i will upload here. I will upload the output of some Linux commands (demidecode, lshal, lshw, lspci, lsusb) about the hardware that i have.

The output of the lspci:

00:00.0 Host bridge: Intel Corporation Mobile 4 Series Chipset Memory Controller Hub (rev 07)
00:01.0 PCI bridge: Intel Corporation Mobile 4 Series Chipset PCI Express Graphics Port (rev 07)
00:1a.0 USB Controller: Intel Corporation 82801I (ICH9 Family) USB UHCI Controller #4 (rev 03)
00:1a.1 USB Controller: Intel Corporation 82801I (ICH9 Family) USB UHCI Controller #5 (rev 03)
00:1a.7 USB Controller: Intel Corporation 82801I (ICH9 Family) USB2 EHCI Controller #2 (rev 03)
00:1b.0 Audio device: Intel Corporation 82801I (ICH9 Family) HD Audio Controller (rev 03)
00:1c.0 PCI bridge: Intel Corporation 82801I (ICH9 Family) PCI Express Port 1 (rev 03)
00:1c.1 PCI bridge: Intel Corporation 82801I (ICH9 Family) PCI Express Port 2 (rev 03)
00:1d.0 USB Controller: Intel Corporation 82801I (ICH9 Family) USB UHCI Controller #1 (rev 03)
00:1d.1 USB Controller: Intel Corporation 82801I (ICH9 Family) USB UHCI Controller #2 (rev 03)
00:1d.2 USB Controller: Intel Corporation 82801I (ICH9 Family) USB UHCI Controller #3 (rev 03)
00:1d.3 USB Controller: Intel Corporation 82801I (ICH9 Family) USB UHCI Controller #6 (rev 03)
00:1d.7 USB Controller: Intel Corporation 82801I (ICH9 Family) USB2 EHCI Controller #1 (rev 03)
00:1e.0 PCI bridge: Intel Corporation 82801 Mobile PCI Bridge (rev 93)
00:1f.0 ISA bridge: Intel Corporation ICH9M LPC Interface Controller (rev 03)
00:1f.2 SATA controller: Intel Corporation ICH9M/M-E SATA AHCI Controller (rev 03)
00:1f.3 SMBus: Intel Corporation 82801I (ICH9 Family) SMBus Controller (rev 03)
00:1f.6 Signal processing controller: Intel Corporation 82801I (ICH9 Family) Thermal Subsystem (rev 03)
01:00.0 VGA compatible controller: nVidia Corporation G98M [GeForce G 103M] (rev a1)
02:00.0 Ethernet controller: Atheros Communications Inc. AR5001 Wireless Network Adapter (rev 01)
03:00.0 Ethernet controller: Realtek Semiconductor Co., Ltd. RTL8101E/RTL8102E PCI Express Fast Ethernet controller (rev 02)

and the other outputs are in files that i uploaded.

What doesn`t work:

- WebCam - don`t recognize

Bus 008 Device 002: ID 064e:a102 Suyin Corp. Acer/Lenovo Webcam [CN0316]

- Sound - I installed Voodoo 0.2.72 with [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] and i can`t control the volume ( it`s constant and its very loud - can`t get it higher or lower not even mute)

- Close/Open lid - it doesn`t do nothing

- Standby - if i let it untouched it will freeze

- Wireless - don`t recognize

02:00.0 Ethernet controller: Atheros Communications Inc. AR5001 Wireless Network Adapter (rev 01)

What works

- The RTL8101E/RTL8102E - WORKS (doesn`t recognize it but if you search on google you will find it quick)

- Nvidia G 103M - WORKS

- Serial-ATA - WORKS (when install the OS must select from drivers AHCI SATA/IDE - this time i forgot it and in System Pofiler --> Serial-ATA i get "Unknown AHCI Standard Controller" )

Can somebody help me with the dsdt?

MaLd0n · August 16, 2011

dsdt.bci24sg22.zip

if you use VoodooHda use AppleHdaDisabler

bci24sg22 · August 17, 2011

Thank you! I will give it a try and then will reply.

if you use VoodooHda use AppleHdaDisabler

How can i see what kext i am using? In linux there is a command lsmod to see what modules are loaded.

When i install S.L. i unchecked the audio from setup (there was AppleHDA and Voodoo) then i installed Voodoo 0.2.72 with [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url].

bci24sg22 · August 17, 2011

I tested the dsdt.aml file and i get a kernel panic

error: failed to open PCI device

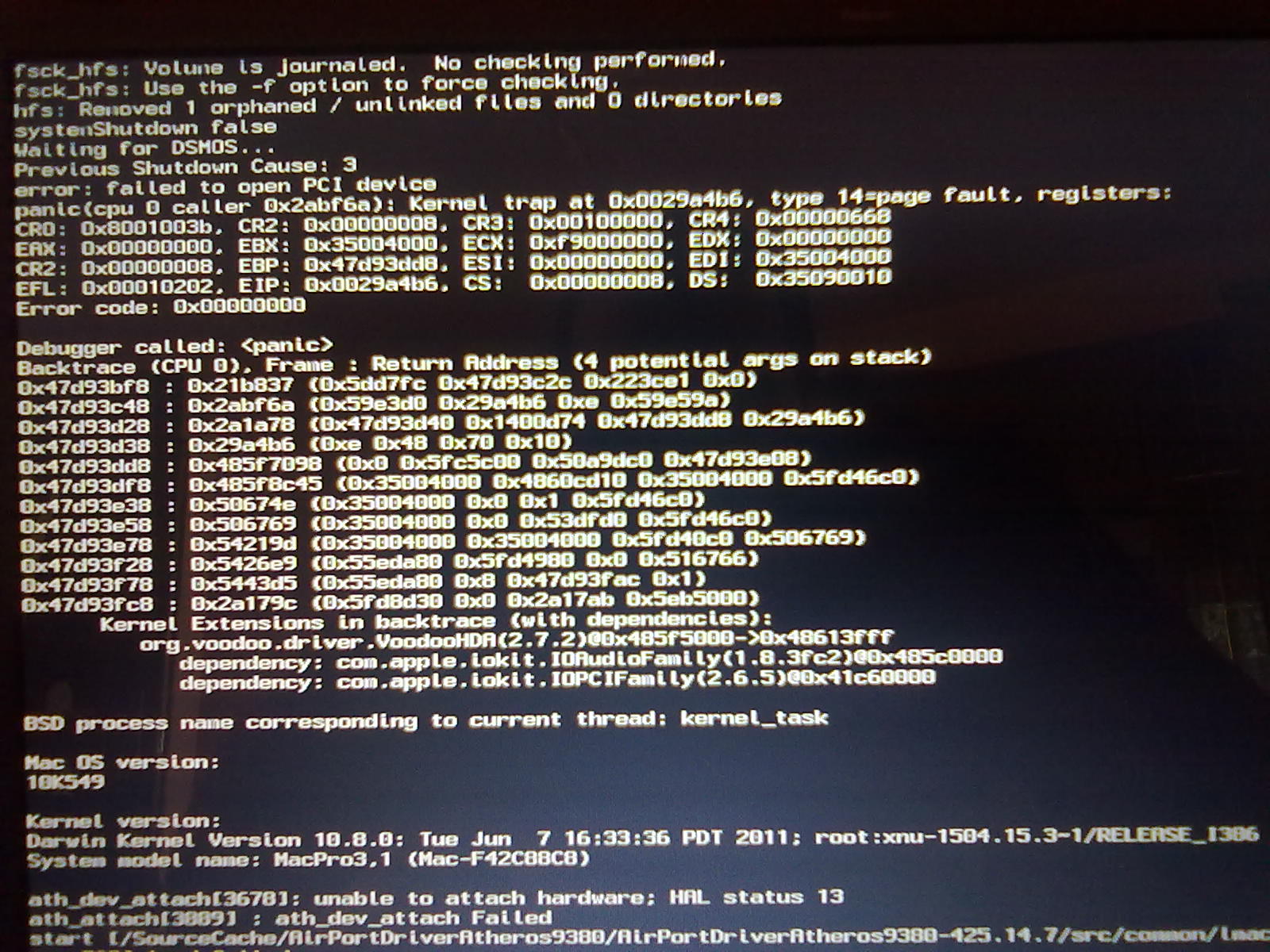

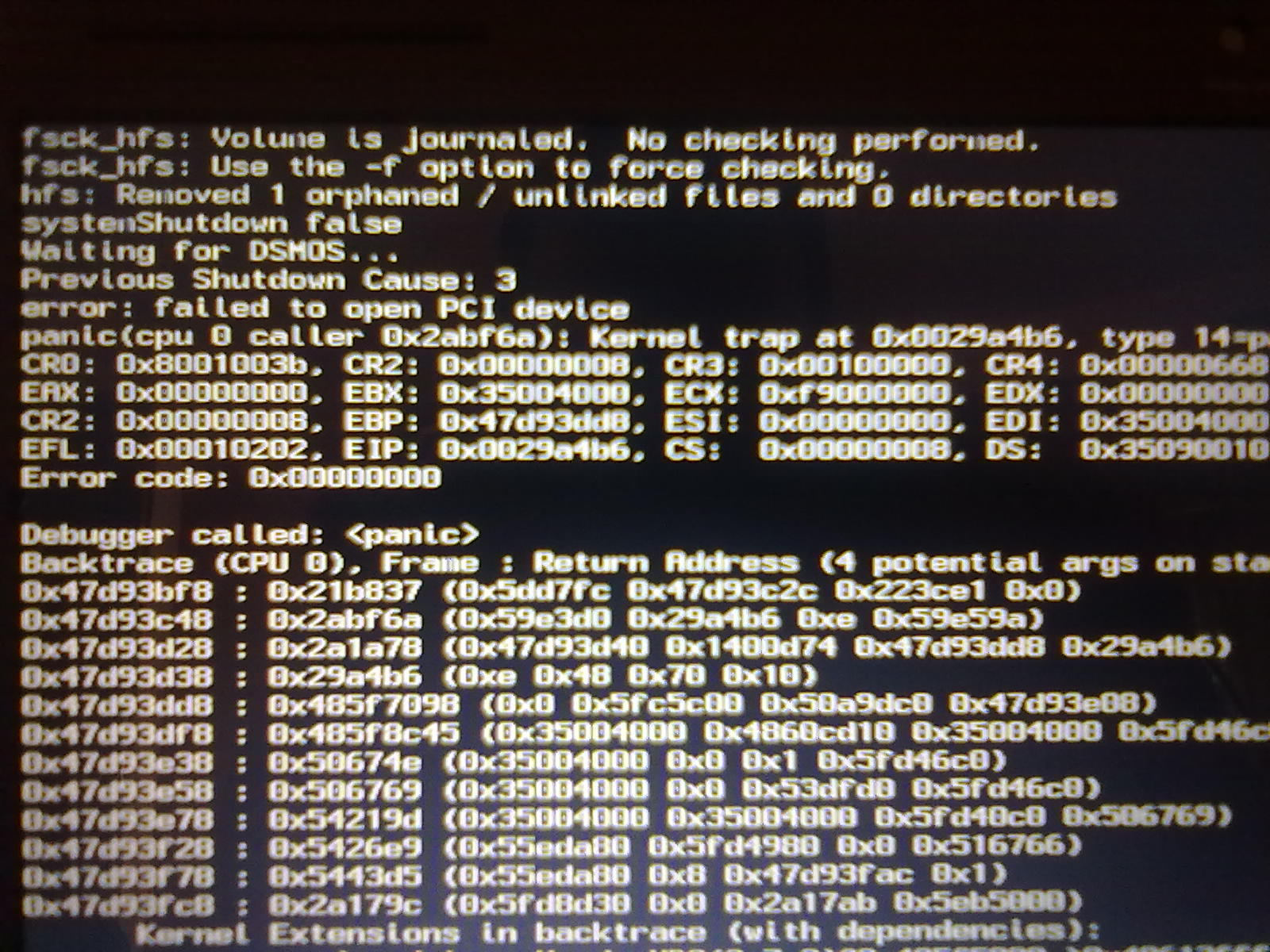

I attached 2 pictures with the kernel panic.

I entered in safe boot and removed from /Extra the file.

MaLd0n · August 17, 2011

use AppleHdaDisabler in S/L/E

or edit AppleHda

http://www.projectosx.com/forum/index.php?showtopic=465

bci24sg22 · August 17, 2011

I use this AppleHDADisabler and put it on S/L/E using [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] and the same kernel panic.

MaLd0n · August 17, 2011

I use this AppleHDADisabler and put it on S/L/E using [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] and the same kernel panic.

use it

dsdt.02.zip

bci24sg22 · August 17, 2011

This time no kernel panic, but the sound its the same (don`t work) and Sleep either

MaLd0n · August 17, 2011

send me kextstat

run on terminal

Audio

use VoodooHda

http://code.google.com/p/voodoohda/downloads/list

bci24sg22 · August 17, 2011

kextstat

ndex Refs Address	Size	   Wired	  Name (Version) <Linked Against>
1   53 0		  0		  0		  com.apple.kpi.bsd (10.8.0)
2	4 0		  0		  0		  com.apple.kpi.dsep (10.8.0)
3   79 0		  0		  0		  com.apple.kpi.iokit (10.8.0)
4   84 0		  0		  0		  com.apple.kpi.libkern (10.8.0)
5   68 0		  0		  0		  com.apple.kpi.mach (10.8.0)
6   27 0		  0		  0		  com.apple.kpi.private (10.8.0)
7   42 0		  0		  0		  com.apple.kpi.unsupported (10.8.0)
8	0 0		  0		  0		  com.apple.kernel.6.0 (7.9.9)
9	0 0		  0		  0		  com.apple.kernel.bsd (7.9.9)
  10	0 0		  0		  0		  com.apple.kernel.iokit (7.9.9)
  11	0 0		  0		  0		  com.apple.kernel.libkern (7.9.9)
  12	0 0		  0		  0		  com.apple.kernel.mach (7.9.9)
  13   13 0x41a4c000 0x4000	 0x3000	 com.apple.iokit.IOACPIFamily (1.3.0) <7 6 4 3>
  14   19 0x41c60000 0x1d000	0x1c000	com.apple.iokit.IOPCIFamily (2.6.5) <7 6 5 4 3>
  15	2 0x41d0e000 0x43000	0x42000	com.apple.driver.AppleACPIPlatform (1.3.6) <14 13 7 6 5 4 3>
  16	0 0x3b82d000 0x2000	 0x1000	 es.osx86.driver.EvOreboot (1.0.3) <4 3>
  17	0 0x41855000 0x2000	 0x1000	 net.osrom.kext.Disabler (1.0.1) <4 3>
  19	0 0x41a9a000 0x5000	 0x4000	 com.superhai.driver.VoodooBattery (1.3.2) <13 5 4 3>
  20	0 0x41d6d000 0x24000	0x23000	com.apple.driver.AppleIntelCPUPowerManagement (142.6.0) <7 6 5 4 3 1>
  21	8 0x41da3000 0x19000	0x18000	com.apple.iokit.IOStorageFamily (1.6.3) <7 6 5 4 3 1>
  22	0 0x41cea000 0x11000	0x10000	com.apple.driver.DiskImages (289.1) <21 7 6 5 4 3 1>
  23	0 0x42e00000 0x8000	 0x7000	 com.apple.nke.applicationfirewall (2.1.12) <7 6 5 4 3 1>
  24	2 0x41c2a000 0x3000	 0x2000	 com.apple.kext.AppleMatch (1.0.0d1) <4 1>
  25	0 0x41c9a000 0x5000	 0x4000	 com.apple.security.quarantine (0) <24 7 6 5 4 2 1>
  26	0 0x42e08000 0x8000	 0x7000	 com.apple.security.sandbox (1) <24 7 6 5 4 2 1>
  27	0 0x41c5d000 0x3000	 0x2000	 com.apple.security.TMSafetyNet (6) <7 6 5 4 2 1>
  28	0 0x41c2d000 0x2000	 0x1000	 org.voodoo.driver.VoodooTSCSync (1.1) <7 4 3>
  29	0 0x41c53000 0x3000	 0x2000	 com.apple.driver.AppleAPIC (1.4) <4 3>
  30	0 0x41ce5000 0x4000	 0x3000	 com.apple.driver.AppleSMBIOS (1.7) <7 4 3>
  31	4 0x47a70000 0x3c000	0x3b000	com.apple.iokit.IOHIDFamily (1.6.6) <7 6 5 4 3 1>
  32	0 0x41d9c000 0x4000	 0x3000	 com.apple.driver.AppleACPIButtons (1.3.6) <31 15 13 7 6 5 4 3 1>
  33	0 0x41d91000 0x5000	 0x4000	 org.netkas.FakeSMC (3.1.0) <13 7 5 4 3>
  34	1 0x41d96000 0x3000	 0x2000	 com.apple.driver.AppleEFIRuntime (1.4.0) <7 6 5 4 3>
  36	0 0x479ea000 0x5000	 0x4000	 com.apple.driver.AppleRTC (9.9) <13 5 4 3 1>
  37	0 0x41d99000 0x3000	 0x2000	 com.apple.driver.AppleHPET (1.5) <13 7 5 4 3>
  38	0 0x41da0000 0x3000	 0x2000	 com.yourcompany.driver.AppleACPIPS2Nub (1.0.0d1) <13 7 5 4 3 1>
  39	2 0x479dd000 0x3000	 0x2000	 com.apple.iokit.IOSMBusFamily (1.1) <5 4 3>
  40	0 0x479d5000 0x6000	 0x5000	 com.apple.driver.AppleACPIEC (1.3.6) <39 15 13 5 4 3>
  41	0 0x47a29000 0x6000	 0x5000	 com.apple.driver.AppleEFINVRAM (1.4.0) <34 7 5 4 3>
  42	6 0x47b3c000 0x2f000	0x2e000	com.apple.iokit.IOUSBFamily (3.8.5) <14 7 5 4 3 1>
  43	0 0x47a2f000 0x10000	0xf000	 com.apple.driver.AppleUSBUHCI (3.7.5) <42 14 7 5 4 3 1>
  44	0 0x47b06000 0x14000	0x13000	com.apple.driver.AppleUSBEHCI (3.7.5) <42 14 7 5 4 3 1>
  45	3 0x47a1b000 0x6000	 0x5000	 com.apple.iokit.IOAHCIFamily (2.0.6) <5 4 3 1>
  46	0 0x47ae0000 0x14000	0x13000	com.apple.driver.AppleAHCIPort (2.1.7) <45 14 5 4 3 1>
  47	2 0x47b1a000 0x6000	 0x5000	 org.voodoo.driver.PS2Controller (1.1.0) <13 7 5 4 3 1>
  48	0 0x47bbf000 0x14000	0x13000	com.apple.iokit.IOAHCIBlockStorage (1.6.4) <45 21 5 4 3 1>
  49	3 0x47c2e000 0x1a000	0x19000	com.apple.iokit.IOSCSIArchitectureModelFamily (2.6.8) <5 4 3 1>
  50	0 0x47c09000 0x9000	 0x8000	 com.apple.iokit.IOAHCISerialATAPI (1.2.6) <49 45 5 4 3 1>
  51	0 0x47cc5000 0x4000	 0x3000	 org.voodoo.driver.PS2Keyboard (1.1.0) <47 31 7 6 5 4 3 1>
  52	0 0x47cb5000 0xa000	 0x9000	 org.voodoo.driver.PS2Trackpad (1.1.0) <47 31 7 6 5 4 3 1>
  54	0 0x47cd7000 0x3000	 0x2000	 com.apple.driver.XsanFilter (402.1) <21 5 4 3 1>
  55	3 0x47cc9000 0x8000	 0x7000	 com.apple.iokit.IOCDStorageFamily (1.6.1) <21 5 4 3 1>
  56	2 0x47d09000 0x6000	 0x5000	 com.apple.iokit.IODVDStorageFamily (1.6) <55 21 5 4 3 1>
  57	1 0x47d1e000 0x5000	 0x4000	 com.apple.iokit.IOBDStorageFamily (1.6) <56 55 21 5 4 3 1>
  58	0 0x47d63000 0x17000	0x16000	com.apple.iokit.IOSCSIMultimediaCommandsDevice (2.6.8) <57 56 55 49 21 5 4 3 1>
  59	0 0x47ceb000 0x7000	 0x6000	 com.apple.iokit.SCSITaskUserClient (2.6.8) <49 21 5 4 3 1>
  60	0 0x47c7d000 0x2000	 0x1000	 com.apple.iokit.IOUSBUserClient (3.8.5) <42 7 5 4 3 1>
  61	0 0x47d52000 0xf000	 0xe000	 com.apple.driver.AppleUSBHub (3.8.4) <42 5 4 3 1>
  62	0 0x47cf2000 0x4000	 0x3000	 com.apple.driver.AppleUSBComposite (3.7.5) <42 4 3 1>
  66	0 0x47d91000 0x6000	 0x5000	 com.apple.AppleFSCompression.AppleFSCompressionTypeZlib (1.0.0d1) <6 4 3 2 1>
  67	0 0x47dc6000 0x5000	 0x4000	 com.apple.BootCache (31.1) <7 6 5 4 3 1>
  68	0 0x480db000 0xa000	 0x9000	 com.apple.filesystems.autofs (2.1.0) <7 6 5 4 3 1>
  69	6 0x480e5000 0x22000	0x21000	com.apple.iokit.IOGraphicsFamily (2.2) <14 7 5 4 3>
  70	4 0x48115000 0xd000	 0xc000	 com.apple.iokit.IONDRVSupport (2.2) <69 14 7 5 4 3>
  71	2 0x48e73000 0x2ee000   0x2ed000   com.apple.NVDAResman (6.3.6) <70 69 14 5 4 3 1>
  72	0 0x495d8000 0x415000   0x414000   com.apple.nvidia.nv50hal (6.3.6) <71 4 3>
  73	1 0x41c4b000 0x3000	 0x2000	 com.apple.driver.AppleBacklightExpert (1.0.1) <70 69 14 5 4 3>
  74	0 0x41c4e000 0x5000	 0x4000	 com.apple.driver.AppleBacklight (170.0.46) <73 70 69 14 5 4 3>
  75	0 0x47e06000 0x3000	 0x2000	 com.apple.driver.AppleLPC (1.5.1) <14 5 4 3>
  76	0 0x47a6e000 0x2000	 0x1000	 com.apple.driver.AppleSMBusPCI (1.0.10d0) <14 5 4 3>
  77	1 0x4813a000 0xc000	 0xb000	 com.apple.driver.IOPlatformPluginFamily (4.7.0a1) <13 7 6 5 4 3>
  78	2 0x48151000 0xa000	 0x9000	 com.apple.driver.AppleSMC (3.1.0d5) <13 7 5 4 3>
  79	0 0x48166000 0x10000	0xf000	 com.apple.driver.ACPI_SMC_PlatformPlugin (4.7.0a1) <78 77 14 13 7 6 5 4 3>
  80	1 0x481a0000 0x17000	0x16000	com.apple.iokit.IONetworkingFamily (1.10) <7 6 5 4 3 1>
  85	7 0x48316000 0x2c000	0x2b000	com.apple.iokit.AppleProfileFamily (41) <14 7 6 5 4 3 1>
  87	0 0x481c8000 0x6000	 0x5000	 com.apple.iokit.IOUSBHIDDriver (3.8.4) <42 31 5 4 3 1>
  88	0 0x4824f000 0x10000	0xf000	 com.apple.driver.AppleRTL8169Ethernet (1.1.4a5) <80 14 5 4 3 1>
  89	0 0x47f68000 0xb7000	0xb6000	com.apple.GeForce (6.3.6) <71 70 69 14 7 6 5 4 3 1>
  91	0 0x47ce0000 0x9000	 0x8000	 com.apple.driver.AppleSMBusController (1.0.10d0) <39 14 13 5 4 3>
  93	1 0x4802f000 0x4000	 0x3000	 com.apple.kext.OSvKernDSPLib (1.3) <5 4>
  94	2 0x4826c000 0x18000	0x17000	com.apple.iokit.IOAudioFamily (1.8.3fc2) <93 5 4 3 1>
  95	0 0x482ce000 0x1f000	0x1e000	org.voodoo.driver.VoodooHDA (2.7.2) <94 14 7 5 4 3>
  96	0 0x4821d000 0x4000	 0x3000	 com.apple.driver.AudioIPCDriver (1.1.6) <94 5 4 3 1>
  98	0 0x4828c000 0x7000	 0x6000	 com.apple.driver.AppleMCCSControl (1.0.20) <69 14 7 5 4 3 1>
  99	0 0x482f7000 0x6000	 0x5000	 com.apple.Dont_Steal_Mac_OS_X (7.0.0) <78 7 4 3 1>
 100	0 0x482ed000 0x7000	 0x6000	 com.apple.driver.AppleIntelPenrynProfile (17) <85 6 4 3>
 103	1 0x482fd000 0x9000	 0x8000	 com.apple.iokit.IOSerialFamily (10.0.3) <7 6 5 4 3 1>
 104	0 0x48855000 0x9000	 0x8000	 com.apple.iokit.IOBluetoothSerialManager (2.4.5f3) <103 7 5 4 3 1>
 106	0 0x48342000 0xb000	 0xa000	 com.apple.iokit.IOSurface (74.2) <7 5 4 3 1>
 107	0 0x4188d000 0x3000	 0x2000	 com.apple.driver.AppleProfileCallstackAction (20) <85 5 4 3 1>
 109	0 0x4186c000 0x3000	 0x2000	 com.apple.driver.AppleProfileKEventAction (10) <85 4 3 1>
 111	0 0x41870000 0x3000	 0x2000	 com.apple.driver.AppleProfileRegisterStateAction (10) <85 4 3 1>
 112	0 0x41873000 0x3000	 0x2000	 com.apple.driver.AppleProfileThreadInfoAction (14) <85 6 4 3 1>
 113	0 0x418ce000 0x3000	 0x2000	 com.apple.driver.AppleProfileTimestampAction (10) <85 5 4 3 1>
 114	0 0x418a4000 0x3000	 0x2000	 com.apple.driver.AppleProfileReadCounterAction (17) <85 6 4 3>
 115	0 0x418bc000 0x5000	 0x4000	 com.apple.driver.AppleHWSensor (1.9.3d0) <5 4 3>

I downloaded VoodooHDA.kext.2.7.2 for 10.6 and installed but no changes.

I should remove the AppleHdaDisabler.kext?

MaLd0n · August 17, 2011

EvOreboot, Disabler???

VoodooTSCSync?????

Audio

try another version

bci24sg22 · August 17, 2011

I tried with different versions: 2.7.1, 0.2.62 and the same thing. Maybe i am doing something wrong.

I should remove the AppleHdaDisabler.kext and try again?

MaLd0n · August 17, 2011

use the first DSDT and patched AppleHda

http://www.projectosx.com/forum/index.php?showtopic=465

remove VoodooHda and AppleHdaDisabler

remove too...

EvOreboot

VoodooTSCSync?

bci24sg22 · August 23, 2011

Good news and bad news.

The good news are that i purchased a retail copy of Snow Leopard 10.6.3 RETAIL , upgraded to 10.6.8 then buy it from AppStore Lion and installed, upgraded to 10.7.1 and the webcam is recognized and boot faster than Snow Leopard. :unsure:

Until now i used iAtkos S3 (10.6.3)

The bad news are that the sleep stil not working and the sound the same.

I have read that thread and i am not able to make the binpatch of AppleHDA.

Anyway may codec id is: IDT 92HD75B2X5 and i have found a patched AppleHDA here for IDT 92HD75B3X5. I Don't think it's a big difference.

He use this code in dsdt.aml fro sound:

 </font></font>Device (HDEF)
			{
				Name (_ADR, 0x001B0000)
				Method (_DSM, 4, NotSerialized)
				{
					Store (Package (0x14)
						{
							"codec-id",
							Buffer (0x04)
							{
								0x03, 0x76, 0x1D, 0x11
							},

							"built-in",
							Buffer (One)
							{
								0x00
							},

							"subsystem-id",
							Buffer (0x04)
							{
								0x3E, 0x36, 0x00, 0x00
							},

							"subsystem-vendor-id",
							Buffer (0x04)
							{
								0x3C, 0x10, 0x00, 0x00
							},

							"layout-id",
							Buffer (0x04)
							{
								0xB3, 0x1D, 0x00, 0x00
							},

							"model",
							Buffer (0x0F)
							{
								"ITD 92HD75B3X5"
							},

							"AAPL,slot-name",
							Buffer (0x06)
							{
								"PCI-0"
							},

							"device_type",
							Buffer (0x06)
							{
								"Sound"
							},

							"PinConfigurations",
							Buffer (Zero) {},
							"hda-gfx",
							Buffer (0x0A)
							{
								"onboard-1"
							}
						}, Local0)
					DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
					Return (Local0)
				}
<font color="#000080"><font color="#000000">

I would like to test to see if it's working but i am not sure how to patch my dsdt.aml

Can you help me please to test this kext?

I try that AppleHDA.kext with the first dsdt.aml that you send me but it's not working (No Sound).

dsdt.aml Compaq CQ61-125EQ

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
