DSDT Help needed 2630qm/HD3000 EasyNote TS

[Yosh76]

Hi,



just got my new Notebook. Selected the Hardware as much compatible as possible



Got a Packard Bell Easy Note TS with

Intel Core i7 - 2630qm

integrated HD3000 (0x0116)

Wireless Atheros AR5b97

640Gbyte HDD & 4Gbyte of Ram





It´s my fourth hackintosh build - but I am stuck in booting with working DSDT.aml.



The Problem is, that my system is only coming up in safe mode with -x and arch=i386.

Actually tried a lot of boot loaders. At this moment I am using Chameleon RC5 latest branch (1253).

I also tried to fix the DSDT.aml by using DSDTSE without success.



Booting stops after DMOS has arrived and HD3000 tries to start in standard mode (not safe).

Hopefully someone can help me with the DSDT. I think the DSDT is wrong for the HD3000?



Thanks a lot!



cheers,

yosh76

send_me.zip

[MaLd0n]

try it

dsdt.Yosh76.zip

[Yosh76]

Woooow! That was fast!!!



Thanks a lot!

Grafik in native solution is there...

Yippieh



Do you have any idea how to get the Function Keys, Speed Step and Sleep Working?

Closing the lid brings the notebook now to sleep - but wake up does not work.

Function Keys also not working...



Nice work!!

regards,

yosh76

[MaLd0n]

look it

http://www.insanelymac.com/forum/index.php?showtopic=258611



remove EvOreboot, NullCPUPowerManagement

[Yosh76]

Hi,



thanks a lot! Sleep, Wake Up, HD3000, native with Acceleration works perfect! :D :D



Ethernet and Wireless also working by injecting the correct device ID in kexts.

Battery is recognized (also if removed) :-) No Status icon / (0%) is given.



My final Problems (possibly to solve by DSDT.aml?) are:



ALC271x (8086:1c20) is not recognized. Getting failed to load



ug  3 16:09:48 localhost kernel[0]: Kext com.apple.driver.AudioAUUC - library kext com.apple.iokit.IOGraphicsFamily not found.
Aug  3 16:09:48 localhost kernel[0]: Can't load kext com.apple.driver.AudioAUUC - failed to resolve library dependencies.
Aug  3 16:09:48 localhost kernel[0]: Kext com.apple.driver.AudioAUUC failed to load (0xdc00800e).
Aug  3 16:09:48 localhost kernel[0]: Failed to load kext com.apple.driver.AudioAUUC (error 0xdc00800e).
Aug  3 16:09:48 localhost kernel[0]: Couldn't alloc class "AudioAUUCDriver"



... but Kext is there, Rights repaired, new mkext builded



USB 3.0 Renesas/ NEC is not recognized (1033:0194)



No working touchpad/keyboard for now (trying to fix that with kexts)



Seems to be on the right way to have a full working mac.



MaLd0n - thanks for your fantastic support!!!

If finished, I will write a guide cause the notebook is available for 490 Euro in stores at this moment



cheers,

yosh76

[Yosh76]

Update:

Just got my Keyboard and Mouse working with modified ApplePS2.Kext and AppleACPIP2.kext.



Tried all available kexts, I found - but my Touchpad is recognized as mouse.



kernel log:

Unable to detect alps
ApplePS2Touchpad: Synaptics capabilities query result 0x00, 0x02, 0x64.
No interval found for . Using 8000000

[/code]



I think it has probably something to do with the query result and this DSDT.aml section.

PNP0F13 s recognized correctly inside the AppeACPIPS2.kext - Info.Plist. So I got the mouse working.

But I need a different compatible Type for the EISAID:

EisaId ("SYN1B00"),
EisaId ("SYN0002"),

Could this be the problem?




Name (_HID, EisaId ("PNP0F13"))
				Name (_CID, Package (0x02)
				{
					EisaId ("ETD0500"),
										})
				Method (_STA, 0, NotSerialized)
				{
					If (LEqual (And (TPAD, One), One))
					{
						Return (Zero)
					}
					Else
					{
						Return (0x0F)
					}
				}

				Name (_CRS, ResourceTemplate ()
				{
					IRQ (Edge, ActiveHigh, Exclusive, )
						{12}
				})
			}

			Device (MSS0)
			{
				Name (_HID, EisaId ("SYN1B16"))
				Name (_CID, Package (0x03)
				{
					EisaId ("SYN1B00"),
					EisaId ("SYN0002"),
					EisaId ("PNP0F13")
				})
				Method (_STA, 0, NotSerialized)
				{
					If (LEqual (And (TPAD, One), One))
					{
						Return (0x0F)
					}
					Else
					{
						Return (Zero)
					}
				}

				Name (_CRS, ResourceTemplate ()
				{
					IRQ (Edge, ActiveHigh, Exclusive, )
						{12}
				})
			}



Hopefully there is somebody out there, who has an Idea, how to solve that problem...

Thanks a lot,

cheers yosh76

[Yosh76]

Hi,



does nobody has an Idea which changes have to be applied on the dsdt.aml to fix the issue with the trackpad?



thanks a lot!

yosh76

[MaLd0n]

I have no idea

I hope someone can help you

[dawilliams660]

I have an HP Pavillion dv7-6b77dx with HD3000 (dev id 0116) graphics. But, I've tried most everything and still am stuck at 1024x768 with no QE/CI and dark lines on the screen.

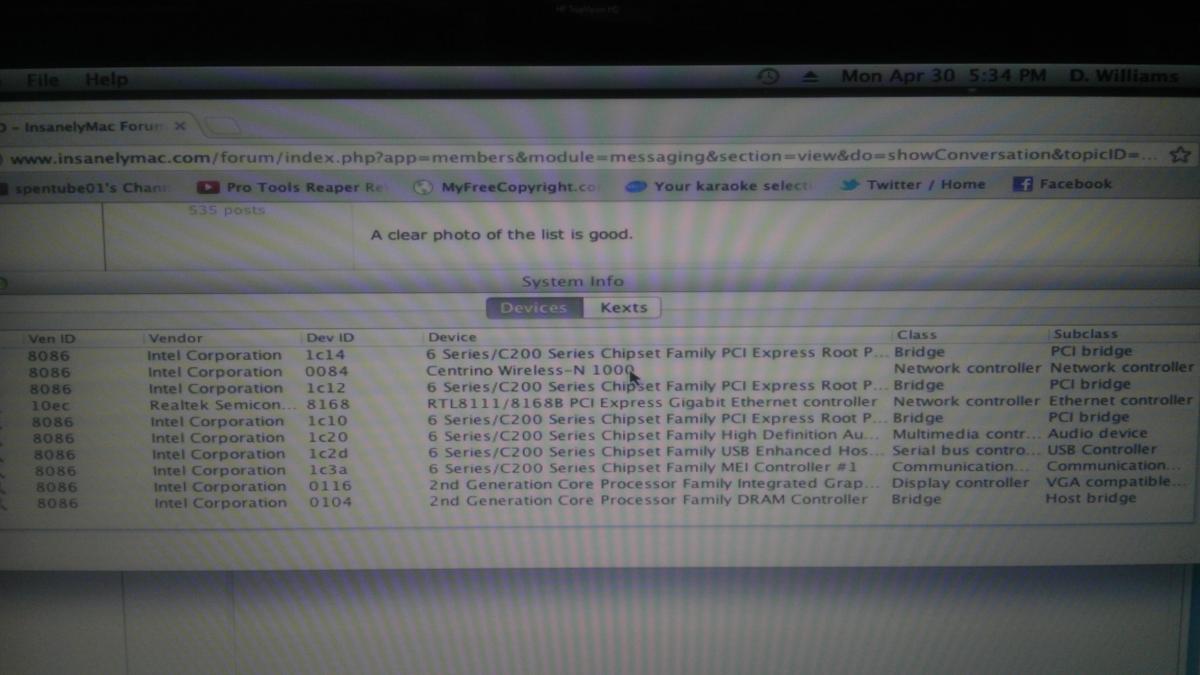

My internal hardware list is here:



I'm running 10.7.3 installed using an install partition. My bootloader is Chimera 1.9.1. I boot using busratio=20 arch=i386 GraphicsEnabler=Yes all set in my org.chameleon.Boot.plist. I am not running with a dsdt.aml. I have 3 partitions: Snow Leopard, Lion and the BaseSystem install partition



The smbios.plist is MacBookPro8,1 and without success, I've tried changing AppleIntelHD kexts from:







http://www.insanelym...howtopic=276668

http://www.osx86.net...do=file&id=2458

http://www.osx86.net...do=file&id=2187







I've reinstalled Lion and still have video problems.



Please help me get correct resolutions and QE/CI.



Thanks

[Guest alan.ocs]

try it

dsdt.Yosh76.zip



Maldon, I'm having the same problem Yosh79 with Intel HD 3000. could please help me?



Lion 10.7.4 / Chimera 1.10

Core i5-2410m 2.3Ghz Sandy Bridge

8GB Memoria DDR3 1333

Adaptador gráfico Intel® HD Graphics Family / Intel® HD Graphics 3000

Resolução máxima 1366 x 768

Realtek ALC269 High Definition Audio

Controladora IDE Intel® Mobile Express Chipset SATA AHCI Controller

Adaptador de Rede Atheros AR8151 PCI-E Gigabit Ethernet Controller

Adaptador de Rede Atheros AR9285 Wireless Network Adapter

Controladora USB2 Intel Cougar Point PCH - USB EHCI

Versão da BIOS - DMI K43E.209

HD SSD OCZ 128GB



send_me.zip







If possible, could you help me with the Audio and HDMI too?



Thank you ...
